UM1932
User manual
Discovery kit with STM32F469NI MCU
Introduction
The STM32F469 Discovery kit (32F469IDISCOVERY) is a complete demonstration and
®
®
development platform for the STMicroelectronics Arm
Cortex
-M4 core-based
STM32F469NIH6 microcontroller with Chrom-ART Accelerator. This microcontroller
2
2
features three I
C interfaces, six SPIs with two multiplexed full-duplex I
S interfaces, SDIO,
four USART ports, four UART ports, two CAN buses, three 12-bit ADCs, two 12-bit DACs,
one SAI, 8 to 14-bit digital camera digital module interface, internal 320+4 Kbytes of SRAM
and 2-Mbyte flash memory, USB HS OTG and USB FS OTG, Ethernet MAC, FMC interface,
®
MIPI DSI
interface, Quad-SPI interface, JTAG debugging support. This Discovery kit offers
everything required for the users to get started quickly and develop applications easily.
The hardware features on the board help the users to evaluate the following peripherals:
USB OTG FS, microSD™ card, audio DAC with headset jack, digital microphones, SDRAM,
®
Quad-SPI flash memory, 4" TFT LCD using MIPI DSI
interface with capacitive touch panel.
®
The ARDUINO
compatible connectors expand the functionality with a wide choice of
specialized shields. The extension header makes it possible to easily connect a
daughterboard for specific application. The integrated ST-LINK/V2-1 provides an embedded
in-circuit debugger and programmer for the STM32 microcontroller.

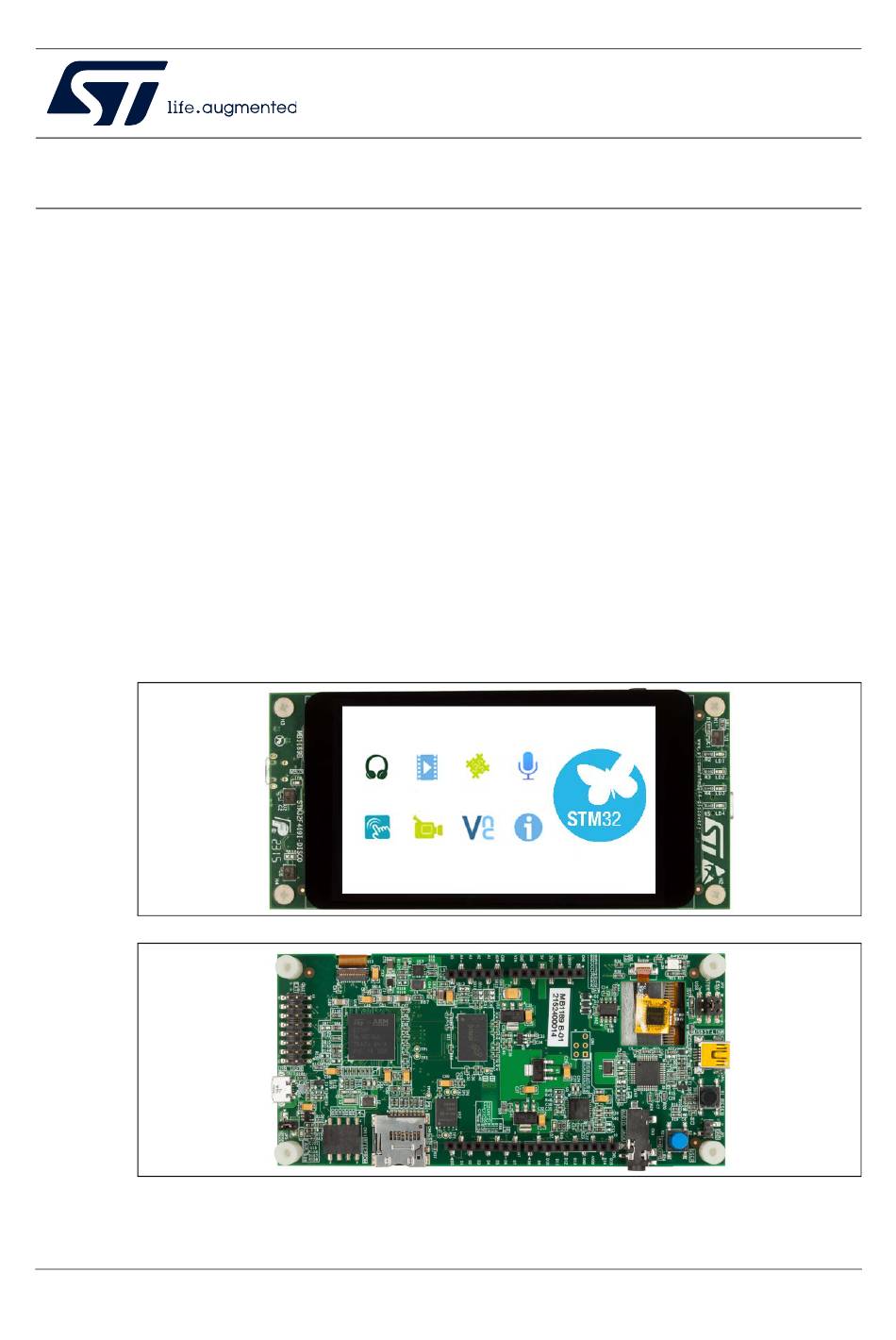

Figure 1. 32F469IDISCOVERY board (top view)

Figure 2. 32F469IDISCOVERY board (bottom view)

Pictures are not contractual.
March 2022
UM1932 Rev 4
1/31
www.st.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM1932 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST UM1932

  • Page 1: Figure 1. 32F469Idiscovery Board (Top View)

    The extension header makes it possible to easily connect a daughterboard for specific application. The integrated ST-LINK/V2-1 provides an embedded in-circuit debugger and programmer for the STM32 microcontroller.
  • Page 2: Table Of Contents

    Embedded ST-LINK/V2-1 ........11...
  • Page 3 CN9 ........23 4.19 ST-LINK/V2-1 USB Mini-B connector CN1 ......24 4.20 Audio jack CN3 .
  • Page 4 Document revision history ..........30 4/31 UM1932 Rev 4...
  • Page 5 Mechanical dimensions in millimeter ......... 25 UM1932 Rev 4...
  • Page 6: Features

    Comprehensive free software libraries and examples available with the STM32Cube MCU Package • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port • Support of a wide choice of Integrated Development Environments (IDEs) including ®...
  • Page 7: Ordering Information

    Linus Torvalds. ® b. macOS is a trademark of Apple Inc. registered in the U.S. and other countries. c. All other trademarks are the property of their respective owners. ® d. On Windows only. UM1932 Rev 4 7/31...
  • Page 8: Hardware Layout And Configuration

    Figure 3 illustrates the connection between the STM32F469NIH6 and the peripherals (SDRAM, Quad-SPI flash memory, color LCD, USB OTG connector, audio, C extension connector, microSD™ card, and embedded ST-LINK). Figure 4: 32F469IDISCOVERY top side layout Figure 5: 32F469IDISCOVERY bottom side layout help to locate these features on the actual Discovery board.
  • Page 9: Figure 4. 32F469Idiscovery Top Side Layout

    Figure 4. 32F469IDISCOVERY top side layout Green, orange, red, blue LEDs Digital microphone (U1) (LD1, LD2, LD3, LD4 respectively) Solder bridge (SB17) 4" DSI LCD (ZZ1) LED (LD8) Digital microphone (U6) Digital microphone (U2) Solder bridge (SB18) MSv38596V3 UM1932 Rev 4 9/31...
  • Page 10: Figure 5. 32F469Idiscovery Bottom Side Layout

    (CN5) ® ARDUINO connector (CN6) ® ARDUINO connector ® ARDUINO connector (CN7) (CN8) microSD™ card (CN9) STM32F469NIH6 (U14) C extension connector (CN11) current measurement jumper (JP5) Extension connector (CN12) USB OTG FS connector (CN13) MSv38597V3 10/31 UM1932 Rev 4...
  • Page 11: Embedded St-Link/V2-1

    USB power management request for more than 100 mA power on USB This feature is no more supported on ST-LINK/V2-1: • SWIM interface For all general information concerning debugging and programming features common between V2 and V2-1 please refer to ST-LINK/V2 user manual (UM1075) and technical note (TN1235). 4.1.1 Drivers ®...
  • Page 12: Power Supply

    32F469IDISCOVERY board via a USB cable to the ST-LINK/V2-1 connector. In the first step, only the ST-LINK part U3 is powered by the PC. In fact, before USB enumeration, the host PC provides only 100 mA to the board at that time. The 32F469IDISCOVERY board requests a 500 mA power to the host PC.
  • Page 13: Measurement Of Current Idd Drawn By The Stm32F469Ni

    The 32F469IDISCOVERY board can also be supplied from a USB power source not supporting enumeration, such as a USB charger. In this particular case, the solder bridge SB16 must be closed. ST-LINK/V2-1 turns the ST890 power switch U4 ON regardless of enumeration procedure result and passes the power unconditionally to the board.
  • Page 14: Clock Source

    It is possible to replace the crystal X2 by the 8 MHz output MCO from the circuit ST-LINK/V2-1 U3. In that case, 100-ohm resistor R35 must be soldered, zero-ohm R131 must be removed, solder bridge SB19 must be closed. C26 is not necessary and remains not populated.
  • Page 15: Audio Outputs

    The 32F469IDISCOVERY Discovery board can be powered by the 5 V DC of this USB OTG FS connection. When the 32F469IDISCOVERY is USB host, it supplies the USB peripheral. In this case the board must be supplied by any of the following sources: ST-LINK/V2-1 USB ®...
  • Page 16: Microsd™ Card

    The serial interface USART3 is directly available as a virtual COM port of the PC connected to the ST-LINK/V2-1 USB connector CN1. The virtual COM port settings are configured as: 115200 b/s, 8 bits data, no parity, 1 stop bit, no flow control.
  • Page 17: Table 5. Arduino ® Compatible Connectors

    Table 5. ARDUINO compatible connectors Function MCU Pin Pin name Connector RIGHT connectors I2C1_SCL I2C1_SDA AVDD AVDD Ground SPI2_SCK CN5 Digital SPI2_MISO PB14 TIM12_CH2, SPI2_MOSI PB15 TIM12_CH1, SPI2_CS TIM14_CH1 PG10 PG11 TIM3_CH1 TIM5_CH3 CN7 Digital PG12 TIM5_CH2 UM1932 Rev 4 17/31...
  • Page 18: Extension Connector Cn12

    2 ADC inputs • A 1W monophonic loudspeaker output • System signals: NRST, MCO1, ANTI-TAMP1 • Power supply: +3V3, GND The STM32F469NIH6 ports and extension connector pins numbers are detailed in the following Table 6: Extension connector pinout: 18/31 UM1932 Rev 4...
  • Page 19 Table 6. Extension connector pinout Extension connector MCU Port NRST PB13 PA15 PB12 PC13 CAN2 USART6 I2S2 SPI1 MOSI TIM3/TI TIM3/ TIM2_ TIM1_ TIM3_ TIM1_ TIM1_ TIMER MISO TIM8_ CH1/2 CH1N BKIN _ETR ADC1/AD ADC123 C2_IN5 _IN11 ANTI Speaker Speaker SYSTEM +3V3 MCO1 NRST...
  • Page 20: Dsi Lcd

    Reset, active low IOVCC Digital supply voltage +3V3 Ground HSSI_D0_N MIPI-DSI data lane 0 negative-end I/O DSI_D0_N Not connect HSSI_D0_P MIPI-DSI data lane 0 positive-end I/O DSI_D0_P Ground HSSI_CLK_N MIPI-DSI clock lane negative-end input DSI_CK_N Not connect 20/31 UM1932 Rev 4...
  • Page 21: Buttons And Leds

    To light a LED a low logic state 0 should be written in the corresponding GPIO.Table 8 gives the assignment of control ports to the LED indicators. Table 8. Port assignment for control of LED indicators Controlled by MCU port Color Green Orange Blue UM1932 Rev 4 21/31...
  • Page 22: C Extension Connector Cn11

    USB OTG FS Micro-AB connector CN13 Figure 9. USB OTG FS Micro-AB connector CN13 (front view) Table 10. USB OTG FS Micro-AB connector CN13 Pin number Description Pin number Description VBUS (PA9) ID (PA10) DM (PA11) DP (PA12) 22/31 UM1932 Rev 4...
  • Page 23: Microsd™ Connector Cn9

    Hardware layout and configuration 4.18 microSD™ connector CN9 Figure 10. microSD™ connector CN9 (front view) Table 11. microSD™ connector CN9 Description Description number number SDIO_D2 (PC10) SDIO_D3 (PC11) SDIO_D0 (PC8) SDIO_CMD (PD2) SDIO_D1 (PC9) +3.3V SDIO_CLK (PC12) MicroSDcard_detect (PG2) UM1932 Rev 4 23/31...
  • Page 24: St-Link/V2-1 Usb Mini-B Connector Cn1

    Hardware layout and configuration UM1932 4.19 ST-LINK/V2-1 USB Mini-B connector CN1 The USB connector CN1 is used to connect the embedded ST-LINK/V2-1 to the PC. Figure 11. USB Mini-B connector CN1 (front view) Table 12. USB Mini-B connector CN1 Pin number...
  • Page 25: Mechanical Dimensions

    UM1932 Mechanical dimensions Mechanical dimensions Figure 12. Mechanical dimensions in millimeter UM1932 Rev 4 25/31...
  • Page 26: 32F469Idiscovery Discovery Kit Information

    Any consequences deriving from such usage will not be at ST charge. In no event, ST will be liable for any customer usage of these engineering sample tools as reference design or in production.
  • Page 27: Product Identification Dk32F469I$Au2

    Board MB1189 revision B-08 limitations No limitation identified for this board revision. 6.4.3 Board MB1189 revision C-01 limitations No demonstration software is provided from this revision. a. Altium Designer is a registered trademark of Altium LLC or its affiliated companies. UM1932 Rev 4 27/31...
  • Page 28: Federal Communications Commission (Fcc) And Industry Canada (Ic) Compliance

    Americas Region Legal | Group Vice President and Regional Legal Counsel, The Americas STMicroelectronics, Inc. 750 Canyon Drive | Suite 300 | Coppell, Texas 75019 Telephone: +1 972-466-7845 IC Compliance Statement Industry Canada ICES-003 Compliance Label: CAN ICES-3 (B)/NMB-3(B) 28/31 UM1932 Rev 4...
  • Page 29: Ce Conformity

    Warning: this device is compliant with Class B of EN55032 / CISPR32. In a residential environment, this equipment may cause radio interference. Avertissement : cet équipement est conforme à la Classe B de la EN55032 / CISPR 32. Dans un environnement résidentiel, cet équipement peut créer des interférences radio. UM1932 Rev 4 29/31...
  • Page 30: Revision History

    31-Mar-2022 Section 3.2: Development toolchains. Updated Figure 3: Hardware block diagram, Figure 4: 32F469IDISCOVERY top side layout, Figure 5: 32F469IDISCOVERY bottom side layout, and Section 4.14: LCD. ® Removed the references to Arm Mbed™. 30/31 UM1932 Rev 4...
