Analog-to-digital converter (ADC)

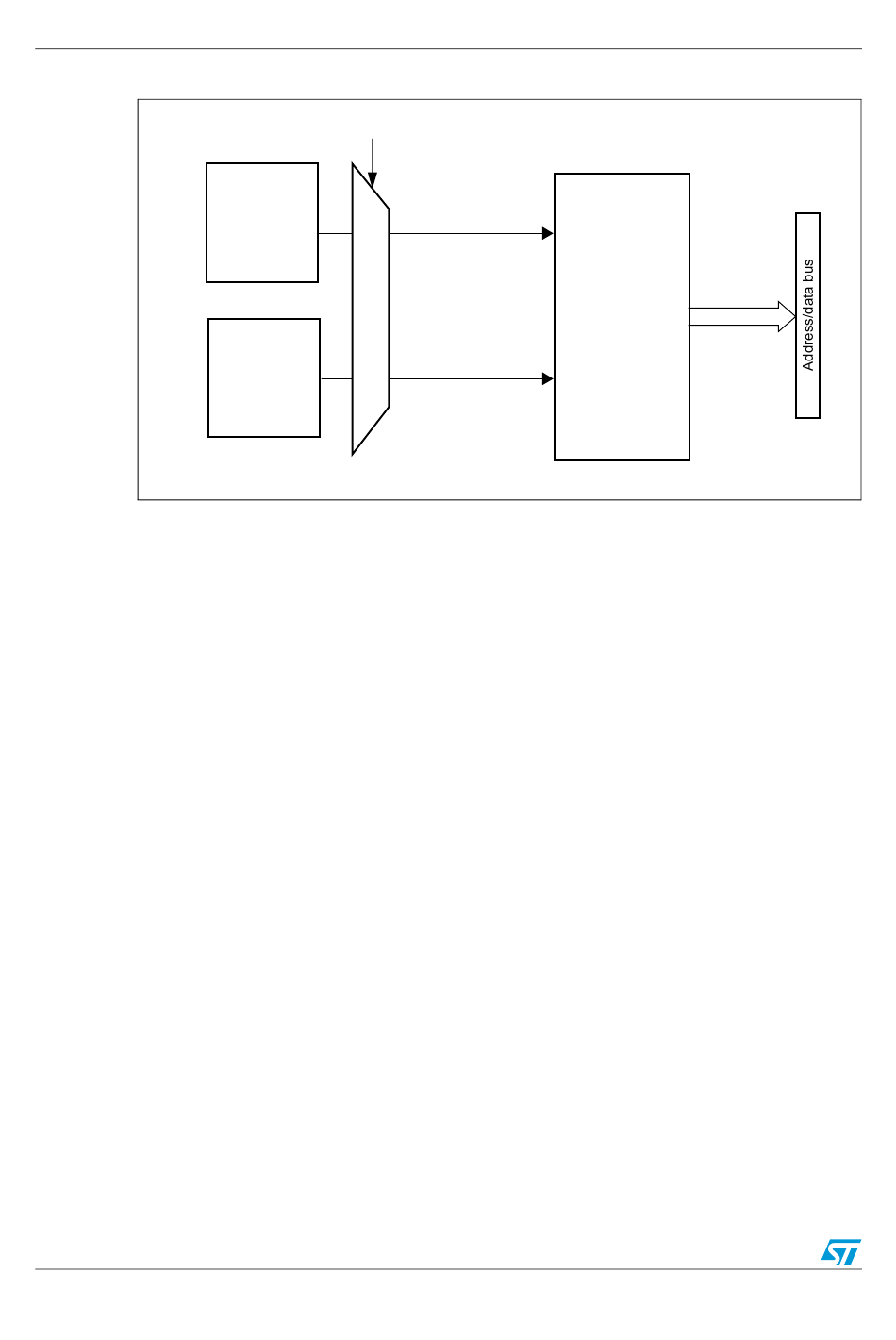

Figure 53. Temperature sensor and V
1. V
SENSE
STM23F42x and STM32F43x devices.
Reading the temperature
To use the sensor:
3. Select ADC1_IN16 or ADC1_IN18 input channel.
4. Select a sampling time greater than the minimum sampling time specified in the
datasheet.
5. Set the TSVREFE bit in the ADC_CCR register to wake up the temperature sensor
from power down mode
6. Start the ADC conversion by setting the SWSTART bit (or by external trigger)
7. Read the resulting V
8. Calculate the temperature using the following formula:
–
–
Refer to the datasheet's electrical characteristics section for the actual values of V
and Avg_Slope.
Note: The sensor has a startup time after waking from power down mode before it can output
V at the correct level. The ADC also has a startup time after power-on, so to minimize
SENSE
the delay, the ADON and TSVREFE bits should be set at the same time.
The temperature sensor output voltage changes linearly with temperature. The offset of this
linear function depends on each chip due to process variation (up to 45 °C from one chip to
another).
