LSB justified standard
This standard is similar to the MSB justified standard (no difference for the 16-bit and 32-bit
full-accuracy frame formats).

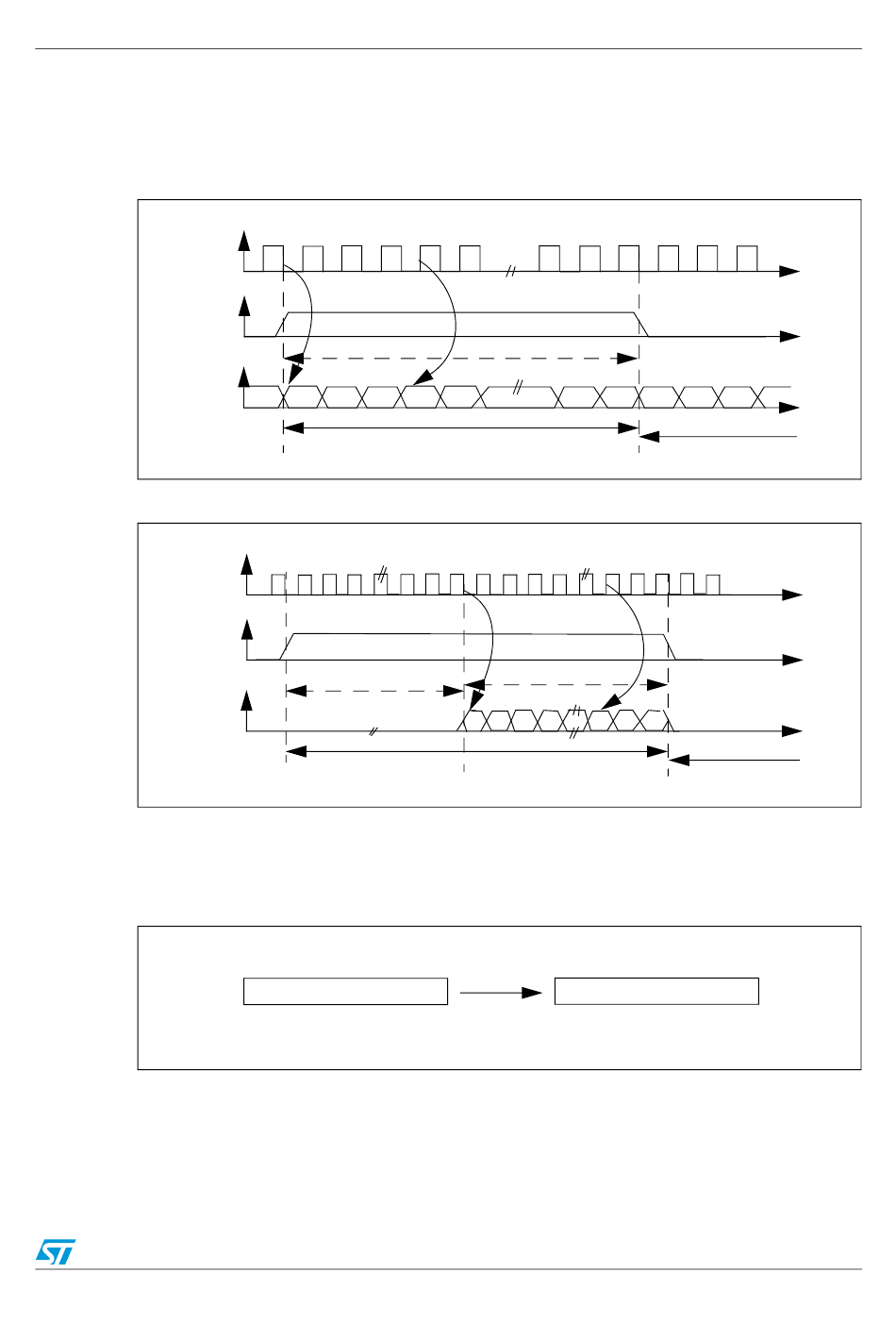

Figure 298. LSB justified 16-bit or 32-bit full-accuracy with CPOL = 0

CK
WS
SD

Figure 299. LSB Justified 24-bit frame length with CPOL = 0

CK
WS
SD
●
In transmission mode:
If data 0x3478AE have to be transmitted, two write operations to the SPI_DR register
are required from software or by DMA. The operations are shown below.

Figure 300. Operations required to transmit 0x3478AE

●
In reception mode:
If data 0x3478AE are received, two successive read operations from SPI_DR are
required on each RXNE event.
Transmission
May be 16-bit, 32-bit
MSB
Channel left
8-bit data
0 forced
Channel left 32-bit
First write to Data register
conditioned by TXE = '1'
0xXX34
Only the 8 LSB bits of the half-word
are significant. Whatever the 8 MSBs
a field of 0x00 is forced instead
