DMA controller (DMA)

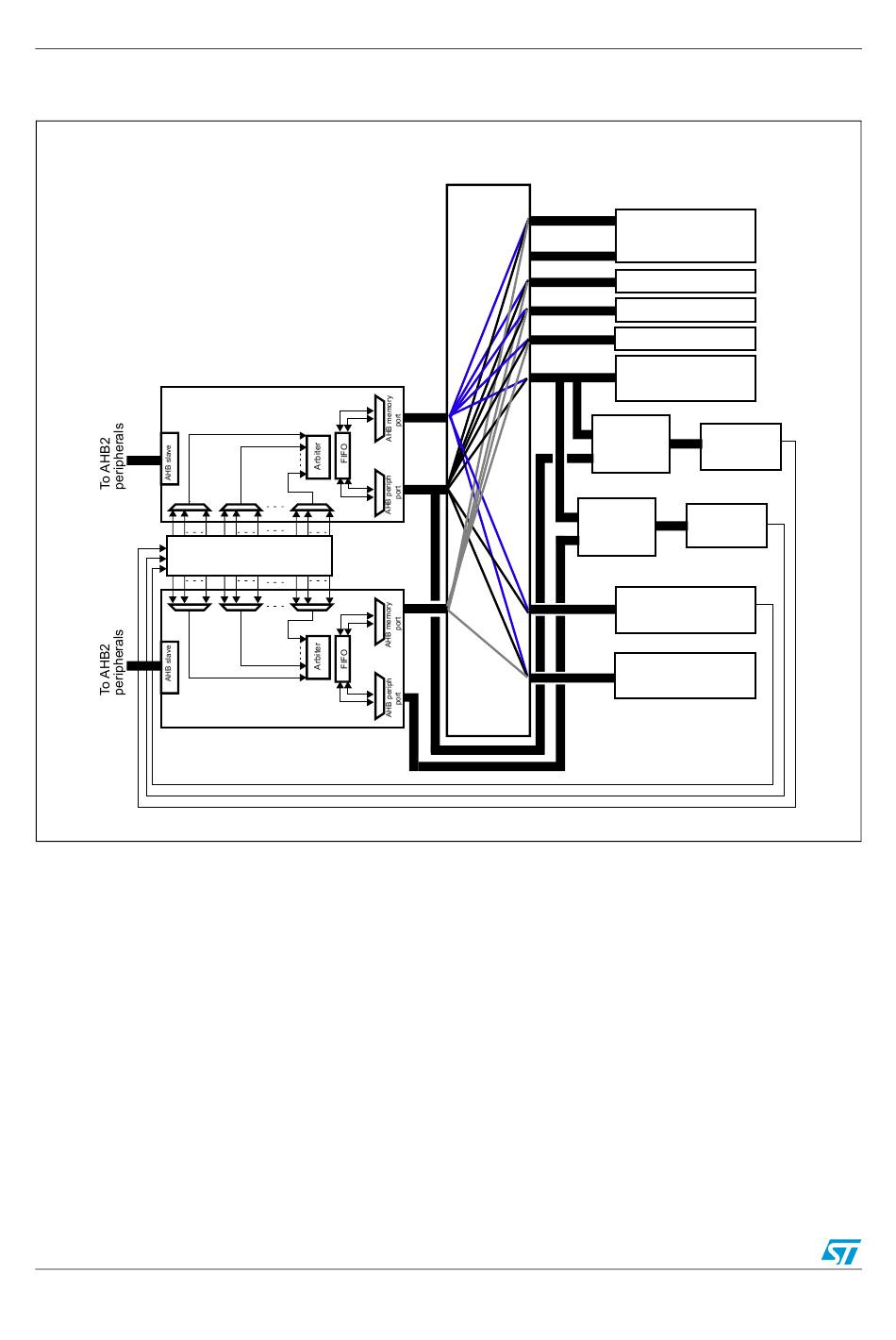

Figure 26. System implementation of the two DMA controllers (STM32F42xxx and
STM32F43xxx)
DMA controller 2
DMA controller 1
1. The DMA1 controller AHB peripheral port is not connected to the bus matrix like in the case of the DMA2 controller, thus
only DMA2 streams are able to perform memory-to-memory transfers.
9.3.2

DMA transactions

A DMA transaction consists of a sequence of a given number of data transfers. The number
of data items to be transferred and their width (8-bit, 16-bit or 32-bit) are software-
programmable.
Each DMA transfer consists of three operations:
● A loading from the peripheral data register or a location in memory, addressed through
the DMA_SxPAR or DMA_SxM0AR register
●
A storage of the data loaded to the peripheral data register or a location in memory
addressed through the DMA_SxPAR or DMA_SxM0AR register
●
A post-decrement of the DMA_SxNDTR register, which contains the number of
transactions that still have to be performed
217/1422
