Figure 76. Counter Timing Diagram, Internal Clock Divided By 4; Figure 77. Counter Timing Diagram, Internal Clock Divided By N; Figure 78. Counter Timing Diagram, Update Event When Arpe=0 (Timx_Arr Not Preloaded) - ST STM32F40 Series Reference Manual

Advanced-control timers (TIM1&TIM8)

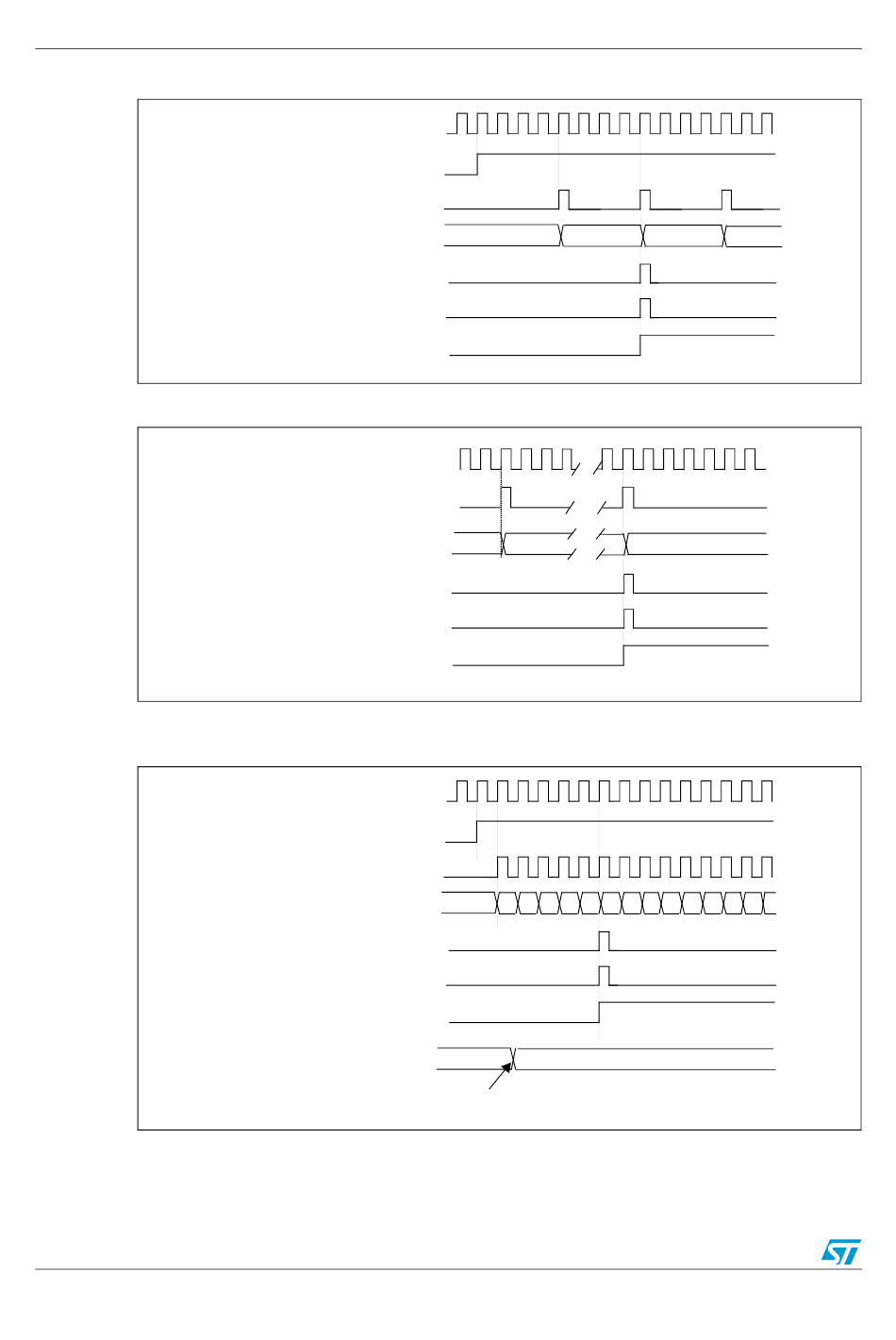

Figure 76. Counter timing diagram, internal clock divided by 4

Figure 77. Counter timing diagram, internal clock divided by N

Figure 78. Counter timing diagram, update event when ARPE=0 (TIMx_ARR not
359/1422
CK_PSC
CNT_EN
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
CK_PSC
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
preloaded)
CK_PSC
CEN
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
Auto-reload register
Write a new value in TIMx_ARR
