C 2: U
38
HAPTER SING THE
Selecting Menu
Options
Example - Changing a
Password
L M A
OCAL ANAGEMENT PPLICATION
CP7000 switch module - Main Menu:
(1) SYS: Platform config ->
(2) LEM: Lan Emulation ->
(3) CON: Connections ->
(4) STS: Statistics ->
(5) DIA: Testing & Diagnostics ->
(6) FTR: ATM features
(7) LOG: Logout
(8) VER: Version
(9) FST: Fast Setup CP7000 switch module - Platform config Menu:
[ '\' -Main, '-' -Back in menus]
[ '\' -Main,

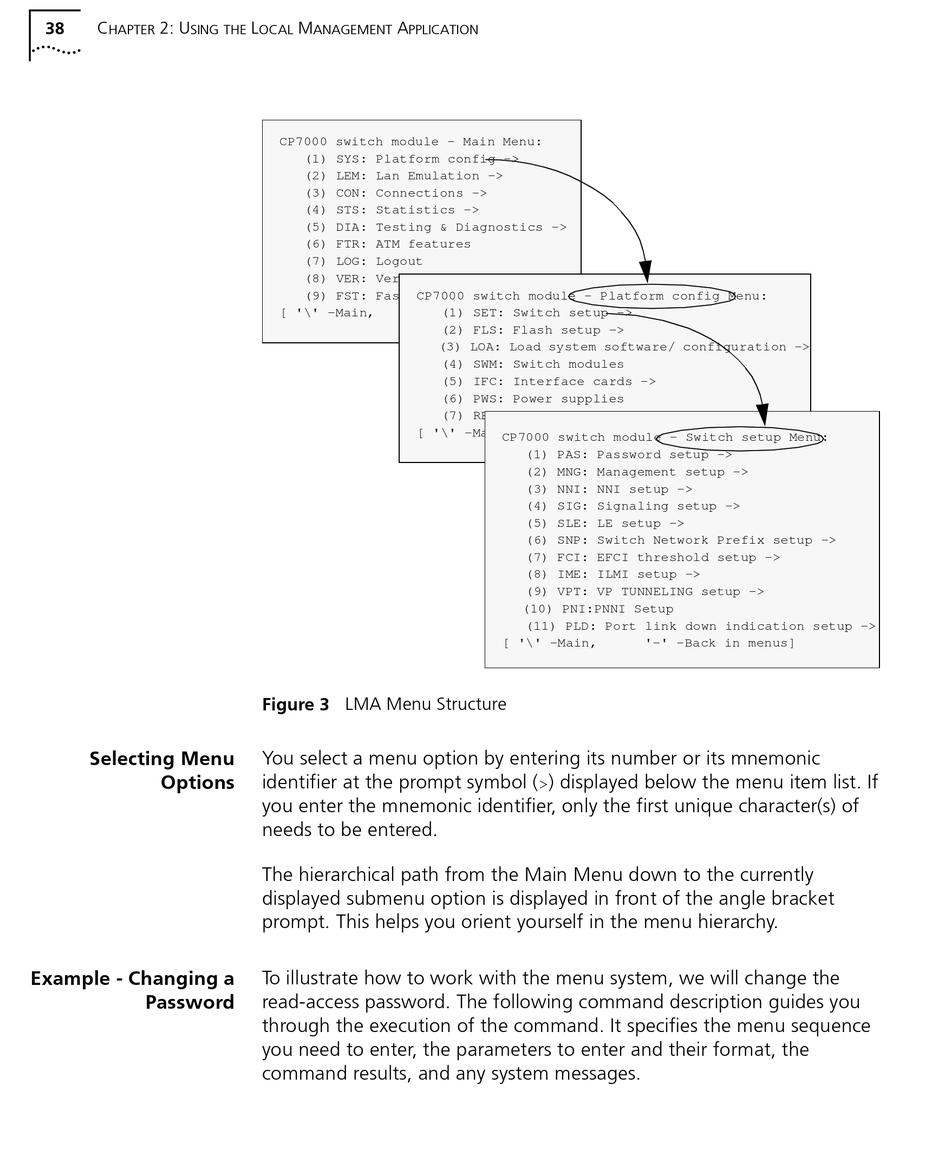

Figure 3 LMA Menu Structure
You select a menu option by entering its number or its mnemonic
identifier at the prompt symbol (
you enter the mnemonic identifier, only the first unique character(s) of
needs to be entered.
The hierarchical path from the Main Menu down to the currently
displayed submenu option is displayed in front of the angle bracket
prompt. This helps you orient yourself in the menu hierarchy.
To illustrate how to work with the menu system, we will change the
read-access password. The following command description guides you
through the execution of the command. It specifies the menu sequence
you need to enter, the parameters to enter and their format, the
command results, and any system messages.
(1) SET: Switch setup ->
(2) FLS: Flash setup ->
(3) LOA: Load system software/ configuration ->
(4) SWM: Switch modules
(5) IFC: Interface cards ->
(6) PWS: Power supplies
(7) RBO: Reboot
'-' -Back in menus]
CP7000 switch module - Switch setup Menu:
(1) PAS: Password setup ->
(2) MNG: Management setup ->
(3) NNI: NNI setup ->
(4) SIG: Signaling setup ->
(5) SLE: LE setup ->
(6) SNP: Switch Network Prefix setup ->
(7) FCI: EFCI threshold setup ->
(8) IME: ILMI setup ->
(9) VPT: VP TUNNELING setup ->
(10) PNI:PNNI Setup
(11) PLD: Port link down indication setup ->
[ '\' -Main,
) displayed below the menu item list. If
>
'-' -Back in menus]
