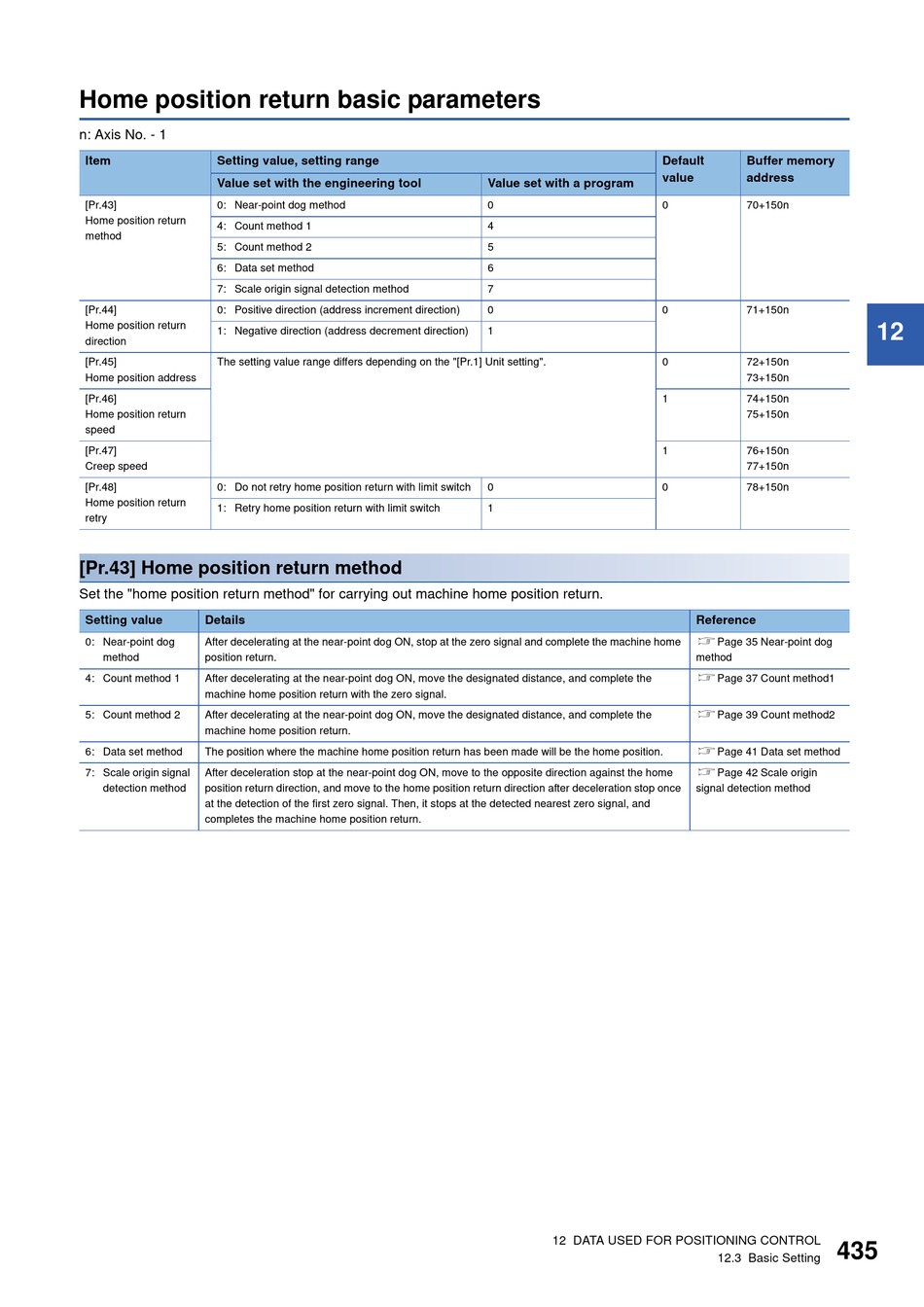

Home position return basic parameters

n: Axis No. - 1
Item
Setting value, setting range
Value set with the engineering tool
[Pr.43]
0: Near-point dog method
Home position return
4: Count method 1
method
5: Count method 2
6: Data set method
7: Scale origin signal detection method
[Pr.44]
0: Positive direction (address increment direction)
Home position return
1: Negative direction (address decrement direction)
direction
[Pr.45]
The setting value range differs depending on the "[Pr.1] Unit setting".
Home position address
[Pr.46]
Home position return
speed
[Pr.47]
Creep speed
[Pr.48]
0: Do not retry home position return with limit switch
Home position return
1: Retry home position return with limit switch
retry
[Pr.43] Home position return method
Set the "home position return method" for carrying out machine home position return.
Setting value
Details
0: Near-point dog
After decelerating at the near-point dog ON, stop at the zero signal and complete the machine home
method
position return.
4: Count method 1
After decelerating at the near-point dog ON, move the designated distance, and complete the
machine home position return with the zero signal.
5: Count method 2
After decelerating at the near-point dog ON, move the designated distance, and complete the
machine home position return.
6: Data set method
The position where the machine home position return has been made will be the home position.
7: Scale origin signal
After deceleration stop at the near-point dog ON, move to the opposite direction against the home
detection method
position return direction, and move to the home position return direction after deceleration stop once
at the detection of the first zero signal. Then, it stops at the detected nearest zero signal, and
completes the machine home position return.
Default
value
Value set with a program
0
0
4
5
6
7
0
0
1
0
1
1
0
0
1
12 DATA USED FOR POSITIONING CONTROL
Buffer memory
address
70+150n
71+150n
72+150n
73+150n
74+150n
75+150n
76+150n
77+150n
78+150n
Reference
Page 35 Near-point dog
method
Page 37 Count method1
Page 39 Count method2
Page 41 Data set method
Page 42 Scale origin
signal detection method
435
12.3 Basic Setting
