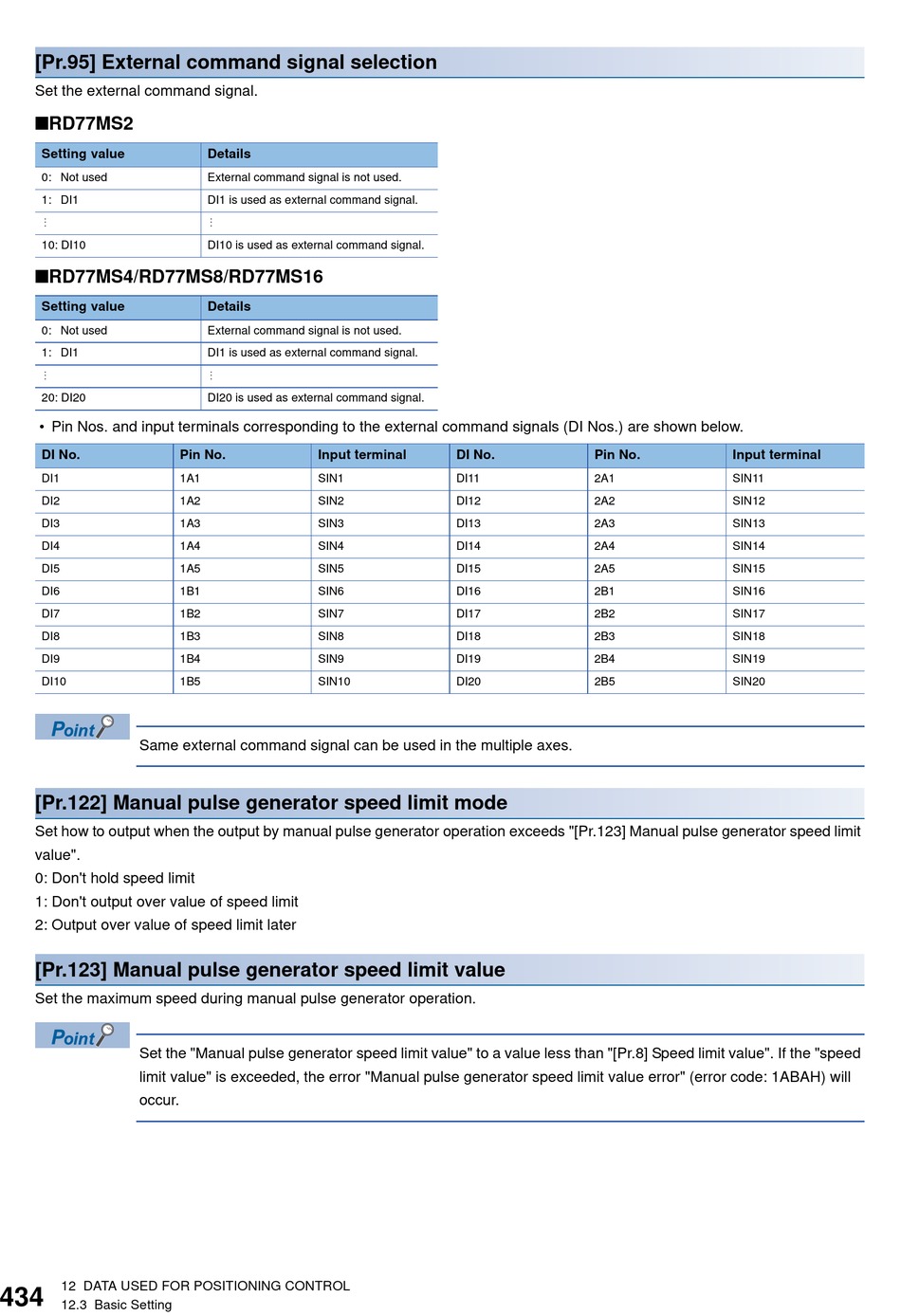

[Pr.95] External command signal selection
Set the external command signal.
■RD77MS2
Setting value
0: Not used
1: DI1
10: DI10
■RD77MS4/RD77MS8/RD77MS16
Setting value
0: Not used
1: DI1
20: DI20
• Pin Nos. and input terminals corresponding to the external command signals (DI Nos.) are shown below.
DI No.
Pin No.
DI1
1A1
DI2
1A2
DI3
1A3
DI4
1A4
DI5
1A5
DI6
1B1
DI7
1B2
DI8
1B3
DI9
1B4
DI10
1B5
Same external command signal can be used in the multiple axes.
[Pr.122] Manual pulse generator speed limit mode
Set how to output when the output by manual pulse generator operation exceeds "[Pr.123] Manual pulse generator speed limit
value".
0: Don't hold speed limit
1: Don't output over value of speed limit
2: Output over value of speed limit later
[Pr.123] Manual pulse generator speed limit value
Set the maximum speed during manual pulse generator operation.
Set the "Manual pulse generator speed limit value" to a value less than "[Pr.8] Speed limit value". If the "speed
limit value" is exceeded, the error "Manual pulse generator speed limit value error" (error code: 1ABAH) will
occur.
12 DATA USED FOR POSITIONING CONTROL
12.3 Basic Setting
Details
External command signal is not used.
DI1 is used as external command signal.
DI10 is used as external command signal.
Details
External command signal is not used.
DI1 is used as external command signal.
DI20 is used as external command signal.
Input terminal
SIN1
SIN2
SIN3
SIN4
SIN5
SIN6
SIN7
SIN8
SIN9
SIN10
DI No.
Pin No.
DI11
2A1
DI12
2A2
DI13
2A3
DI14
2A4
DI15
2A5
DI16
2B1
DI17
2B2
DI18
2B3
DI19
2B4
DI20
2B5
Input terminal
SIN11
SIN12
SIN13
SIN14
SIN15
SIN16
SIN17
SIN18
SIN19
SIN20
