Precautions during control
• If the movement amount designated by the positioning data is small when the continuous path control is executed, the
output speed may not reach the designated speed.
• The movement direction is not checked during interpolation operation. Therefore, a deceleration stops are not carried out
even if the movement direction changes. (See below) For this reason, the output will suddenly reverse when the reference
axis movement direction changes. To prevent the sudden output reversal, assign not the continuous path control "11", but
the continuous positioning control "01" to the positioning data of the passing point.

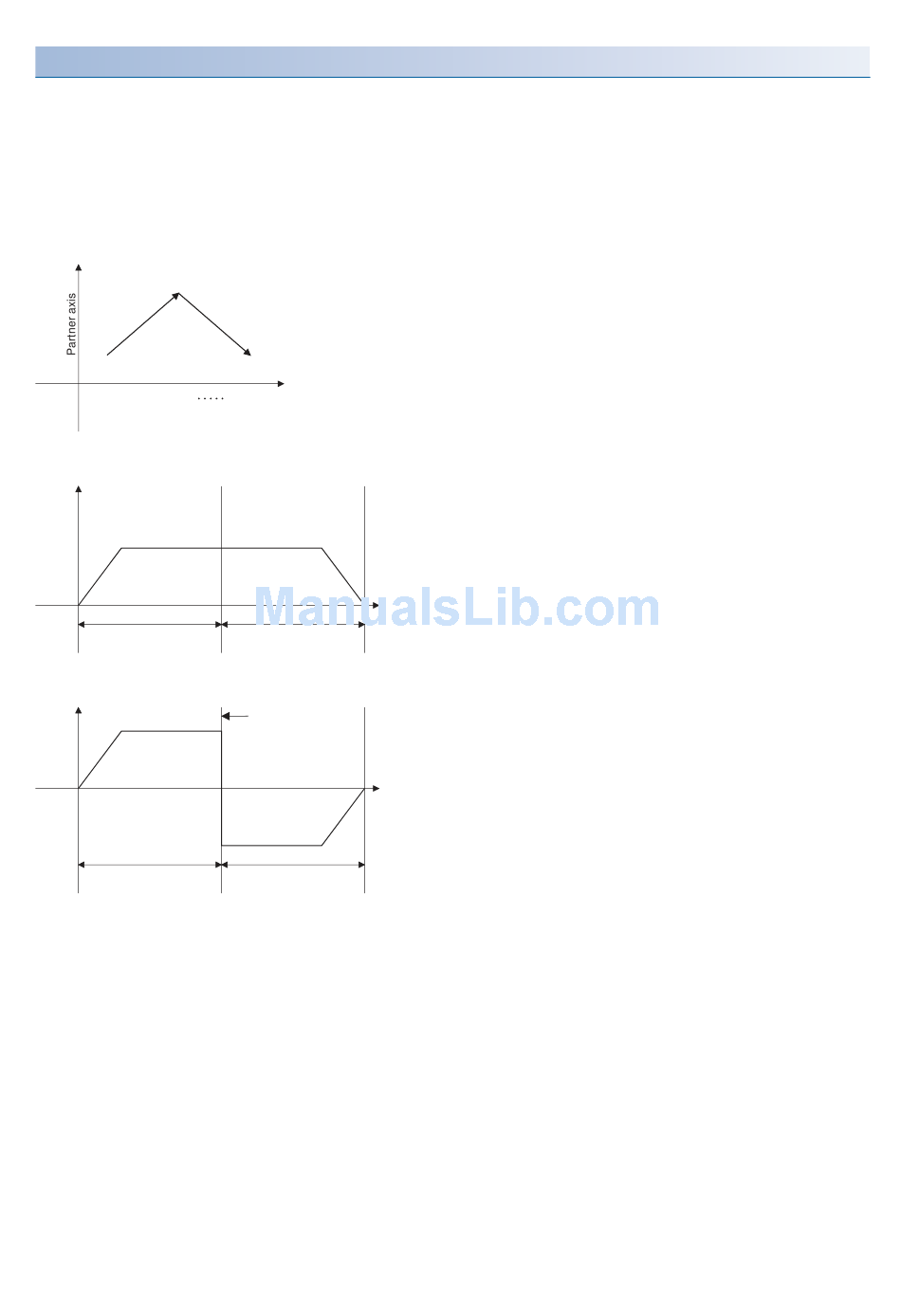

■Positioning by interpolation
Positioning
data No.1
Positioning data No.1
■Operation of reference axis
V
Positioning data No.1
■Operation of partner axis for interpolation
V
Positioning data No.1
8 CONTROL SUB FUNCTIONS
232
8.3 Functions for Compensating the Control
Positioning
data No.2
Reference axis
Continuous path control
Positioning data No.2
Suddenly reverse
direction
Positioning data No.2
t
t
