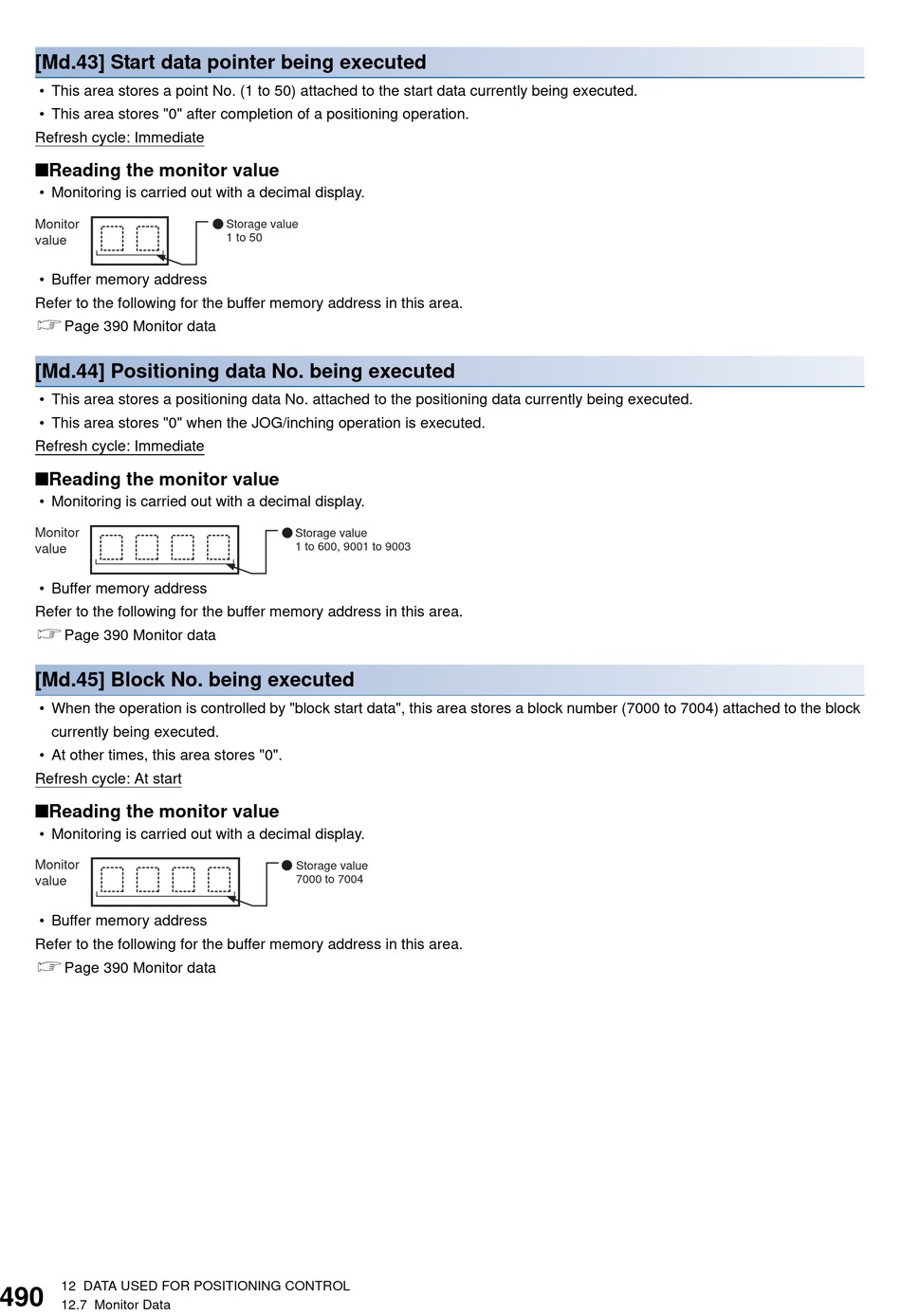

Mitsubishi Electric RD77MS2 User Manual page 492

[Md.43] Start data pointer being executed
• This area stores a point No. (1 to 50) attached to the start data currently being executed.
• This area stores "0" after completion of a positioning operation.
Refresh cycle: Immediate
■Reading the monitor value
• Monitoring is carried out with a decimal display.
Monitor
value
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
[Md.44] Positioning data No. being executed
• This area stores a positioning data No. attached to the positioning data currently being executed.
• This area stores "0" when the JOG/inching operation is executed.
Refresh cycle: Immediate
■Reading the monitor value
• Monitoring is carried out with a decimal display.
Monitor
value
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
[Md.45] Block No. being executed
• When the operation is controlled by "block start data", this area stores a block number (7000 to 7004) attached to the block
currently being executed.
• At other times, this area stores "0".
Refresh cycle: At start
■Reading the monitor value
• Monitoring is carried out with a decimal display.
Monitor
value
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
12 DATA USED FOR POSITIONING CONTROL
490
12.7 Monitor Data
Storage value
1 to 50
Storage value
1 to 600, 9001 to 9003
Storage value
7000 to 7004
