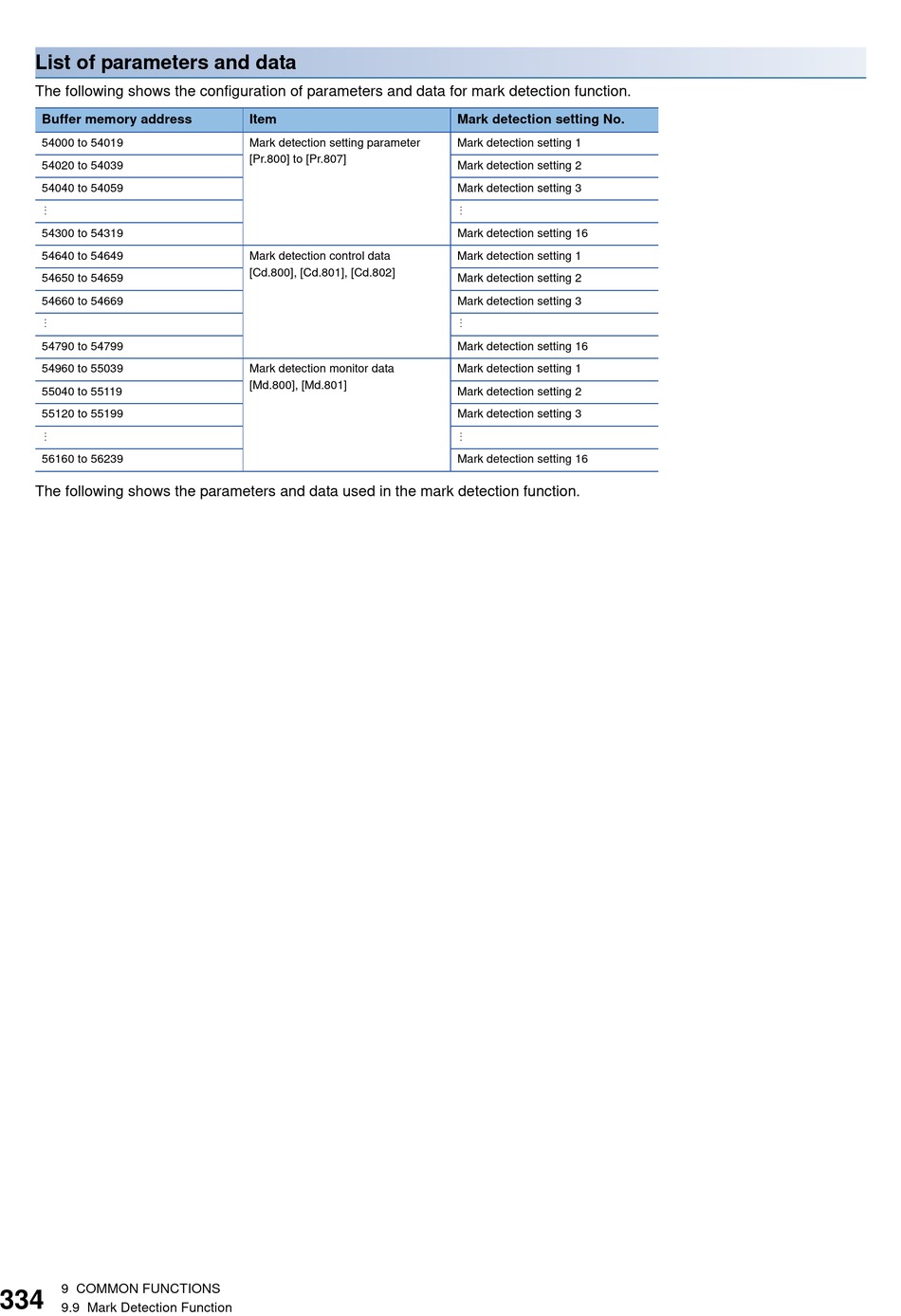

List of parameters and data
The following shows the configuration of parameters and data for mark detection function.
Buffer memory address
54000 to 54019
54020 to 54039
54040 to 54059
54300 to 54319
54640 to 54649
54650 to 54659
54660 to 54669
54790 to 54799
54960 to 55039
55040 to 55119
55120 to 55199
56160 to 56239
The following shows the parameters and data used in the mark detection function.
9 COMMON FUNCTIONS
9.9 Mark Detection Function
Item
Mark detection setting parameter
[Pr.800] to [Pr.807]
Mark detection control data
[Cd.800], [Cd.801], [Cd.802]
Mark detection monitor data
[Md.800], [Md.801]
Mark detection setting No.
Mark detection setting 1
Mark detection setting 2
Mark detection setting 3
Mark detection setting 16
Mark detection setting 1
Mark detection setting 2
Mark detection setting 3
Mark detection setting 16
Mark detection setting 1
Mark detection setting 2
Mark detection setting 3
Mark detection setting 16
