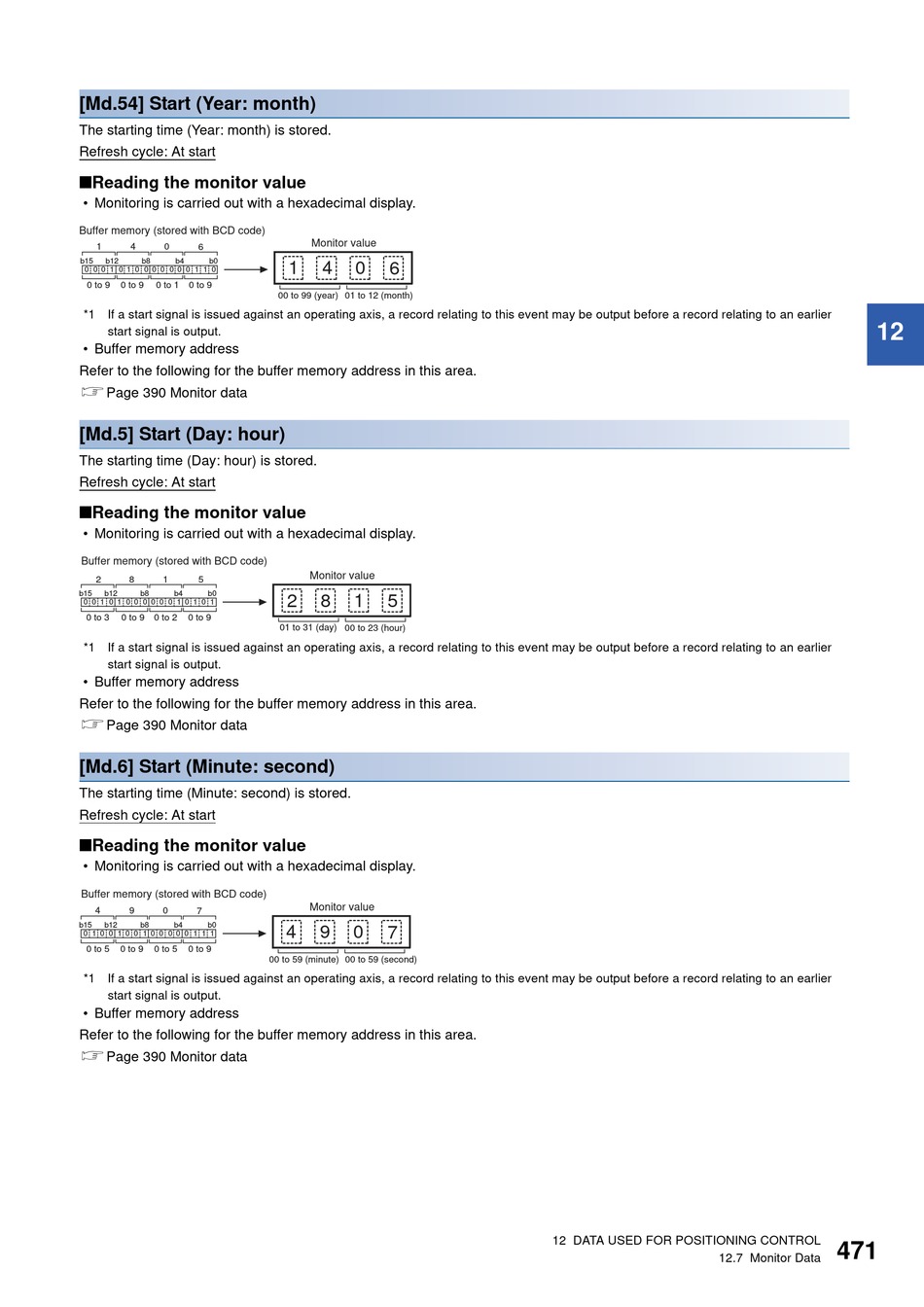

[Md.54] Start (Year: month)
The starting time (Year: month) is stored.
Refresh cycle: At start
■Reading the monitor value
• Monitoring is carried out with a hexadecimal display.
Buffer memory (stored with BCD code)
1 4 0
6
b15 b12 b8 b4 b0
0 0 0 1 0 1 0 0 0 0 0 0 0 1 1 0
0 to 9 0 to 9 0 to 1 0 to 9
*1 If a start signal is issued against an operating axis, a record relating to this event may be output before a record relating to an earlier
start signal is output.
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
[Md.5] Start (Day: hour)
The starting time (Day: hour) is stored.
Refresh cycle: At start
■Reading the monitor value
• Monitoring is carried out with a hexadecimal display.
Buffer memory (stored with BCD code)
2 8 1 5
b15 b12 b8 b4 b0
0 0 1 0 1 0 0 0 0 0 0 1 0 1 0 1
0 to 3 0 to 9 0 to 2 0 to 9
*1 If a start signal is issued against an operating axis, a record relating to this event may be output before a record relating to an earlier
start signal is output.
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
[Md.6] Start (Minute: second)
The starting time (Minute: second) is stored.
Refresh cycle: At start
■Reading the monitor value
• Monitoring is carried out with a hexadecimal display.
Buffer memory (stored with BCD code)
4 9 0 7
b15 b12 b8 b4 b0
0 1 0 0 1 0 0 1 0 0 0 0 0 1 1 1
0 to 5 0 to 9 0 to 5 0 to 9
*1 If a start signal is issued against an operating axis, a record relating to this event may be output before a record relating to an earlier
start signal is output.
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
Monitor value
1 4 0
6
00 to 99 (year) 01 to 12 (month)
Monitor value
2 8 1 5
01 to 31 (day) 00 to 23 (hour)
Monitor value
4 9 0 7
00 to 59 (minute) 00 to 59 (second)
