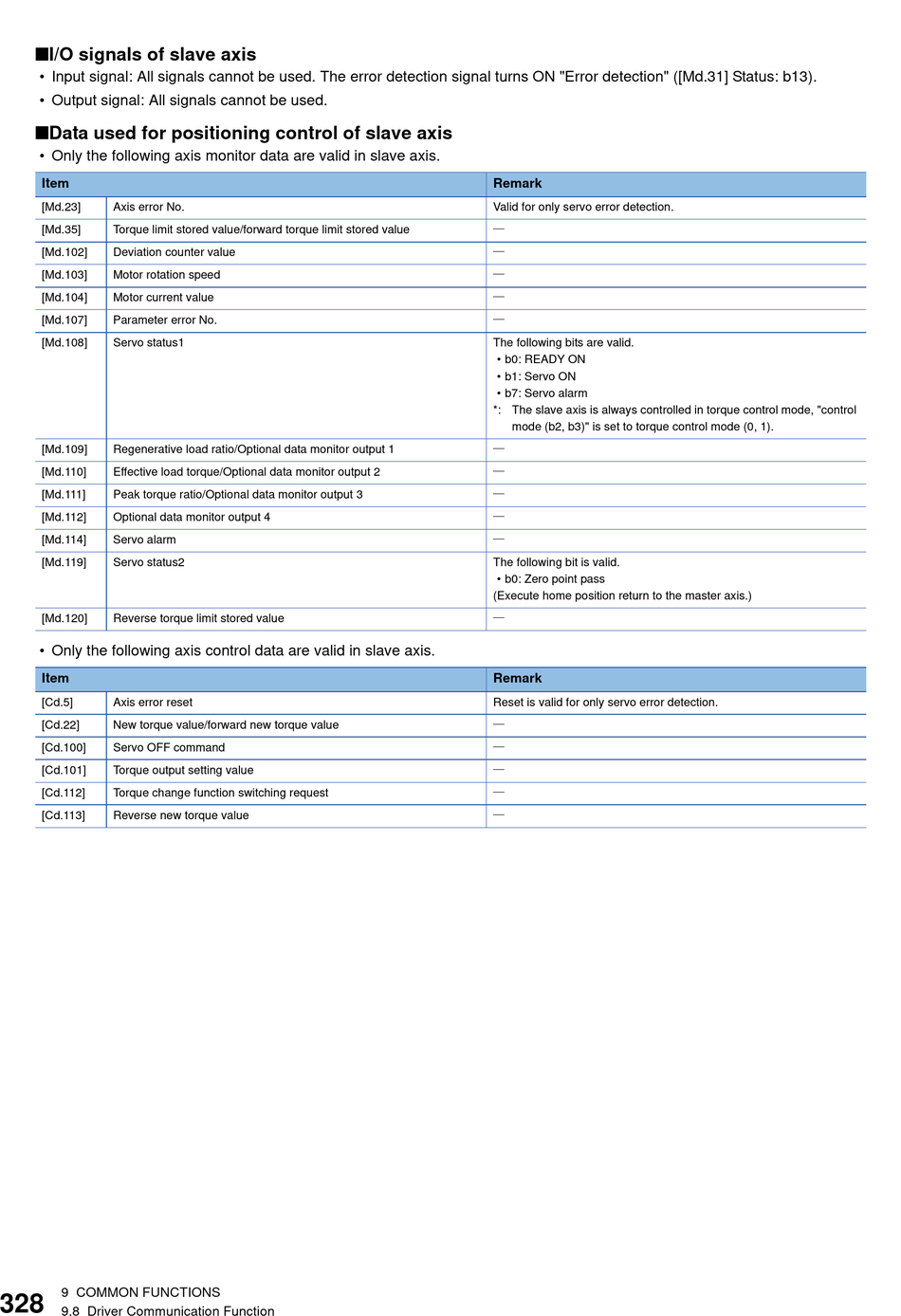

■I/O signals of slave axis
• Input signal: All signals cannot be used. The error detection signal turns ON "Error detection" ([Md.31] Status: b13).
• Output signal: All signals cannot be used.
■Data used for positioning control of slave axis
• Only the following axis monitor data are valid in slave axis.
Item
[Md.23]
Axis error No.
[Md.35]
Torque limit stored value/forward torque limit stored value
[Md.102]
Deviation counter value
[Md.103]
Motor rotation speed
[Md.104]
Motor current value
[Md.107]
Parameter error No.
[Md.108]
Servo status1
[Md.109]
Regenerative load ratio/Optional data monitor output 1
[Md.110]
Effective load torque/Optional data monitor output 2
[Md.111]
Peak torque ratio/Optional data monitor output 3
[Md.112]
Optional data monitor output 4
[Md.114]
Servo alarm
[Md.119]
Servo status2
[Md.120]
Reverse torque limit stored value
• Only the following axis control data are valid in slave axis.
Item
[Cd.5]
Axis error reset
[Cd.22]
New torque value/forward new torque value
[Cd.100]
Servo OFF command
[Cd.101]
Torque output setting value
[Cd.112]
Torque change function switching request
[Cd.113]
Reverse new torque value
9 COMMON FUNCTIONS
328
9.8 Driver Communication Function
Remark
Valid for only servo error detection.
The following bits are valid.
• b0: READY ON
• b1: Servo ON
• b7: Servo alarm
*: The slave axis is always controlled in torque control mode, "control
mode (b2, b3)" is set to torque control mode (0, 1).
The following bit is valid.
• b0: Zero point pass
(Execute home position return to the master axis.)
Remark
Reset is valid for only servo error detection.
