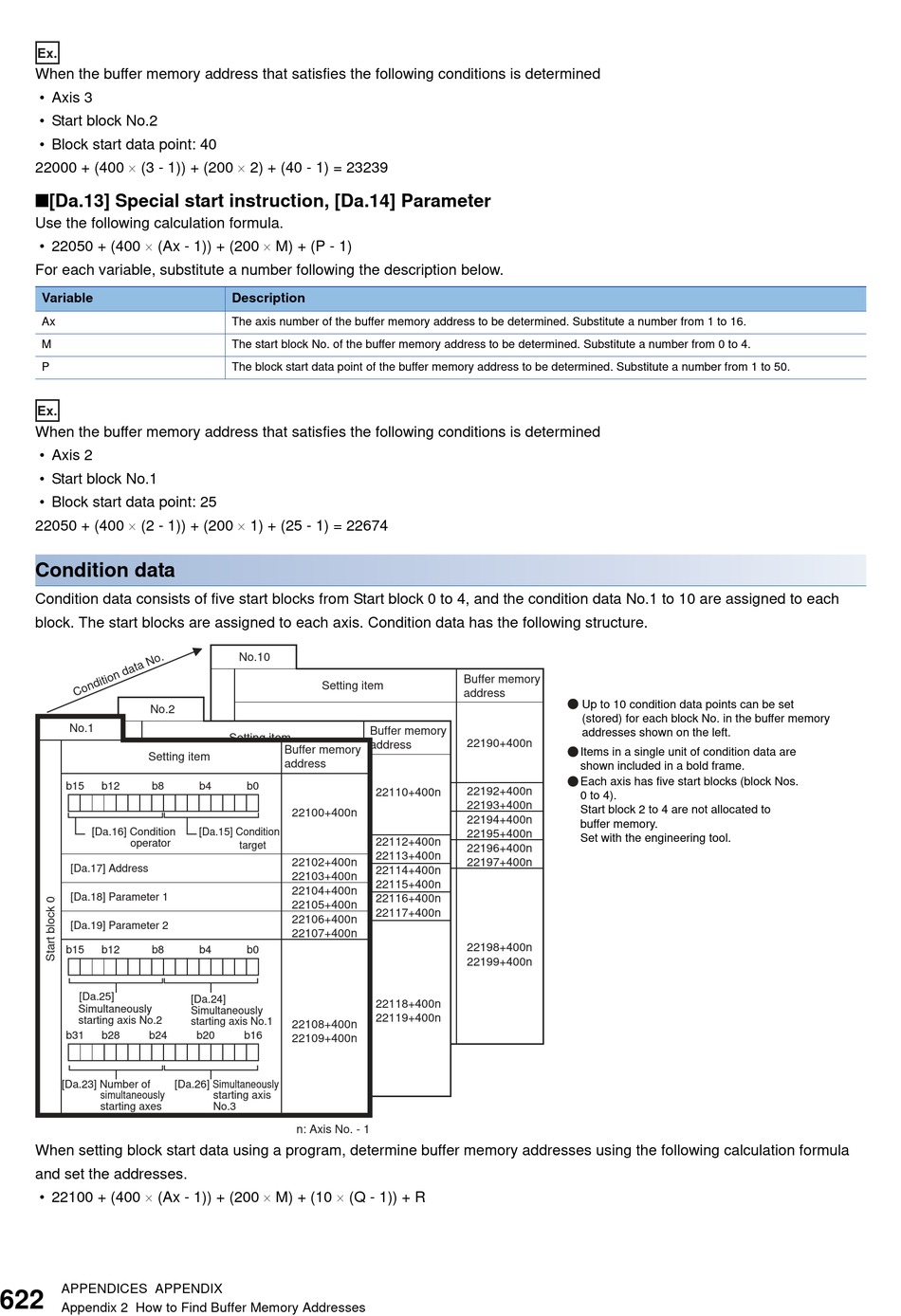

# Mitsubishi Electric RD77MS2 User Manual Page 624

Melsec iq-r simple motion module.

Ex.
When the buffer memory address that satisfies the following conditions is determined
• Axis 3
• Start block No.2
• Block start data point: 40
22000 + (400  (3 - 1)) + (200  2) + (40 - 1) = 23239
■[Da.13] Special start instruction, [Da.14] Parameter
Use the following calculation formula.
• 22050 + (400  (Ax - 1)) + (200  M) + (P - 1)
For each variable, substitute a number following the description below.
Variable
Ax
M
P
Ex.
When the buffer memory address that satisfies the following conditions is determined
• Axis 2
• Start block No.1
• Block start data point: 25
22050 + (400  (2 - 1)) + (200  1) + (25 - 1) = 22674
Condition data
Condition data consists of five start blocks from Start block 0 to 4, and the condition data No.1 to 10 are assigned to each
block. The start blocks are assigned to each axis. Condition data has the following structure.
No.2
No.1
Setting item
b15
b12
b8
b4
[Da.16] Condition
[Da.15] Condition
operator
[Da.18] Parameter 1
[Da.19] Parameter 2
b15
b12
b8
b4
[Da.25]
[Da.24]
Simultaneously
Simultaneously
starting axis No.2
starting axis No.1
b31
b28
b24
b20
[Da.23] Number of
[Da.26] Simultaneously
simultaneously
starting axes
When setting block start data using a program, determine buffer memory addresses using the following calculation formula
• 22100 + (400  (Ax - 1)) + (200  M) + (10  (Q - 1)) + R
APPENDICES APPENDIX
Appendix 2 How to Find Buffer Memory Addresses
Description
The axis number of the buffer memory address to be determined. Substitute a number from 1 to 16.
The start block No. of the buffer memory address to be determined. Substitute a number from 0 to 4.
The block start data point of the buffer memory address to be determined. Substitute a number from 1 to 50.
No.10
Setting item
Buffer memory
Setting item
Buffer memory
b0
22110+400n
22100+400n
22112+400n
target
22113+400n
22102+400n
22114+400n
22103+400n
22115+400n
22104+400n
22116+400n
22105+400n
22117+400n
22106+400n
22107+400n
b0
22118+400n
22119+400n
22108+400n
b16
22109+400n
starting axis
No.3
n: Axis No. - 1
Buffer memory
Up to 10 condition data points can be set
(stored) for each block No. in the buffer memory
22190+400n
Items in a single unit of condition data are
shown included in a bold frame.
Each axis has five start blocks (block Nos.
22192+400n
0 to 4).
22193+400n
Start block 2 to 4 are not allocated to
22194+400n
buffer memory.
22195+400n
Set with the engineering tool.
22196+400n
22197+400n
22198+400n
