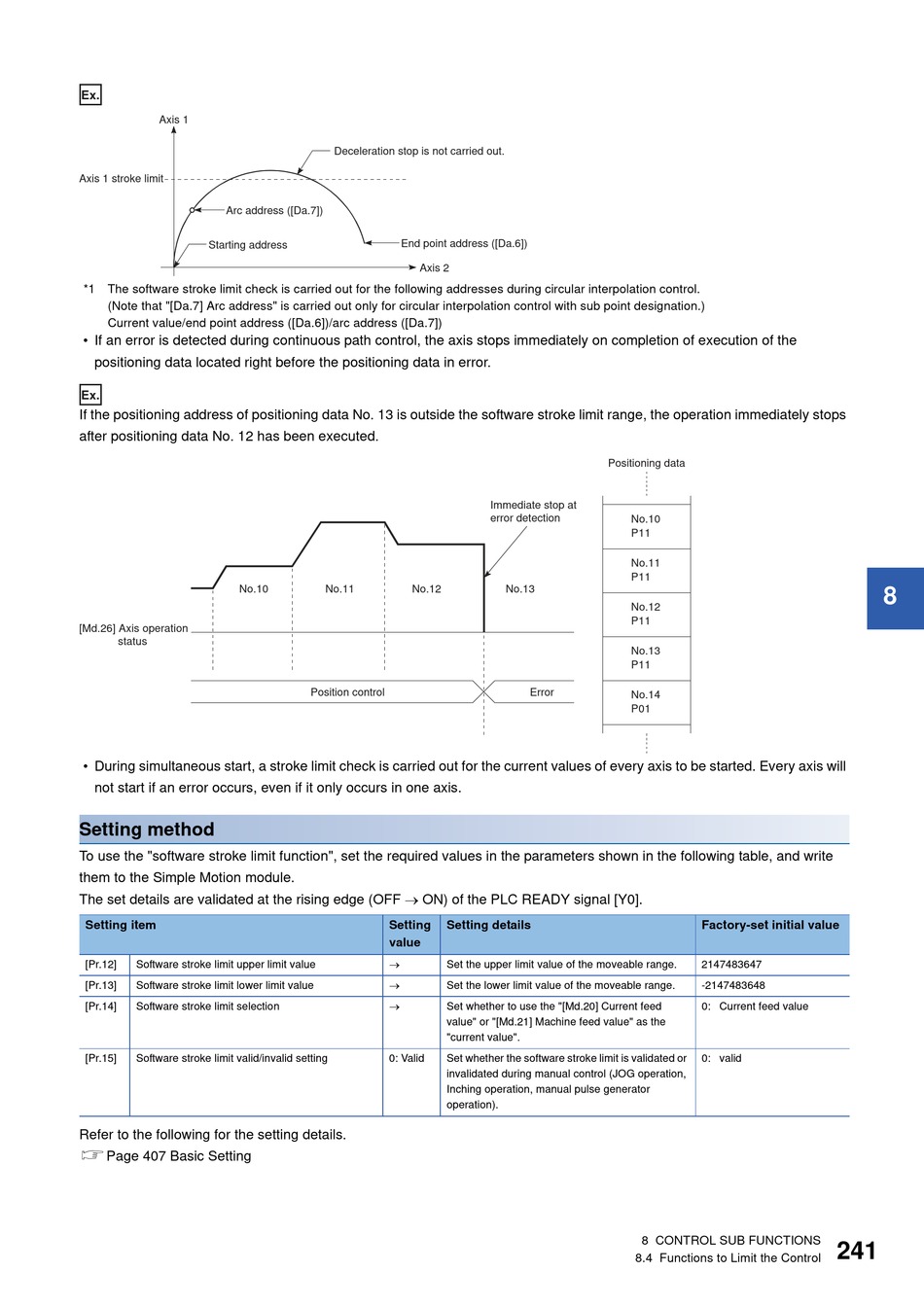

Ex.
Axis 1
Axis 1 stroke limit
Arc address ([Da.7])
Starting address
*1 The software stroke limit check is carried out for the following addresses during circular interpolation control.
(Note that "[Da.7] Arc address" is carried out only for circular interpolation control with sub point designation.)
Current value/end point address ([Da.6])/arc address ([Da.7])
• If an error is detected during continuous path control, the axis stops immediately on completion of execution of the
positioning data located right before the positioning data in error.
Ex.
If the positioning address of positioning data No. 13 is outside the software stroke limit range, the operation immediately stops
after positioning data No. 12 has been executed.
No.10
[Md.26] Axis operation
status
• During simultaneous start, a stroke limit check is carried out for the current values of every axis to be started. Every axis will
not start if an error occurs, even if it only occurs in one axis.
Setting method
To use the "software stroke limit function", set the required values in the parameters shown in the following table, and write
them to the Simple Motion module.
The set details are validated at the rising edge (OFF  ON) of the PLC READY signal [Y0].
Setting item
[Pr.12] Software stroke limit upper limit value
[Pr.13] Software stroke limit lower limit value
[Pr.14] Software stroke limit selection
[Pr.15] Software stroke limit valid/invalid setting
Refer to the following for the setting details.
Page 407 Basic Setting
Deceleration stop is not carried out.
End point address ([Da.6])
Axis 2
No.11 No.12
Position control
Setting Setting details
value

Set the upper limit value of the moveable range.

Set the lower limit value of the moveable range.

Set whether to use the "[Md.20] Current feed
value" or "[Md.21] Machine feed value" as the
"current value".
0: Valid Set whether the software stroke limit is validated or
invalidated during manual control (JOG operation,
Inching operation, manual pulse generator
operation).
Positioning data
Immediate stop at
error detection
No.10
P11
No.11
P11
No.13
No.12
P11
No.13
P11
Error
No.14
P01
8 CONTROL SUB FUNCTIONS
8.4 Functions to Limit the Control
Factory-set initial value
2147483647
-2147483648
0: Current feed value
0: valid
