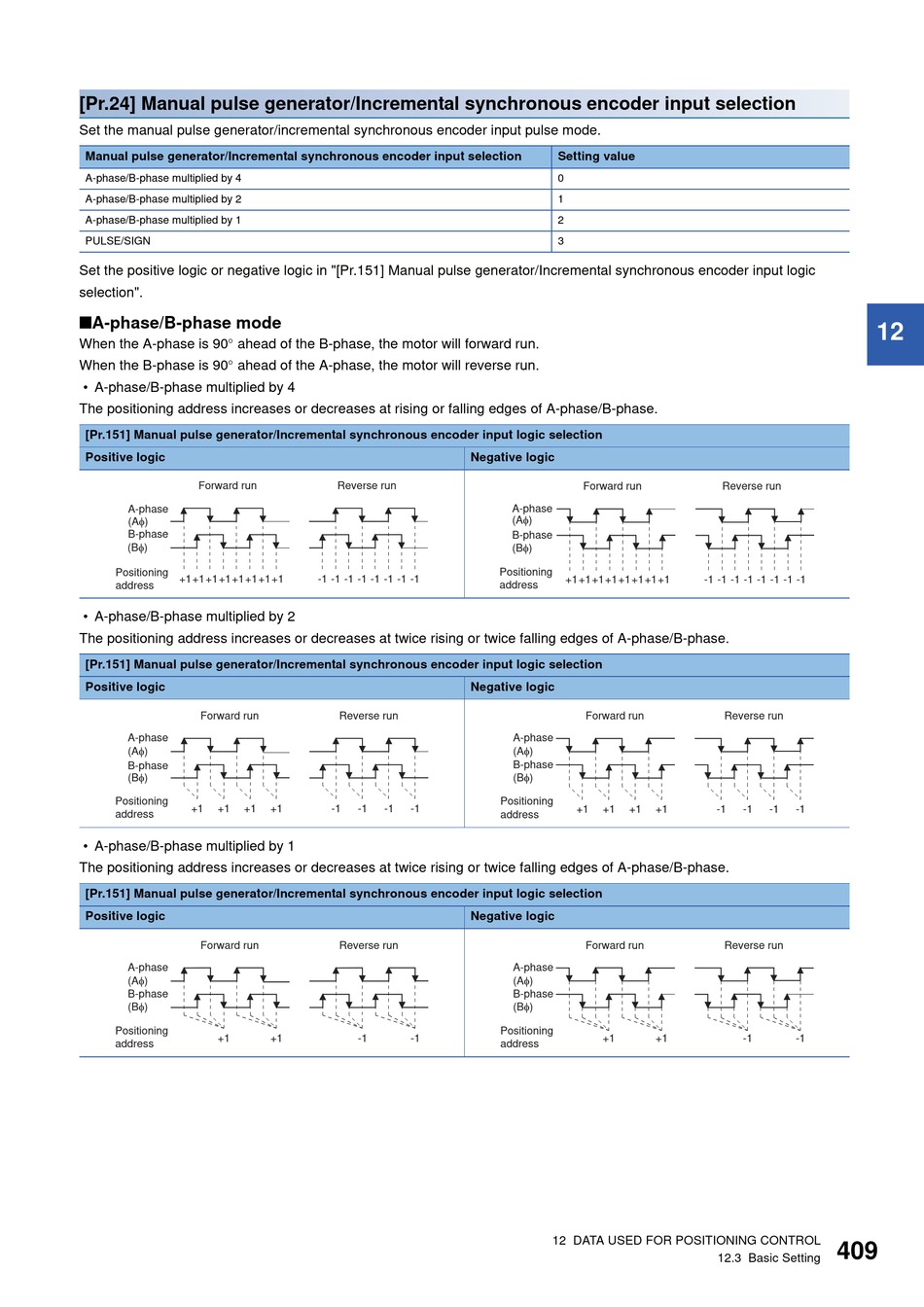

[Pr.24] Manual pulse generator/Incremental synchronous encoder input selection
Set the manual pulse generator/incremental synchronous encoder input pulse mode.
Manual pulse generator/Incremental synchronous encoder input selection
A-phase/B-phase multiplied by 4
A-phase/B-phase multiplied by 2
A-phase/B-phase multiplied by 1
PULSE/SIGN
Set the positive logic or negative logic in "[Pr.151] Manual pulse generator/Incremental synchronous encoder input logic
selection".
■A-phase/B-phase mode
When the A-phase is 90 ahead of the B-phase, the motor will forward run.
When the B-phase is 90 ahead of the A-phase, the motor will reverse run.
• A-phase/B-phase multiplied by 4
The positioning address increases or decreases at rising or falling edges of A-phase/B-phase.
[Pr.151] Manual pulse generator/Incremental synchronous encoder input logic selection
Positive logic
Forward run
A-phase
(Aφ)
B-phase
(Bφ)
Positioning
+1+1+1+1+1+1+1+1
address
• A-phase/B-phase multiplied by 2
The positioning address increases or decreases at twice rising or twice falling edges of A-phase/B-phase.
[Pr.151] Manual pulse generator/Incremental synchronous encoder input logic selection
Positive logic
Forward run
A-phase
(Aφ)
B-phase
(Bφ)
Positioning
+1
+1
+1
address
• A-phase/B-phase multiplied by 1
The positioning address increases or decreases at twice rising or twice falling edges of A-phase/B-phase.
[Pr.151] Manual pulse generator/Incremental synchronous encoder input logic selection
Positive logic
Forward run
A-phase
(Aφ)
B-phase
(Bφ)
Positioning
+1
address
Reverse run
-1 -1 -1 -1 -1 -1 -1 -1
Reverse run
+1
-1
-1
-1
-1
Reverse run
+1
-1
-1
Setting value
0
1
2
3
Negative logic
Forward run
A-phase
(Aφ)
B-phase
(Bφ)
Positioning
+1+1+1+1+1+1+1+1
address
Negative logic
Forward run
A-phase
(Aφ)
B-phase
(Bφ)
Positioning
+1
+1
+1
address
Negative logic
Forward run
A-phase
(Aφ)
B-phase
(Bφ)
Positioning
+1
address
12 DATA USED FOR POSITIONING CONTROL
Reverse run
-1 -1 -1 -1 -1 -1 -1 -1
Reverse run
+1
-1
-1
-1
-1
Reverse run
+1
-1
-1
12.3 Basic Setting
