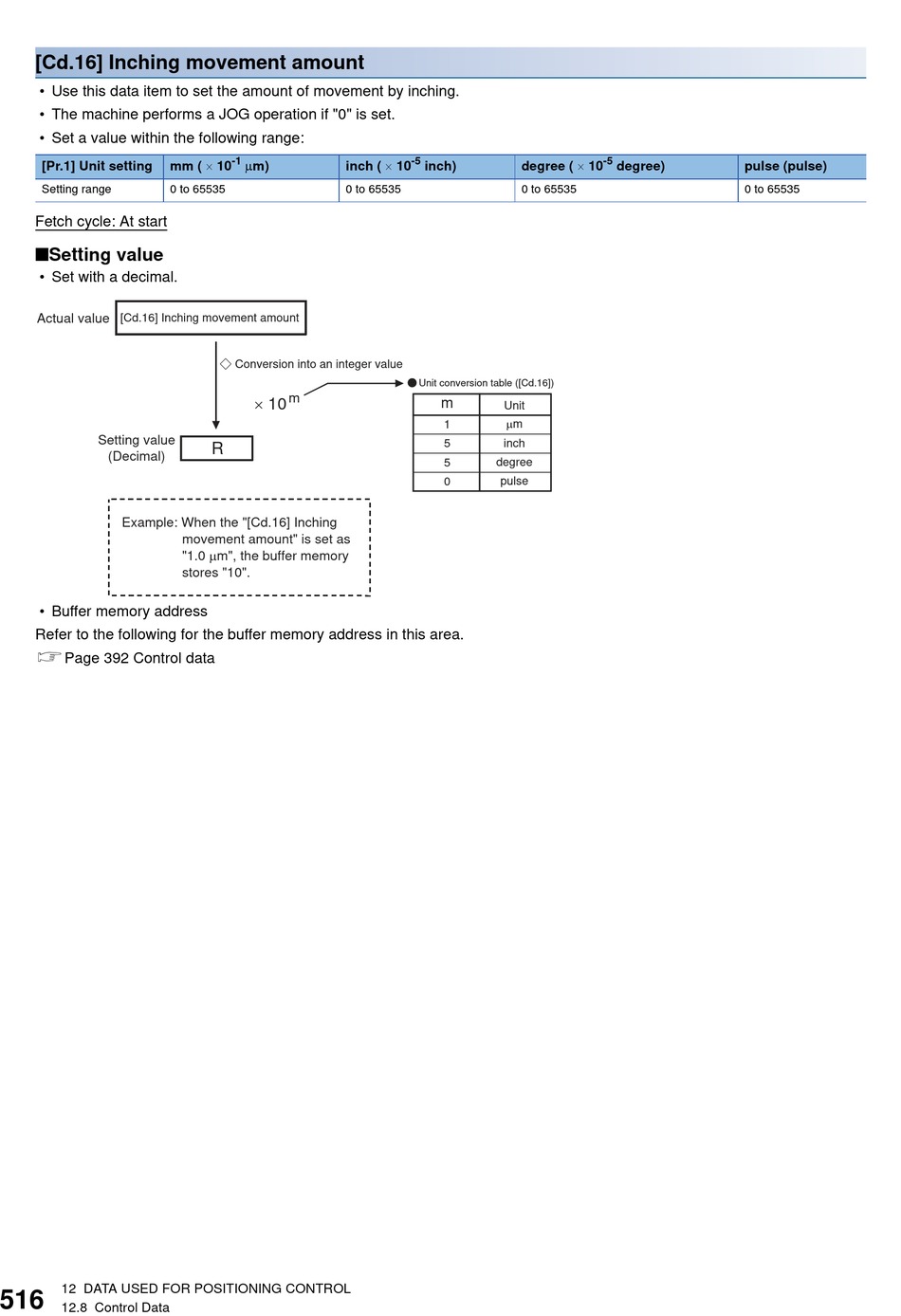

[Cd.16] Inching movement amount
• Use this data item to set the amount of movement by inching.
• The machine performs a JOG operation if "0" is set.
• Set a value within the following range:
mm (  10
[Pr.1] Unit setting
Setting range
0 to 65535
Fetch cycle: At start
■Setting value
• Set with a decimal.
Actual value
[Cd.16] Inching movement amount
Setting value
(Decimal)
Example: When the "[Cd.16] Inching
movement amount" is set as
"1.0 μm", the buffer memory
stores "10".
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 392 Control data
12 DATA USED FOR POSITIONING CONTROL
12.8 Control Data
-1
m)
inch (  10
0 to 65535
Conversion into an integer value
m
× 10
R
-5
degree (  10
inch)
0 to 65535
Unit conversion table ([Cd.16])
m
Unit
1
μm
5
inch
degree
5
pulse
0
-5
degree)
pulse (pulse)
0 to 65535
