14

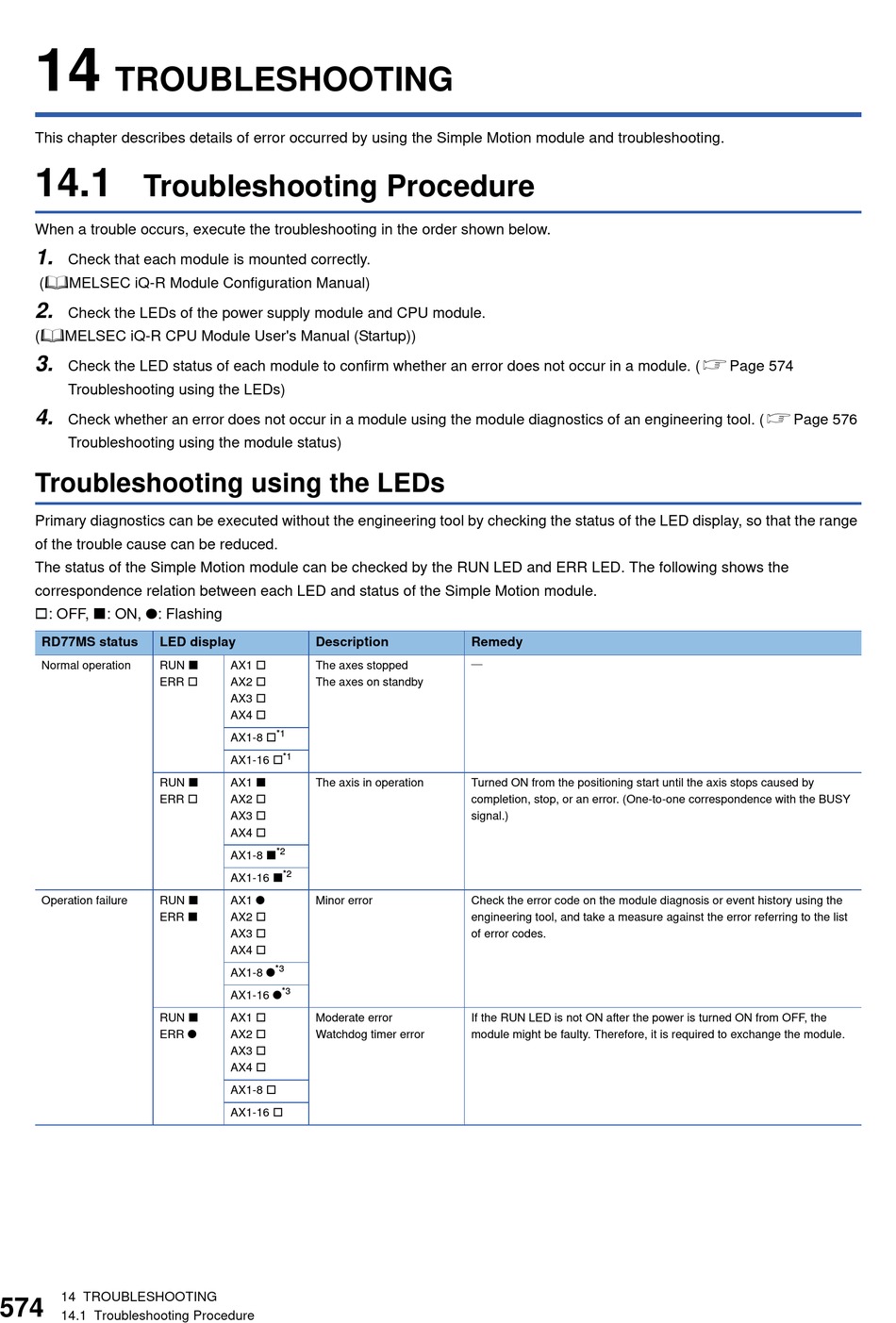

TROUBLESHOOTING
This chapter describes details of error occurred by using the Simple Motion module and troubleshooting.
14.1

Troubleshooting Procedure

When a trouble occurs, execute the troubleshooting in the order shown below.
1.
Check that each module is mounted correctly.
(MELSEC iQ-R Module Configuration Manual)
2.
Check the LEDs of the power supply module and CPU module.
(MELSEC iQ-R CPU Module User's Manual (Startup))
3.
Check the LED status of each module to confirm whether an error does not occur in a module. (Page 574

Troubleshooting using the LEDs)

4.
Check whether an error does not occur in a module using the module diagnostics of an engineering tool. (Page 576
Troubleshooting using the module status)
Troubleshooting using the LEDs
Primary diagnostics can be executed without the engineering tool by checking the status of the LED display, so that the range
of the trouble cause can be reduced.
The status of the Simple Motion module can be checked by the RUN LED and ERR LED. The following shows the
correspondence relation between each LED and status of the Simple Motion module.
: OFF, : ON, ●: Flashing
RD77MS status
LED display
RUN 
Normal operation
ERR 
RUN 
ERR 
RUN 
Operation failure
ERR 
RUN 
ERR ●
14 TROUBLESHOOTING
14.1 Troubleshooting Procedure
Description
AX1 
The axes stopped
AX2 
The axes on standby
AX3 
AX4 
*1
AX1-8 
*1
AX1-16 
AX1 
The axis in operation
AX2 
AX3 
AX4 
*2
AX1-8 
*2
AX1-16 
AX1 ●
Minor error
AX2 
AX3 
AX4 
*3
AX1-8 ●
*3
AX1-16 ●
AX1 
Moderate error
AX2 
Watchdog timer error
AX3 
AX4 
AX1-8 
AX1-16 
Remedy
Turned ON from the positioning start until the axis stops caused by
completion, stop, or an error. (One-to-one correspondence with the BUSY
signal.)
Check the error code on the module diagnosis or event history using the
engineering tool, and take a measure against the error referring to the list
of error codes.
If the RUN LED is not ON after the power is turned ON from OFF, the
module might be faulty. Therefore, it is required to exchange the module.
