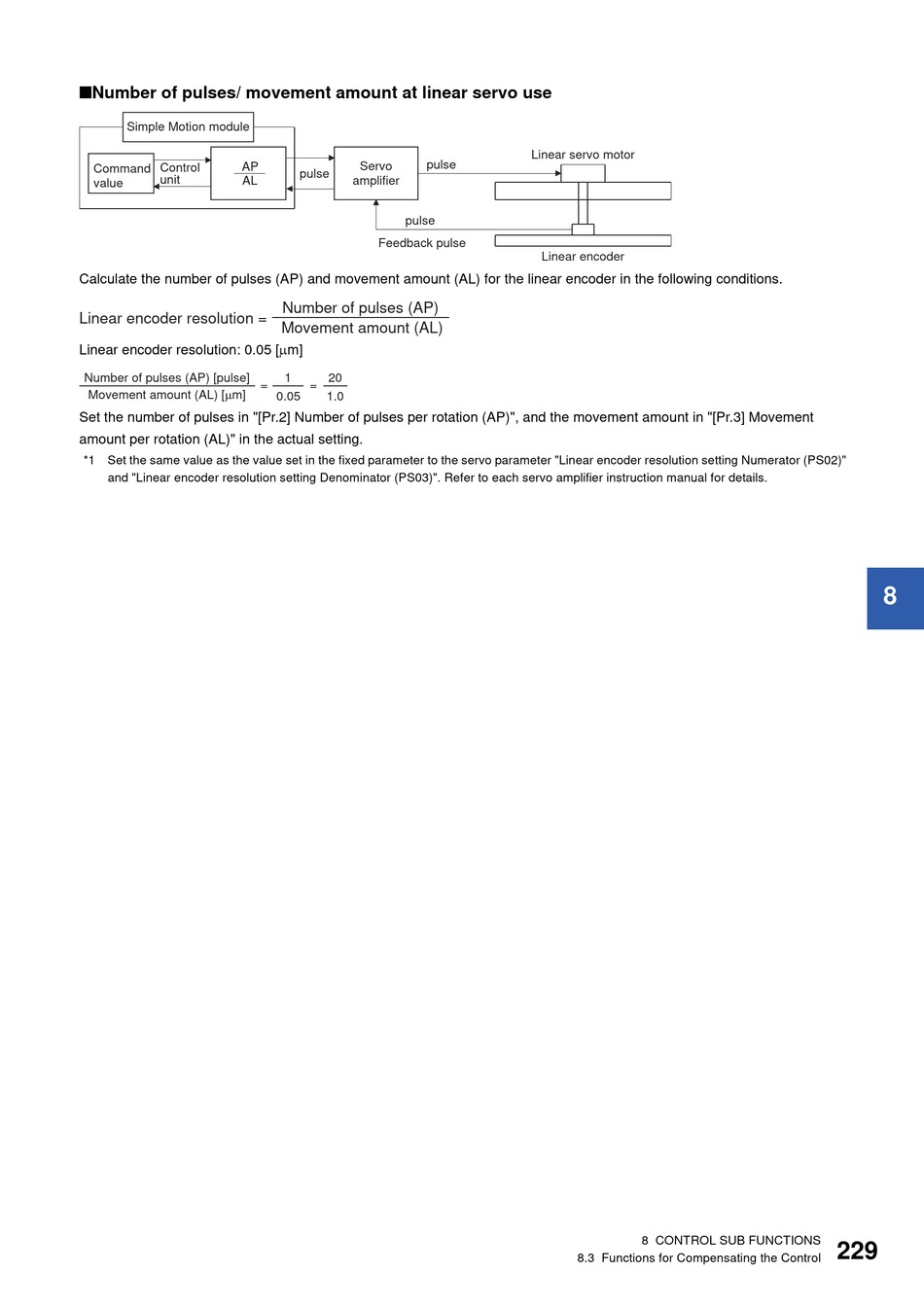

■Number of pulses/ movement amount at linear servo use
Simple Motion module
AP
Control
Command
unit
AL
value
Calculate the number of pulses (AP) and movement amount (AL) for the linear encoder in the following conditions.
Linear encoder resolution =
Linear encoder resolution: 0.05 [m]
Number of pulses (AP) [pulse]
Movement amount (AL) [μm]
Set the number of pulses in "[Pr.2] Number of pulses per rotation (AP)", and the movement amount in "[Pr.3] Movement
amount per rotation (AL)" in the actual setting.
*1 Set the same value as the value set in the fixed parameter to the servo parameter "Linear encoder resolution setting Numerator (PS02)"
and "Linear encoder resolution setting Denominator (PS03)". Refer to each servo amplifier instruction manual for details.
pulse
Servo
pulse
amplifier
pulse
Feedback pulse
Number of pulses (AP)
Movement amount (AL)
1
20
=
=
0.05
1.0
Linear servo motor
Linear encoder
8 CONTROL SUB FUNCTIONS
8.3 Functions for Compensating the Control
8
229
