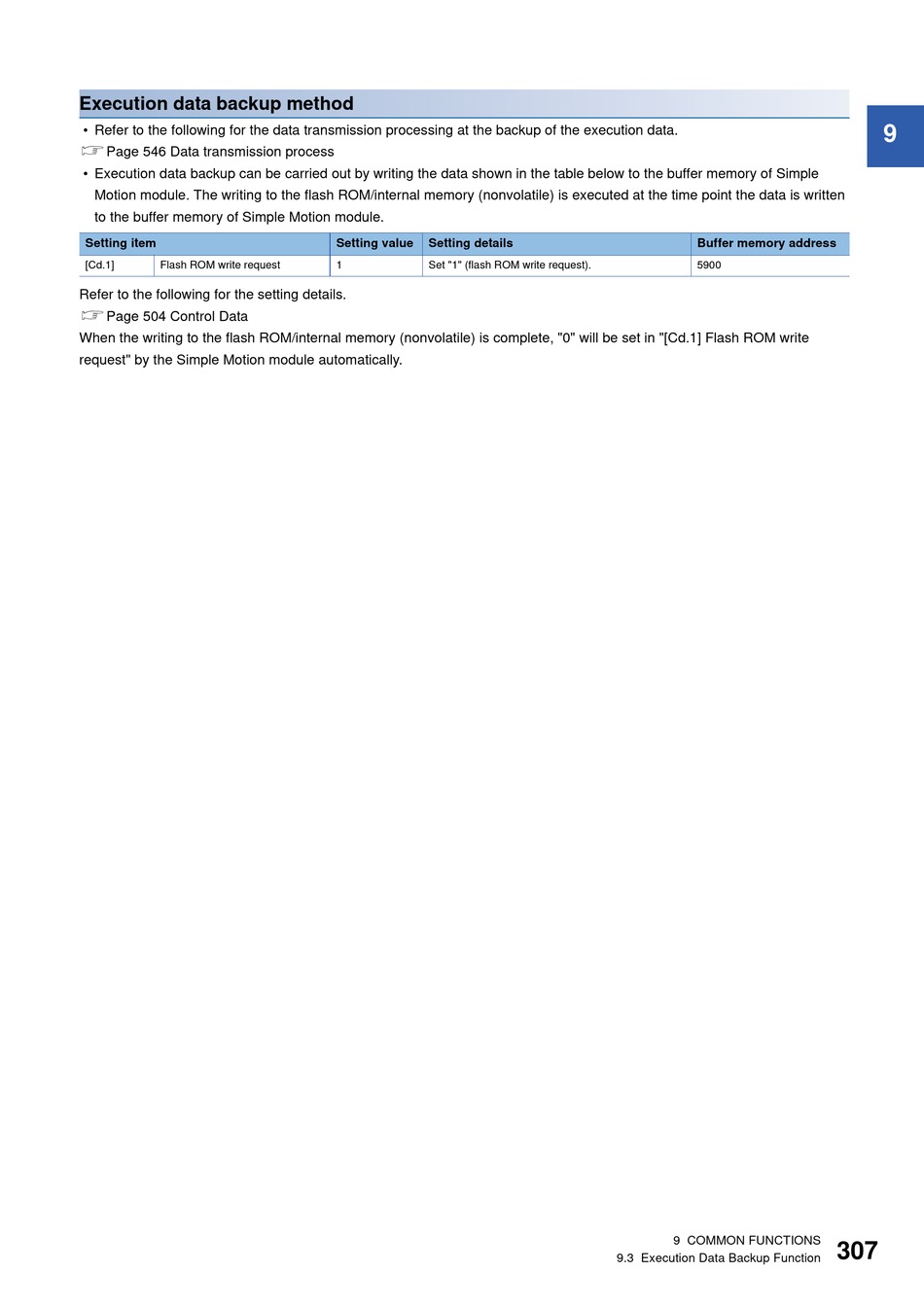

Execution data backup method
• Refer to the following for the data transmission processing at the backup of the execution data.
Page 546 Data transmission process
• Execution data backup can be carried out by writing the data shown in the table below to the buffer memory of Simple
Motion module. The writing to the flash ROM/internal memory (nonvolatile) is executed at the time point the data is written
to the buffer memory of Simple Motion module.
Flash ROM write request
Refer to the following for the setting details.
Page 504 Control Data
When the writing to the flash ROM/internal memory (nonvolatile) is complete, "0" will be set in "[Cd.1] Flash ROM write
request" by the Simple Motion module automatically.
Set "1" (flash ROM write request).
Buffer memory address
