Error code
Error name
(Hexadecimal)
1A34H
M code ON timing
error
1A35H
Interpolation speed
designation method
error
1A36H
Outside number of
pitch
1A37H
Sub point setting
error
1A60H
Outside unit setting
range
1A61H
Outside pulse
number per rotation
range
1A62H
Outside movement
amount per rotation
range
1A63H
Outside unit
magnification range
1A66H
Outside bias speed
range
1A67H
Outside bias speed
range
1A69H
Outside speed limit
value range

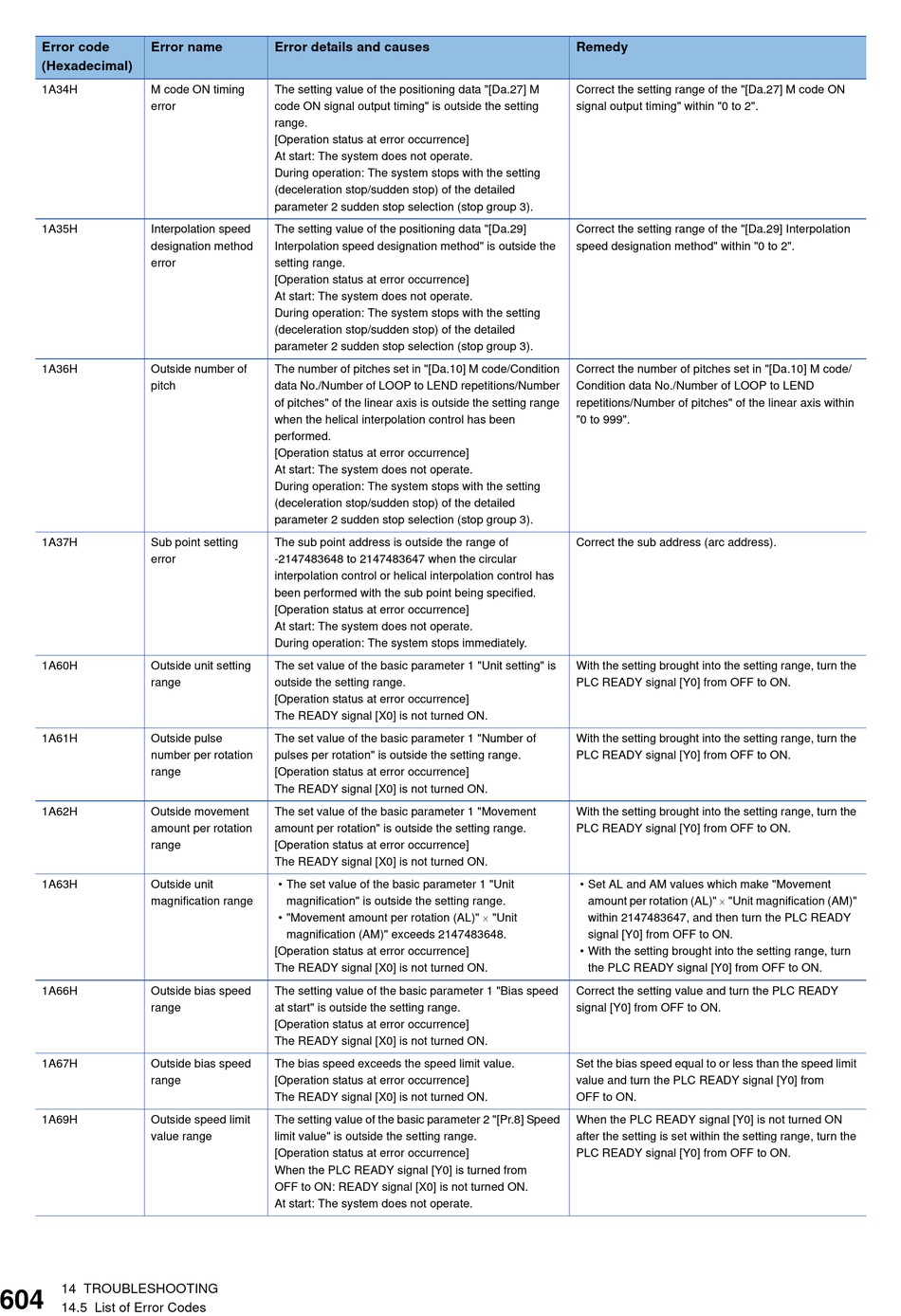

14 TROUBLESHOOTING
14.5 List of Error Codes
Error details and causes
The setting value of the positioning data "[Da.27] M
code ON signal output timing" is outside the setting
range.
[Operation status at error occurrence]
At start: The system does not operate.
During operation: The system stops with the setting
(deceleration stop/sudden stop) of the detailed
parameter 2 sudden stop selection (stop group 3).
The setting value of the positioning data "[Da.29]
Interpolation speed designation method" is outside the
setting range.
[Operation status at error occurrence]
At start: The system does not operate.
During operation: The system stops with the setting
(deceleration stop/sudden stop) of the detailed
parameter 2 sudden stop selection (stop group 3).
The number of pitches set in "[Da.10] M code/Condition
data No./Number of LOOP to LEND repetitions/Number
of pitches" of the linear axis is outside the setting range
when the helical interpolation control has been
performed.
[Operation status at error occurrence]
At start: The system does not operate.
During operation: The system stops with the setting
(deceleration stop/sudden stop) of the detailed
parameter 2 sudden stop selection (stop group 3).
The sub point address is outside the range of
-2147483648 to 2147483647 when the circular
interpolation control or helical interpolation control has
been performed with the sub point being specified.
[Operation status at error occurrence]
At start: The system does not operate.
During operation: The system stops immediately.
The set value of the basic parameter 1 "Unit setting" is
outside the setting range.
[Operation status at error occurrence]
The READY signal [X0] is not turned ON.
The set value of the basic parameter 1 "Number of
pulses per rotation" is outside the setting range.
[Operation status at error occurrence]
The READY signal [X0] is not turned ON.
The set value of the basic parameter 1 "Movement
amount per rotation" is outside the setting range.
[Operation status at error occurrence]
The READY signal [X0] is not turned ON.
• The set value of the basic parameter 1 "Unit
magnification" is outside the setting range.
• "Movement amount per rotation (AL)" "Unit
magnification (AM)" exceeds 2147483648.
[Operation status at error occurrence]
The READY signal [X0] is not turned ON.
The setting value of the basic parameter 1 "Bias speed
at start" is outside the setting range.
[Operation status at error occurrence]
The READY signal [X0] is not turned ON.
The bias speed exceeds the speed limit value.
[Operation status at error occurrence]
The READY signal [X0] is not turned ON.
The setting value of the basic parameter 2 "[Pr.8] Speed
limit value" is outside the setting range.
[Operation status at error occurrence]
When the PLC READY signal [Y0] is turned from
OFF to ON: READY signal [X0] is not turned ON.
At start: The system does not operate.
Remedy
Correct the setting range of the "[Da.27] M code ON
signal output timing" within "0 to 2".
Correct the setting range of the "[Da.29] Interpolation
speed designation method" within "0 to 2".
Correct the number of pitches set in "[Da.10] M code/
Condition data No./Number of LOOP to LEND
repetitions/Number of pitches" of the linear axis within
"0 to 999".
Correct the sub address (arc address).
With the setting brought into the setting range, turn the
PLC READY signal [Y0] from OFF to ON.
With the setting brought into the setting range, turn the
PLC READY signal [Y0] from OFF to ON.
With the setting brought into the setting range, turn the
PLC READY signal [Y0] from OFF to ON.
• Set AL and AM values which make "Movement
amount per rotation (AL)" "Unit magnification (AM)"
within 2147483647, and then turn the PLC READY
signal [Y0] from OFF to ON.
• With the setting brought into the setting range, turn
the PLC READY signal [Y0] from OFF to ON.
Correct the setting value and turn the PLC READY
signal [Y0] from OFF to ON.
Set the bias speed equal to or less than the speed limit
value and turn the PLC READY signal [Y0] from
OFF to ON.
When the PLC READY signal [Y0] is not turned ON
after the setting is set within the setting range, turn the
PLC READY signal [Y0] from OFF to ON.
