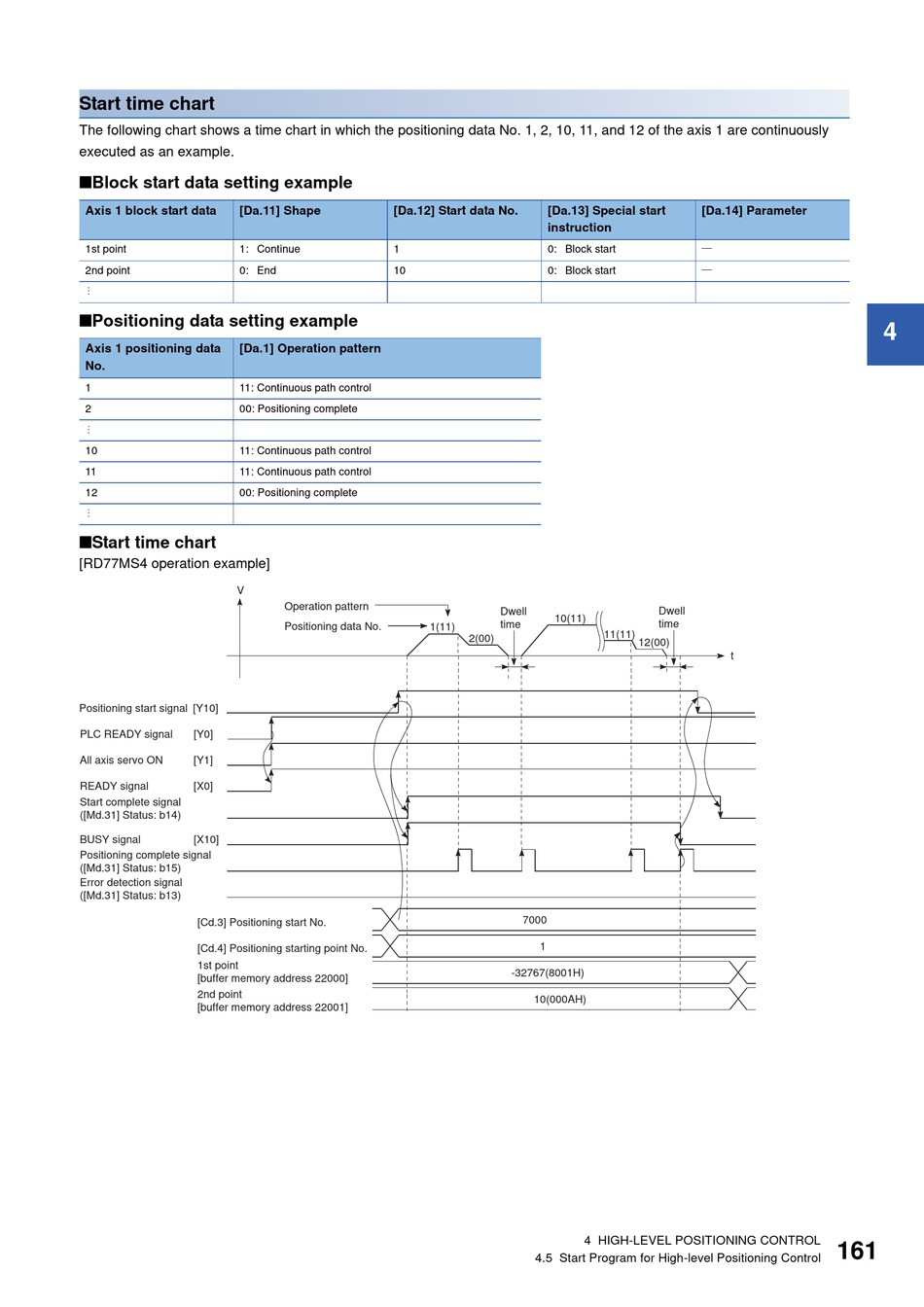

Start time chart
The following chart shows a time chart in which the positioning data No. 1, 2, 10, 11, and 12 of the axis 1 are continuously
executed as an example.
■Block start data setting example
Axis 1 block start data [Da.11] Shape
1st point 1: Continue
2nd point 0: End

■Positioning data setting example
Axis 1 positioning data [Da.1] Operation pattern
No.
1 11: Continuous path control
2 00: Positioning complete

10 11: Continuous path control
11 11: Continuous path control
12 00: Positioning complete

■Start time chart
[RD77MS4 operation example]
V
Positioning start signal [Y10]
PLC READY signal [Y0]
All axis servo ON [Y1]
READY signal [X0]
Start complete signal
([Md.31] Status: b14)
BUSY signal [X10]
Positioning complete signal
([Md.31] Status: b15)
Error detection signal
([Md.31] Status: b13)
[Cd.3] Positioning start No.
[Cd.4] Positioning starting point No.
1st point
[buffer memory address 22000]
2nd point
[buffer memory address 22001]
[Da.12] Start data No.
1
10
Operation pattern
Positioning data No.
1(11)
[Da.13] Special start
instruction
0: Block start
0: Block start
Dwell
10(11)
time
11(11)
2(00)
12(00)
7000
1
-32767(8001H)
10(000AH)
