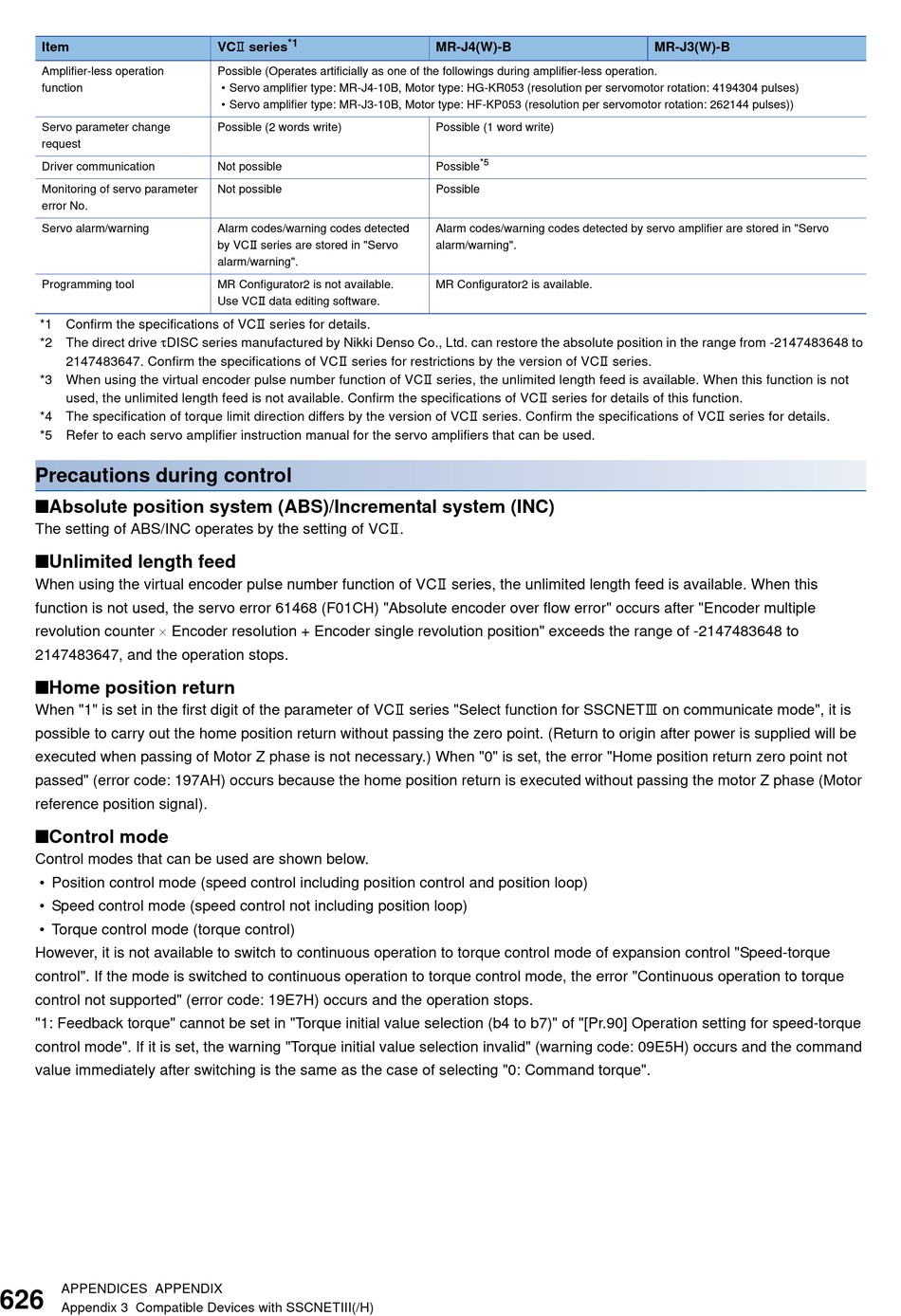

Mitsubishi Electric RD77MS2 User Manual Page 628

Melsec iq-r simple motion module.
Hide thumbs

1
2
3
4
5
6
7
8
9
10
11
12
Table of Contents
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
  • Contents

Advertisement

Item
Amplifier-less operation
function
Servo parameter change
request
Driver communication
Monitoring of servo parameter
error No.
Servo alarm/warning
Programming tool
*1 Confirm the specifications of VC series for details.
*2 The direct drive DISC series manufactured by Nikki Denso Co., Ltd. can restore the absolute position in the range from -2147483648 to
2147483647. Confirm the specifications of VC series for restrictions by the version of VC series.
*3 When using the virtual encoder pulse number function of VC series, the unlimited length feed is available. When this function is not
used, the unlimited length feed is not available. Confirm the specifications of VC series for details of this function.
*4 The specification of torque limit direction differs by the version of VC series. Confirm the specifications of VC series for details.
*5 Refer to each servo amplifier instruction manual for the servo amplifiers that can be used.
Precautions during control
■Absolute position system (ABS)/Incremental system (INC)
The setting of ABS/INC operates by the setting of VC.
■Unlimited length feed
When using the virtual encoder pulse number function of VC series, the unlimited length feed is available. When this
function is not used, the servo error 61468 (F01CH) "Absolute encoder over flow error" occurs after "Encoder multiple
revolution counter  Encoder resolution + Encoder single revolution position" exceeds the range of -2147483648 to
2147483647, and the operation stops.
■Home position return
When "1" is set in the first digit of the parameter of VC series "Select function for SSCNET on communicate mode", it is
possible to carry out the home position return without passing the zero point. (Return to origin after power is supplied will be
executed when passing of Motor Z phase is not necessary.) When "0" is set, the error "Home position return zero point not
passed" (error code: 197AH) occurs because the home position return is executed without passing the motor Z phase (Motor
reference position signal).
■Control mode
Control modes that can be used are shown below.
• Position control mode (speed control including position control and position loop)
• Speed control mode (speed control not including position loop)
• Torque control mode (torque control)
However, it is not available to switch to continuous operation to torque control mode of expansion control "Speed-torque
control". If the mode is switched to continuous operation to torque control mode, the error "Continuous operation to torque
control not supported" (error code: 19E7H) occurs and the operation stops.
"1: Feedback torque" cannot be set in "Torque initial value selection (b4 to b7)" of "[Pr.90] Operation setting for speed-torque
control mode". If it is set, the warning "Torque initial value selection invalid" (warning code: 09E5H) occurs and the command
value immediately after switching is the same as the case of selecting "0: Command torque".
APPENDICES APPENDIX
Appendix 3 Compatible Devices with SSCNETIII(/H)
*1
VC series
Possible (Operates artificially as one of the followings during amplifier-less operation.
• Servo amplifier type: MR-J4-10B, Motor type: HG-KR053 (resolution per servomotor rotation: 4194304 pulses)
• Servo amplifier type: MR-J3-10B, Motor type: HF-KP053 (resolution per servomotor rotation: 262144 pulses))
Possible (2 words write)
Not possible
Not possible
Alarm codes/warning codes detected
by VC series are stored in "Servo
alarm/warning".
MR Configurator2 is not available.
Use VC data editing software.
MR-J4(W)-B
Possible (1 word write)
*5
Possible
Possible
Alarm codes/warning codes detected by servo amplifier are stored in "Servo
alarm/warning".
MR Configurator2 is available.
MR-J3(W)-B
