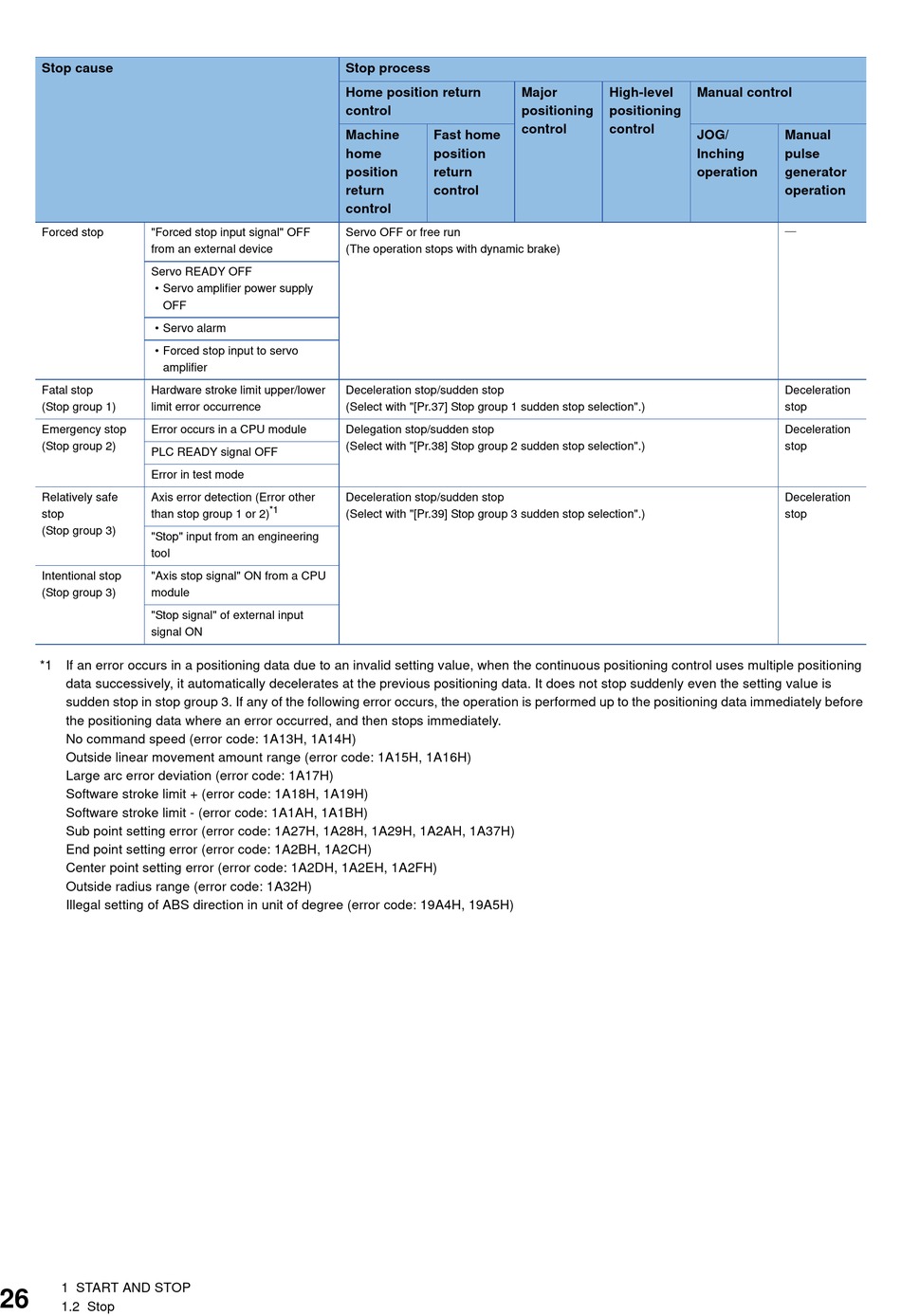

Stop cause
Forced stop
"Forced stop input signal" OFF
from an external device
Servo READY OFF
• Servo amplifier power supply
OFF
• Servo alarm
• Forced stop input to servo
amplifier
Fatal stop
Hardware stroke limit upper/lower
(Stop group 1)
limit error occurrence
Emergency stop
Error occurs in a CPU module
(Stop group 2)
PLC READY signal OFF
Error in test mode
Relatively safe
Axis error detection (Error other
stop
than stop group 1 or 2)
(Stop group 3)
"Stop" input from an engineering
tool
Intentional stop
"Axis stop signal" ON from a CPU
(Stop group 3)
module
"Stop signal" of external input
signal ON
*1 If an error occurs in a positioning data due to an invalid setting value, when the continuous positioning control uses multiple positioning
data successively, it automatically decelerates at the previous positioning data. It does not stop suddenly even the setting value is
sudden stop in stop group 3. If any of the following error occurs, the operation is performed up to the positioning data immediately before
the positioning data where an error occurred, and then stops immediately.
No command speed (error code: 1A13H, 1A14H)
Outside linear movement amount range (error code: 1A15H, 1A16H)
Large arc error deviation (error code: 1A17H)
Software stroke limit + (error code: 1A18H, 1A19H)
Software stroke limit - (error code: 1A1AH, 1A1BH)
Sub point setting error (error code: 1A27H, 1A28H, 1A29H, 1A2AH, 1A37H)
End point setting error (error code: 1A2BH, 1A2CH)
Center point setting error (error code: 1A2DH, 1A2EH, 1A2FH)
Outside radius range (error code: 1A32H)
Illegal setting of ABS direction in unit of degree (error code: 19A4H, 19A5H)
1 START AND STOP
1.2 Stop
Stop process
Home position return
control
Machine
Fast home
home
position
position
return
return
control
control
Servo OFF or free run
(The operation stops with dynamic brake)
Deceleration stop/sudden stop
(Select with "[Pr.37] Stop group 1 sudden stop selection".)
Delegation stop/sudden stop
(Select with "[Pr.38] Stop group 2 sudden stop selection".)
Deceleration stop/sudden stop
*1
(Select with "[Pr.39] Stop group 3 sudden stop selection".)
Major
High-level
positioning
positioning
control
control
Manual control
JOG/
Manual
Inching
pulse
operation
generator
operation
Deceleration
stop
Deceleration
stop
Deceleration
stop
