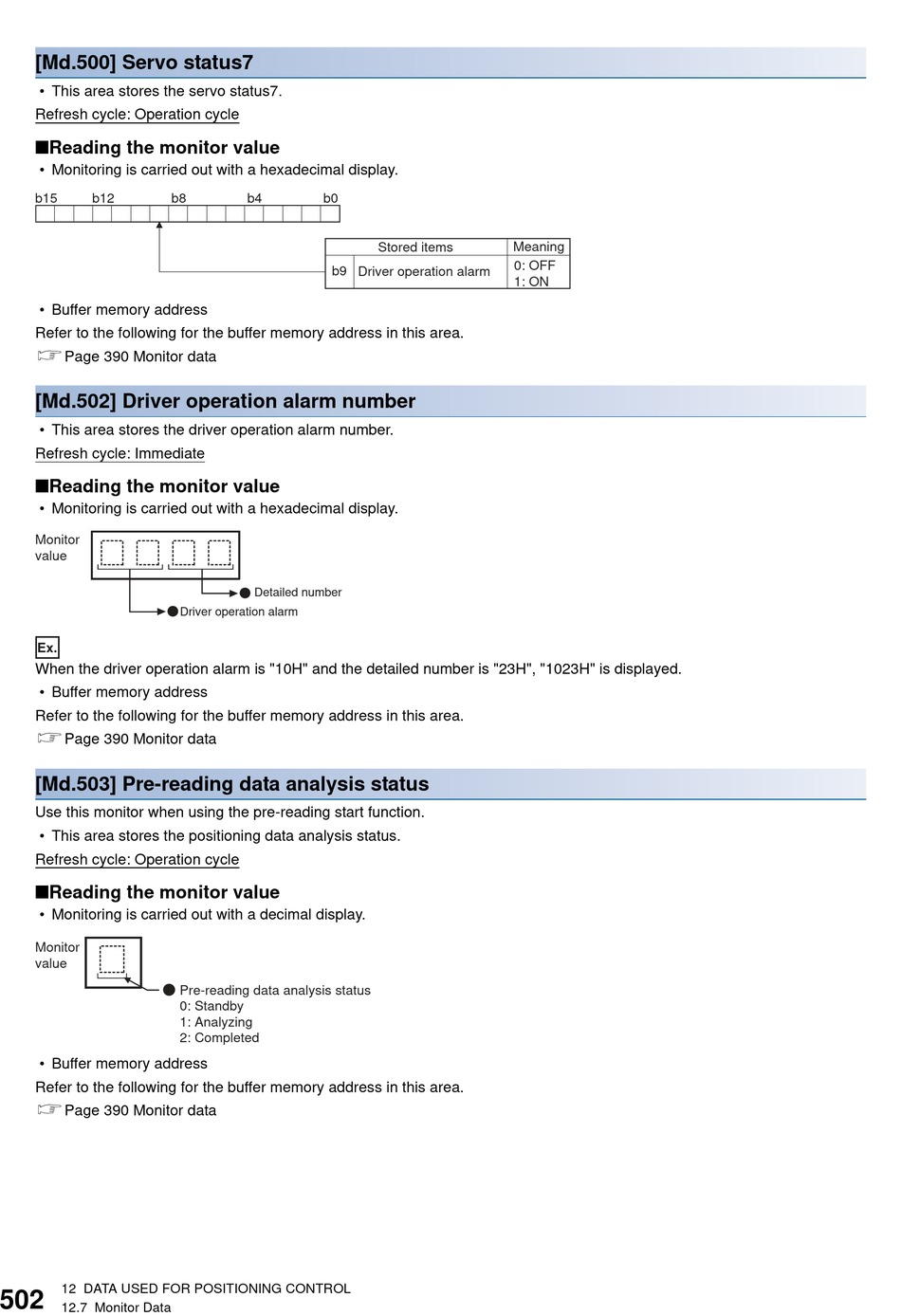

[Md.500] Servo status7
• This area stores the servo status7.
Refresh cycle: Operation cycle
■Reading the monitor value
• Monitoring is carried out with a hexadecimal display.
b15
b12
b8
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
[Md.502] Driver operation alarm number
• This area stores the driver operation alarm number.
Refresh cycle: Immediate
■Reading the monitor value
• Monitoring is carried out with a hexadecimal display.
Monitor
value
Driver operation alarm
Ex.
When the driver operation alarm is "10H" and the detailed number is "23H", "1023H" is displayed.
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
[Md.503] Pre-reading data analysis status
Use this monitor when using the pre-reading start function.
• This area stores the positioning data analysis status.
Refresh cycle: Operation cycle
■Reading the monitor value
• Monitoring is carried out with a decimal display.
Monitor
value
Pre-reading data analysis status
0: Standby
1: Analyzing
2: Completed
• Buffer memory address
Refer to the following for the buffer memory address in this area.
Page 390 Monitor data
12 DATA USED FOR POSITIONING CONTROL
12.7 Monitor Data
b4
b0
Stored items
b9 Driver operation alarm
Detailed number
Meaning
0: OFF
1: ON
