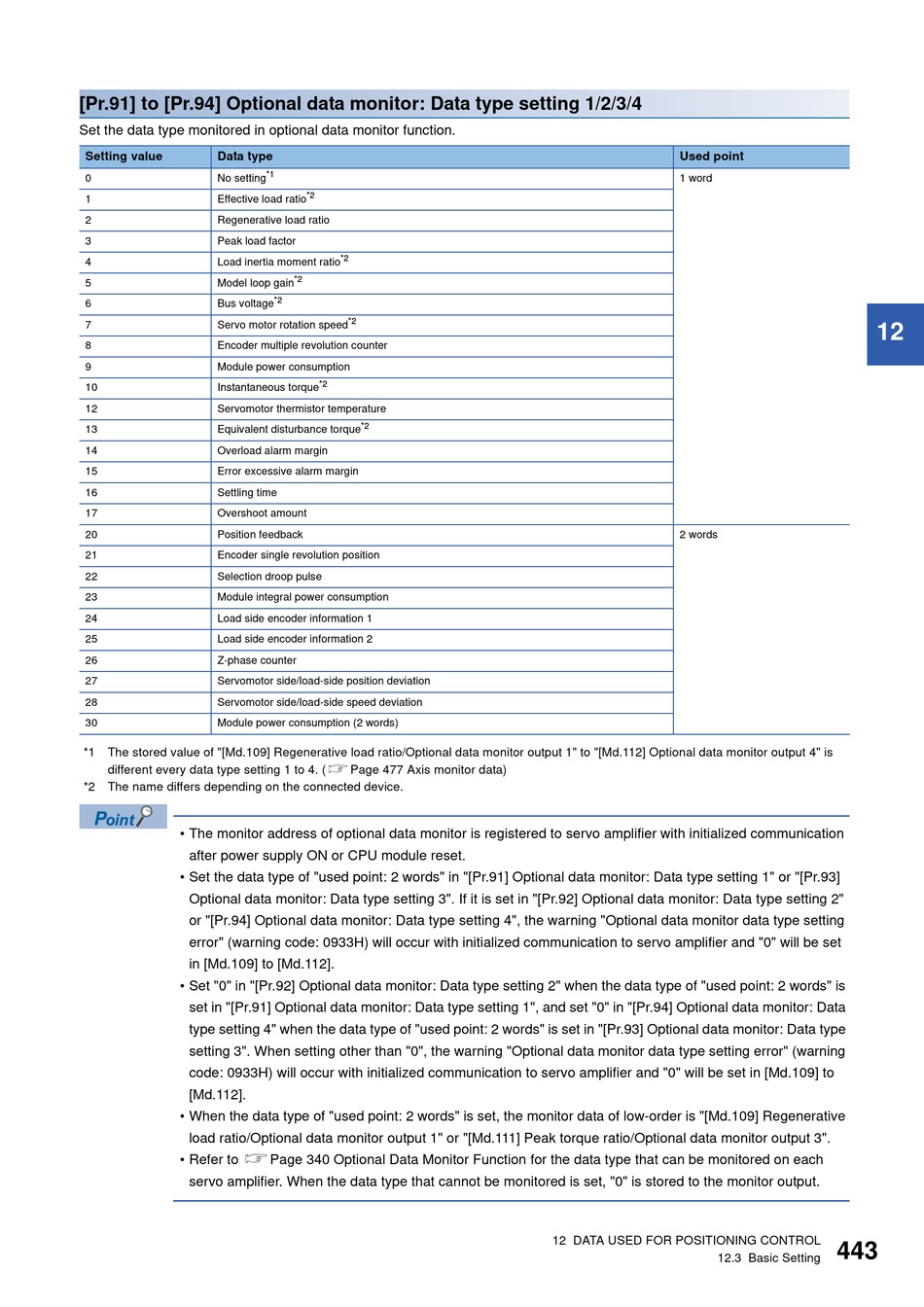

[Pr.91] to [Pr.94] Optional data monitor: Data type setting 1/2/3/4
Set the data type monitored in optional data monitor function.
Setting value Data type
0 No setting
1 Effective load ratio
2 Regenerative load ratio
3 Peak load factor
4 Load inertia moment ratio
5 Model loop gain
6 Bus voltage
7 Servo motor rotation speed
8 Encoder multiple revolution counter
9 Module power consumption
10 Instantaneous torque
12 Servomotor thermistor temperature
13 Equivalent disturbance torque
14 Overload alarm margin
15 Error excessive alarm margin
16 Settling time
17 Overshoot amount
20 Position feedback
21 Encoder single revolution position
22 Selection droop pulse
23 Module integral power consumption
24 Load side encoder information 1
25 Load side encoder information 2
26 Z-phase counter
27 Servomotor side/load-side position deviation
28 Servomotor side/load-side speed deviation
30 Module power consumption (2 words)
*1 The stored value of "[Md.109] Regenerative load ratio/Optional data monitor output 1" to "[Md.112] Optional data monitor output 4" is
different every data type setting 1 to 4. (Page 477 Axis monitor data)
*2 The name differs depending on the connected device.
• The monitor address of optional data monitor is registered to servo amplifier with initialized communication
after power supply ON or CPU module reset.
• Set the data type of "used point: 2 words" in "[Pr.91] Optional data monitor: Data type setting 1" or "[Pr.93]
Optional data monitor: Data type setting 3". If it is set in "[Pr.92] Optional data monitor: Data type setting 2"
or "[Pr.94] Optional data monitor: Data type setting 4", the warning "Optional data monitor data type setting
error" (warning code: 0933H) will occur with initialized communication to servo amplifier and "0" will be set
in [Md.109] to [Md.112].
• Set "0" in "[Pr.92] Optional data monitor: Data type setting 2" when the data type of "used point: 2 words" is
set in "[Pr.91] Optional data monitor: Data type setting 1", and set "0" in "[Pr.94] Optional data monitor: Data
type setting 4" when the data type of "used point: 2 words" is set in "[Pr.93] Optional data monitor: Data type
setting 3". When setting other than "0", the warning "Optional data monitor data type setting error" (warning
code: 0933H) will occur with initialized communication to servo amplifier and "0" will be set in [Md.109] to
[Md.112].
• When the data type of "used point: 2 words" is set, the monitor data of low-order is "[Md.109] Regenerative
load ratio/Optional data monitor output 1" or "[Md.111] Peak torque ratio/Optional data monitor output 3".
• Refer to Page 340 Optional Data Monitor Function for the data type that can be monitored on each
servo amplifier. When the data type that cannot be monitored is set, "0" is stored to the monitor output.
*1
*2
*2
*2
*2
*2
*2
*2
Used point
1 word
2 words
