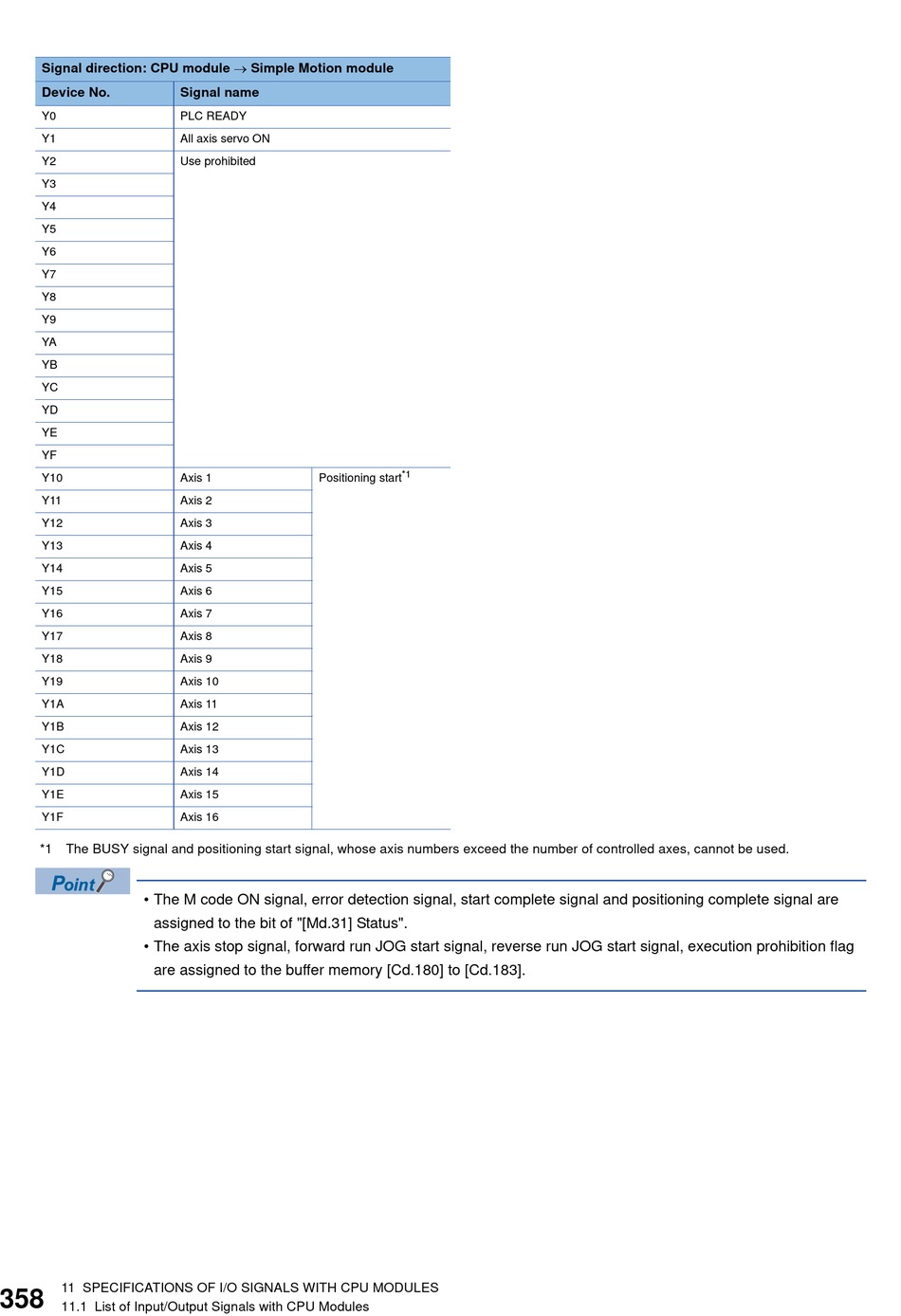

Signal direction: CPU module Simple Motion module
Device No.
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
YA
YB
YC
YD
YE
YF
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y19
Y1A
Y1B
Y1C
Y1D
Y1E
Y1F
*1 The BUSY signal and positioning start signal, whose axis numbers exceed the number of controlled axes, cannot be used.
• The M code ON signal, error detection signal, start complete signal and positioning complete signal are
assigned to the bit of "[Md.31] Status".
• The axis stop signal, forward run JOG start signal, reverse run JOG start signal, execution prohibition flag
are assigned to the buffer memory [Cd.180] to [Cd.183].
11 SPECIFICATIONS OF I/O SIGNALS WITH CPU MODULES
358
11.1 List of Input/Output Signals with CPU Modules
Signal name
PLC READY
All axis servo ON
Use prohibited
Axis 1
Positioning start
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Axis 7
Axis 8
Axis 9
Axis 10
Axis 11
Axis 12
Axis 13
Axis 14
Axis 15
Axis 16
*1
