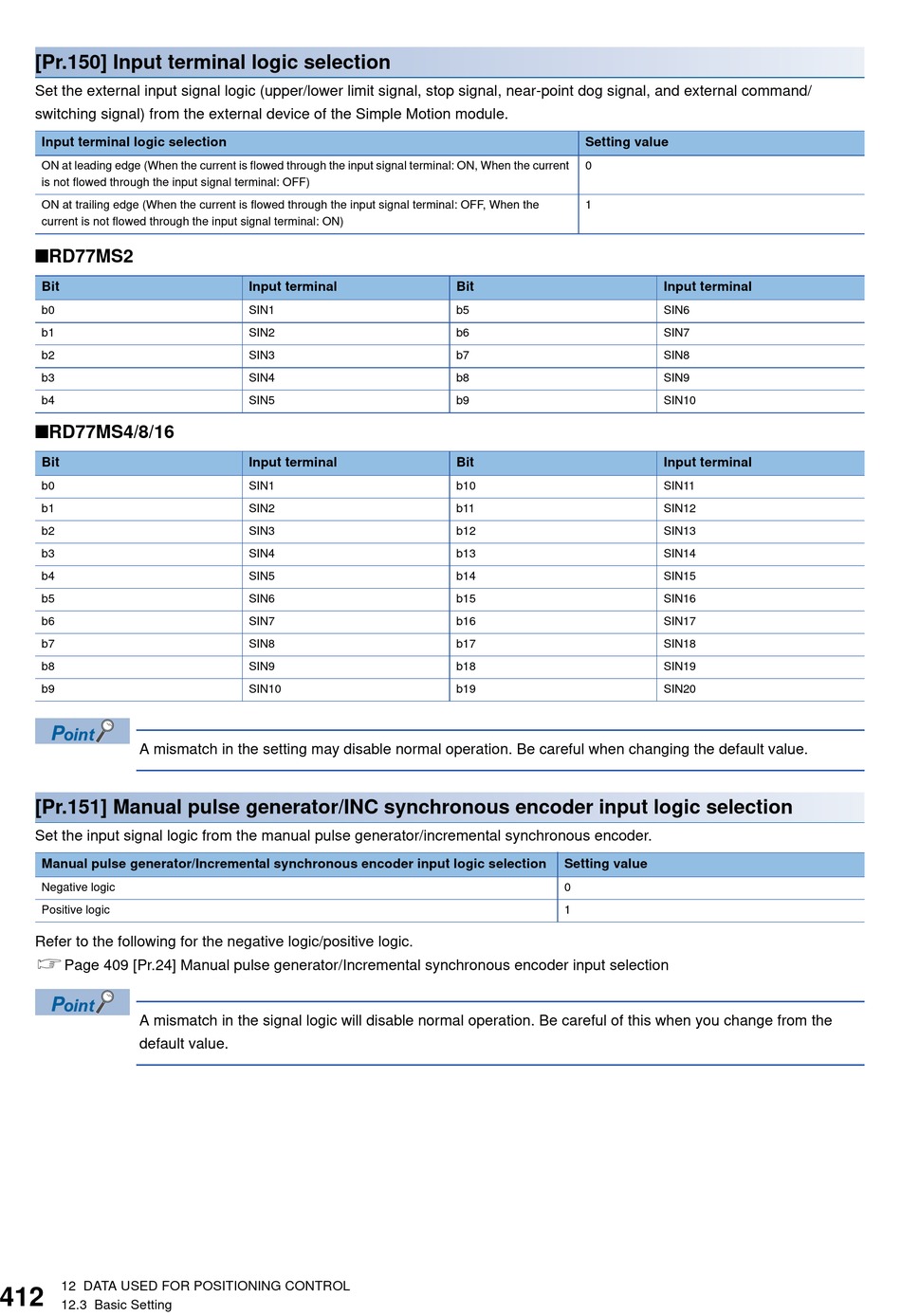

[Pr.150] Input terminal logic selection
Set the external input signal logic (upper/lower limit signal, stop signal, near-point dog signal, and external command/
switching signal) from the external device of the Simple Motion module.
Input terminal logic selection
ON at leading edge (When the current is flowed through the input signal terminal: ON, When the current
is not flowed through the input signal terminal: OFF)
ON at trailing edge (When the current is flowed through the input signal terminal: OFF, When the
current is not flowed through the input signal terminal: ON)
■RD77MS2
Bit
b0
b1
b2
b3
b4
■RD77MS4/8/16
Bit
b0
b1
b2
b3
b4
b5
b6
b7
b8
b9
A mismatch in the setting may disable normal operation. Be careful when changing the default value.
[Pr.151] Manual pulse generator/INC synchronous encoder input logic selection
Set the input signal logic from the manual pulse generator/incremental synchronous encoder.
Manual pulse generator/Incremental synchronous encoder input logic selection
Negative logic
Positive logic
Refer to the following for the negative logic/positive logic.
Page 409 [Pr.24] Manual pulse generator/Incremental synchronous encoder input selection
A mismatch in the signal logic will disable normal operation. Be careful of this when you change from the
default value.
12 DATA USED FOR POSITIONING CONTROL
12.3 Basic Setting
Input terminal
SIN1
SIN2
SIN3
SIN4
SIN5
Input terminal
SIN1
SIN2
SIN3
SIN4
SIN5
SIN6
SIN7
SIN8
SIN9
SIN10
Setting value
0
1
Bit
b5
b6
b7
b8
b9
Bit
b10
b11
b12
b13
b14
b15
b16
b17
b18
b19
Setting value
0
1
Input terminal
SIN6
SIN7
SIN8
SIN9
SIN10
Input terminal
SIN11
SIN12
SIN13
SIN14
SIN15
SIN16
SIN17
SIN18
SIN19
SIN20
