communication control bits, as well as status bits come back to their reset value. The
configuration registers are not impacted.
Here is the list of impacted register bits:
1. I2C_CR2 register: START, STOP, NACK
2. I2C_ISR register: BUSY, TXE, TXIS, RXNE, ADDR, NACKF, TCR, TC, STOPF, BERR,
ARLO, OVR
and in addition when the SMBus feature is supported:
1. I2C_CR2 register: PECBYTE
2. I2C_ISR register: PECERR, TIMEOUT, ALERT
PE must be kept low during at least three APB clock cycles in order to perform the software
reset. This is ensured by writing the following software sequence:
1. Write PE = 0
2. Check PE = 0
3. Write PE = 1
34.4.7 Data transfer
The data transfer is managed through transmit and receive data registers and a shift
register.
Reception
The SDA input fills the shift register. After the eighth SCL pulse (when the complete data
byte is received), the shift register is copied into I2C_RXDR register if it is empty
(RXNE = 0). If RXNE = 1, meaning that the previous received data byte has not yet been
read, the SCL line is stretched low until I2C_RXDR is read. The stretch is inserted between
the eighth and ninth SCL pulse (before the acknowledge pulse).
SCL
Shift register
RXNE
I2C_RXDR
1058/1450

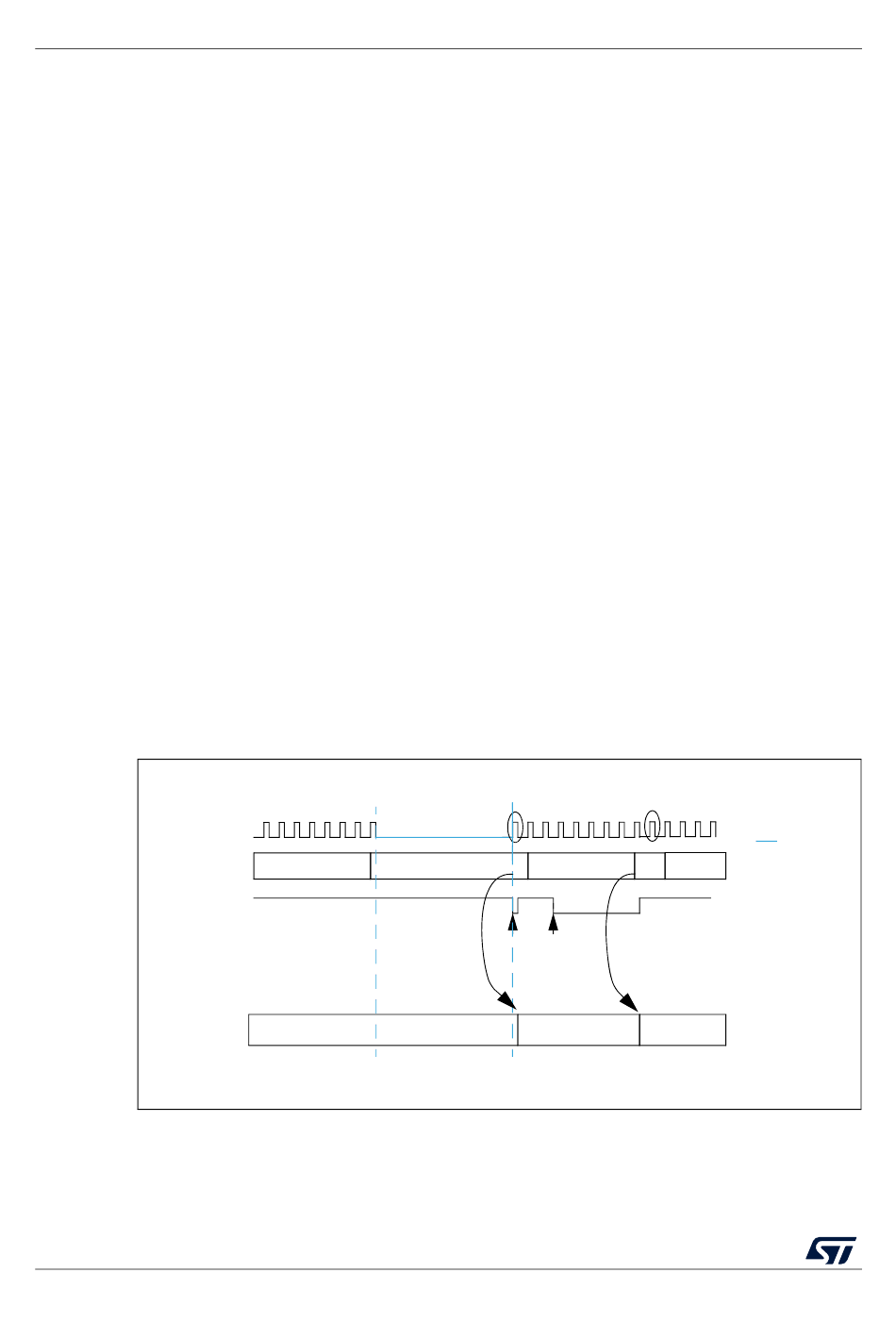

Figure 280. Data reception

xx data1
data0
RM0453 Rev 5
ACK pulse ACK pulse
xx data2
rd data0 rd data1
data1
RM0453
legend:
SCL
stretch
xx
data2
MS19848V1
