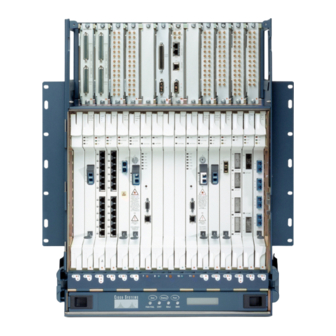

Page 1 Cisco ONS 15454 SDH Procedure Guide Product and Documentation Release 7.0 August 2012 Corporate Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 526-4100 Text Part Number: 78-17194-01...
Page 2 OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks.
Page 3: Table Of Contents
Cisco-Supplied Equipment User-Supplied Equipment Tools Needed Test Equipment NTP- D1 Unpack and Inspect the ONS 15454 SDH Shelf Assembly NTP- D2 Install the Shelf Assembly NTP- D3 Open and Remove the Front Door NTP- D219 Open and Remove the FMEC Cover...
Page 4 NTP- D260 Set Up CTC Computer for Local Craft Connection to the ONS 15454 SDH NTP- D261 Set Up a Computer for a Corporate LAN Connection to the ONS 15454 SDH NTP- D262 Set Up a Remote Access Connection to the ONS 15454 SDH...
Page 5 NTP- D335 Create a Manually Routed Low-Order VC11 Circuit 6-12 NTP- D336 Create a Unidirectional Low-Order VC11 Circuit with Multiple Drops 6-15 NTP- D81 Create an Automatically Routed Low-Order VC12 Circuit 6-19 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 6 NTP- D350 Create a Server Trail 6-106 Manage Circuits C H A P T E R Before You Begin NTP- D199 Locate and View Circuits NTP- D200 View Cross-Connect Card Resource Usage Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 7 C H A P T E R Before You Begin 10-1 NTP- D88 Modify Line Settings and PM Parameter Thresholds for Electrical Cards 10-2 NTP- D89 Modify Line Settings and PM Parameter Thresholds for Optical Cards 10-2 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 8 NTP- D155 Convert a Point-to-Point or a Linear ADM to a Two-Fiber MS-SPRing Manually 13-8 NTP- D351 Convert a Point-to-Point or Linear ADM to an SNCP Automatically 13-10 NTP- D156 Convert a Point-to-Point or Linear ADM to an SNCP Manually 13-11 Cisco ONS 15454 SDH Procedure Guide, R7.0 viii 78-17194-01...
Page 9 NTP- D266 View E-Series Ethernet Maintenance Information 15-17 NTP- D233 Change the Node Timing Reference 15-18 NTP- D265 View the ONS 15454 SDH Timing Report 15-18 NTP- D229 Replace an In-Service Cross-Connect Card 15-21 NTP- D230 Replace the Fan-Tray Assembly...
Page 10 DLP- D9 Remove the Front Door 17-10 DLP- D14 Create a Four-Fiber MS-SPRing Using the MS-SPRing Wizard 17-11 DLP- D16 Connect the Office Ground to the ONS 15454 SDH 17-13 DLP- D17 Connect Office Power to the ONS 15454 SDH Shelf 17-15...
Page 11 17-35 DLP- D45 Install the Fiber Boot 17-35 DLP- D50 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH on the Same Subnet Using Static IP Addresses 17-37 DLP- D51 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Dynamic Host...
Page 12 DLP- D132 Provision a Multirate PPM on the MRC-12 Card 18-27 DLP- D133 Provision the Optical Line Rate on the MRC-12 Card 18-27 DLP- D134 Change the Optical Line Rate on the MRC-12 Card 18-28 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 13 DLP- D176 Convert E1-N-14 Cards From 1:1 to 1:N Protection 18-63 DLP- D177 Convert DS3i-N-12 Cards From 1:1 to 1:N Protection 18-65 DLP- D178 Change the OSI Routing Mode 18-66 DLP- D179 Edit the OSI Router Configuration 18-67 Cisco ONS 15454 SDH Procedure Guide, R7.0 xiii 78-17194-01...
Page 14 DLP- D217 MS-SPRing Exercise Ring Test 19-15 DLP- D218 Provision SNCP Ring Selectors During Circuit Creation 19-17 DLP- D219 Provision a Low-Order Tunnel Route 19-18 DLP- D220 Provision E-Series Ethernet Ports 19-18 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 15 DLP- D260 Set Auto-Refresh Interval for Displayed PM Counts 19-64 DLP- D261 Refresh PM Counts for a Different Port 19-65 DLP- D262 Filter the Display of Circuits 19-65 DLP- D263 Edit SNCP Dual-Ring Interconnect Circuit Hold-Off Timer 19-67 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 16 DLP- D332 Install the TCC2/TCC2P Cards 20-22 DLP- D333 Install the XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G Cards 20-25 DLP- D334 Install the Alarm Interface Controller–International Card 20-26 DLP- D335 Install GBIC or SFP/XFP Devices 20-28 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 17 DLP- D370 View Circuit Information 20-76 DLP- D371 View the MS-SPRing Squelch Table 20-80 DLP- D372 Import a Cisco MetroPlanner Configuration File 20-81 DLP- D388 Verify MS-SPRing Extension Byte Mapping 20-81 DLP- D393 Switch Between TDM and DWDM Network Views...
Page 18 Manage the CTC Window CTC Menu and Toolbar Options CTC Mouse Options Node View Shortcuts A-10 Network View Tasks A-10 Table Display Options A-11 Equipment Inventory A-12 N D E X Cisco ONS 15454 SDH Procedure Guide, R7.0 xviii 78-17194-01...
Page 19 2-19 Figure 2-3 Routing Fiber-Optic Cables on the Optical-Card Faceplate 2-20 Figure 2-4 ONS 15454 SDH Front Door with Hinges and Ground Wire 2-22 Figure 4-1 ONS 15454 SDH Nodes Residing Behind a Firewall Figure 4-2 CTC Computer and ONS 15454 SDH Nodes Residing Behind Firewalls...
Page 20 Viewing the Audit Trail Records 15-11 Figure 15-5 Removing or Replacing the Fan-Tray Assembly (Front Door Removed) 15-24 Figure 17-1 Mounting an ONS 15454 SDH in a Rack 17-5 Figure 17-2 Three-Shelf ONS 15454 SDH Bay Assembly 17-8 Figure 17-3...
Page 21 Selecting a New Endpoint 19-32 Figure 19-8 Viewing the Rolls Tab 19-33 Figure 19-9 Selecting Roll Attributes for a Single Roll onto a Second Circuit 19-34 Figure 19-10 Selecting Dual Roll Attributes 19-36 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 22 Defining the Circuit Source on an E3-12 Card 20-9 Figure 20-3 Unscrewing the FMEC Cover 20-11 Figure 20-4 Removing the ONS 15454 SDH FMEC Cover 20-12 Figure 20-5 GBIC Installation (with Clips) 20-31 Figure 20-6 Connecting Fiber to a Four-Node SNCP...
Page 23 Maximum Bandwidth by Shelf Slot for the MRC-12 in Different Cross-Connect Configurations Table 2-4 Optical Transmit and Receive Levels 2-17 Table 3-1 CTC Computer Setup for Local Craft Connection to the ONS 15454 SDH Table 4-1 Card Protection Types 4-11 Table 6-1...
Page 24 FC_MR-4 Card Distance Extension Port Settings 20-62 Table 20-29 FC_MR-4 Card Distance Extension Port Settings 20-63 Table 20-30 ONS 15454 SDH Cards Capable of J2 Path Trace 20-73 Table 20-31 Circuit Protection Types 20-77 Table 20-32 Cisco ONS 15454 SDH Circuit Status...
Page 25 CTC Menu and Toolbar Options Table A-4 CTC Window Mouse Shortcuts Table A-5 Performing Node View Card Shortcuts A-10 Table A-6 Performing Network Management Tasks in Network View A-11 Table A-7 Table Display Options A-12 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 26: Cisco Ons 15454 Sdh Procedure Guide,
Tables Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 27 NTP-D260 Set Up CTC Computer for Local Craft Connection to the ONS 15454 SDH NTP-D261 Set Up a Computer for a Corporate LAN Connection to the ONS 15454 SDH NTP-D262 Set Up a Remote Access Connection to the ONS 15454 SDH Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 28 NTP-D316 Set Up Name, Date, Time, and Contact Information NTP-D279 Set Power Monitor Thresholds NTP-D169 Set Up CTC Network Access NTP-A360 Enable EMS Secure Access NTP-D27 Set Up the ONS 15454 SDH for Firewall Access NTP-D28 Set Up Timing NTP-D170 Create Protection Groups 4-10...
Page 29 NTP-D148 Create a Manual Cross-Connect for a G-Series or E-Series Card in Port-Mapped Mode 6-90 NTP-D241 Provision G-Series Ports for Transponder Mode 6-92 NTP-D149 Test G-Series Circuits 6-95 NTP-D194 Create Overhead Circuits 6-96 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 30 NTP-D71 Create, Download, and Assign Alarm Severity Profiles NTP-D168 Enable, Modify, or Disable Alarm Severity Filtering NTP-D72 Suppress Alarms or Discontinue Alarm Suppression NTP-D247 Provision External Alarms and Controls on the Alarm Interface Controller–International Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 31 NTP-D156 Convert a Point-to-Point or Linear ADM to an SNCP Manually 13-11 NTP-D320 Convert an SNCP to a Two-Fiber MS-SPRing Automatically 13-12 NTP-D210 Convert an SNCP to a Two-Fiber MS-SPRing Manually 13-14 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 32 NTP-D215 View G-Series Ethernet Maintenance Information 15-16 NTP-D266 View E-Series Ethernet Maintenance Information 15-17 NTP-D233 Change the Node Timing Reference 15-18 NTP-D265 View the ONS 15454 SDH Timing Report 15-18 NTP-D229 Replace an In-Service Cross-Connect Card 15-21 NTP-D230 Replace the Fan-Tray Assembly 15-22...
Page 33 DLP-D9 Remove the Front Door 17-10 DLP-D14 Create a Four-Fiber MS-SPRing Using the MS-SPRing Wizard 17-11 DLP-D16 Connect the Office Ground to the ONS 15454 SDH 17-13 DLP-D17 Connect Office Power to the ONS 15454 SDH Shelf 17-15 DLP-D18 Turn On and Verify Office Power...
Page 34 17-35 DLP-D45 Install the Fiber Boot 17-35 DLP-D50 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH on the Same Subnet Using Static IP Addresses 17-37 DLP-D51 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Dynamic Host Configuration...
Page 35 18-18 DLP-D121 Enable Pointer Justification Count Performance Monitoring 18-19 DLP-D122 Enable Intermediate Path Performance Monitoring 18-21 DLP-D124 Refresh PM Counts at 15-Minute Intervals 18-23 DLP-D125 Refresh PM Counts at One-Day Intervals 18-23 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 36 DLP-D162 Format and Enter NMS Community String for SNMP Command or Operation 18-52 DLP-D163 Delete SNMP Trap Destination 18-53 DLP-D165 Provision OSI Routing Mode 18-53 DLP-D166 Provision or Modify TARP Operating Parameters 18-55 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 37 DLP-D197 Initiate an SNCP Force Switch 18-84 DLP-D198 Clear an SNCP Force Switch 18-85 DLPs D200 to D299 19-1 DLP-D201 Apply a Lock-On 19-1 DLP-D202 Apply a Lockout 19-2 DLP-D203 Clear a Lock-On or Lockout 19-3 Cisco ONS 15454 SDH Procedure Guide, R7.0 xiii 78-17194-01...
Page 38 DLP-D238 Roll Two Cross-Connects from One Optical Circuit to a Second Optical Circuit 19-41 DLP-D239 Delete a Roll 19-43 DLP-D240 Cancel a Roll 19-43 DLP-D241 Clear an MS-SPRing Manual Ring Switch 19-44 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 39 DLP-D296 Perform a Manual Span Upgrade on a 1+1 Protection Group 19-81 DLP-D297 Perform a Manual Span Upgrade on an Unprotected Span 19-82 DLP-D298 Check the Network for Alarms and Conditions 19-83 DLP-D299 Initiate an MS-SPRing Span Lockout 19-84 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 40 DLP-D343 Change SDH Threshold Settings for STM-N Cards 20-54 DLP-D348 View ML-Series Ether Ports PM Parameters 20-56 DLP-D349 View ML-Series POS Ports PM Parameters 20-57 DLP-D353 Provision G-Series Flow Control Watermarks 20-58 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 41 DLP-D433 Run the CTC Installation Wizard for Windows 21-18 DLP-D434 Run the CTC Installation Wizard for UNIX 21-21 DLP-D435 Change the Default Network View Background Map 21-24 DLP-D436 Delete Ethernet RMON Alarm Thresholds 21-25 Cisco ONS 15454 SDH Procedure Guide, R7.0 xvii 78-17194-01...
Page 42 DLP-D471 Automatically Route an SNCP Circuit for a Topology Upgrade 21-48 DLP-D493 Provision the Ethernet Port of the ML-Series Card 21-49 DLP-D494 Provision the POS Port of the ML-Series Card 21-50 Cisco ONS 15454 SDH Procedure Guide, R7.0 xviii 78-17194-01...
Page 43 DLP-D9 Remove the Front Door 17-10 DLP-D14 Create a Four-Fiber MS-SPRing Using the MS-SPRing Wizard 17-11 DLP-D16 Connect the Office Ground to the ONS 15454 SDH 17-13 DLP-D17 Connect Office Power to the ONS 15454 SDH Shelf 17-15 DLP-D18 Turn On and Verify Office Power...
Page 44 17-35 DLP-D45 Install the Fiber Boot 17-35 DLP-D50 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH on the Same Subnet Using Static IP Addresses 17-37 DLP-D51 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Dynamic Host Configuration...
Page 45 DLP-D113 Synchronize Alarms 18-15 DLP-D114 View Conditions 18-16 DLP-D117 Apply Alarm Profiles to Cards and Nodes 18-18 DLP-D121 Enable Pointer Justification Count Performance Monitoring 18-19 DLP-D122 Enable Intermediate Path Performance Monitoring 18-21 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 46 DLP-D160 Change User Password and Security Level on Multiple Nodes 18-50 DLP-D161 Delete a User on Multiple Nodes 18-51 DLP-D162 Format and Enter NMS Community String for SNMP Command or Operation 18-52 DLP-D163 Delete SNMP Trap Destination 18-53 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 47 DLP-D196 Delete an MS-SPRing from a Single Node 18-83 DLP-D197 Initiate an SNCP Force Switch 18-84 DLP-D198 Clear an SNCP Force Switch 18-85 DLP-D201 Apply a Lock-On 19-1 DLP-D202 Apply a Lockout 19-2 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 48 DLP-D237 Roll Two Cross-Connects on One Optical Circuit Using Manual Routing 19-39 DLP-D238 Roll Two Cross-Connects from One Optical Circuit to a Second Optical Circuit 19-41 DLP-D239 Delete a Roll 19-43 DLP-D240 Cancel a Roll 19-43 Cisco ONS 15454 SDH Procedure Guide, R7.0 viii 78-17194-01...
Page 49 DLP-D296 Perform a Manual Span Upgrade on a 1+1 Protection Group 19-81 DLP-D297 Perform a Manual Span Upgrade on an Unprotected Span 19-82 DLP-D298 Check the Network for Alarms and Conditions 19-83 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 50 DLP-D343 Change SDH Threshold Settings for STM-N Cards 20-54 DLP-D348 View ML-Series Ether Ports PM Parameters 20-56 DLP-D349 View ML-Series POS Ports PM Parameters 20-57 DLP-D353 Provision G-Series Flow Control Watermarks 20-58 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 51 DLP-D434 Run the CTC Installation Wizard for UNIX 21-21 DLP-D435 Change the Default Network View Background Map 21-24 DLP-D436 Delete Ethernet RMON Alarm Thresholds 21-25 DLP-D437 Change Node Access and PM Clearing Privilege 21-25 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 52 21-47 DLP-D471 Automatically Route an SNCP Circuit for a Topology Upgrade 21-48 DLP-D493 Provision the Ethernet Port of the ML-Series Card 21-49 DLP-D494 Provision the POS Port of the ML-Series Card 21-50 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 53: About This Guide
The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms Note do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration.
Page 54: Appendix A Ctc Information And Shortcut
Updated the section “NTP-D350 Create a Server Trail” in the chapter, “Create • Circuits and Low-Order Tunnels”. Added a note in the “Delete a PPM from the MRC-12 or STM64-XFP Card” • procedure in the chapter “DLPs D100 to D199”. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 55 ONS 15454 SDH nodes and ONS 15454 SDH networks. Audience To use this publication, you should be familiar with Cisco or equivalent optical transmission hardware and cabling, telecommunications hardware and cabling, electronic circuitry and wiring practices, and preferably have experience as a telecommunications technician.
Page 56 You may proceed sequentially (recommended), or locate the work you want to perform from the list of procedures on the first page of every chapter (or turn to the front matter or index). describes the guide chapters. Table 1 Cisco ONS 15454 SDH Procedure Guide Chapters Title Summary Chapter 1, “Install the Shelf and Includes procedures for installing the shelf assembly, front FMECs”...
Page 57 About this Guide Table 1 Cisco ONS 15454 SDH Procedure Guide Chapters (continued) Title Summary Chapter 7, “Manage Circuits” Includes procedures to view circuits and cross-connect resource usage, modify and delete circuits and tunnels, convert and upgrade CTC and TL1 circuits, monitor circuits, and create a J1 path trace.
Page 58: Related Documentation
(AIDs), conditions, and modifiers for the Cisco ONS 15454 SDH. Cisco ONS 15454 SDH TL1 Reference Guide • Provides general information, procedures, and errors for TL1 in the Cisco ONS 15454 SDH. Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, •...
Page 59 Means reader take note. Notes contain helpful suggestions or references to material not covered in the document. Means reader be careful. In this situation, the user might do something that could result in equipment Caution damage or loss of data. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 60 üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. BEWAHREN SIE DIESE HINWEISE GUT AUF. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 61 Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning. SPARA DESSA ANVISNINGAR Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 62 About this Guide Cisco ONS 15454 SDH Procedure Guide, R7.0 xxii 78-17194-01...
Page 63 Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed. GEM DISSE ANVISNINGER Cisco ONS 15454 SDH Procedure Guide, R7.0 xxiii 78-17194-01...
Page 64 About this Guide Cisco ONS 15454 SDH Procedure Guide, R7.0 xxiv 78-17194-01...
Page 65 Obtaining Documentation and Submitting a Service Request For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html...
Page 66 About this Guide Cisco ONS 15454 SDH Procedure Guide, R7.0 xxvi 78-17194-01...
Page 67: Before You Begin
C H A P T E R Install the Shelf and FMECs This chapter explains how to install the Cisco ONS 15454 SDH shelf assembly. For a summary of the tools and equipment required for installation, see the “Required Tools and Equipment” section on page 1-2.
Page 68: Chapter 1 Install The Shelf And Fmec
You need the following tools and equipment to install and test the ONS 15454 SDH. Cisco-Supplied Equipment These materials are required for installation and are supplied with the ONS 15454 SDH. The shipped quantity of each item is in parentheses.
Page 69: Table 1-1 Cable Models And Model Numbers
Power cable (from fuse and alarm panel to MIC-A/P and MIC-C/T/P) (2) • Caution Only use the power cables that are designed to be used with ONS 15454 SDH. They are sold separately. Table 1-1 lists the different ONS 15454 SDH cable models and their model numbers. The xxx corresponds to the length of the cable, in meters.
Page 70: Tools Needed
Chapter 1 Install the Shelf and FMECs NTP- D1 Unpack and Inspect the ONS 15454 SDH Shelf Assembly Ring runs are not provided by Cisco and can hinder side-by-side shelf installation where space is limited. Note Tools Needed To install the ONS 15454 SDH, you need the following tools: •...
Page 71: Ntp- D2 Install The Shelf Assembly
#2 Phillips screwdriver Medium slot-head screwdriver Small slot-head screwdriver Pinned hex key Two M6 x 20 socket set screws Prerequisite Procedures NTP-D1 Unpack and Inspect the ONS 15454 SDH Shelf Assembly, page Required/As Needed Required Onsite/Remote Onsite Security Level None Warning Stability hazard.
Page 72: Ntp- D3 Open And Remove The Front Door
Prerequisite Procedures NTP-D2 Install the Shelf Assembly, page 1-5 Required/As Needed Required Onsite/Remote Onsite Security Level None Complete the “DLP-D8 Open the Front Cabinet Compartment (Door)” task on page 17-9. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 73: Ntp- D219 Open And Remove The Fmec Cover
Stop. You have completed this procedure. NTP-D219 Open and Remove the FMEC Cover Purpose This procedure opens and removes the FMEC cover. The ONS 15454 SDH has a screw-in panel over the EFCA. The FMEC cover protects the FMEC cards. Tools/Equipment Medium slot-head screwdriver...
Page 74 Verify which FMEC is required for your application. Step 1 The ONS 15454 SDH EFCA has 12 FMEC slots numbered sequentially from left to right. Slots 18 to 22 and 25 to 29 provide electrical connections for the corresponding slots. The FMEC-E1, FMEC-DS1/E1, FMEC E1-120NP, and FMEC E1-120PROA cards can be installed in Slots 18 to 21.
Page 75: Installing Fmecs On The Ons 15454 Sdh
Install the Shelf and FMECs NTP- D220 Install the Power and Signal FMECs Push the FMEC gently into the connector. The ONS 15454 SDH FMECs plug into electrical connectors Step 4 on the back panel of the shelf assembly when the screws are tightened.
Page 76: Ntp- D6 Install The Power And Ground
Install the Shelf and FMECs NTP- D6 Install the Power and Ground NTP-D6 Install the Power and Ground Purpose This procedure installs power feeds and grounds the ONS 15454 SDH. Tools/Equipment #2 Phillips screwdriver Medium slot-head screwdriver Small slot-head screwdriver...
Page 77: Ntp- D7 Install The Fan-Tray Assembly
NTP-D6 Install the Power and Ground, page 1-10 Required/As Needed Required Onsite/Remote Onsite Security Level None Do not operate an ONS 15454 SDH without a fan-tray air filter. A fan-tray air filter is mandatory. Caution Cisco ONS 15454 SDH Procedure Guide, R7.0 1-11 78-17194-01...
Page 78: Installing The Fan-Tray Assembly
Figure 1-2 Installing the Fan-Tray Assembly F A N F A IL M IN Fan tray assembly Continue with the “NTP-D222 Install the E1-75/120 Conversion Panel” procedure on page 1-13. Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 1-12 78-17194-01...
Page 79: Ntp- D222 Install The E1-75/120 Conversion Panel
Required/As Needed As needed Onsite/Remote Onsite Security Level None For more information about the E1-75/120 conversion panel, refer to the Cisco ONS 15454 SDH Note Reference Manual. Lift the E1-75/120 conversion panel to the desired rack position. Step 1 Figure 1-3 shows the rack-mounting for the E1-75/120 conversion panel.
Page 80: Figure 1-3 Mounting The E1-75/120 Conversion Panel In A Rack
When the E1-75/120 conversion panel is secured to the rack, install the remaining mounting screws if Step 4 necessary. Continue with the “NTP-D223 Attach Wires to Alarm, Timing, LAN, and Craft Pin Connections” Step 5 procedure on page 1-15. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 1-14 78-17194-01...
Page 81: Ntp- D223 Attach Wires To Alarm, Timing, Lan, And Craft Pin Connections
Onsite/Remote Onsite Security Level None Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the Caution wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly. Complete the “DLP-D324 Install Alarm Cables on the MIC-A/P”...
Page 82: Ntp- D224 Install The Electrical Card Cables On The Fmecs
To route coaxial cables, tie wrap or lace the coaxial cables according to local site practice and route the Step 1 cables through the side cutouts on either side of the ONS 15454 SDH. The rubber-coated edges of the side cutouts prevent the cables from chafing.
Page 83: Ntp- D226 Install And Close The Fmec Cover
NTP- D226 Install and Close the FMEC Cover To route twisted-pair cables, tie-wrap or lace the twisted-pair cables according to local site practice and Step 2 route the cables into the side cutouts on either side of the ONS 15454 SDH. Step 3 Continue with the “NTP-D226 Install and Close the FMEC Cover”...
Page 84: Ntp- D13 Perform The Shelf Installation Acceptance Test
Prerequisite Procedures Applicable procedures in Chapter 1, “Install the Shelf and FMECs.” Required/As Needed Required Onsite/Remote Onsite Security Level None Complete Table 1-2 by verifying that each applicable procedure was completed. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 1-18 78-17194-01...
Page 85: Table 1-2 Ons 15454 Sdh Shelf Installation Task Summary
ONS 15454 SDH Shelf Installation Task Summary Description Completed NTP-D1 Unpack and Inspect the ONS 15454 SDH Shelf Assembly, page 1-4 NTP-D2 Install the Shelf Assembly, page 1-5 NTP-D3 Open and Remove the Front Door, page 1-6 NTP-D219 Open and Remove the FMEC Cover, page 1-7...
Page 86 Chapter 1 Install the Shelf and FMECs NTP- D13 Perform the Shelf Installation Acceptance Test Cisco ONS 15454 SDH Procedure Guide, R7.0 1-20 78-17194-01...
Page 87 C H A P T E R Install Cards and Fiber-Optic Cable This chapter explains how to install the Cisco ONS 15454 SDH cards and fiber-optic cable (fiber). Before You Begin This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
Page 88 During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94 Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the Caution wristband cable into the ESD jack located on the lower-right outside to edge of the shelf assembly.
Page 89: Figure 2-1 Installing Cards In The Ons 15454 Sdh
12 to 17, include four slots (Slots 5, 6, 12, and 13) that have four times the bandwidth of the other multiservice slots. Table 2-1 ONS 15454 SDH Card and Slot Compatibility for the XC-VXL-2.5G Cards Slot TCC2/ TCC2/...
Page 90 Chapter 2 Install Cards and Fiber-Optic Cable NTP- D15 Install the Common Control Cards Table 2-1 ONS 15454 SDH Card and Slot Compatibility for the XC-VXL-2.5G Cards (continued) Slot TCC2/ TCC2/ Type TCC2P XC AIC-I XC TCC2P MS E1-N-14 E1-42...
Page 91: Table 2-2 Slot Compatibility For The Xc-Vxl-10G Or Xc-Vxc-10G Card
Chapter 2 Install Cards and Fiber-Optic Cable NTP- D15 Install the Common Control Cards Table 2-1 ONS 15454 SDH Card and Slot Compatibility for the XC-VXL-2.5G Cards (continued) Slot TCC2/ TCC2/ Type TCC2P XC AIC-I XC TCC2P MS OC192 Not supported with XC-VXL-2.5G cards. Requires XC-VXL-10G or XC-VXC-10G cards.
Page 92 OC48 IR/STM16 SH AS 1310 OC48 LR/STM16 LH AS 1550 OC48 ELR/STM16 EH 100 GHz OC192 SR/STM64 IO 1310 OC192 IR/STM64 SH 1550 OC192 LR/STM64 LH 1550 OC192 LR/STM64 LH ITU 15xx.xx Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 93 During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 94: Ntp- D16 Install Stm-N Cards And Connectors
The laser is off when the safety key is off (labeled 0). Statement 293 Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the Caution wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.
Page 95: Table 2-3 Maximum Bandwidth By Shelf Slot For The Mrc-12 In Different Cross-Connect Configurations
OC-48 XC-VXC-10G/XC-VXL-10G OC-48 OC-192 Refer to the card’s reference section in the “Optical Cards” chapter of the Cisco ONS 15454 SDH Reference Manual for more information about slot and bandwidth restrictions. Open the card latches/ejectors. Step 2 Use the latches/ejectors to firmly slide the optical card along the guide rails until the card plugs into the Step 3 receptacle at the back of the slot.
Page 96: Ntp- D17 Install The Electrical Cards
Install higher-capacity cards first; for example, install an E3-12 card before installing an E1-14 card. Let each card boot completely before installing the next card. Cisco recommends installing STM-N, transponder (TXP), and muxponder (MXP) cards before you Note install electrical cards, as applicable.
Page 97: Ntp- D18 Install Ethernet Cards And Connectors
Statement 94 Class I (21 CFR 1040.10 and 1040.11) and Class 1M (IEC 60825-1 2001-01) laser products. Statement 291 Warning Cisco ONS 15454 SDH Procedure Guide, R7.0 2-11 78-17194-01...
Page 98 (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056 Caution Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly. Note Cisco recommends installing TXP, MXP, STM-N, and electrical cards before you install Ethernet cards, as applicable.
Page 99: Ntp- D286 Install The Fc_Mr-4 Cards
(for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056 Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the Caution wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.
Page 100 ESD jack located on the lower right outside edge of the shelf assembly and ensure the shelf assembly is properly grounded. Open the card ejectors. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 2-14 78-17194-01...
Page 101: Ntp- D348 Install The Filler Cards
Step 1 With screws, attach the blank faceplate so that it covers the empty unused FMEC slot. Step 2 Repeat for any remaining unused FMEC slots. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 2-15 78-17194-01...
Page 102 STM64 SH 1550 card. Caution Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.
Page 103: Ntp- D19 Install Fiber-Optic Cables On Optical Cards
(ONS-SI-622-L2) –3 dBm 2 dBm –28 dBm –8 dBm 15454_MRC-12 (ONS-SE-622-1470 0 dBm 5 dBm –28 dBm –3 dBm through ONS-SE-622-1610) 15454_MRC-12 (ONS-SI-155-I1) –15 dBm –8 dBm –30 dBm –8 dBm Cisco ONS 15454 SDH Procedure Guide, R7.0 2-17 78-17194-01...
Page 104: Ntp- D245 Route Fiber-Optic Cables
As needed, complete the “DLP-D338 Install Fiber-Optic Cables for MS-SPRing Configurations” task on page 20-37. Continue with the “NTP-D245 Route Fiber-Optic Cables” procedure on page 2-19. Step 7 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 2-18 78-17194-01...
Page 105 Use the short clip with the standard door and the long clip with the extended door. GBICs, SFPs, and XFPs do not have fiber clips; therefore, if you are routing optical cable from an FC_MR-4, E1000-2-G, G1K-4, ML1000-2, or STM64-XFP cards, skip to Step Cisco ONS 15454 SDH Procedure Guide, R7.0 2-19 78-17194-01...
Page 106: Ntp- D227 Remove And Replace A Card
Close the fold-down front door when all fiber cables in the front compartment are properly routed. Step 7 Stop. You have completed this procedure. NTP-D227 Remove and Replace a Card Purpose This procedure removes and replaces cards in the ONS 15454 SDH shelf. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 107 Be careful not to crimp any fiber cables that are connected to the STM-N cards or DWDM cards. Some Note might not have the fiber boot attached. Insert the front door into the hinges on the shelf assembly. Step 1 Attach the pluggable ground wire (Figure 2-4). Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 2-21 78-17194-01...
Page 108: Figure 2-4 Ons 15454 Sdh Front Door With Hinges And Ground Wire
Swing the door closed. Note The ONS 15454 SDH comes with a pinned hex key tool for locking and unlocking the front door. Turn the key counterclockwise to unlock the door and clockwise to lock it. Stop. You have completed this procedure.
Page 109: Before You Begin
Connect the PC and Log into the GUI This chapter explains how to connect PCs and workstations to the Cisco ONS 15454 SDH and how to log into Cisco Transport Controller (CTC) software, which is the Cisco ONS 15454 SDH Operation, Administration, Maintenance and Provisioning (OAM&P) user interface.
Page 110: Ntp- D278 Set Up Computer For Ctc
NTP-D260 Set Up CTC Computer for Local Craft Connection to the ONS 15454 SDH, page 3-3 • NTP-D261 Set Up a Computer for a Corporate LAN Connection to the ONS 15454 SDH, page 3-5 • NTP-D262 Set Up a Remote Access Connection to the ONS 15454 SDH, page 3-6 •...
Page 111: Table 3-1 Ctc Computer Setup For Local Craft Connection To The Ons 15454 Sdh
Chapter 3 Connect the PC and Log into the GUI NTP- D260 Set Up CTC Computer for Local Craft Connection to the ONS 15454 SDH NTP-D260 Set Up CTC Computer for Local Craft Connection to the ONS 15454 SDH Purpose This procedure explains how to set up a PC running Windows or a Solaris workstation for an onsite local craft connection to the ONS 15454 SDH.
Page 112 RJ-45 (LAN) port on the active or standby TCC2/TCC2P card • RJ-45 jack on the MIC-C/T/P FMEC RJ-45 (LAN) port on a hub or switch to which the ONS 15454 SDH is physically connected • For instructions about crimping your own straight-through (CAT-5) LAN cables, refer to the Note Cisco ONS 15454 SDH Troubleshooting Guide.
Page 113: Ntp- D261 Set Up A Computer For A Corporate Lan Connection To The Ons 15454 Sdh
Step 2 LAN port. If your computer is connected to a proxy server, disable proxy service or add the ONS 15454 SDH nodes Step 3 as exceptions. To disable proxy service, complete one of the following tasks, depending on the web...
Page 114: Ntp- D262 Set Up A Remote Access Connection To The Ons 15454 Sdh
For CTC access, set the modem for Ethernet access. • Assign an IP address to the modem that is on the same subnet as the ONS 15454 SDH. • The IP address the modem assigns to the CTC computer must be on the same subnet as the modem •...
Page 115: Figure 17-11 Login Node Group
NTP- D23 Log into the ONS 15454 SDH GUI NTP-D23 Log into the ONS 15454 SDH GUI Purpose This procedure logs into CTC, the graphical user interface software used to manage the ONS 15454 SDH. This procedure includes optional node login tasks. Tools/Equipment None...
Page 116 Chapter 3 Connect the PC and Log into the GUI NTP- D23 Log into the ONS 15454 SDH GUI Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 117: Before You Begin
C H A P T E R Turn Up a Node This chapter explains how to provision a single Cisco ONS 15454 SDH node and turn it up for service, including node name, date and time, timing references, network attributes such as IP address and default router, users and user security, and card protection groups.
Page 118: Chapter 4 Turn Up A Node
Resolution Protocol (TARP), OSI routers, manual area addresses, subnetwork points of attachment, and IP-over-OSI tunnels. NTP-D24 Verify Card Installation Purpose This procedure verifies that the ONS 15454 SDH node is ready for turn-up. Tools/Equipment An engineering work order, site plan, or other document specifying the ONS 15454 SDH card installation.
Page 119 Verify that the software release shown on the LCD matches the software release indicated in your site Step 15 plan. If the release does not match, perform one of the following procedures: Perform a software upgrade using a Cisco ONS 15454 SDH software CD. Refer to the • release-specific software upgrade document for instructions.
Page 120: Ntp- D30 Create Users And Assign Security
You must log in as a Superuser to create additional users. The CISCO15 user provided with each Note ONS 15454 SDH can be used to set up other ONS 15454 SDH users. You can add up to 500 users to one ONS 15454 SDH.
Page 121 Network Time Protocol (SNTP) server to set the date and time of the node. If you do not use an SNTP or NTP server, complete the Date and Time fields. The ONS 15454 SDH will use these fields for alarm dates and times. By default, CTC displays all alarms in the CTC computer time zone for consistency.
Page 122: Purpose
To change the high battery voltage threshold in 0.5 VDC increments, choose a voltage from the Step 5 HIBATVG(Vdc) drop-down list. To change the extreme high battery voltage threshold in 0.5 VDC increments, choose a voltage from the Step 6 EHIBATVG(Vdc) drop-down list. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 123: Ntp- D169 Set Up Ctc Network Access
“CTC Network Connectivity” chapter in the Cisco ONS 15454 SDH Reference Manual for further information about static routes. If the ONS 15454 SDH is connected to a LAN or WAN that uses OSPF and you want to share routing Step 5 information between the LAN or WAN and the ONS network, complete the “DLP-D250 Set Up or...
Page 124: Ntp- A360 Enable Ems Secure Access
ONS 15454 SDH nodes in a protected network and the CTC computer in an external network. For the computer to access the ONS 15454 SDH nodes, you must provision the IIOP listener port specified by your firewall administrator on the ONS 15454 SDH.
Page 125: Figure 4-2 Ctc Computer And Ons 15454 Sdh Nodes Residing Behind Firewalls
CTC computer and ONS 15454 SDH behind firewalls. For the computer to access the ONS 15454 SDH, you must provision the IIOP port on the CTC computer and on the ONS 15454 SDH. Each firewall can use a different IIOP port.
Page 126: Required/As Needed As Needed
Step 2 Step 3 external BITS source is not available). This task can only provide SETS timing. For information about SDH timing, refer to the “Timing” chapter in the Cisco ONS 15454 SDH Note Reference Manual or ITU-T G.784. Stop. You have completed this procedure.
Page 127: Card Protection Types
For more information, refer to the “Card Protection” chapter and the card reference material specific to the card in the Cisco ONS 15454 SDH Reference Manual. E1-N-14 1:N protection allows a single card to protect up to five (four...
Page 128: Complete The "Dlp-D60 Log Into Ctc" Task
Note page 21-33 and continue with the card protection provisioning. Note To provision Y-cable protection for TXP and MXP cards, refer to the Cisco ONS 15454 DWDM Procedure Guide. Stop. You have completed this procedure. NTP-D34 Set Up SNMP Purpose This procedure provisions the SNMP parameters so that you can use SNMP management software with the ONS 15454 SDH.
Page 129: Figure 4-3 Creating An Snmp Trap Destination
The community name is a form of authentication and access control. The community name Note assigned to the ONS 15454 SDH is case-sensitive and must match the community name of the network management system (NMS). UDP Port—The default User Datagram Protocol (UDP) port for SNMP is 162. (More information •...
Page 130: Ntp- D326 Provision Osi
OSI reference sections in the “Management Network Connectivity” chapter in the ONS 15454 SDH Reference Manual. Do not begin this procedure until you know the role of the ONS 15454 SDH within the OSI and IP Caution network.
Page 131 C H A P T E R Turn Up a Network This chapter explains how to turn up and test Cisco ONS 15454 SDH networks, including point-to-point networks, linear add/drop multiplexers (ADMs), subnetwork connection protection rings (SNCPs), and multiplex section-shared protection rings (MS-SPRings).
Page 132: Chapter 5 Turn Up A Network
If either is not correct, complete the following procedures as needed: • If the software is not the correct version, install the correct version from the ONS 15454 SDH software CD. Upgrade procedures are located in a release-specific upgrade document. Follow the upgrade procedures appropriate to the software currently installed on the node.
Page 133: Before You Begin
Complete the “DLP-D60 Log into CTC” task on page 17-49 on an ONS 15454 SDH in the network where you want to provision a point-to-point configuration. Click the Provisioning > Protection tabs. Verify that 1+1 protection is created for the STM-N cards.
Page 134: Ntp- D124 Provision A Point-To-Point Network
From the View menu, choose Go to Network View. Step 2 Click the Alarms tab. Step 3 Verify that the alarm filter is not on. See the “DLP-D227 Disable Alarm Filtering” task on page 19-25 as necessary. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 135 VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must • have a direct optical interface to the ONS 15454 SDH. Set the test set for STM-N. For information about configuring your test set, consult your test set user guide.
Page 136 Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export the alarm information.
Page 137: Figure 5-1 Linear Adm Configuration
Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH where you want to Step 1 provision a linear ADM network. If you are already logged in, continue with Step 2. Figure 5-1 shows three ONS 15454 SDHs in a linear ADM configuration.
Page 138: Ntp- D38 Provision A Linear Adm Network
Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export alarm information.
Page 139: Ntp- D340 Linear Adm Network Acceptance Test
VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must have a direct optical interface into the ONS 15454 SDH. Set the test set for STM-N. For information about configuring your test set, consult your test set user guide.
Page 140 19-25 as necessary. Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Step 19 Delete the test circuit. See the “DLP-D27 Delete Circuits”...
Page 141: Figure 5-2 Four-Node, Two-Fiber Ms-Spring Fiber Connection Example
Figure 5-3. Verify that the working and protect card connections are not mixed. The working cards are the cards where you will provision the DCC terminations. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-11 78-17194-01...
Page 142: Figure 5-3 Four-Node, Four-Fiber Ms-Spring Fiber Connection Example
Working fibers Protect fibers Step 2 Log into an ONS 15454 SDH that you want to configure in an MS-SPRing. See the “DLP-D60 Log into CTC” task on page 17-49. If you are already logged in, continue with Step 3.
Page 143 MS-SPRing manually at each node that will be in the MS-SPRing. Complete the “NTP-D341 Two-Fiber MS-SPRing Acceptance Test” procedure on page 5-14 or the Step 3 “NTP-D342 Four-Fiber MS-SPRing Acceptance Test” procedure on page 5-16. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-13 78-17194-01...
Page 144: Ntp- D41 Create The Ms-Spring
Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export the alarm information.
Page 145: Ntp- D341 Two-Fiber Ms-Spring Acceptance Test
VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must have a direct optical interface into the ONS 15454 SDH. Set the test set for STM-N. For information about configuring your test set, consult your test set user guide.
Page 146 Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export alarm information.
Page 147: Ntp- D342 Four-Fiber Ms-Spring Acceptance Test
VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must • have a direct optical interface into the ONS 15454 SDH. Set the test set for STM-N. For information about configuring your test set, consult your test set user guide.
Page 148 Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export alarm information.
Page 149: Ntp- D304 Provision A Traditional Ms-Spring Dual-Ring Interconnect
The STM-N cards that will connect the MS-SPRings must be installed at the interconnect nodes. • The interconnect nodes must have fiber connections. Figure 5-4 shows an example of fiber • connections for a traditional two-fiber MS-SPRing DRI. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-19 78-17194-01...
Page 150: Figure 5-4 Traditional Two-Fiber Ms-Spring Dri Fiber Connection Example
Slot 1 Slot 5 Slot 12 Node 5 Node 6 West East West East Slot 5 Slot 12 Slot 5 Slot 12 Node 8 Node 7 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-20 78-17194-01...
Page 151: Ntp- D305 Provision An Integrated Ms-Spring Dual-Ring Interconnect
The STM-N cards that will connect the MS-SPRings must be installed at the two interconnect nodes. • The two interconnect nodes must have the correct fiber connections. Figure 5-5 shows an example of an integrated two-fiber MS-SPRing DRI configuration. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-21 78-17194-01...
Page 152: Figure 5-5 Integrated Two-Fiber Ms-Spring Dri Example
Onsite Security Level Provisioning or higher SNCP is the default ONS 15454 SDH topology. It is available as soon as you install the SNCP STM-N Note cards, connect the STM-N fibers, and create the DCC terminations. Unlike the MS-SPRings, ONS 15454 SDH SNCPs do not require explicit set up.
Page 153: Figure 5-6 Sncp Fiber Connection Example
“DLP-D364 Provision Multiplex-Section DCC Terminations” task on page 20-71.) If an ONS 15454 SDH is not connected to a corporate LAN, DCC or multiplex section DCC Note (MS-DCC) provisioning must be performed through a direct (craft) connection. Remote provisioning is possible only after all nodes in the network have DCC or MS-DCC terminations provisioned to Unlocked-enabled STM-N ports.
Page 154 VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must • have a direct optical interface into the ONS 15454 SDH. Set the test set for STM-N. For information about configuring your test set, consult your test set user guide.
Page 155: Ntp- D343 Sncp Acceptance Test
VC3—If you are testing a clear channel E3/DS3I, you must have a patch panel or a direct E3/DS3I • interface into the ONS 15454 SDH. Set the test set for clear channel E3/DS3I. For information about configuring your test set, consult your test set user guide.
Page 156 Click the Conditions tab. Step 23 Verify that no unexplained conditions appear on the network. If unexplained conditions appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export conditions information.
Page 157: Figure 5-7 Sncp Dri Fiber Connection Example
Slot 12 Slot 13 Slot 5 Slot 6 Slot 12 Node 5 Node 6 Slot 5 Slot 12 Slot 5 Slot 12 Node 7 Node 8 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-27 78-17194-01...
Page 158: Figure
STM-N cards in the SNCP nodes and the interconnect nodes must be the same type. The interconnect nodes must have the correct fiber connections. An example is shown in Figure 5-8. • This example shows an SNCP DRI with two rings. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-28 78-17194-01...
Page 159: Slot Slot 5
Slot Node 1 Node 2 Slot Slot Slot Slot Slot Slot Slot Slot Node 3 Node 4 Slot Slot Slot Slot Node 5 Node 6 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-29 78-17194-01...
Page 160: Step 1
The STM-N cards in the SNCP nodes and the interconnect nodes must be the same type. • The interconnect nodes must have fiber connections. An example is shown in Figure 5-9. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-30 78-17194-01...
Page 161: Ntp- D306 Provision A Traditional Ms-Spring/Sncp Dual-Ring Interconnect
Slot 6 Slot 12 Node 5 Node 6 SNCP Ring West East West East Slot 5 Slot 12 Slot 5 Slot 12 Node 8 Node 7 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-31 78-17194-01...
Page 162: Step 1
The STM-N cards in the SNCP nodes and the interconnect nodes must be the same type. The interconnect nodes must have the correct fiber connections. An example is shown in • Figure 5-10. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-32 78-17194-01...
Page 163: Figure 5-10 Integrated Ms-Spring To Sncp Dri Example
Slot 1 Slot 2 Slot 5 Slot 12 Node 4 Node 3 SNCP Ring Slot 5 Slot 12 Slot 5 Slot 12 Node 1 Node 2 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-33 78-17194-01...
Page 164 SNCP node. Figure 5-11 shows an example. Node 1 is connected to ONS 15454 SDH Nodes 2 and 3 through Slots 12 and 5. Trunk cards at Nodes 2 and 3 are connected to the third-party vendor equipment. Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 165: Figure 5-11 Ons 15454 Sdh Open-Ended Sncps Fiber Connection Example
Node 6 Step 2 Verify that the third-party cards or units to which the ONS 15454 SDH trunk cards are connected are the same STM-N rate as the ONS 15454 SDH trunk cards. The third-party time slots must match the ONS 15454 SDH card time slots to which they are connected.
Page 166: Repeat Steps
Following the documentation provided by the third-party vendor, provision the optical loop leading from the ONS 15454 SDH connection at one end to the ONS 15454 connection at the other end. In other words, you will create an open-ended SNCP using procedures for the third-party equipment.
Page 167: Ntp- D344 Open-Ended Sncp Acceptance Test
VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must have a direct optical interface into the ONS 15454 SDH. Set the test set for STM-N. For information about configuring your test set, consult your test set user guide.
Page 168 Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export the alarm information.
Page 169: Figure 5-12 Sncp Subtended From An Ms-Spring
Slot 12 Node 2 Complete the “DLP-D60 Log into CTC” task on page 17-49 at the ONS 15454 SDH that will subtend Step 3 the SNCP (Node 3 in the example). Complete the “DLP-D363 Provision Regenerator-Section DCC Terminations” task on page 20-68 Step 4 each STM-N card that will carry the SNCP.
Page 170: Ntp- D47 Subtend An Ms-Spring From An Sncp
1/Slot 5. See the “DLP-D338 Install Fiber-Optic Cables for MS-SPRing Configurations” task on page 20-37. Log into the ONS 15454 SDH that will subtend the MS-SPRing (the node in Step 1). See the “DLP-D60 Step 3 Log into CTC” task on page 17-49.
Page 171: Figure 5-13 Ms-Spring Subtended From An Ms-Spring
Figure 5-13 shows two MS-SPRings shared by one ONS 15454 SDH. Ring 1 runs on Nodes 1, 2, 3, and 4. Ring 2 runs on Nodes 4, 5, 6, and 7 and represents the subtending ring added by this procedure. Two MS-SPRings, Ring 1 and Ring 2, are provisioned on Node 4.
Page 172: Figure 5-14 View Subtended Ms-Springs On The Network Map
From the View menu choose Go to Network View to see the subtending ring. Step 8 Figure 5-14 shows an example of two subtending MS-SPRings. Figure 5-14 View Subtended MS-SPRings on the Network Map Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 5-42 78-17194-01...
Page 173: Step 1
Superuser Complete the “DLP-D60 Log into CTC” task on page 17-49 on an ONS 15454 SDH on the network Step 1 where you want to create the network map. If you are already logged in, continue with Step 2. From the View menu, choose Go to Network View.
Page 174: Ntp- D172 Create A Logical Network Map
Chapter 5 Turn Up a Network NTP- D172 Create a Logical Network Map Cisco ONS 15454 SDH Procedure Guide, R7.0 5-44 78-17194-01...
Page 175: Before You Begin
This chapter explains how to create Cisco ONS 15454 SDH low-order circuits and tunnels, high-order circuits, Ethernet circuits, and virtual concatenated (VCAT) circuits. For additional information about ONS 15454 SDH circuits, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual.
Page 176 NTP-D325 Create an STM Test Circuit around the Ring, page 6-103—Complete as needed. NTP-D350 Create a Server Trail, page 6-106—Complete as needed. Table 6-1 defines ONS 15454 SDH circuit creation terms and options. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 177: Table 6-1 Ons 15454 Sdh Circuit Options
1. The number of VC4s depends on the Small Form-factor Pluggable (SFP) used as well as available backplane width and existing provisioned lines. For additional details, refer to the “Optical Cards” chapter in the Cisco ONS 15454 SDH Reference Manual.
Page 178: Table 6-3 Ctc Circuit Source And Destination Options For Low-Order Vc12 Or Vc11 Circuits
1. The number of VC4s depends on the SFP used as well as available backplane width and existing provisioned lines. For additional details, refer to the “Optical Cards” chapter in the Cisco ONS 15454 SDH Reference Manual. Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 179: Provisioning Or Higher
Step 6 site or engineering plan: View the cards that appear in the shelf map. Verify that the ONS 15454 SDH cards appear in the specified slots. Click the Provisioning > General tabs. Verify that the node name, contacts, date, time, and Network Time Protocol/Simple Network Time Protocol (NTP/SNTP) server IP address (if used) are correctly provisioned.
Page 180 Step 7 Complete the appropriate circuit creation procedure from the NTP list in the “Before You Begin” section Step 8 on page 6-1. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 181 VC11 circuits can start and end only at optical cards. Note Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 182 Protected Drops—Check this check box if you want the circuit routed on protected drops only, that • is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this check box, CTC shows only protected cards and ports as source and destination choices.
Page 183 Review Route Before Creation—Check this check box if you want to review and edit the circuit • route before the circuit is created. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 184: Figure 6-2 Setting Circuit Routing Preferences
Step 12, complete the following substeps. If not, continue with Step Click Next. In the Circuit Route Constraints For Auto Routing area, click a node or span on the circuit map. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-10 78-17194-01...
Page 185 Create VC LO aggregation point—This option is available if you are creating a VC11 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 186: Ntp- D335 Create A Manually Routed Low-Order Vc11 Circuit
Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step 2. Step 2 Complete the following: On the shelf graphic, verify that XC-VXC-10G cross-connect cards are installed in Slots 8 and 10.
Page 187 Protected Drops—Check this check box if you want the circuit routed on protected drops only, that • is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this check box, CTC shows only protected cards and ports as source and destination choices.
Page 188 Create VC LO aggregation point—This option is available if you are creating a VC11 circuit to an • STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 189: Ntp- D336 Create A Unidirectional Low-Order Vc11 Circuit With Multiple Drops
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 190 Protected Drops—Check this box if you want the circuit routed to protect drops only, that is, to • ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this box, CTC displays only protected cards as source and destination choices.
Page 191 Create VC LO aggregation point—This option is available if you are creating a VC11 circuit to an • STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 192 25, making sure that all options are provisioned correctly. Complete the “NTP-D135 Test Low-Order Circuits” procedure on page 6-53. Skip this step if you built Step 27 a test circuit. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-18 78-17194-01...
Page 193: Ntp- D81 Create An Automatically Routed Low-Order Vc12 Circuit
Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step 2. Step 2 Complete the following: On the shelf graphic, verify that XC-VXC-10G, XC-VXL-10G, or XC-VXL-2.5G cross-connect...
Page 194 Protected Drops—Check this check box if you want the circuit routed on protected drops only, that • is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this check box, CTC shows only protected cards and ports as source and destination choices.
Page 195: Figure 6-3 Setting Circuit Attributes For A Low-Order Vc12 Circuit
Review Route Before Creation—Check this check box if you want to review and edit the circuit • route before the circuit is created. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-21 78-17194-01...
Page 196: Figure 6-4 Setting Circuit Routing Preferences
Step 12, complete the following substeps. If not, continue with Step Click Next. In the Circuit Route Constraints For Auto Routing area, click a node or span on the circuit map. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-22 78-17194-01...
Page 197 Create VC LO aggregation point—This option is available if you are creating a VC12 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 198: Ntp- D82 Create A Manually Routed Low-Order Vc12 Circuit
Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step 2. Step 2 Complete the following: On the shelf graphic, verify that XC-VXC-10G, XC-VXL-10G, or XC-VXL-2.5G cross-connect...
Page 199 Protected Drops—Check this check box if you want the circuit routed on protected drops only, that • is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this check box, CTC shows only protected cards and ports as source and destination choices.
Page 200 Create VC LO aggregation point—This option is available if you are creating a VC12 circuit to an • STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 201: Ntp- D83 Create A Unidirectional Low-Order Vc12 Circuit With Multiple Drops
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 202 Protected Drops—Check this box if you want the circuit routed to protect drops only, that is, to • ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this box, CTC displays only protected cards as source and destination choices.
Page 203 Create VC LO aggregation point—This option is available if you are creating a VC12 circuit to an • STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 204 25, making sure that all options are provisioned correctly. Complete the “NTP-D135 Test Low-Order Circuits” procedure on page 6-53. Skip this step if you built Step 27 a test circuit. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-30 78-17194-01...
Page 205: Ntp- D54 Create An Automatically Routed Low-Order Vc3 Circuit
Provisioning or higher Step 1 Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network where you will create the circuit. If you are already logged in, continue with Step Step 2 On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in...
Page 206: Figure 6-5 Setting Circuit Attributes For A Low-Order Vc3 Circuit
Protected Drops—Select this check box if you want the circuit routed on protected drops only, that • is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC displays only protected cards and ports as source and destination choices.
Page 207 The order in which you choose included nodes and spans is the order in which the circuit is routed. Click spans twice to change the circuit direction. Repeat Step c for each node or span that you wish to include or exclude. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-33 78-17194-01...
Page 208 Create VC LO aggregation point—This option is available if you are creating a VC3 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 209: Ntp- D55 Create A Manually Routed Low-Order Vc3 Circuit
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in...
Page 210 Protected Drops—Select this check box if you want the circuit routed on protected drops only, that • is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC displays only protected cards and ports as source and destination choices.
Page 211 Create VC LO aggregation point—This option is available if you are creating a VC3 circuit to an • STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 212: Ntp- D56 Create A Unidirectional Low-Order Vc3 Circuit With Multiple Drops
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in...
Page 213 Protected Drops—Check this box if you want the circuit routed to protect drops only, that is, to • ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this box, CTC displays only protected cards as source and destination choices.
Page 214: Figure 6-6 Setting Circuit Attributes For A Unidirectional Low-Order Vc3 Circuit
Step 14 If you selected Fully Protected Path in Step 12 and the circuit will be routed on an SNCP DRI, click the Dual Ring Interconnect check box. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-40 78-17194-01...
Page 215 Create VC LO aggregation point—This option is available if you are creating a VC3 circuit to an • STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.
Page 216: Ntp- D133 Create An Automatically Routed Low-Order Tunnel
ONS 15454 SDH nodes without consuming low-order matrix resources on the cross-connect card. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual for more information.
Page 217 A low-order tunnel automatically transitions into the Unlocked service state after a VC12 or VC3 circuit is created. For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Unavailable for low-order tunnels. •...
Page 218: Figure 6-7 Setting Attributes For A Low-Order Tunnel
Required Nodes/Lines or Excluded Nodes Links lists, then click the Up or Down buttons to change the tunnel routing order. Click Remove to remove a node or span. Step 15 If you selected Review Route Before Creation in Step Click Next. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-44 78-17194-01...
Page 219: Ntp- D134 Create A Manually Routed Low-Order Tunnel
In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual for more information.
Page 220 A low-order tunnel automatically transitions into the Unlocked service state after a VC12 or Note VC3 circuit is created. For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Unavailable for low-order tunnels. • Click Next.
Page 221: Ntp- D216 Create A Low-Order Path Tunnel For Port Grouping
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the tunnel. If you are already logged in, continue with Step...
Page 222 A low-order tunnel automatically transitions into the Unlocked service state after a VC12 or VC3 circuit is created. For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Uncheck this box. •...
Page 223 Step 15 Verify that the tunnel you just created appears in the circuits list. Low-order tunnels are identified by Step 16 LOT in the Type column. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-49 78-17194-01...
Page 224: Ntp- D187 Create A Low-Order Aggregation Point
LAPs that you can terminate at one node is 8 for 1+1 and 12 for MS-SPRing protection. Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the LAP. If you are already logged in, continue with Step...
Page 225: Figure 6-8 Setting Attributes For A Low-Order Aggregation Point
A low-order aggregation point automatically transitions into the Unlocked service state after a VC12 or VC3 circuit is created. For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Uncheck this box. •...
Page 226 Click Finish. The Circuits window appears. Step 17 Verify that the LAP you just created appears in the circuits list. LAPs are identified in the Type column. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-52 78-17194-01...
Page 227: Ntp- D135 Test Low-Order Circuits
Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will test the circuit. If you are already logged in, continue with Step 2. From the View menu, choose Go to Network View.
Page 228 Connect the Tx port of the test set to the circuit Rx port and the test set Rx port to the circuit Tx port. Configure the test set for the ONS 15454 SDH card that is the source of the circuit you are testing: Step 7 VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must...
Page 229: Ntp- D323 Create An Automatically Routed High-Order Circuit
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 230 Protected Drops—Select this check box if you want the circuit routed to protected drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC shows only protected cards as source and destination choices.
Page 231: Figure 6-9 Setting Circuit Attributes For An High-Order Circuit
Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not • possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-57 78-17194-01...
Page 232 MS-SPRing traditional handoff, exclude the unprotected links from the primary node towards the secondary node. If you are creating an SNCP to MS-SPRing integrated handoff, exclude unnecessary DRIs on the SNCP segments. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-58 78-17194-01...
Page 233 Complete the following as necessary. Skip this step if you built a test circuit. Step 23 Complete the “NTP-D62 Test High-Order Circuits” procedure on page 6-66. Complete the “NTP-D149 Test G-Series Circuits” procedure on page 6-95. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-59 78-17194-01...
Page 234: Ntp- D324 Create A Manually Routed High-Order Circuit
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 235 Protected Drops—Select this check box if you want the circuit routed to protect drops only, that is, • to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC shows only protected cards as source and destination choices.
Page 236 Click Remove to remove a node or span. Click the Included Spans tab, and continue with Step Step 18 Complete the “DLP-D98 Provision a High-Order Circuit Route” task on page 17-96. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-62 78-17194-01...
Page 237: Ntp- D190 Create A Unidirectional High-Order Circuit With Multiple Drops
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 238 Protected Drops—Select this check box if you want the circuit routed to protect drops only, that is, • to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC shows only protected cards as source and destination choices.
Page 239 Click Create. Step 21 In the Define New Drop dialog box, define the new drop: Step 22 Node—Choose the target node for the circuit drop. Slot—Choose the target card and slot. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-65 78-17194-01...
Page 240: Ntp- D62 Test High-Order Circuits
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will test the high-order circuits. If you are already logged in, continue with Step From the View menu, choose Go to Network View.
Page 241 Tx port of the test set to the circuit Rx port, and the test set Rx port to the circuit Tx port. Configure the test set for the source ONS 15454 SDH card: Step 7 STM-1 cards—You will test a VC4 circuit on one of the STM-1 ports. Configure the test set for an •...
Page 242: Ntp- D139 Create A Half Circuit On An Ms-Spring Or 1+1 Node
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at the ONS 15454 SDH where you will Step 1 create the half circuit. If you are already logged in, continue with Step If you want to assign a name to the circuit source and destination ports before you create the circuit,...
Page 243 For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Select this check box if you want to apply the state chosen in the State field •...
Page 244: Ntp- D140 Create A Half Circuit On An Sncp Ring Node
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at the ONS 15454 SDH where you will Step 1 create the half circuit. If you are already logged in, continue with Step If you want to assign a name to the circuit source and destination ports before you create the circuit,...
Page 245 For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Check this box if you want to apply the state chosen in the State field to the •...
Page 246: Ntp- D191 Create An E-Series Etherswitch Circuit (Multicard Or Single-Card Mode)
Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network where you will create the circuit. If you are already logged in, continue with Step 2. If you want to assign a name to the circuit source and destination ports before you create the circuit,...
Page 247 • VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
Page 248 Disabling spanning tree protection increases the likelihood of logic loops on an Ethernet network. Caution Turning off spanning tree on a circuit-by-circuit basis means that the ONS 15454 SDH is no longer Caution protecting the Ethernet circuit and that the circuit must be protected by another mechanism in the Ethernet network.
Page 249: Ntp- D192 Create A Circuit For An E-Series Card In Port-Mapped Mode
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 250 For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Select this check box if you want to apply the state chosen in the State field •...
Page 251: Ntp- D142 Create An E-Series Shared Packet Ring Ethernet Circuit
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 252 VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 • and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
Page 253 “DLP-D221 Provision E-Series Ethernet Ports for VLAN Membership” task on page 19-19 for each node that carries the circuit. Complete the “NTP-D146 Test E-Series Circuits” procedure on page 6-89. Step 31 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-79 78-17194-01...
Page 254: Ntp- D143 Create An E-Series Hub-And-Spoke Ethernet Configuration
Create cross-connects only (TL1-like)—Check this check box if you want to create one or more • cross-connects to complete a signal path for TL1-generated circuits. If you check this box, low-order tunnels and Ethergroup sources and destinations are unavailable. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-80 78-17194-01...
Page 255 VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 • and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
Page 256: Ntp- D144 Create An E-Series Single-Card Etherswitch Manual Cross-Connect
Ethernet circuit can be routed from source to destination across third-party equipment. Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 257 “DLP-D230 Change a Circuit State” task on page 19-26. For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Uncheck this box. • Protected Drops—Leave the default unchanged (unchecked).
Page 258 VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 • and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
Page 259: Ntp- D145 Create An E-Series Multicard Etherswitch Manual Cross-Connect
Step 7 Step 8 In the Circuit Creation dialog box, complete the following fields: • Circuit Type—Choose VC_HO_PATH_CIRCUIT. • Number of Circuits—Leave the default unchanged (1). Auto-ranged—Unavailable. • Click Next. Step 9 Cisco ONS 15454 SDH Procedure Guide, R7.0 6-85 78-17194-01...
Page 260 Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the “DLP-D230 Change a Circuit State” task on page 19-26. For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. • Apply to drop ports—Uncheck this box. •...
Page 261 Click Drops and click Create. Step 27 The Define New Drop dialog box appears. From the Slot drop-down list, choose the STM-N card that links the ONS 15454 SDH to the Step 28 non-ONS 15454 SDH equipment. From the Port drop-down list, choose the appropriate port.
Page 262 Ethernet circuits might have a circuit-size mismatch, for example, if a circuit size of VC4 was configured on the first ONS 15454 SDH and a circuit size of VC4-2c was configured on the second ONS 15454 SDH. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if the alarm persists.
Page 263: Ntp- D146 Test E-Series Circuits
Step 1 Complete the “DLP-D60 Log into CTC” task on page 17-49 at the ONS 15454 SDH source Ethernet node. If you are already logged in, continue with Step 2. Step 2 On the shelf graphic, double-click the circuit source card.
Page 264: Ntp- D148 Create A Manual Cross-Connect For A G-Series Or E-Series Card In Port-Mapped Mode
Ethernet circuit can be routed from source to destination across third-party equipment. Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH where you will create Step 1 the cross-connect. If you are already logged in, continue with Step...
Page 265 “DLP-D230 Change a Circuit State” task on page 19-26. For additional information about circuit service states, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Apply to drop ports—Uncheck this box. • Protected Drops—Leave the default (unchecked) unchanged.
Page 266: Ntp- D241 Provision G-Series Ports For Transponder Mode
In the node view, double-click the G-Series card graphic to open the card. Step 2 Click the Provisioning > Port tabs. Step 3 To put a pair of G-Series card ports in two-port bidirectional transponder mode (Figure 6-10): Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 6-92 78-17194-01...
Page 267: Figure 6-10 Two Port Bidirectional Transponder Mode
In the TXP Mode column, choose TX/RX from the drop-down list. Click Apply. In card view, the desired port has arrows and a curved line on the back of the port. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-93 78-17194-01...
Page 268: Figure 6-11 One Port Bidirectional Transponder Mode
Port with Port A and TXP Mode with TX Only. Click the Port B row and uncheck Auto Negotiation. Click Apply. The ports in CTC card view display arrows and a line between the back of the ports. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-94 78-17194-01...
Page 269: Figure 6-12 Two-Port Unidirectional Transponder Mode
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at the ONS 15454 SDH source Ethernet Step 1 node. If you are already logged in, continue with Step 2. Complete the “DLP-D230 Change a Circuit State” task on page 19-26...
Page 270: Ntp- D194 Create Overhead Circuits
Stop. You have completed this procedure. NTP-D194 Create Overhead Circuits Purpose This procedure creates overhead circuits on an ONS 15454 SDH network. Overhead circuits include DCC tunnels, IP-encapsulated tunnels, the AIC-I card orderwire, and the AIC-I card user data channel (UDC).
Page 271: Ntp- D283 Create An Automatically Routed Vcat Circuit
Purpose This procedure creates an automatically routed VCAT circuit. For more information about VCAT circuits, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Tools/Equipment ML-Series, CE-100T-8, CE-1000-4, or FC_MR-4 cards must be installed at the nodes used in the VCAT circuit.
Page 272 • Num. of members—Choose the number of members. For information about the number of members supported for each card, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Mode—Choose the protection mode for the VCAT circuit: •...
Page 273: Figure 6-13 Setting Vcat Circuit Attributes
Review Route Before Creation—Check this check box to review and edit the circuit route before the • circuit is created. Figure 6-14 Automatically Routing a VCAT Circuit Cisco ONS 15454 SDH Procedure Guide, R7.0 6-99 78-17194-01...
Page 274 If the circuit needs to be routed to a different path, see the “NTP-D284 Create a Manually Routed VCAT Circuit” procedure on page 6-101 to assign the circuit route yourself. Repeat Steps through for each member. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-100 78-17194-01...
Page 275: Ntp- D284 Create A Manually Routed Vcat Circuit
Purpose This procedure creates a manually routed VCAT circuit. For more information about VCAT circuits, refer to the “Circuits and Tunnels” chapter of the Cisco ONS 15454 SDH Reference Manual. Tools/Equipment ML-Series, CE-100T-8, CE-1000-4, or FC_MR-4 cards must be installed at the nodes used in the VCAT circuit.
Page 276 • Num. of members—Choose the number of members. For information about the number of members supported for each card, refer to the “Circuits and Tunnels” chapter in the Cisco ONS 15454 SDH Reference Manual. Mode—Choose the protection mode for the VCAT circuit: •...
Page 277: Ntp- D325 Create An Stm Test Circuit Around The Ring
Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49 at an ONS 15454 SDH on the network Step 1 where you will create the circuit. If you are already logged in, continue with Step...
Page 278 Protected Drops—Select this check box if you want the circuit routed to protect drops only, that is, • to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC shows only protected cards as source and destination choices.
Page 279 When all the circuits are created, the main Circuits window appears. Verify that the circuits you created appear in the window. Step 18 Complete the “NTP-D62 Test High-Order Circuits” procedure on page 6-66. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-105 78-17194-01...
Page 280: Ntp- D350 Create A Server Trail
SRLG—Enter a value for the Shared Resource Link Group (SRLG). SRLG is used by • Cisco Transport Manager (CTM) to specify link diversity. The SRLG field has no restrictions. If you create multiple server trails from one port, you can assign the same SRLG value to all the links to indicate that they originate from the same port.
Page 281 From the TUG3 drop-down list, choose the source TUG3. • From the TUG2 drop-down list, choose the source TUG2. From the VC11 drop-down list, choose the source VC11. • Click Finish. Step 10 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 6-107 78-17194-01...
Page 282 Chapter 6 Create Circuits and Low-Order Tunnels NTP- D350 Create a Server Trail Cisco ONS 15454 SDH Procedure Guide, R7.0 6-108 78-17194-01...
Page 283 To create circuits, see Chapter 6, “Create Circuits and Low-Order Tunnels.” To clear any alarm or trouble conditions, refer to the Cisco ONS 15454 SDH Troubleshooting Guide. This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
Page 284 Stop. You have completed this procedure. NTP-D200 View Cross-Connect Card Resource Usage Purpose This procedure provides the percentage of cross-connect card resources used by circuits that traverse or terminate at an ONS 15454 SDH. Tools/Equipment XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G cards must be installed. Prerequisite Procedures DLP-D333 Install the XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G...
Page 285: Chapter 7 Manage Circuit
VC12s, VC11s, or VC3s appear with 0 percent usage in the TUG3 Matrix Port Detail area. If stranded VC12s, VC11s, or VC3s appear, click the VC, then click Delete to free matrix capacity. The Delete button requires a Superuser security level. Note Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 286: Ntp- D287 Modify And Delete Circuits
Manage Circuits NTP- D287 Modify and Delete Circuits NTP-D287 Modify and Delete Circuits Purpose This procedure edits or changes the properties of ONS 15454 SDH circuits and deletes circuits. Tools/Equipment None Prerequisite Procedures Circuits must exist on the network. See Chapter 6, “Create Circuits and...
Page 287: Ntp- D78 Create A Monitor Circuit
Click Create Monitor Circuit. Step 8 In the Circuit Destination section of the Circuit Creation wizard, choose the destination node, slot, port, Step 9 and if applicable, VC for the monitored circuit. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 288: Figure
At Node 1, a VC4 is dropped from Port 1 of an STM-1 card. To monitor the VC4 traffic, test equipment is plugged into Port 2 of the STM-1 card and a monitor circuit to Port 2 is provisioned in Cisco Transport Controller (CTC). Circuit monitors are one-way. The monitor circuit in Figure 7-1 is used to monitor VC4 traffic received by Port 1 of the STM-1 card.
Page 289 Click the Disable AIS and RDI if TIM-P is detected check box if you want to suppress the alarm indication signal (AIS) and remote defect indication (RDI) when the STS Section Trace Identifier Mismatch Path (TIM-P) alarm appears. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for descriptions of alarms and conditions.
Page 290: Ntp- D79 Create A J1 Or J2 Path Trace
E1-42 card supports HO-J1 when the card is provisioned as an HO circuit endpoint. Note J1 path trace is available for VC3 and VC4 circuits. In ONS 15454 SDH Software R3.4 and earlier, you can set the VC3 J1 transmit string on E3 and DS3i-N-12 cards, but VC3 is not monitored by STM-N cards.
Page 291: Ntp- D332 Bridge And Roll Traffic
Roll To and Roll From paths are not in the Roll Pending status, used in test access, or used in a loopback. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide to clear any alarms. Required/As Needed As needed...
Page 292: Figure
Step 5 In the confirmation dialog box, click Yes to continue. Step 6 In the notification box, view the reconfiguration result. Click Ok. Step 7 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 7-10 78-17194-01...
Page 293: Ntp- D310 Merge Circuits
From the Tools menu, choose Manage VLANs. The All VLANS dialog box appears listing all of the Step 2 VLAN topologies in the network. Complete the following as necessary: Step 3 To add a VLAN, complete the “DLP-D243 Create a VLAN” task on page 19-46. • Cisco ONS 15454 SDH Procedure Guide, R7.0 7-11 78-17194-01...
Page 294 Chapter 7 Manage Circuits NTP- D352 Manage VLANs To delete a VLAN, complete the “DLP-D248 Delete VLANs” task on page 19-52. • Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 7-12 78-17194-01...
Page 295: Before You Begin
This chapter explains how to enable and view performance monitoring statistics for the Cisco ONS 15454 SDH. Performance monitoring (PM) parameters are used by service providers to gather, store, and set thresholds and to report performance data for early detection of problems. For more PM information, details, and definitions, refer to the Cisco ONS 15454 SDH Troubleshooting Guide.
Page 296: Ntp- D257 Change The Pm Display
DLP-D457 Refresh E-Series and G-Series Ethernet PM Counts, page 21-33 • DLP-D260 Set Auto-Refresh Interval for Displayed PM Counts, page 19-64 • DLP-D261 Refresh PM Counts for a Different Port, page 19-65 • Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 297 Click the Performance tab (Figure 8-1). Step 3 Figure 8-1 Viewing Performance Monitoring Information Card View Performance Intervals radio buttons Directions radio buttons Port Refresh Auto-refresh Baseline Clear drop-down list button drop-down list button button Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 298: Ntp- D198 Monitor Ethernet Performance
“DLP-D190 View CE-Series Ethernet and POS Ports Utilization PM Parameters” task on Step 8 page 18-78. Complete the “DLP-D192 View CE-Series Ethernet and POS Ports History PM Parameters” task on Step 9 page 18-80. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 299: Ntp- D289 Create And Delete Ethernet Rmon Thresholds
“DLP-D122 Enable Intermediate Path Performance Monitoring” task on page 18-21 Step 3 needed to enable or disable monitoring of VC4 traffic through intermediate nodes. Step 4 Complete the “DLP-D421 View STM-N PM Parameters” task on page 21-2. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 300: Ntp- D301 Monitor Fc_Mr-4 Performance
As needed Onsite/Remote Onsite or remote Security Level Provisioning or higher Complete the “DLP-D60 Log into CTC” task on page 17-49. If you are already logged in, continue with Step 1 Step 2. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 301 Perform any of the following tasks as needed: Step 2 DLP-D465 Create FC_MR-4 RMON Alarm Thresholds, page 21-40 • DLP-D466 Delete FC_MR-4 RMON Alarm Thresholds, page 21-44 • Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 302 Chapter 8 Monitor Performance NTP- D302 Create or Delete FC_MR-4 RMON Thresholds Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 303: Before You Begin
Cisco Transport Controller (CTC) detects and reports SDH alarms generated by the Cisco ONS 15454 SDH and the SDH network. You can use CTC to monitor and manage alarms at a card, node (default login), or network level. You can also view alarm counts on the LCD screen located on the fan-tray assembly.
Page 304: Chapter 9 Manage Alarm
Complete the “DLP-D112 Display Alarms and Conditions Using Time Zone” task on page 18-15 Step 5 needed. Complete the “DLP-D113 Synchronize Alarms” task on page 18-15 as needed. Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 305 Delete Cleared Alarms button. This action removes any cleared ONS 15454 SDH alarms from the Alarms display. The rows of cleared alarms turn white and have a C in their status (ST) column (Figure 18-5 on page 18-17).
Page 306: Figure
The node view is the default, but you can also navigate to the Alarms tab in the network view or Note card view to perform Step 2. The Select Affected Circuit option appears in the shortcut menu (Figure 9-1). Figure 9-1 Select Affected Circuits Option Click Select Affected Circuits. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 307: Ntp- D70 View Alarm Counts On The Lcd For A Node, Slot, Or Port
To return to the previous view from the Port screen, continue to press Port until the display cycles through all the ports on the slot. For instance, on the STM-3 card, press Port until it cycles past Slot 4 and you see “Slot.” Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 308: Ntp- D71 Create, Download, And Assign Alarm Severity Profiles
“DLP-D117 Apply Alarm Profiles to Cards and Nodes” task on page 18-18. As necessary, complete the “DLP-D427 Delete Alarm Severity Profiles” task on page 21-11. Step 5 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 309: Ntp- D168 Enable, Modify, Or Disable Alarm Severity Filtering
“DLP-D430 Suppress Alarm Reporting” task on page 21-15 to enable the node to send Step 2 autonomous messages that clear specific raised alarms and cause suppressed alarms to appear in the Conditions window. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 310: Ntp- D247 Provision External Alarms And Controls On The Alarm Interface Controller–International
External Control—Select External Control if you use both external alarms and external controls. • If you select External Control, four of the ports are converted to external control ports, leaving you with 16 external alarm ports. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 311: Figure 9-3 Provisioning External Alarms On The Aic-I Card
Figure 9-3 Provisioning External Alarms on the AIC-I Card Step 8 Complete the following fields for each external device wired to the ONS 15454 SDH backplane: • Enabled—Check the check box to activate the fields for the alarm input number.
Page 312 If you are provisioning external controls, click the External Controls tab and complete the following Step 11 fields for each external control wired to the ONS 15454 SDH connectors: • Enabled—Check this check box to activate the fields for the alarm input number.
Page 313: Before You Begin
C H A P T E R Change Card Settings This chapter explains how to change line and threshold settings on Cisco ONS 15454 SDH cards. Before You Begin Before performing any of the following procedures, investigate all alarms and clear any trouble conditions.
Page 314: Ntp- D88 Modify Line Settings And Pm Parameter Thresholds For Electrical Cards
This procedure changes the line settings and the PM parameter thresholds for optical (STM-N) cards. Tools/Equipment None Prerequisite Procedures NTP-D16 Install STM-N Cards and Connectors, page 2-7 Required/As Needed As needed Cisco ONS 15454 SDH Procedure Guide, R7.0 10-2 78-17194-01...
Page 315: Chapter 10 Change Card Setting
AIC-I card settings. If you are already logged in, proceed to Step 2. As needed, complete the “NTP-D108 Back Up the Database” procedure on page 15-5. Step 2 Perform any of the following tasks as needed: Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 10-3 78-17194-01...
Page 316: Ntp- D91 Upgrade E1-N-14 And Ds3 I-N-12 Protect Cards From 1:1 Protection To 1:N Protection
DLP-D177 Convert DS3i-N-12 Cards From 1:1 to 1:N Protection, page 18-65 As needed, complete the “NTP-D108 Back Up the Database” procedure on page 15-5. Step 4 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 10-4 78-17194-01...
Page 317: Ntp- D311 Modify Port Settings And Pm Parameter Thresholds For San Cards
On the STM64-XFP and MRC-12 cards, the PPM is equivalent to an optical port. Step 1 Complete the “DLP-D60 Log into CTC” task on page 17-49 at the node where you want to change the card service state. Step 2 Click the Inventory tab. Cisco ONS 15454 SDH Procedure Guide, R7.0 10-5 78-17194-01...
Page 318: Ntp- D331 Manage Pluggable Port Modules
DLP-D227 Disable Alarm Filtering, page 19-25 as necessary. Verify that no unexplained conditions appear on the network. If unexplained conditions appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide. Complete the “DLP-D147 Export CTC Data” task on page 18-38 to export alarm and condition information.“DLP-D132 Provision a Multirate PPM on the MRC-12 Card”...
Page 319 Chapter 10 Change Card Settings NTP- D331 Manage Pluggable Port Modules Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 10-7 78-17194-01...
Page 320 Chapter 10 Change Card Settings NTP- D331 Manage Pluggable Port Modules Cisco ONS 15454 SDH Procedure Guide, R7.0 10-8 78-17194-01...
Page 321: Before You Begin
C H A P T E R Change Node Settings This chapter explains how to modify node provisioning for the Cisco ONS 15454 SDH. To provision a new node, see Chapter 4, “Turn Up a Node.” To change default network element (NE) settings and to view a list of those settings, refer to the “Network Element Defaults”...
Page 322: Chapter 11 Change Node Setting
Additional ONS 15454 SDH networking information and procedures, including IP addressing examples, Note static route scenarios, Open Shortest Path First (OSPF) protocol, and routing information protocol options are provided in the “Management Network Connectivity” chapter of the Cisco ONS 15454 SDH Reference Manual. Complete the “DLP-D60 Log into CTC”...
Page 323: Ntp- D327 Modify Osi Provisioning
Provisioning or higher Additional information about the ONS 15454 implementation of OSI is provided in the “Management Note Network Connectivity” chapter of the Cisco ONS 15454 SDH Reference Manual. Complete the “DLP-D60 Log into CTC” task on page 17-49. If you are already logged in, continue with Step 1 Step 2.
Page 324: Ntp- D202 Customize The Ctc Network View
DLP-D393 Switch Between TDM and DWDM Network Views, page 20-82 • DLP-D269 Enable Dialog Box Do-Not-Display Option, page 19-74 • DLP-D215 Consolidate Links in Network View, page 19-11 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 11-4 78-17194-01...
Page 325: Ntp- D203 Modify Or Delete Card Protection Settings
NTP-D277 Modify or Delete Communications Channel Terminations and Provisionable Patchcords Purpose This procedure changes or deletes RS-DCC or MS-DCC terminations and deletes provisionable patchcords on the ONS 15454 SDH. Tools/Equipment None Prerequisite Procedures DLP-D363 Provision Regenerator-Section DCC Terminations, page 20-68...
Page 326: Ntp- D85 Change Node Timing
“DLP-D41 Delete a Provisionable Patchcord” task on page 17-33. Step 5 Stop. You have completed this procedure. NTP-D85 Change Node Timing Purpose This procedure changes the SDH timing settings for the ONS 15454 SDH. Tools/Equipment None Prerequisite Procedures NTP-D28 Set Up Timing, page 4-9 Required/As Needed...
Page 327: Ntp- D205 Modify Users And Change Security
“NTP-D108 Back Up the Database” procedure on page 15-5. Step 4 Stop. You have completed this procedure. NTP-D87 Change SNMP Settings Purpose This procedure modifies SNMP settings for the ONS 15454 SDH. Tools/Equipment None Prerequisite Procedures NTP-D34 Set Up SNMP, page 4-12 Required/As Needed...
Page 328 DLP-D273 Modify SNMP Trap Destination, page 19-77 • DLP-D163 Delete SNMP Trap Destination, page 18-53 • Complete the “NTP-D108 Back Up the Database” procedure on page 15-5. Step 4 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 11-8 78-17194-01...
Page 329: Before You Begin
Upgrade Cards and Spans This chapter explains how to upgrade cross-connect cards and optical spans (speeds) within a ring or protection group for the Cisco ONS 15454 SDH. Before You Begin This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
Page 330: Ntp- D234 Upgrade The Xc-Vxl-2.5G Card To The Xc-Vxl-10G Or Xc-Vxc-10G Card
ACT/STBY LED of the active XC-VXL-2.5G card is green. Note You can also place the cursor on the card graphic in Cisco Transport Controller (CTC) to display a pop-up that identifies the card as Active or Standby.
Page 331: Chapter 12 Upgrade Card And Span
The display does not change to reflect the XC-VXC-10G cards until the second card is upgraded and the XC-VXC-10G card in that slot boots up. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 12-3 78-17194-01...
Page 332: Ntp- D333 Upgrade The Xc-Vxl-10G Card To The Xc-Vxc-10G Card
On the XC-VXC-10G card, the fail LED above the ACT/STBY LED becomes red, blinks for some time (20 to 30 seconds), and turns off. The ACT/STBY LED turns amber and remains illuminated. In node view, click the Maintenance > Cross-Connect tabs. Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 12-4 78-17194-01...
Page 333: Ntp- D314 Upgrade The Tcc2 Card To The Tcc2P Card
Stop. You have completed this procedure. NTP-D314 Upgrade the TCC2 Card to the TCC2P Card Purpose This procedure upgrades the TCC2 card to the TCC2P card. The TCC2 and TCCP2 cards support ONS 15454 SDH Software R4.0 and later software versions. Tools/Equipment Two TCC2P cards...
Page 334 LED flashes. When the transfer completes, the TCC2P card reboots and goes into standby mode after approximately three minutes. Do not remove the card from the shelf during a database transfer. Cisco ONS 15454 SDH Procedure Guide, R7.0 12-6 78-17194-01...
Page 335: Ntp- D94 Upgrade Stm-N Cards And Spans Automatically
If power-related alarms occur after the second TCC2P card is installed, complete the “DLP-D33 Step 11 Measure Voltage” task on page 17-26. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for information about clearing alarms. Stop. You have completed this procedure. NTP-D94 Upgrade STM-N Cards and Spans Automatically...
Page 336 • Single-port STM-4 to STM-16 on MRC-12 • Single-port STM-4 to STM-64 Single-port STM-4 to MRC-12 • STM-16 to STM-64 • STM-16 to OC192SR1/STM64IO Short Reach or OC192/STM64 Any Reach • Cisco ONS 15454 SDH Procedure Guide, R7.0 12-8 78-17194-01...
Page 337: Figure 12-1 Span Upgrade Shortcut Menu
MSSP-OSYNC, which will clear when the upgrade/downgrade of all nodes is complete. If any other service-affecting alarms occur, Cisco recommends backing out of the procedure. A four-node MS-SPRing can take up to five minutes to clear all of the MSSP-OSYNC alarms.
Page 338: Figure 12-2 Span Upgrade Wizard
Prerequisite Procedures The manual span upgrade procedure requires at least two technicians (one at each end of the span) who can communicate with each other during the upgrade. Required/As Needed As needed Cisco ONS 15454 SDH Procedure Guide, R7.0 12-10 78-17194-01...
Page 339 MSSP-OSYNC, which will clear when the upgrade/downgrade of all nodes is complete. If any other service-affecting alarms occur, Cisco recommends backing out of the procedure. A four-node MS-SPRing can take up to five minutes to clear all of the MSSP-OSYNC alarms.
Page 340: Ntp- D374 Upgrade Stm-N Cards Manually
Provisioning or higher Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206 Cisco ONS 15454 SDH Procedure Guide, R7.0 12-12 78-17194-01...
Page 341: Port Migration Information
Single-port STM-4 to four-port STM-4, STM-16, or STM-64 • • STM-16 to STM-64IO or STM-64 Any Reach • MRC-12 to STM-64IO or STM-64 Any Reach (Port 1 is the only provisioned port on the MRC-12 card) Cisco ONS 15454 SDH Procedure Guide, R7.0 12-13 78-17194-01...
Page 342 7. This clears the MEA (EQPT) alarm. Step 8 When replacing the PPMs for the upgraded card, ensure that the reach of the PPMs match the values for the upgraded card. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 12-14 78-17194-01...
Page 343 C H A P T E R Convert Network Configurations This chapter explains how to convert from one SDH topology to another in a Cisco ONS 15454 SDH network. For initial network turn-up, see Chapter 5, “Turn Up a Network.”...
Page 344: C H A P T E R 13 Convert Network Configurations
(has IP connectivity with Cisco Transport Controller [CTC]). Two technicians who can communicate with each other during the upgrade might be needed if the PC running CTC and the ONS 15454 SDH nodes are not at the same location. Required/As Needed As needed...
Page 345: Figure
Click Next. The Re-fiber the Protected Path dialog box appears (Figure 13-2). Step 9 Figure 13-2 Refibering the Protect Path Step 10 Follow the instructions on the page for connecting the fibers between the nodes. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-3 78-17194-01...
Page 346 In a point-to-point configuration, two STM-N cards are connected to two STM-N cards on a second Note node. The working STM-N ports have data communications channel (DCC) terminations, and the STM-N cards are in a 1+1 protection group. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-4 78-17194-01...
Page 347: Ntp- D154 Convert A Point-To-Point To A Linear Adm Manually
Verify that no unexplained alarms appear on the network. If alarms appear, investigate and resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for procedures. Repeat the procedure to add an additional node to the linear ADM.
Page 348 If you are creating an STM-1 MS-SPRing and will eventually upgrade it to STM-16 or Note STM-64, use the single-port STM-1 cards (OC12 IR/STM4 SH 1310, OC12 LR/STM4 SH 1310, or OC12 LR/STM4 LH 1550). Cisco ONS 15454 SDH Procedure Guide, R7.0 13-6 78-17194-01...
Page 349: Automatically
On the network map, a green span line appears between all MS-SPRing nodes. • All E-W MISMATCH, RING MISMATCH, APSCIMP, DFLTK, and MS-SPRingOSYNC alarms are • cleared. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-7 78-17194-01...
Page 350 If the first half of the capacity is exceeded, this procedure cannot be completed. Bandwidth must be Caution 50 percent unassigned to convert to an MS-SPRing. Refer to local procedures for relocating circuits if these requirements are not met. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-8 78-17194-01...
Page 351: Figure
Step 11 From network view, click the Circuits tabs and complete the “DLP-D147 Export CTC Data” task on page 18-38 to save the circuit data to a file on your hard drive. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-9 78-17194-01...
Page 352: Ntp- D351 Convert A Point-To-Point Or Linear Adm To An Sncp Automatically
If the point-to-point or linear ADM is 1+1 protected, complete the “DLP-D155 Delete a Protection Group” task on page 18-47. If the point-to-point or linear ADM is unprotected, continue with Step Cisco ONS 15454 SDH Procedure Guide, R7.0 13-10 78-17194-01...
Page 353: Ntp- D156 Convert A Point-To-Point Or Linear Adm To An Sncp Manually
Complete the “DLP-D60 Log into CTC” task on page 17-49 at a node on the point-to-point or linear Step 1 ADM. If you are already logged in, continue with Step 2. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-11 78-17194-01...
Page 354 Before beginning this procedure, you should have a unique ring name to identify the new MS-SPRing Note and a unique node ID number for each node on the ring. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-12 78-17194-01...
Page 355: Ntp- D320 Convert An Sncp To A Two-Fiber Ms-Spring Automatically
SNCP paths. Click Next to continue. Another page appears, stating that the force has been applied to the shortest SNCP path. Click Finish. Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 13-13 78-17194-01...
Page 356 On the network view graphic, a green span line appears between all MS-SPRing nodes. • All E-W MISMATCH, RING MISMATCH, APSCIMP, DFLTK, and MS-SPRingOSYNC alarms are cleared. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for alarm troubleshooting. Stop. You have completed this procedure. NTP-D210 Convert an SNCP to a Two-Fiber MS-SPRing...
Page 357: Ntp- D210 Convert An Sncp To A Two-Fiber Ms-Spring Manually
Table 2-4 on page 2-17. Log into an ONS 15454 SDH on the network where you will begin the ring conversion. See the Step 1 “DLP-D60 Log into CTC” task on page 17-49. If you are already logged in, continue with Step 2.
Page 358 Chapter 6, “Create Circuits and Low-Order Tunnels.” Before beginning this procedure, optical transmit and receive levels should be in their acceptable range Note as shown in Table 2-4 on page 2-17. Cisco ONS 15454 SDH Procedure Guide, R7.0 13-16 78-17194-01...
Page 359: Ntp- D211 Convert A Two-Fiber Ms-Spring To A Four-Fiber Ms-Spring Automatically
Verify that no unexplained alarms appear on the network. If alarms appear, investigate and resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for procedures. Complete the “NTP-D342 Four-Fiber MS-SPRing Acceptance Test” procedure on page 5-16.
Page 360 “DLP-D24 Change an MS-SPRing Node ID” task on page 17-19; otherwise, continue with Step In network view, verify the following: Step 5 A green span line appears between all MS-SPRing nodes. • Cisco ONS 15454 SDH Procedure Guide, R7.0 13-18 78-17194-01...
Page 361: Ntp- D159 Modify An Ms-Spring
All E-W MISMATCH, RING MISMATCH, APSCIMP, DFLTK, MSSP-OSYNC, and Node ID • Mismatch alarms are cleared. For definitions of these alarms, see the Cisco ONS 15454 SDH Troubleshooting Guide. Note Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 362 Chapter 13 Convert Network Configurations NTP- D159 Modify an MS-SPRing Cisco ONS 15454 SDH Procedure Guide, R7.0 13-20 78-17194-01...
Page 363: Before You Begin
C H A P T E R Add and Remove Nodes This chapter explains how to add and remove Cisco ONS 15454 SDH nodes from multiplex section-shared protection rings (MS-SPRings), subnetwork connection protection (SNCP) rings, and linear add/drop multiplexer (ADM) configurations.
Page 364: Figure
MS-SPRing that uses Slots 5 and 12 for the MS-SPRing trunk cards. The dashed arrow shows the new fiber connections that will be made to add the fourth node to the MS-SPRing. Cisco ONS 15454 SDH Procedure Guide, R7.0 14-2...
Page 365: Figure 14-1 Three-Node, Two-Fiber Ms-Spring Before A Fourth Node Is Added
MS-SPRing. The dashed arrow shows the new fiber connections that will be made to add the fourth node. For four-fiber MS-SPRings, two fiber sets will be reconnected, the working fiber and the protect fiber. Cisco ONS 15454 SDH Procedure Guide, R7.0 14-3 78-17194-01...
Page 366: Figure 14-2 Three-Node, Four-Fiber Ms-Spring Before A Fourth Node Is Added
Step 7 more PCs are directly connected to different nodes that belong to the same subnet and Craft Access Only is not checked under Gateway Settings, add static routes on the gateway ONS 15454 SDH nodes, using the following settings: Destination IP address: Local-PC-IP-address •...
Page 367 Verify that no unexplained alarms appear on the network. If alarms appear, investigate and resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for procedures. Using the information recorded in Steps and the diagram created in...
Page 368: Figure
MS-SPRing is provisioned on it correctly with the information from Steps and 12. If the node still does not appear, or if alarms persist, refer to the Cisco ONS 15454 SDH Troubleshooting Guide. Click the Circuits tab. Wait until all the circuits are discovered. The circuits that pass through the new Step 28 node will be shown as incomplete.
Page 369 The node that is connected through its east port to the node that will be removed. In Figure 14-3, • Node 3 is connected through its east port to Node 4. Write down the slot and port of the MS-SPRing in the node. Cisco ONS 15454 SDH Procedure Guide, R7.0 14-7 78-17194-01...
Page 370: Ntp- D213 Remove An Ms-Spring Node
Verify that no unexplained alarms appear on the network. If alarms appear, investigate and resolve them before continuing. Refer to the Cisco ONS 15454 Troubleshooting Guide for procedures. Remove the fiber connections between the node being removed and the two neighboring nodes.
Page 371 Step 26 Step 27 (Optional) Complete the “NTP-D341 Two-Fiber MS-SPRing Acceptance Test” procedure on page 5-14 “NTP-D342 Four-Fiber MS-SPRing Acceptance Test” procedure on page 5-16. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 14-9 78-17194-01...
Page 372 See Chapter 9, “Manage Alarms” or, if necessary, refer to the Cisco ONS 15454 SDH Troubleshooting Guide. Count the total number of circuits on the fiber that is cut between the existing nodes. To count the number Step 4 of circuits, right click on the fiber that is cut, and click circuits.
Page 373: Ntp- D105 Add An Sncp Node
From the View menu, choose Go to Network View to display the SNCP nodes. The new node should Step 20 appear in the network map. Wait for a few minutes to allow all the nodes to appear. Cisco ONS 15454 SDH Procedure Guide, R7.0 14-11 78-17194-01...
Page 374 Purpose This procedure removes a node from an SNCP ring. Tools/Equipment None Prerequisite Procedures NTP-D44 Provision SNCP Nodes, page 5-22 Required/As Needed As needed Onsite/Remote Onsite Security Level Provisioning or higher Cisco ONS 15454 SDH Procedure Guide, R7.0 14-12 78-17194-01...
Page 375: Ntp- D106 Remove An Sncp Node
Step 10 Log into each newly connected node and open the Alarms tab. Verify that the span cards are free of Step 11 alarms. Resolve any alarms before proceeding. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide. Step 12 Complete the “DLP-D195 Verify Timing in a Reduced Ring”...
Page 376: Ntp- D280 Add A Node To A Linear Adm Manually
NTP-D280 Add a Node to a Linear ADM Manually Purpose This procedure adds a single ONS 15454 SDH node to the end of an ONS 15454 SDH linear ADM network. If the linear ADM carries traffic, you cannot add a node between two linear ADM nodes using this procedure unless you delete and recreate the circuits.
Page 377 (has IP connectivity with CTC). Two technicians who can communicate with each other during the upgrade might be needed if the PC running CTC and the ONS 15454 SDH nodes are not at the same location. Required/As Needed As needed Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 378: Ntp- D337 Add A Node To A Linear Adm Using The Wizard
The node name is case sensitive. Click Next. the Select Protection Group Ports page (Figure 14-4) appears. Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 14-16 78-17194-01...
Page 379: Figure 14-4 Selecting Protection Group Ports
Maintenance > Protection tabs. In the Protection Groups area, click the 1+1 protection group. You can see the status of the traffic in the Selected Group area. Click Next on the Update Circuit(s) on Node-Name page to continue with the procedure. Step 12 Cisco ONS 15454 SDH Procedure Guide, R7.0 14-17 78-17194-01...
Page 380 Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Click the Conditions tab. Verify that no unexplained conditions appear on the network. If unexplained Step 4 conditions appear, resolve them before continuing.
Page 381: Ntp- D322 Remove An In-Service Node From A Linear Adm
In the Selected Group area, verify the following states: Protect port - Protect/Standby • Working port - Working/Active • Repeat Step 13 through Step 16 to clear the switch on the other node. Step 21 Exit CTC. Step 22 Cisco ONS 15454 SDH Procedure Guide, R7.0 14-19 78-17194-01...
Page 382 Relaunch CTC at any one of the nodes that were adjacent to the target node. The nodes will now show Step 23 the circuit status as DISCOVERED when checked. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 14-20 78-17194-01...
Page 383: Before You Begin
Before performing any of the following procedures, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide as necessary. This section lists the chapter procedures (NTPs). Turn to a procedure to view its tasks (DLPs).
Page 384: Ntp- D107 Inspect And Maintain The Air Filter
Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206 Although the filter works if it is installed with either side facing up, Cisco recommends that you install Note it with the metal bracing facing up to preserve the surface of the filter.
Page 385: Figure 15-1 Reusable Fan-Tray Air Filter In An External Filter Bracket (Front Door Removed)
Caution Do not leave the fan tray out of the chassis for an extended period of time because excessive heat can damage the ONS 15454 SDH cards. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-3 78-17194-01...
Page 386 If the fan tray does not slide all the way to the back of the shelf assembly, pull the fan tray out and readjust the position of the reusable filter until the fan tray fits correctly. On a powered-up ONS 15454 SDH, the fans start immediately after the fan-tray assembly is Note correctly inserted.
Page 387: Ntp- D108 Back Up The Database
Internet Inter-ORB Protocol (IIOP) port. If you change the node name and then restore a backed up database with a different node name, the circuits map to the new node name. Cisco recommends keeping a record of the old and new node names.
Page 388: Ntp- D109 Restore The Database
Onsite or remote Security Level Superuser E1000-2 cards lose traffic for approximately 90 seconds when an ONS 15454 SDH database is restored. Caution Traffic is lost during the period of spanning tree reconvergence. The CARLOSS alarm appears and clears during this period.
Page 389: Figure 15-2 Restoring The Tcc2/Tcc2P Database
To clear all existing provisioning, locate and upload the database found on the latest Note ONS 15454 SDH software CD. Click the database file to highlight it. Step 8 Click Open. The DB Restore dialog box appears. Step 9 Cisco ONS 15454 SDH Procedure Guide, R7.0 15-7 78-17194-01...
Page 390: Ntp- D328 View And Manage Osi Information
Onsite/Remote Onsite or remote Security Level Provisioning or higher Additional information about the ONS 15454 SDH implementation of OSI is provided in the Note “Management Network Connectivity” chapter of the Cisco ONS 15454 SDH Reference Manual. Complete the “DLP-D60 Log into CTC” task on page 17-49.
Page 391: Ntp- D163 Restore The Node To Factory Configuration
Caution Restoring a node to the factory configuration deletes all cross-connects on the node. Cisco recommends that you save the node database to safe location if you will not be restoring the node Caution using the database provided on the software CD.
Page 392: Ntp- D312 Viewing The Audit Trail Records
IP address, subnet mask and gateway, and IIOP port. If you change the node name and then restore a backed up database with a different node name, the circuits map to the new renamed node. Cisco recommends keeping a record of the old and new node names. Step 1 If you need to install or replace one or more TCC2/TCC2P cards, see the “DLP-D332 Install the...
Page 393: Figure 15-4 Viewing The Audit Trail Records
Reset Columns Order/Visibility—Displays all hidden columns. • Row Count—Provides a numerical count of log entries. Step 6 Shift-click the column heading if you want to display an incrementally sorted list. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-11 78-17194-01...
Page 394: Ntp- D214 Off-Load The Audit Trail Record
If you archived the entries, you cannot reimport the log file back into CTC and will have to view the log in a different application. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-12 78-17194-01...
Page 395: Ntp- D313 Off-Load The Diagnostics File
This procedure describe how to off-load a diagnostic file. The diagnostic file contains a set of debug commands run on a node and its results. This file is useful to Cisco Technical Support (TAC) when troubleshooting problems with the node.
Page 396: Ntp- D231 Initiate Or Clear An External Switching Command
“DLP-D299 Initiate an MS-SPRing Span Lockout” task on page 19-84. Step 12 Complete the “DLP-D300 Clear an MS-SPRing Span Lockout” task on page 20-1 as needed. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-14 78-17194-01...
Page 397: Ntp- D112 Clean Fiber Connectors
“DLP-D204 Clean Multi Fiber-Optic Cable Note Connectors” task on page 19-3 as necessary. Do not reuse the optical swabs. Keep unused swabs off of work surfaces. Caution Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-15 78-17194-01...
Page 398: Ntp- D153 Reset A Card Using Ctc
As needed Onsite/Remote Onsite or remote Security Level Retrieve or higher Complete the “DLP-D60 Log into CTC” task on page 17-49. If you are already logged in, continue with Step 1 Step Cisco ONS 15454 SDH Procedure Guide, R7.0 15-16 78-17194-01...
Page 399: Ntp- D266 View E-Series Ethernet Maintenance Information
Step 3 As needed, complete the following tasks: DLP-D309 View Ethernet MAC Address Table, page 20-4 • DLP-D310 View Ethernet Trunk Utilization, page 20-5 • Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-17 78-17194-01...
Page 400: Ntp- D233 Change The Node Timing Reference
20-76 as needed. Stop. You have completed this procedure. NTP-D265 View the ONS 15454 SDH Timing Report Purpose This procedure displays a current status report of the ONS 15454 SDH timing references. Tools/Equipment None Prerequisite Procedures NTP-D28 Set Up Timing, page 4-9...
Page 401: Table 15-2 Ons 15454 Sdh Timing Report
Chapter 15 Maintain the Node NTP- D265 View the ONS 15454 SDH Timing Report Table 15-2 ONS 15454 SDH Timing Report Item Description Options Option Descriptions Clock Indicates the The node timing clock. timing clock. BITS-1 Out The BITS-1 Out timing clock.
Page 402 Chapter 15 Maintain the Node NTP- D265 View the ONS 15454 SDH Timing Report Table 15-2 ONS 15454 SDH Timing Report (continued) Item Description Options Option Descriptions Status Date and time of — — Changed the last status change. Switch Type of switch.
Page 403: Ntp- D229 Replace An In-Service Cross-Connect Card
Statement 206 Caution Removing any active card from the ONS 15454 SDH can result in traffic interruption. Use caution when replacing cards and verify that only standby cards are being replaced. An improper removal (IMPROPRMVL) alarm is raised when a card reseat is performed, unless the card is first deleted in CTC.
Page 404: Ntp- D230 Replace The Fan-Tray Assembly
NTP- D230 Replace the Fan-Tray Assembly Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Step 4 Determine the active XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G card. The ACT/STBY LED of the active card is green.
Page 405: Table 15-3 Incompatibility Alarms
Open the front door of the shelf assembly by completing the following substeps: Open the front door lock. The ONS 15454 SDH comes with a pinned hex key for locking and unlocking the front door. Turn the key counterclockwise to unlock the door and clockwise to lock it.
Page 406: Figure 15-5 Removing Or Replacing The Fan-Tray Assembly (Front Door Removed)
15-2. Slide the new fan tray into the shelf assembly until the electrical plug at the rear of the tray plugs into Step 9 the corresponding receptacle on the backplane. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-24 78-17194-01...
Page 407: Ntp- D345 Edit Network Element Defaults
For a list of card and node default settings, refer to the “Network Element Defaults” appendix in the Note Cisco ONS 15454 SDH Reference Manual. To change card settings individually (that is, without changing the defaults), see Chapter 10, “Change Card Settings.”...
Page 408: Ntp- D346 Import Network Element Defaults
Browse and browse to the file you are importing. When the correct file name and location appear in the dialog box, click OK. (The correct file name is Step 5 15454SDH-defaults.txt if you are importing the factory defaults.) Cisco ONS 15454 SDH Procedure Guide, R7.0 15-26 78-17194-01...
Page 409: Ntp- D347 Export Network Element Defaults
The defaults currently displayed are exported whether or not they have been applied to the current node. Note The NE defaults can also be exported from the File > Export menu. These exported defaults are for Note reference only and cannot be imported. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-27 78-17194-01...
Page 410 (to create) the file to export to [the defaults will be exported as a text file delimited by equals (=) signs]. Step 5 Click OK. Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 15-28 78-17194-01...
Page 411 Caution will be lost if you delete and recreate circuits that passed through a working node. Always use the supplied ESD wristband when working with the Cisco ONS 15454 SDH. Plug the Note wristband into the ESD jack located on the fan-tray assembly or on the lower right outside edge of the shelf assembly.
Page 412: Chapter 16 Power Down The Node
Click Yes. Step 10 After you have deleted the card, open the card ejectors and remove it from the node. Step 11 Repeat Steps through for each installed card. Step 12 Cisco ONS 15454 SDH Procedure Guide, R7.0 16-2 78-17194-01...
Page 413 Disconnect the node from its external fuse source. Step 14 Store all the cards you removed and update inventory records according to local site practice. Step 15 Stop. You have completed this procedure. Cisco ONS 15454 SDH Procedure Guide, R7.0 16-3 78-17194-01...
Page 414 Chapter 16 Power Down the Node NTP- D114 Power Down the Node Cisco ONS 15454 SDH Procedure Guide, R7.0 16-4 78-17194-01...
Page 415: Dlp- D1 Unpack And Verify The Shelf Assembly
Onsite Security Level None When you receive the ONS 15454 SDH system equipment at the installation site, open the top of the box. Step 1 The Cisco Systems logo designates the top of the box. Remove the foam inserts from the box. The box contains the ONS 15454 SDH shelf (wrapped in plastic) Step 2 and a smaller box of items needed for installation.
Page 416: Dlp- D2 Inspect The Shelf Assembly
Pins are not bent or broken. • The frame is not bent. • If the pins are bent or broken, or the frame is bent, call your Cisco sales engineer for a replacement. Step 3 Close the front door before installing. Step 4 Return to your originating procedure (NTP).
Page 417: Dlp- D4 Create An Ip-Encapsulated Tunnel
Each ONS 15454 SDH can have up to ten IP-encapsulated tunnel connections. Terminated RS-DCCs Note used by the ONS 15454 SDH cannot be used as tunnel endpoints, and an RS-DCC that is used as a tunnel endpoint cannot be terminated. All tunnel connections are bidirectional.
Page 418: Dlp- D5 Mount The Shelf Assembly In A Rack (One Person)
Onsite Security Level None The ONS 15454 SDH requires 616.5 mm (24.24 inch) minimum of vertical rack space and 25 mm Note (1 inch) below the installed shelf assembly to allow air flow to the fan intake. If a second ONS 15454 SDH is installed above a shelf assembly, the air ramp between the shelves provides space for air flow.
Page 419: Figure 17-1 Mounting An Ons 15454 Sdh In A Rack
When the shelf assembly is secured to the rack, install the remaining mounting screws. Step 7 Note Use at least one set of the horizontal screw slots on the ONS 15454 SDH to prevent slippage. Step 8 Using the hex tool, remove the temporary set screws.
Page 420: Dlp- D6 Mount The Shelf Assembly In A Rack (Two People)
When the shelf assembly is secured to the rack, install the remaining mounting screws. Step 7 Note Use at least one set of the horizontal screw slots on the ONS 15454 SDH to prevent slippage. Using the hex tool, remove the temporary set screws. Step 8 Step 9 Return to your originating procedure (NTP).
Page 421: Dlp- D7 Mount Multiple Shelf Assemblies In A Rack
When using third-party equipment above the ONS 15454 SDH, provide a minimum of 25 mm (1 inch) between the third-party unit and the bottom of the ONS 15454 SDH. The third-party equipment must not vent heat upward into the ONS 15454 SDH.
Page 422 Step 2 Mount the air ramp above the ONS 15454 SDH. The air ramp is needed if you install more than one shelf in the ETSI rack. Install the air ramp below the top shelf assembly. To ensure that the air ramp is secure,...
Page 423: Dlp- D8 Open The Front Cabinet Compartment (Door)
Security Level None The ONS 15454 SDH has an ESD plug input and is shipped with an ESD wrist strap. The ESD plug input Note is located on the outside of the shelf assembly on the right side. It is labeled “ESD” on the top and bottom.
Page 424: Dlp- D9 Remove The Front Door
Unscrew the nut holding the ground wire to the shelf. Remove the nut and washer. Step 1 Remove the ground wire from the shelf. Step 2 Hold the door at the top left corner and remove the door from its hinges (Figure 17-4). Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-10 78-17194-01...
Page 425: Dlp- D14 Create A Four-Fiber Ms-Spring Using The Ms-Spring Wizard
Chapter 17 DLPs D1 to D99 DLP- D14 Create a Four-Fiber MS-SPRing Using the MS-SPRing Wizard Figure 17-4 Removing the ONS 15454 SDH Front Door F A N F A IL M IN Translucent circles for LED viewing Door hinge...
Page 426 • working path following a span switch. The default is 5 minutes. Span reversion can be set to Never. Click Next. If the network graphic appears, go to Step 6. If Cisco Transport Controller (CTC) determines Step 5 that an MS-SPRing cannot be created, for example, not enough optical cards are installed or it finds circuits with SNCP selectors, a “Cannot Create MS-SPRing”...
Page 427: Table
The numbers in parentheses after the node name are the MS-SPRing node IDs assigned by CTC. Note Every ONS 15454 SDH in an MS-SPRing is given a unique node ID, 0 through 31. To change it, complete the “DLP-D24 Change an MS-SPRing Node ID” task on page 17-19.
Page 428: Figure 17-5 Grounding The Ons 15454 Sdh
Chapter 17 DLPs D1 to D99 DLP- D16 Connect the Office Ground to the ONS 15454 SDH Figure 17-5 Grounding the ONS 15454 SDH F A N F A IL M IN Ground Return to your originating procedure (NTP). Step 9 Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 429: Dlp- D17 Connect Office Power To The Ons 15454 Sdh Shelf
Statement 1046 Caution Do not apply power to the ONS 15454 SDH until you complete all installation steps and check the continuity of the –48 VDC battery and battery return. No more than 2 m (7 ft) of the power supply cable should be exposed between the equipment and the Note cable-management tray.
Page 430: Dlp- D18 Turn On And Verify Office Power
Caution (push-in) connectors, quick-connect connectors, or other friction-fit connectors. If the system loses power or if both TCC2/TCC2P cards are reset, you must reset the ONS 15454 SDH Note clock. After powering down, the date defaults to January 1, 1970, 00:04:15. To reset the clock, see the “NTP-D316 Set Up Name, Date, Time, and Contact Information”...
Page 431: Dlp- D22 Install Fiber-Optic Cables In A 1+1 Configuration
Security Level None Note The Cisco OC-3 IR/STM-1 SH, OC-12 IR/STM-4 SH, and OC-48 IR/STM-16 SH interface optics, all working at 1310 nm, are optimized for the most widely used SMF-28 fiber, available from many suppliers. Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 432: Figure 17-6 Installing Fiber-Optic Cables
Step 3 port pairs that you want to place in a 1+1 configuration. Return to your originating procedure (NTP). Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-18 78-17194-01...
Page 433: Dlp- D23 View Spanning Tree Information
Spanning Tree Protocol (STP). The E-Series cards support up to eight STPs per node. For more information about STP, refer to the Ethernet Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. Tools/Equipment None...
Page 434: Dlp- D25 Configure The Ctc Alerts Dialog Box For Automatic Popup
In the Circuit Creation wizard in the Route Review and Edit area, choose the member number from the Step 1 Route Member Number drop-down list. Click the source node icon if it is not already selected. Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-20 78-17194-01...
Page 435: Dlp- D27 Delete Circuits
Investigate all network alarms and resolve any problems that might be affected by the circuit deletion. Step 3 Refer to the “Alarm Troubleshooting” chapter in the Cisco ONS 15454 SDH Troubleshooting Guide. From the View menu, choose Go to Network View.
Page 436: Dlp- D28 Create A Four-Fiber Ms-Spring Manually
Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed Required Onsite/Remote Onsite or remote Security Level Provisioning or higher In node view, click the Provisioning > Ring tabs. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-22 78-17194-01...
Page 437 Node A’s west fiber is connected to Node B’s east port, the Node A west span reversion time must be the same as the Node B east span reversion time. To avoid reversion time mismatches, Cisco recommends that you use the same span reversion time throughout the ring.
Page 438: Dlp- D29 Change Tunnel Type
In the confirmation dialog box, click Yes to continue. Step 8 In the Circuit Changed status box, click OK to acknowledge that the circuit change was successful. Step 9 Return to your originating procedure (NTP). Step 10 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-24 78-17194-01...
Page 439: Dlp- D30 Repair An Ip Tunnel
“DLP-D214 Change the Service State for a Port” task on page 19-10. From the View menu, choose Go to Network View. Step 1 Click the Provisioning > Overhead Circuits tabs. Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-25 78-17194-01...
Page 440: Dlp- D32 Inspect The Shelf Installation And Connections
Place the red lead (negative) on the fuse power points on the third-party power distribution panel to verify that they read between –40.5 VDC and –57 VDC (power) and 0 (return ground). Cisco ONS 15454 SDH Procedure Guide, R7.0 17-26...
Page 441: Dlp- D34 Delete Vlans
To remove a node from a login node group that is not the current one, see “DLP-D54 Delete a Node from a Specified Login Node Group” task on page 17-47. Tools None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Cisco ONS 15454 SDH Procedure Guide, R7.0 17-27 78-17194-01...
Page 442: Dlp- D36 Provision A Vcat Circuit Source And Destination
VC3 drop-down lists. The Port drop-down list is only available if the card has multiple ports. VCs do not appear if they are already in use by other circuits. Click Next. Step 8 Return to your originating procedure (NTP). Step 9 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-28 78-17194-01...
Page 443: Dlp- D37 Reset A Tcc2/Tcc2P Card Using Ctc
For LED behavior during a TCC2/TCC2P reboot, see Table 19-4 on page 19-55. Note Confirm that the TCC2/TCC2P card LED is amber (standby). Step 5 Step 6 Return to your originating procedure (NTP) Cisco ONS 15454 SDH Procedure Guide, R7.0 17-29 78-17194-01...
Page 444: Dlp- D38 Reset A Traffic Card In Ctc
Verify that the card is inserted correctly and close the latches/ejectors on the card. It is possible to close the latches/ejectors when the card is not completely plugged into the Note backplane. Ensure that you cannot insert the card any further. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-30 78-17194-01...
Page 445: Dlp- D40 Create A Provisionable Patchcord
“DLP-D364 Provision Multiplex-Section DCC Terminations” task on page 20-71. An optical port requires two patchcords when the remote end is Y-cable protected or is an add/drop Note multiplexer or multiplexer/demultiplexer port. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-31 78-17194-01...
Page 446 If you provisioned a patchcord on a port in a 1+1 protection group, a dialog box appears to ask if you would like to provision the peer patchcord. Click Yes. Repeat Steps through for the peer patchcord. Return to your originating procedure (NTP). Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-32 78-17194-01...
Page 447: Dlp- D41 Delete A Provisionable Patchcord
Each card supports at least one transmit and one receive connector to create an optical carrier port. Note The OC12 IR/STM4 SH 1310-4 and the OC3 IR 4/STM1 SH 1310 (multiport) card faceplates have four ports. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-33 78-17194-01...
Page 448: Dlp- D43 Initiate An Optical Protection Switch
SD or signal fail (SF) condition; however, a Force switch will not override an SF on a 1+1 protection channel. A Force switch has a higher priority than a Manual switch. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-34...
Page 449: Dlp- D44 Initiate An Electrical Protection Switch
The fiber boot does not support the STM16 SH AS 1310, STM16 LH AS 1550, and STM64 LH 1550 cards. The boots are not necessary for these cards because of the angled SC connectors on the cards. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-35...
Page 450 Slide the fiber boot forward along the fiber cable until the fiber boot fits snugly onto the end of the SC cable connector. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-36 78-17194-01...
Page 451: Using Static Ip Addresses
DLPs D1 to D99 DLP- D50 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH on the Same Subnet Using Static IP DLP-D50 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH on the...
Page 452 DLPs D1 to D99 DLP- D50 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH on the Same Subnet Using Static IP In the IP Address field, enter an IP address that is identical to the ONS 15454 SDH IP address except for the last octet.
Page 453: Dlp- D51 Set Up A Windows Pc For Craft Connection To An Ons 15454 Sdh Using Dynamic Host Configuration Protocol
Chapter 17 DLPs D1 to D99 DLP- D51 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Dynamic Host Configuration Protocol In the Local Area Connection Properties dialog box, click OK. In the Local Area Connection Status dialog box, click Close.
Page 454 Chapter 17 DLPs D1 to D99 DLP- D51 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Dynamic Host Configuration Protocol Verify the operating system that is installed on your computer: Step 1 From the Windows Start menu, choose Settings > Control Panel.
Page 455 Chapter 17 DLPs D1 to D99 DLP- D51 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Dynamic Host Configuration Protocol In the Local Area Connection Status dialog box, click Properties. In the General tab, choose Internet Protocol (TCP/IP), then click Properties.
Page 456: Dlp- D52 Set Up A Windows Pc For Craft Connection To An Ons 15454 Sdh Using Automatic Host Detection
Chapter 17 DLPs D1 to D99 DLP- D52 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Automatic Host Detection DLP-D52 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using...
Page 457 Chapter 17 DLPs D1 to D99 DLP- D52 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Automatic Host Detection In the IP Address field, enter any legitimate IP address other than the node IP address.
Page 458 Chapter 17 DLPs D1 to D99 DLP- D52 Set Up a Windows PC for Craft Connection to an ONS 15454 SDH Using Automatic Host Detection In the IP Address field, enter any legitimate IP address other than the node IP address.
Page 459: Dlp- D53 Set Up A Solaris Workstation For A Craft Connection To An Ons 15454 Sdh
# ifconfig interface ip-address netmask netmask up For example: # ifconfig hme0 192.1.0.3 netmask 255.255.255.0 up Enter an IP address that is identical to the ONS 15454 SDH IP address except for the last octet. Note The last octet must be 1 or 3 through 254.
Page 460 Step 6 Start Netscape Navigator. Enter the Cisco ONS 15454 SDH IP address in the web address (URL) field. If the connection is established, a Java Console window, CTC caching messages, and the Cisco Transport Controller Login dialog box appear. If this occurs, go to Step 2 of the “DLP-D60 Log into CTC”...
Page 461: Dlp- D54 Delete A Node From A Specified Login Node Group
In the Internet Properties dialog box, click Connections > LAN Settings. Step 4 In the LAN Settings dialog box, complete one of the following tasks: • Uncheck Use a proxy server to disable the service. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-47 78-17194-01...
Page 462: Dlp- D57 Disable Proxy Service Using Netscape (Windows And Unix)
Choose Manual proxy configuration to add exceptions to the proxy server, then click View. In the Manual Proxy Configuration dialog box under Exceptions, enter the IP addresses of the ONS 15454 SDH nodes that you will access. Separate each address with a comma. Click OK to close each open dialog box.
Page 463: Dlp- D60 Log Into Ctc
Step 2 In the Netscape or Internet Explorer web address (URL) field, enter the ONS 15454 SDH IP address. For initial setup, use the default address, 192.1.0.2. (This IP address appears on the LCD. You can suppress the LCD IP address display using CTC. For more information, see the “DLP-D266 Change IP Settings”...
Page 464: Logging Into Ctc
Java and system environments. If this is the first login, CTC caching messages appear while CTC files are downloaded to your computer. The first time you connect to an ONS 15454 SDH, this process can take several minutes. After the download, the CTC Login dialog box appears (Figure 17-10).
Page 465: Dlp- D61 Create Login Node Groups
If login is successful, the CTC window appears. From here, you can navigate to other CTC views to provision and manage the ONS 15454 SDH. If you need to turn up the shelf for the first time, see Chapter 4, “Turn Up a Node.”...
Page 466 Step 4 Add. Repeat this step for each node that you want to add to the group. If the ONS 15454 SDH node that you want to add to the login node group has TCC2P cards Note installed and the TCC2P secure mode option is enabled, enter the MIC-C/T/P LAN port IP address.
Page 467: Dlp- D62 Add A Node To The Current Session Or Login Group
In the Add Node dialog box, enter the node name (or IP address). Step 2 If the ONS 15454 SDH node that you want to add has TCC2P cards installed and the TCC2P Note secure mode option is enabled, enter the MIC-C/T/P LAN port IP address.
Page 468: Selecting The Ip Address Option
The LCD reverts to normal display mode after 5 seconds of button inactivity. Note On the ONS 15454 SDH front panel, repeatedly press the Slot button until Node appears on the LCD. Step 1 Repeatedly press the Port button until the following displays:...
Page 469: Selecting The Save Configuration Option
The IP address and default router must be configured to be on the same subnet. If not, you cannot Note apply the configuration. Return to your originating procedure (NTP). Step 10 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-55 78-17194-01...
Page 470: Dlp- D65 Create A Static Route
Next Hop—Enter the IP address of the router port or the node IP address if the CTC computer is • connected to the node directly. Cost—Enter the number of hops between the ONS 15454 SDH and the computer. • Click OK. Verify that the static route appears in the Static Route window.
Page 471: Dlp- D67 Provision The Iiop Listener Port On The Ons 15454 Sdh
In the TCC CORBA (IIOP) Listener Port area, choose a listener port option: Step 2 Default - TCC Fixed—Uses Port 57790 to connect to ONS 15454 SDH nodes on the same side of • the firewall or if no firewall is used (default). This option can be used for access through a firewall if Port 57790 is open.
Page 472: Dlp- D69 Set Up External Or Line Timing
Step 5 In the Preferences dialog box, click OK. Step 6 To access the ONS 15454 SDH using the IIOP port, log out of CTC (click File > Exit and log back in). Step 7 Return to your originating procedure (NTP).
Page 473 BITS-1 or BITS-2, complete the following information: Coding—Choose the coding used by your BITS reference, either HDB3 or AMI (alternate mark • inversion). If you selected 2 MHz, the coding option is disabled. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-59 78-17194-01...
Page 474 • If you selected 2 MHz, the Sa bit option is disabled. Click Apply. Step 10 Refer to the Cisco ONS 15454 SDH Troubleshooting Guide to resolve timing-related alarms. Note Return to your originating procedure (NTP). Step 11 When provisioning a line timing reference for the node, you cannot select the protect port of a 1+1 Note protection group.
Page 475: Dlp- D70 Set Up Internal Timing
Onsite or remote Security Level Provisioning or higher Internal timing is SETS timing, and is not intended for permanent use. All ONS 15454 SDH nodes Caution should be timed to a SETS or better primary reference source. CTC refers to Timing A and Timing B as BITS-1 and BITS-2. The MIC-C/T/P FMEC connector is Note labeled as Timing A and Timing B.
Page 476: Dlp- D71 Create A 1:1 Protection Group
This task creates a 1:1 electrical card protection group. Tools/Equipment Redundant E1-N-14, DS3i-N-12, E3-12, E1-42, or STM1E cards should be installed in the shelf, or the ONS 15454 SDH slots must be provisioned for two of these cards. Prerequisite Procedures...
Page 477: Dlp- D72 Create A 1:N Protection Group
After you choose the protect card, a list of cards available for protection appear under Available Cards. If no cards are available, no cards appear. If no cards are available, you cannot complete this task until you install the physical cards or preprovision the ONS 15454 SDH slots using the “DLP-D442 Preprovision a Slot”...
Page 478: Dlp- D73 Create A 1+1 Protection Group
After you choose the protect port, a list of ports available for protection appear under Available Ports. If no cards are available, no ports appear. If this occurs, you cannot complete this task until you install the physical cards or preprovision the ONS 15454 SDH slots using the “DLP-D442 Preprovision a Slot”...
Page 479: Dlp- D74 Create A New User On A Single Node
Security Level—Choose a security level for the user: RETRIEVE, MAINTENANCE, • PROVISIONING, or SUPERUSER. Refer to the “Security” chapter in the Cisco ONS 15454 SDH Reference Manual for information about the capabilities provided with each level. Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 480: Dlp- D75 Create A New User On Multiple Nodes
Security Level—Choose a security level for the user: RETRIEVE, MAINTENANCE, • PROVISIONING, or SUPERUSER. Refer to the “Security” chapter in the Cisco ONS 15454 SDH Reference Manual for information about the capabilities provided with each level. Each security level has a different idle time. The idle time is the length of time that CTC can Note remain idle before it locks up and the password must be reentered.
Page 481: Dlp- D76 Add A Member To A Vcat Circuit
Adding a member to a SW-LCAS VCAT circuit in the Unlocked-enabled; Note Unlocked-disabled,automaticInService; or Locked-enabled,Maintenance service state could be service affecting. Cisco recommends using the Locked-enabled,outOfGroup service state when adding new members. You can put the member in the desired state after adding the member. Note You cannot add members to VCAT circuits with a source or destination on an ML-Series or FC_MR-4 (line rate mode) card.
Page 482 For more information about the number of members allowed for a card, refer to the “Circuits and Tunnels” chapter of the Cisco ONS 15454 SDH Reference Manual. New Circuit Size—(Display only) Automatically updates based on the number of added members.
Page 483: Dlp- D77 Delete A Member From A Vcat Circuit
“DLP-D80 Change a VCAT Member Service State” task on page 17-72 to change a SW-LCAS member state to Locked-enabled,outOfGroup. Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Provisioning or higher Cisco ONS 15454 SDH Procedure Guide, R7.0 17-69 78-17194-01...
Page 484: Dlp- D78 Install The Tl1 Craft Interface On The Mic-C/T/P
FC_MR-4 (line rate mode) card. Deleting members in the Unlocked-enabled or Unlocked-disabled,automaticInService service state Note could be service affecting for the VCAT circuits. Cisco recommends putting the member to be deleted in the Locked-enabled,outOfGroup service state before deleting. Step 1 In node or network view, click the Circuits tab.
Page 485: Dlp- D79 Remove Pass-Through Connections
“NTP-D213 Remove an MS-SPRing Node” Step 6 procedure on page 14-7 or the “NTP-D106 Remove an SNCP Node” procedure on page 14-12. Find the circuits on the line cards of the removed node. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-71 78-17194-01...
Page 486: Dlp- D80 Change A Vcat Member Service State
You can also change the state for all members listed in the Edit Circuit window using the State Note tab. Another alternative is to click the Edit Member button to access the Edit Member Circuit window for the selected member, and then click the State tab. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-72 78-17194-01...
Page 487: Dlp- D81 Provision A Proxy Tunnel
In the Create Tunnel dialog box, complete the following: Step 3 Source Address—Type the IP address of the source node (32 bit length) or source subnet (any other • length). Length—Choose the length of the source subnet mask. • Cisco ONS 15454 SDH Procedure Guide, R7.0 17-73 78-17194-01...
Page 488: Dlp- D82 View Alarms
In card, node, or network view, click the Alarms tab to view the alarms for that card, node, or network Step 1 (Figure 17-16). Figure 17-16 CTC Node View Table 17-3 lists the columns in the Alarms window and their descriptions. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-74 78-17194-01...
Page 489: Alarm Column Descriptions
Raised Not Reported (NR) condition White Cleared (C) alarm or condition Step 2 If alarms are present, refer to the Cisco ONS 15454 SDH Troubleshooting Guide for information and troubleshooting procedures. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-75 78-17194-01...
Page 490: Dlp- D83 Provision Orderwire
Type—Choose either Local Orderwire or Express Orderwire, as appropriate to the orderwire path • that you want to create. If regenerators are not used between ONS 15454 SDH nodes, you can use either local or express orderwire channels. If regenerators exist, use the express orderwire channel.
Page 491: Dlp- D84 Enable Node Security Mode
On the TCC Ethernet Port page, enter the IP address and subnet mask for the TCC2P LAN (TCP/IP) port. Step 4 The IP address cannot reside on the same subnet as the MIC-C/T/P LAN port, nor the ONS 15454 SDH default router.
Page 492 External Network Element (ENE)—If selected, the CTC computer is only visible to the • ONS 15454 SDH to which the CTC computer is connected. The computer is not visible to the DCC-connected nodes. In addition, firewall is enabled, which means that the node prevents IP traffic from being routed between the DCC and the LAN port.
Page 493: Dlp- D85 Lock Node Security
As needed Onsite/Remote Onsite or remote Security Level Superuser Provisioning an IP address that is incompatible with the ONS 15454 SDH network might be service Caution affecting. Click the Provisioning > Security > Data Comm tabs. Step 1 Modify the following fields, as necessary:...
Page 494: Dlp- D87 Disable Node Security Mode
Return to your originating procedure (NTP). DLP-D87 Disable Node Security Mode Purpose This task disables the ONS 15454 SDH security mode and allows only one IP address to be provisioned for the MIC-C/T/P LAN port and the TCC2P LAN port.
Page 495: Dlp- D88 Optical 1+1 Protection Test
External Network Element (ENE)—If selected, the CTC computer is only visible to the • ONS 15454 SDH to which the CTC computer is connected. The computer is not visible to the DCC-connected nodes. In addition, firewall is enabled, which means that the node prevents IP traffic from being routed between the DCC and the LAN port.
Page 496 When a switch event is cleared, NO COMMAND appears in the column to indicate that the switch event is no longer in effect. Return to your originating procedure (NTP). Step 11 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-82 78-17194-01...
Page 497: Dlp- D89 Remap The K3 Byte
DLP-D89 Remap the K3 Byte Purpose This task provisions the K3 byte. Do not remap the K3 byte unless it is specifically required to run an ONS 15454 SDH MS-SPRing through third-party equipment. This task is unnecessary for most users. Tools/Equipment STM-16 cards must be installed on the MS-SPRing span that you will remap.
Page 498: Dlp- D91 Ms-Spring Switch Test
Right-click either working or protect port. In the Set West Protection Operation dialog box, choose FORCE RING from the drop-down list. Click OK. Click Yes in the two Confirm MS-SPRing Operation dialog boxes that appear. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-84 78-17194-01...
Page 499 Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Display the MS-SPRing window where you invoked the Force Ring switch (the window might be hidden Step 12 by the CTC window).
Page 500 RING-SW-EAST—A Ring Switch Active on the East Side condition is reported against the working • span on the west side of the node. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-86 78-17194-01...
Page 501 DLPs D1 to D99 DLP- D91 MS-SPRing Switch Test (Optional) If you remapped the K3 byte to run an ONS 15454 SDH MS-SPRing through third-party Step 20 equipment, verify a KBYTE-PASSTHRU condition reported on other nodes that are not connected to the west side of the node where you invoked the Force Ring switch.
Page 502: Dlp- D92 Four-Fiber Ms-Spring Exercise Span Test
19-25 as necessary. Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-88...
Page 503: Dlp- D93 Four-Fiber Ms-Spring Span Switching Test
Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. From the File menu, choose Close to close the MS-SPRing window.
Page 504 Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Display the MS-SPRing window where you invoked the Force Span switch (the window might be hidden Step 7 by the CTC window).
Page 505: Dlp- D94 Sncp Protection Switching Test
Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Display the MS-SPRing window where you invoked the Force Span switch (the window might be hidden Step 12 by the CTC window).
Page 506 In the Protection Switch Result dialog box, click OK. In the Circuits on Span window, the Switch State for all SNCP circuits is CLEAR. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-92 78-17194-01...
Page 507: Dlp- D95 Provision A Low-Order Vc12 Circuit Source And Destination
Defining the Circuit Source on an E1-N-14 Card Choose the port from the Port drop-down list. Step 3 (E1-42 card only) From the TUG3 drop-down list, choose the source TUG3. Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-93 78-17194-01...
Page 508: Dlp- D96 Provision A Low-Order Vc3 Circuit Route
If you want to change the source VC3, adjust the Source VC3 field; otherwise, continue with Step Step 3 Step 4 If you want to change the source VC4, adjust the Source VC4 field; otherwise, continue with Step Cisco ONS 15454 SDH Procedure Guide, R7.0 17-94 78-17194-01...
Page 509: Dlp- D97 Provision A High-Order Circuit Source And Destination
VC4 circuit on an STM-4 card in an SNCP ring, four VC4s are available. If you create an VC4 circuit on an STM-4 card in an MS-SPRing, two VC4s are available because of the MS-SPRing protection characteristics. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-95 78-17194-01...
Page 510: Dlp- D98 Provision A High-Order Circuit Route
Starting with a span on the source node, click the arrow of the span you want the circuit to travel. The Step 2 arrow turns white. In the Selected Span area, the From and To fields show span information. The source VC-4 appears. Figure 17-18 shows an example. Cisco ONS 15454 SDH Procedure Guide, R7.0 17-96 78-17194-01...
Page 511: Manually Routing An Stm-N Circuit
Protection channel access (PCA) spans can only be chosen as part of the secondary path. Return to your originating procedure (NTP). Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-97 78-17194-01...
Page 512: Dlp- D99 Determine Available Vlans
Multiple E-Series Ethernet circuits with spanning tree enabled block each other if the circuits traverse Caution the same E-Series Ethernet card and use the same VLAN. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 17-98 78-17194-01...
Page 513: Dlp- D100 Delete A Proxy Tunnel
Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Superuser Click the Provisioning > Network > Firewall tabs. Step 1 Step 2 Click the firewall tunnel that you want to delete. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-1 78-17194-01...
Page 514: Dlp- D102 Hard-Reset A Ce-100T-8 Card Using Ctc
The service state of the card becomes Locked enabled, loopback & maintenance. The card’s faceplate Step 4 appears blue in Cisco Transport Controller (CTC) and the SRV LED turns amber. Right-click the card to reveal a shortcut menu. Step 5 Click Hard-reset Card.
Page 515: Dlp- D103 Soft-Reset A Ce100T-8 Card Using Ctc
Determine the correct clip to use. Use the short clip with a standard cabinet door and a long clip with an Step 1 extended door. Insert the prong of the fiber clip into the rectangular cutout on the sloped face of the faceplate Step 2 (Figure 18-1). Cisco ONS 15454 SDH Procedure Guide, R7.0 18-3 78-17194-01...
Page 516: Figure
Push the clip into the hole until the locking tab snaps the clip securely into place. To remove a fiber clip, Step 3 push on the locking tab to release the clip while rotating the clip forward and up. Return to your originating procedure (NTP). Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-4 78-17194-01...
Page 517: Dlp- D105 Configure The Node For Radius Authentication
RADIUS server to the list of authenticators. If you do not add the node to a RADIUS server prior to activating RADIUS authentication, no user will be able to access the node. Refer to the User Guide for Cisco Secure ACS for Windows Server for more information about adding a node to a RADIUS server.
Page 518: Figure 18-2 Radius Server Tab
RADIUS server prior to activating RADIUS authentication, no user will be able to access the node. Refer to the User Guide for Cisco Secure ACS for Windows Server for more information about adding a node to a RADIUS server.
Page 519: Dlp- D106 View And Terminate Active Logins
• • Login time • Last activity time Step 2 Click Logout to end the session of every logged-in user. This will log out all current users, excluding the initiating Superuser. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-7 78-17194-01...
Page 520 Onsite or remote Security Level None Before you install SFPs on the MRC-12 card, refer to the MRC-12 information in the Cisco ONS 15454 Note SDH Reference Manual for bandwidth restrictions based on the port where you install the SFP and the cross-connect card being used.
Page 521: Table 18-1 Stm-N Card Line Settings
For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the STM-N card where you want to change the line settings.
Page 522 If set to 0, no VC4 is monitored. 0 - 4 (STM-4, per port) • Only one VC4 can be monitored on each STM-N 0 - 16 (STM-16) • port. 0 - 64 (STM-64) • Cisco ONS 15454 SDH Procedure Guide, R7.0 18-10 78-17194-01...
Page 523 Unlocked,automaticInService—Puts the port in • refer to the “Administrative and Service States” automatic in-service. The port service state changes appendix of the Cisco ONS 15454 SDH to Unlocked-disabled,automaticInService. Reference Manual. • Locked,disabled—Removes the port from service and disables it.
Page 524: Dlp- D109 Change Optics Thresholds Settings For Stm-64 And Mrc-12 Cards
Onsite or remote Security Level Provisioning or higher In node view, double-click the card where you want to change the optics settings. Step 1 Click the Provisioning > Optics Thresholds tabs. Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-12 78-17194-01...
Page 525 Because the optics thresholds are not retained after an STM-64 card is reset, the optics thresholds must Note be configured every time one of these cards is reset, or any time the TCC/TCC2 card is reset. Step 5 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 18-13 78-17194-01...
Page 526: Dlp- D111 Changing The Maximum Number Of Session Entries For Alarm History
Step 2 Click Apply and OK. Step 3 Note Setting the Maximum History Entries value to the high end of the range uses more CTC memory and could impair CTC performance. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-14 78-17194-01...
Page 527: Dlp- D112 Display Alarms And Conditions Using Time Zone
Step 4 DLP-D113 Synchronize Alarms Purpose Use this task to view ONS 15454 SDH events at the card, node, or network level and to refresh the alarm listing so that you can check for new and cleared alarms and conditions.
Page 528: Dlp- D114 View Conditions
The Retrieve button requests the current set of fault conditions from the node, card, or network. The window is not updated when events change on the node. You must click Retrieve to see any changes. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-16...
Page 529 When a port is placed in the Locked-enabled,maintenance service state, it raises an Alarms Note Suppressed for Maintenance (AS-MT) condition. For information about alarm and condition troubleshooting, refer to the Cisco ONS 15454 SDH Troubleshooting Guide. When a port is placed in the Unlocked-disabled,automaticInService service state but is not Note connected to a valid signal, it generates a loss of signal (LOS) alarm.
Page 530: Dlp- D117 Apply Alarm Profiles To Cards And Nodes
In node view, click the Provisioning > Alarm Profiles > Alarm Profile Editor tab (Figure 18-6). Step 1 Figure 18-6 Node View Alarm Profile To apply profiles to a card: Step 2 Click the Profile row for the card. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-18 78-17194-01...
Page 531: Dlp- D121 Enable Pointer Justification Count Performance Monitoring
OC12 IR/STM4 SH 1310 OC12 LR/STM4 LH 1310 OC12 LR/STM4 LH 1550 OC12-4 IR/STM4 SH 1310-4 OC48 IR/STM16 SH AS 1310 OC48 LR/STM16 LH AS 1550 OC48 ELR/STM16 EH 100 GHz Cisco ONS 15454 SDH Procedure Guide, R7.0 18-19 78-17194-01...
Page 532: Figure 18-7 Enabling Or Disabling Pointer Justification Count Parameters
In the Service State field, confirm that the port is in the Unlocked-enabled service state. If the port is Unlocked-enabled, click Apply. If the port is out of service (Locked-enabled,disabled; Step 6 Locked-enabled,maintenance; Unlocked-disabled,automaticInService), choose Unlocked in the Admin State drop-down list and click Apply. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-20 78-17194-01...
Page 533: Dlp- D122 Enable Intermediate Path Performance Monitoring
DLP- D122 Enable Intermediate Path Performance Monitoring Click the Performance tab to view performance monitoring (PM) parameters. Refer to the “Performance Step 7 Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual for more PM information, details, and definitions. Note...
Page 534: Vc4 Tab For Enabling Or Disabling Ippm
Click Apply. Step 5 Click the Performance tab to view PM parameters. For IPPM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. Step 6 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 535: Dlp- D124 Refresh Pm Counts At 15-Minute Intervals
Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Retrieve or higher In node view, double-click the card where you want to view PM counts. The card view appears. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-23 78-17194-01...
Page 536: Dlp- D126 View Near-End Pm Counts
Step 4 Click Refresh. All PM parameters occurring for the selected card on the incoming signal appear. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. View the Curr column to find PM counts for the current time interval.
Page 537: Dlp- D127 View Far-End Pm Counts
PM counts on the card and on the window appear in the appropriate column. The baseline values are discarded if you change views to a different window and then return to the Performance Monitoring window. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-25 78-17194-01...
Page 538: Dlp- D131 Search For Circuits
Step 4 Return to your originating procedure (NTP). Step 5 DLP-D131 Search for Circuits Purpose This task searches for ONS 15454 SDH circuits at the network, node, or card level. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 539: Dlp- D132 Provision A Multirate Ppm On The Mrc-12 Card
Security Level Provisioning or higher In node view, double-click the MRC-12 card where you want to provision PPM settings. Step 1 Click the Provisioning > Pluggable Port Modules tabs. Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-27 78-17194-01...
Page 540: Dlp- D134 Change The Optical Line Rate On The Mrc-12 Card
Click Edit. The Edit Port Rate dialog box appears. Step 4 In the Change To field, use the drop-down list to select the new port rate and click OK. Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-28 78-17194-01...
Page 541: Dlp- D135 Delete A Ppm From The Mrc-12 Or Stm64-Xfp Card
Click Yes. The PPM provisioning is removed from the Pluggable Port Modules area and the Pluggable Ports area. Verify that the PPM provisioning is deleted: Step 5 If the PPM was preprovisioned, CTC shows an empty slot in CTC after it is deleted. • Cisco ONS 15454 SDH Procedure Guide, R7.0 18-29 78-17194-01...
Page 542: Dlp- D136 Provision Ce-100T-8 Ethernet Ports
Enable Flow Control—Click this check box to enable flow control on the port (default). If you do • not want to enable flow control, uncheck the box. The CE-100T-8 attempts to negotiate symmetrical flow control with the attached device. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-30 78-17194-01...
Page 543: Dlp- D137 Provision A J1 Path Trace On Stm-N Ports
DLP-D264 Provision a J1 Path Trace on Circuit Source and Destination Ports, page 19-68 DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Provisioning or higher Cisco ONS 15454 SDH Procedure Guide, R7.0 18-31 78-17194-01...
Page 544: Dlp- D140 Change The Node Name, Date, Time, And Contact Information
Return to your originating procedure (NTP). Step 9 DLP-D140 Change the Node Name, Date, Time, and Contact Information Purpose This task changes basic information such as node name, date, time, and contact information. Tools/Equipment None Cisco ONS 15454 SDH Procedure Guide, R7.0 18-32 78-17194-01...
Page 545: Dlp- D141 Provision Ce-100T-8 And Ce-1000-4 Pos Ports
This task provisions CE-100T-8 or CE-1000-4 POS ports to carry traffic. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Provisioning or higher Cisco ONS 15454 SDH Procedure Guide, R7.0 18-33 78-17194-01...
Page 546: Dlp- D142 Modify A Static Route
For more details about the interoperability of ONS Ethernet cards, including information on encapsulation, framing, and CRC, refer to the “POS on ONS Ethernet Cards” chapter of the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327.
Page 547: Dlp- D143 Delete A Static Route
Step 6 Return to your originating procedure (NTP). Step 7 DLP-D143 Delete a Static Route Purpose This task deletes an existing static route on an ONS 15454 SDH. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 DLP-D65 Create a Static Route, page 17-56...
Page 548: Dlp- D144 Disable Ospf
DLPs D100 to D199 DLP- D144 Disable OSPF DLP-D144 Disable OSPF Purpose This task disables the Open Shortest Path First (OSPF) routing protocol process for an ONS 15454 SDH LAN. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 549: Dlp- D146 Print Ctc Data
– Provisioning > WDM-ANS > Node Setup window – Maintenance > Cross-Connect > Cards window – Maintenance > Database window – Maintenance > Diagnostic window – Maintenance > Protection window – Cisco ONS 15454 SDH Procedure Guide, R7.0 18-37 78-17194-01...
Page 550: Dlp- D147 Export Ctc Data
As needed Onsite/Remote Onsite or remote Security Level Retrieve or higher Step 1 Click the tab containing the information you want to export (for example, the Alarms tab or the Circuits tab). Cisco ONS 15454 SDH Procedure Guide, R7.0 18-38 78-17194-01...
Page 551: Figure 18-10 Selecting Ctc Data For Export
Circuits (Edit option, General and Monitor windows) • Provisioning > General > General and Power Monitor windows • Provisioning > Network > General window • Provisioning > Security > Policy, Access, and Legal Disclaimer windows • Cisco ONS 15454 SDH Procedure Guide, R7.0 18-39 78-17194-01...
Page 552: Dlp- D148 Create Domain Icons
Step 11 Return to your originating procedure (NTP). Step 12 DLP-D148 Create Domain Icons Purpose This task creates a domain, which is an icon that groups ONS 15454 SDH icons in CTC network view. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 553: Dlp- D149 Manage Domain Icons
NE default values. From the View menu, choose Go to Network View. Step 1 Locate the domain action you want in Table 18-5 and complete the appropriate steps. Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-41 78-17194-01...
Page 554: Table 18-5 Managing Domains
In the Selected Group area, you can modify the following, as needed: Step 3 Name—Type the changes to the protection group name. The name can have up to 32 alphanumeric • characters. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-42 78-17194-01...
Page 555: Dlp-D151 Set Up Snmp For A Gne
The community name is a form of authentication and access control. The community name Note assigned to the ONS 15454 SDH is case-sensitive and must match the community name of the NMS. UDP Port—The default User Datagram Protocol (UDP) port for SNMP traps is 162.
Page 556: Dlp- D152 Modify A 1:N Protection Group
The default is 5.0 minutes. This is the amount of time that will elapse before the traffic reverts to the working card. Traffic can revert when conditions causing the switch are cleared. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-44...
Page 557: Dlp- D153 Set Up Snmp For An Ene
The community name is a form of authentication and access control. The community name Note assigned to the ONS 15454 SDH is case-sensitive and must match the community name of the NMS. UDP Port—The default UDP port for SNMP traps is 162.
Page 558: Dlp- D154 Modify A 1+1 Protection Group
This task modifies a 1+1 protection group for any optical port (STM-1, STM-4, STM-16, STM-64). Tools/Equipment None Prerequisite Procedures DLP-D73 Create a 1+1 Protection Group, page 17-64 DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Cisco ONS 15454 SDH Procedure Guide, R7.0 18-46 78-17194-01...
Page 559: Dlp- D155 Delete A Protection Group
Click Yes in the Delete Protection Group dialog box to confirm deletion. Confirm that the changes Step 4 appear; if they do not, repeat Steps through 3. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-47 78-17194-01...
Page 560: Dlp- D157 Change The Node Timing Source
In the General Timing section, change any of the following information: Step 2 Timing Mode • Because mixed timing can cause timing loops, Cisco does not recommend using the Mixed Note Timing option. Use this mode with care. Revertive •...
Page 561: Dlp- D158 Change User Password And Security Level On A Single Node
• Click Apply. Step 6 Note Refer to the “Timing” chapter in the Cisco ONS 15454 SDH Reference Manual for timing information. Return to your originating procedure (NTP). Step 7 DLP-D158 Change User Password and Security Level on a Single Node Purpose This task changes settings for an existing user at one node.
Page 562: Dlp- D159 Delete A User On A Single Node
DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Superuser Note You must add the same user name and password to each node the user will access. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-50 78-17194-01...
Page 563: Dlp- D161 Delete A User On Multiple Nodes
Step 3 Click OK. A Change Results confirmation dialog box appears. Step 4 Click OK to acknowledge the changes. Confirm that the changes appear; if not, repeat the task. Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-51 78-17194-01...
Page 564: Dlp- D162 Format And Enter Nms Community String For Snmp Command Or Operation
Security Level Provisioning or higher If the SNMP “Get” (or other operation) is enabled on the ONS 15454 SDH configured as a GNE, enter Step 1 the community name assigned to the GNE in community name field on the MIB browser.
Page 565: Dlp- D163 Delete Snmp Trap Destination
DLPs D100 to D199 DLP- D163 Delete SNMP Trap Destination In the Host and Community areas, enter the IP address of the GNE through which the ONS 15454 SDH Step 5 with the information to be retrieved can be reached.
Page 566 OSI area. Note For ONS 15454 SDH nodes, three virtual routers can be provisioned. The node primary Network Service Access Point (NSAP) address is also the Router 1 primary manual area address. To edit the primary NSAP, you must edit the Router 1 primary manual area address. After you enable Router 1 on the Routers subtab, the Change Primary Area Address button is available to edit the address.
Page 567: Dlp- D166 Provision Or Modify Tarp Operating Parameters
TARP Type 4 PDUs (TID to NSAP updates or corrections). TARP 3 PDUs are responses to Type 1 and Type 2 PDUs. The TDC can also be populated with static entries entered on the TARP > Static TDC tab. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-55 78-17194-01...
Page 568 NE TID. The default is 20 seconds. The range is 0 to 3600 seconds. Timers T1, T2, and T4 are not used if TARP PDUs Origination is not enabled. Note Cisco ONS 15454 SDH Procedure Guide, R7.0 18-56 78-17194-01...
Page 569: Dlp- D167 Add A Static Tid To Nsap Entry To The Tarp Data Cache
In node view, click the Provisioning > OSI > TARP > Static TDC tabs. Step 1 Click the static entry that you want to delete. Step 2 Click Delete Static Entry. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-57 78-17194-01...
Page 570: Dlp- D169 Add A Tarp Manual Adjacency Table Entry
DLP-D169 Add a TARP Manual Adjacency Table Entry Purpose This task adds an entry to the TARP manual adjacency table (MAT). Entries are added to the MAT when the ONS 15454 SDH must communicate across routers or non-SDH NEs that lack TARP capability. Tools/Equipment...
Page 571: Dlp- D171 Provision Osi Routers
(hexadecimal format) can be 8 to 24 alphanumeric characters (0–9, a–f) in length. Click OK successively to close the following dialog boxes: Masked NSAP Entry (if used), Edit Manual Area Address, and OSI Router Editor. Return to your originating procedure (NTP). Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-59 78-17194-01...
Page 572: Dlp- D172 Provision Additional Manual Area Addresses
OSI subnetwork points of attachment are enabled on data communications channels (DCCs) when you Note create DCCs. See the “DLP-D363 Provision Regenerator-Section DCC Terminations” task on page 20-68 and the “DLP-D364 Provision Multiplex-Section DCC Terminations” task on page 20-71. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-60 78-17194-01...
Page 573 DIS Priority—Sets the designated intermediate system (DIS) priority. In IS-IS networks, one router • is elected to serve as the DIS (LAN subnets only). Cisco router DIS priority is 64. For the ONS 15454 LAN subnet, the default DIS priority is 63. It normally should not be changed.
Page 574: Dlp- D174 Create An Ip-Over-Clns Tunnel
Provisioning or higher Caution IP-over-CLNS tunnels require two end points. You will create one point on an ONS 15454 SDH. The other end point is generally provisioned on non-ONS equipment including routers and other vendor NEs. Before you begin, verify that you have the capability to create an OSI over IP tunnel on the other equipment location.
Page 575: Dlp- D175 Remove A Tarp Manual Adjacency Table Entry
The E1-N-14 cards in Slots 3 and 15 are the protect cards. Each protect card protects the other E1-N-14 cards in that half of the shelf. The ONS 15454 SDH must run CTC Software Release 4.0 or later. In node view, click the Maintenance > Protection tabs.
Page 576 1:N protection groups are always revertive. Note Step 21 Click OK. The protection group appears in the Protection Groups list on the Protection subtab. Return to your originating procedure (NTP). Step 22 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-64 78-17194-01...
Page 577: Dlp- D177 Convert Ds3I-N-12 Cards From 1:1 To 1:N Protection
DS3i-N-12 cards in Slots 3 and 15 are the protect cards. Each protect card protects the other DS3i-N-12 cards in that half of the shelf. The ONS 15454 SDH must run CTC Software R4.0 or later. In node view, click the Maintenance > Protection tabs.
Page 578: Dlp- D178 Change The Osi Routing Mode
For OSI L1 to ES routing mode changes, only one L1 virtual router and no more than one subnet • can be configured. In node view, click the Provisioning > OSI tabs. Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-66 78-17194-01...
Page 579: Dlp- D179 Edit The Osi Router Configuration
Choose one of the following routing modes: Step 3 End System—The ONS 15454 SDH performs OSI IS functions. It communicates with IS and ES • nodes that reside within its OSI area. It depends upon an IS L1/L2 node to communicate with IS and ES nodes that reside outside its OSI area.
Page 580: Dlp- D180 Edit The Osi Subnetwork Point Of Attachment
You cannot change the parameters after the subnet is created. To change the DIS Priority and IS-IS Cost parameters, delete the subnet and create a new one. Click OK. Return to your originating procedure (NTP). Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-68 78-17194-01...
Page 581: Dlp- D181 Edit An Ip-Over-Clns Tunnel
GRE header to each IP packet. The two tunnel types are not compatible. Most Cisco routers support the Cisco IP tunnel, while only a few support both GRE and Cisco IP tunnels. You generally should create Cisco IP tunnels if you are tunneling between two Cisco routers or between a Cisco router and an ONS node.
Page 582: Dlp- D182 Delete An Ip-Over-Clns Tunnel
• Location—Indicates the OSI subnetwork point of attachment. For DCC subnets, the slot and port are displayed. LAN subnets are shown as LAN. • Destination Address—The destination NSAP of the IS. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-70 78-17194-01...
Page 583: Dlp- D184 View Es-Is Routing Information Base
If additional routers are enabled, you can view their RIBs by choosing the router number in the Router Step 3 field and clicking Refresh. Return to your originating procedure (NTP). Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-71 78-17194-01...
Page 584: Dlp- D185 Manage The Tarp Data Cache
Step 1 View the following TARP data cache information: Step 2 TID—The target identifier of the originating NE. For ONS 15454 SDH nodes, the TID is the name • entered in the Node Name/TID field on the Provisioning > General tab.
Page 585: Dlp- D186 Provision A Low-Order Vc11 Circuit Source And Destination
18-11). If you choose an STM-N card, you can map the VC11 to VC4 for optical transport. Figure 18-11 Defining the Circuit Source on an STM-16 Card Choose the port from the Port drop-down list. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-73 78-17194-01...
Page 586: Dlp- D187 Provision A Low-Order Vc11 Circuit Route
Onsite or remote Security Level Provisioning or higher In the Circuit Creation wizard in the Route Review and Edit area, click the source node icon if it is not Step 1 already selected. Cisco ONS 15454 SDH Procedure Guide, R7.0 18-74 78-17194-01...
Page 587: Dlp- D188 View Ce-Series Ethernet And Pos Ports Statistics Pm Parameters
Note For CE-Series card provisioning, refer to the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. Step 1 In node view, double-click the CE-Series Ethernet card where you want to view PM counts. The card view appears.
Page 588: Ether Ports Statistics On The Card View Performance Window
Cisco ONS 15454 SDH Reference Manual. To refresh, reset, or clear PM counts, see the “NTP-D257 Change the PM Display” procedure Note on page 8-2. Step 5 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 18-76 78-17194-01...
Page 589: Dlp- D189 Verify That A 1+1 Working Slot Is Active
If the slot is not active, look for conditions or alarms that might be preventing the card from Note carrying working traffic. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide. When the working slot is carrying traffic, clear the Manual switch: Step 5 In the Switch Commands field, choose Clear.
Page 590: Dlp- D190 View Ce-Series Ethernet And Pos Ports Utilization Pm Parameters
For CE-Series card provisioning, refer to the Ethernet Card Software Feature and Configuration Guide Note for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. In node view, double-click the CE-series Ethernet card where you want to view PM counts. The card Step 1 view appears.
Page 591: Dlp- D191 Delete A Card
If you delete a card in CTC but do not remove the card from shelf, it will reboot and reappear Note in CTC. Return to your originating procedure (NTP). Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-79 78-17194-01...
Page 592: Dlp- D192 View Ce-Series Ethernet And Pos Ports History Pm Parameters
For CE-Series card provisioning, refer to the Ethernet Card Software Feature and Configuration Guide Note for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. In node view, double-click the CE-100T-8 Ethernet card where you want to view PM counts. The card Step 1 view appears.
Page 593: Dlp- D193 Grant Superuser Privileges To A Provisioning User
A pencil icon appears next to the default name that will be changed as a result of editing the defaults file. You must close your current CTC session and restart a new CTC session for the changes to take Note effect. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-81 78-17194-01...
Page 594: Dlp- D194 Clear An Ms-Spring Force Ring Switch
Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite/remote Security Level Provisioning or higher In node view, click the Provisioning > Timing > General tabs. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-82 78-17194-01...
Page 595: Dlp- D196 Delete An Ms-Spring From A Single Node
See Chapter 3, “Connect the PC and Log into the GUI,” procedures. From node view, click the Provisioning > MS-SPRing tabs. Step 2 Highlight the ring and click Delete. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-83 78-17194-01...
Page 596: Dlp- D197 Initiate An Sncp Force Switch
A Force switch request on a span or card causes CTC to raise a FORCED-REQ condition. The condition clears when you clear the force switch; it is informational only. Return to your originating procedure (NTP). Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-84 78-17194-01...
Page 597: Dlp- D198 Clear An Sncp Force Switch
In the Protection Switch Result dialog box, click OK. Step 5 In the Circuits on Span window, the Switch State for all SNCP circuits is CLEAR. Return to your originating procedure (NTP). Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 18-85 78-17194-01...
Page 598 Chapter 18 DLPs D100 to D199 DLP- D198 Clear an SNCP Force Switch Cisco ONS 15454 SDH Procedure Guide, R7.0 18-86 78-17194-01...
Page 599: Dlp- D201 Apply A Lock-On
In the Selected Group list, click the active card where you want to lock traffic. Step 5 In the Inhibit Switching area, click Lock On. Step 6 Click Yes in the confirmation dialog box. Step 7 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-1 78-17194-01...
Page 600: Dlp- D202 Apply A Lockout
19-3. Provisioning a Lock Out state raises a LOCKOUT-REQ or an FE-LOCKOUT-PR condition in Note Cisco Transport Controller (CTC). Clearing the lockout switch request clears these conditions. Step 7 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 601: Dlp- D203 Clear A Lock-On Or Lockout
Slide the lever on the cartridge to swipe the connector surface. Step 3 Insert the fiber connector into the applicable adapter or attach a dust cap to the fiber connector. Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-3 78-17194-01...
Page 602: Dlp- D205 Clean Fiber Connectors With Cletop
Return to your originating procedure (NTP). Step 6 DLP-D206 Clean the Fiber Adapters Purpose This task cleans the fiber adapters. Tools/Equipment CLETOP stick swab Prerequisite Procedures None Required/As Needed Required Onsite/Remote Onsite Security Level None Cisco ONS 15454 SDH Procedure Guide, R7.0 19-4 78-17194-01...
Page 603: Dlp- D207 Delete A Server Trail
“DLP-D324 Install Alarm Cables on the MIC-A/P” task on page 20-12 for more information. In node view, double-click the AIC-I card to display it in card view. Step 2 Click the Provisioning > External Alarms tabs. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-5 78-17194-01...
Page 604: Dlp- D209 Change External Controls Using The Aic-I Card
DLPs D200 to D299 DLP- D209 Change External Controls Using the AIC-I Card Modify any of the following fields for each external device wired to the ONS 15454 SDH MIC-A/P card. Step 4 For definitions of these fields, see the “NTP-D247 Provision External Alarms and Controls on the Alarm...
Page 605: Dlp- D210 Change Aic-I Card Orderwire Settings
However, to prevent orderwire loops, provision two orderwire ports (east and west) at all but one of the ring nodes. Before you begin, make a list of the ONS 15454 SDH slots and ports that require orderwire communication. In node view, double-click the AIC-I card to display it in card view.
Page 606: Table
CCAT circuits can be created only if a contiguous pool of VCs is available. The Ethernet ports are Note automatically allocated VCs from the available Cisco ONS 15454 SDH bandwidth on the CE-1000-4 card. In node view, double-click the CE-1000-4 card graphic to open the card.
Page 607: Dlp- D212 Create A User Data Channel Circuit
DLP-D212 Create a User Data Channel Circuit Purpose This task creates a user data channel (UDC) circuit on the ONS 15454 SDH. A UDC circuit allows you to create a dedicated data channel between nodes. Tools/Equipment STM cards must be installed.
Page 608: Dlp- D214 Change The Service State For A Port
TL1 RTRV-COND command. For more information about service states, refer to the “Administrative and Service States” appendix of the Cisco ONS 15454 SDH Reference Manual. If the port is in loopback (Locked-enabled,loopback & maintenance) and you set the Admin State to...
Page 609: Dlp- D215 Consolidate Links In Network View
To consolidate a link or links between two nodes: Right-click the link on the network map. Choose Collapse Link from the shortcut menu. The selected link type consolidates to show only one link. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-11 78-17194-01...
Page 610: Figure 19-1 Unconsolidated Links In Network View
Figure 19-2 shows a network view with globally consolidated links. Figure 19-2 Consolidated Links in Network View Figure 19-3 shows a different network view with local DCC link consolidation between two nodes. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-12 78-17194-01...
Page 611: Figure 19-3 Network View With Local Link Consolidation
DWDM GCC, OTS, PPC DCC, PPC, Server Trail Check the check boxes next to the links that you want to display. Click OK. Return to your originating procedure (NTP). Step 10 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-13 78-17194-01...
Page 612 For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the STM-N card where you want to change the ALS maintenance settings.
Page 613 Right-click the west port of any MS-SPRing node and choose Set West Protection Operation. Figure 19-4 shows an example. (To move a graphic icon, press Ctrl while you drag and drop it to a new location.) Cisco ONS 15454 SDH Procedure Guide, R7.0 19-15 78-17194-01...
Page 614: Figure 19-4 Protection Operation On A Three-Node Ms-Spring
Also, check that alarms and conditions are not suppressed for a node or MS-SPRing drop cards. See the “NTP-D72 Suppress Alarms or Discontinue Alarm Suppression” procedure on page 9-7 for more information. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-16 78-17194-01...
Page 615: Dlp- D218 Provision Sncp Ring Selectors During Circuit Creation
Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Step 8 From the File menu, choose Close to close the MS-SPRing window.
Page 616: Dlp- D219 Provision A Low-Order Tunnel Route
As needed Onsite/Remote Onsite or remote Security Provisioning or higher In node view, double-click the Ethernet card that you want to provision. Step 1 Click the Provisioning > Port tabs. Step 2 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-18 78-17194-01...
Page 617: Dlp- D221 Provision E-Series Ethernet Ports For Vlan Membership
Refer to the priority queuing information in the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. This parameter does not apply to an E-Series card in port-mapped mode.
Page 618: Table
Description A port marked with this symbol does not belong to the VLAN. Untag The ONS 15454 SDH tags ingress frames and strips tags from egress frames. Tagged The ONS 15454 SDH processes ingress frames according to the VLAN ID;...
Page 619: Dlp- D222 Provision G-Series Ethernet Ports
An Encapsulation Mismatch Path alarm appears when a point-to-point circuit is created between two Note Ethernet card ports with incompatible Encapsulation payload types. Click Apply. Step 4 Step 5 Refresh the Ethernet statistics: Click the Performance > Statistics tabs. Click the Refresh button. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-21 78-17194-01...
Page 620: Dlp- D223 Download An Alarm Severity Profile
Provisioning > POS Alarming > Alarm Profile Editor tabs if you want to apply the profile to the packet over SDH (POS) ports. For more information about ML-Series card ports and service, refer to the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327.
Page 621: Dlp- D224 Adjust The Java Virtual Memory Heap Size
Click Environmental Variables. The Environmental Variables dialog box appears. Step 5 In the User Variables area, click New. The New User Variable dialog box appears. Step 6 Type CTC_HEAP in the Variable Name field. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-23 78-17194-01...
Page 622: Dlp- D225 Enable Alarm Filtering
Conditions Step 3 window. If you want alarm filtering enabled when you view alarm history, repeat Steps using the History Step 4 window. Step 5 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 19-24 78-17194-01...
Page 623: Dlp- D227 Disable Alarm Filtering
Return to your originating procedure (NTP). Step 5 DLP-D229 View Circuits on a Span Purpose This task allows you to view circuits on an ONS 15454 SDH span. Tools/Equipment None Prerequisite Procedures Circuits must be created on the span. See Chapter 6, “Create Circuits and...
Page 624: Dlp- D230 Change A Circuit State
You cannot edit the circuit state if the circuit is routed to nodes with Software Release 3.3. These circuits are automatically in service (Unlocked). From the Tools menu, choose Circuits > Set Circuit State. Step 4 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-26 78-17194-01...
Page 625: Dlp- D231 Edit A Circuit Name
Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Provisioning or higher Step 1 Click the Circuits tab in node or network view. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-27 78-17194-01...
Page 626: Dlp- D232 Change Active And Standby Span Color
In the Span Colors area, click the colored square that is near the word Active. In the Pick a Color dialog box, click the color for the active span, or click Reset if you want the active span to display the last applied (saved) color. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-28 78-17194-01...
Page 627: Dlp- D233 Edit Sncp Circuit Path Selectors
Reversion time (min.)—If Revertive is checked, sets the amount of time that will elapse before traffic reverts to the working path. The range is 0.5 to 12 minutes in 0.5 minute increments. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-29...
Page 628: Dlp- D234 Roll The Source Or Destination Of One Optical Circuit
1-way source roll) or Manual to create a manual roll (required for a 1-way destination roll). From the Circuit Roll Type drop-down list, choose Single to indicate that you want to roll one cross-connect on the chosen circuit. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-30 78-17194-01...
Page 629: Selecting Single Roll Attributes
Click Next. Step 8 In the Select New End Point area, choose the Slot, Port, and VC4 from the drop-down lists to select the Step 9 Roll To facility (Figure 19-7). Cisco ONS 15454 SDH Procedure Guide, R7.0 19-31 78-17194-01...
Page 630: Figure 19-7 Selecting A New Endpoint
• before continuing with the next step. If the signal is not found, refer to the Circuits and Timing section of the Cisco ONS 15454 SDH Troubleshooting Guide. To cancel the roll, see the “DLP-D240 Cancel a Roll” task on page 19-43.
Page 631: Dlp- D235 Roll One Cross-Connect From An Optical Circuit To A Second Optical Circuit
From the Circuit Roll Mode drop-down list, choose Auto to create an automatic roll (required for a 1-way source roll) or Manual to create a manual roll (required for 1-way destination roll). Cisco ONS 15454 SDH Procedure Guide, R7.0 19-33...
Page 632: Figure 19-9 Selecting Roll Attributes For A Single Roll Onto A Second Circuit
• before continuing with the next step. If the signal is not found, refer to the Circuits and Timing section of the Cisco ONS 15454 SDH Troubleshooting Guide. To cancel the roll, see the “DLP-D240 Cancel a Roll” task on page 19-43.
Page 633: Dlp- D236 Roll Two Cross-Connects On One Optical Circuit Using Automatic Routing
From the Circuit Roll Mode drop-down list, choose Auto to create an automatic roll or Manual to create a manual roll. From the Circuit Type drop-down list, choose Dual to indicate that you want to roll two connections on the chosen circuit. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-35 78-17194-01...
Page 634: Figure 19-10 Selecting Dual Roll Attributes
Using Required Nodes/Spans—If checked, you can specify nodes and spans to include or exclude • in the CTC-generated circuit route in Step • Review Route Before Creation—If checked, you can review and edit the circuit route before the circuit is created. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-36 78-17194-01...
Page 635: Figure 19-11 Setting Roll Routing Preferences
Review the circuit route. To change the circuit routing order, select a node in the Required Nodes/Lines or Excluded Nodes Links lists, then click the Up or Down buttons to change the circuit routing order. Click Remove to remove a node or span. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-37 78-17194-01...
Page 636 If the Roll Valid Signal status is false, a valid signal was not found. Wait until the signal is found • before continuing with the next step. If a valid signal is not found, refer to the Cisco ONS 15454 SDH Troubleshooting Guide. To cancel the roll, see the “DLP-D240 Cancel a Roll” task on page 19-43.
Page 637: Dlp- D237 Roll Two Cross-Connects On One Optical Circuit Using Manual Routing
The path that is not selected is the Roll From path. The Roll From path is deleted after the roll is complete. The path identifier appears in the text box below the graphic image. Step 11 Click Next. Step 12 In the Circuit Routing Preferences area, uncheck Route Automatically. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-39 78-17194-01...
Page 638 • before continuing with the next step. If the signal is not found, refer to the Circuits and Timing section of the Cisco ONS 15454 SDH Troubleshooting Guide. To cancel the roll, see the “DLP-D240 Cancel a Roll” task on page 19-43.
Page 639: Dlp- D238 Roll Two Cross-Connects From One Optical Circuit To A Second Optical Circuit
The path that is not selected contains the Roll From path. The Roll From path is deleted after the roll is completed. Click Next. Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-41 78-17194-01...
Page 640 If the Roll Valid Signal status is false, a valid signal was not found. Wait until the signal is found before continuing with the next step. If the signal is not found, refer to the Circuits and Timing section of the Cisco ONS 15454 SDH Troubleshooting Guide. To cancel the roll, see the “DLP-D240 Cancel a Roll”...
Page 641: Dlp- D239 Delete A Roll
Cisco does not recommend cancelling a dual roll when a valid signal has been detected. To return the circuit to the original state, Cisco recommends completing the roll, then using bridge and roll again to roll the circuit back.
Page 642: Dlp- D241 Clear An Ms-Spring Manual Ring Switch
Click Yes in the Confirm MS-SPRing Operation dialog box. The letter “M” is removed from the channel Step 6 (port) and the span turns green. From the File menu, choose Close. Step 7 Return to your originating procedure (NTP). Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-44 78-17194-01...
Page 643: Dlp- D242 Create An Ms-Spring On A Single Node
(port). Step 4 Click OK. The MS-SPRing is incomplete and alarms appear until the node is connected to other Note MS-SPRing nodes. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-45 78-17194-01...
Page 644: Dlp- D243 Create A Vlan
VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 and • 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
Page 645: Figure 19-12 Reinitialization Tool
DLP-D244 Use the Reinitialization Tool to Clear the Database and Upload Software (Windows) Purpose This task reinitializes the ONS 15454 SDH using the CTC reinitialization tool on a Windows computer. Reinitialization uploads a new software package to the TCC2/TCC2P cards, clears the node database, and restores the factory default parameters.
Page 646 “NTP-D169 Set Up CTC Network Access” procedure on page 4-7 for information on setting the node name, IP address, subnet mask and gateway, and Internet Inter-ORB Protocol (IIOP) port. Step 10 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 19-48 78-17194-01...
Page 647: Dlp- D245 Use The Reinitialization Tool To Clear The Database And Upload Software (Unix)
DLP-D245 Use the Reinitialization Tool to Clear the Database and Upload Software (UNIX) Purpose This task reinitializes the ONS 15454 SDH using the CTC reinitialization (reinit) tool on a UNIX computer. Reinitialization uploads a new software package to the TCC2/TCC2P cards, clears the node database, and restores the factory default parameters.
Page 648: Dlp- D246 Provision E-Series Ethernet Card Mode
Click Apply. Step 4 If you are using multicard EtherSwitch circuits, repeat Steps through for all other Ethernet cards in Step 5 the node that will carry the multicard EtherSwitch circuits. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-50 78-17194-01...
Page 649: Dlp- D247 Change An Stm-N Card
From the Change Card drop-down list, choose the card type and click OK. An MEA alarm appears until you replace the card. Step 4 Physically remove the card: Open the card latches/ejectors. Use the latches/ejectors to pull the card forward and away from the shelf. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-51 78-17194-01...
Page 650: Dlp- D248 Delete Vlans
DLP-D249 Provision IP Settings Purpose This task provisions IP settings, which includes the IP address, default router, Dynamic Host Configuration Protocol (DHCP) access, firewall access, and proxy server settings for an ONS 15454 SDH node. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 651 Suppress Display—Suppresses the node IP address display on the front panel LCD. – Default Router—If the ONS 15454 SDH is connected to a LAN, enter the IP address of the default • router. The default router forwards packets to network devices that the ONS 15454 SDH cannot directly access.
Page 652: Table
The CTC client does not require IP connectivity to the DCC-connected nodes, only to the proxy ONS 15454 SDH. If Enable SOCKS proxy server on port is off, the node does not proxy for any CTC clients. When this box is checked, you can provision one of the following options: External Network Element (ENE)—Choose this option when the ONS 15454 SDH is not...
Page 653: Table
19-56. If you do not need to create a static route or set up OSPF, continue with “NTP-D28 Set Up Timing” procedure on page 4-9. Return to your originating procedure (NTP). Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-55 78-17194-01...
Page 654: Dlp- D250 Set Up Or Change Open Shortest Path First Protocol
• OSPF active on LAN—When checked, enables the ONS 15454 SDH OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15454 SDH nodes that directly connect to OSPF routers. LAN Port Area ID—Enter the OSPF area ID (dotted decimal format) for the router port where the •...
Page 655: Table
Advertise—Check if you want to advertise the OSPF range table. Click OK. All OSPF areas must be connected to Area 0. If the ONS 15454 SDH OSPF area is not physically Step 7 connected to Area 0, use the following steps to create a virtual link table that will provide the disconnected area with a logical path to Area 0: Under OSPF Virtual Link Table, click Create.
Page 656: Dlp- D251 Set Up Or Change Routing Information Protocol
Set the RIP metric. The RIP metric can be set to a number between 1 and 15 and represents the number Step 4 of hops. By default, RIP is set to No Authentication. If the router that the ONS 15454 SDH is connected to Step 5 requires authentication, complete the following steps. If not, continue with Step Click the No Authentication button.
Page 657: Dlp- D254 Tcc2/Tcc2P Card Active/Standby Switch Test
If you want to complete an address summary, complete the following steps. If not, continue with Step Step 6 Complete the address summary only if the ONS 15454 SDH is a gateway NE with multiple external ONS 15454 SDH NEs attached with IP addresses in different subnets. In the RIP Address Summary area, click Create.
Page 658: Dlp- D255 Cross-Connect Card Side Switch Test
Verify that no unexplained alarms appear on the network. If unexplained alarms appear, resolve them before continuing. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if necessary. Click the Conditions tab. Verify that no unexplained conditions appear on the network. If unexplained Step 3 conditions appear, resolve them before continuing.
Page 659: Dlp- D256 View Ethernet Statistics Pm Parameters
Step 1 The card view appears. Click the Performance tab. Step 2 Click the Statistics subtab. Step 3 Step 4 Click Refresh. Performance monitoring statistics appear for each port on the card. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-61 78-17194-01...
Page 660: Dlp- D257 View Ethernet Utilization Pm Parameters
For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. Note To clear PM counts, see the “DLP-D459 Clear Selected PM Counts” task on page 21-36. Step 6 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 19-62 78-17194-01...
Page 661: Dlp- D258 View Ethernet History Pm Parameters
Click the Utilization tab or the History tab. Step 3 From the Interval drop-down list, choose one of the following options: Step 4 1 min: This option displays the specified PM counts in one-minute time intervals. • Cisco ONS 15454 SDH Procedure Guide, R7.0 19-63 78-17194-01...
Page 662: Dlp- D260 Set Auto-Refresh Interval For Displayed Pm Counts
If the auto-refresh interval is set to None, the PM counts that appear are not updated unless you click Refresh. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-64 78-17194-01...
Page 663: Dlp- D261 Refresh Pm Counts For A Different Port
In the General tab of the Circuit Filter dialog box, set the following filter attributes, as necessary: • Name—Enter a complete or partial circuit name to filter circuits based on the circuit name; otherwise leave the field blank. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-65 78-17194-01...
Page 664 VC_HO_PATH_VCAT_CIRCUIT (displays high-order VCAT circuits), VC_LO_PATH_VCAT_CIRCUIT (displays low-order VCAT circuits), or OCHNC (displays only OCHNCs; refer to the Cisco ONS 15454 DWDM Procedure Guide for DWDM information). Size—Click the appropriate check boxes to filter circuits based on size: VC11, VC12, VC3, •...
Page 665: Dlp- D263 Edit Sncp Dual-Ring Interconnect Circuit Hold-Off Timer
5, as needed, to adjust the hold-off timer for each circuit span. Step 6 Click Apply, then close the Edit Circuit window by choosing Close from the File menu. Step 7 Step 8 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 19-67 78-17194-01...
Page 666: Dlp- D264 Provision A J1 Path Trace On Circuit Source And Destination Ports
This task creates a J1 path trace on VC3 or VC4 circuit source ports and destination ports or a VCAT circuit member. Tools/Equipment ONS 15454 SDH cards capable of transmitting and/or receiving J1 path trace must be installed at the circuit source and destination ports. See Table 19-5 on page 19-68 for a list of cards.
Page 667 (RDI) when the VC3 or VC4 High-Order Path Trace Identifier Mismatch (HP-TIM) or Low-Order Path Trace Identifier Mismatch (LP-TIM) alarm appears. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for descriptions of alarms and conditions. Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 668 RDI when the VC3 or VC4 HP-TIM or LP-TIM alarm appears. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for descriptions of alarms and conditions. (Check box visibility depends on card selection) Click the Disable AIS on C2 Mis-Match check box if you want to suppress the AIS when a C2 mismatch occurs.
Page 669: Dlp- D265 Change The Login Legal Disclaimer
 Ends subscript Begins superscript Ends superscript Starts underline Ends underline Step 3 If you want to preview your changed statement and formatting, click the Preview subtab. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-71 78-17194-01...
Page 670: Dlp- D266 Change Ip Settings
Step 5 DLP-D266 Change IP Settings Purpose This task changes the IP address, subnet mask, default router, DHCP access, firewall access, and proxy server settings for the ONS 15454 SDH. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 671: Dlp- D268 Apply A Custom Network View Background Map
Step 6 Click Apply and then click OK. Step 7 If the ONS 15454 SDH icons are not visible, right-click the network view and choose Zoom Out. Repeat this step until all the ONS 15454 SDH icons are visible. Step 8 If you need to reposition the node icons, drag and drop them one at a time to a new location on the map.
Page 672: Dlp- D269 Enable Dialog Box Do-Not-Display Option
Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Superuser In node view, click the Provisioning > Security > Policy tabs. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-74 78-17194-01...
Page 673 Disable Inactive User—If checked, disables users who do not log into the node for the period of time • specified in the Inactive Duration box. The Inactive Duration range is 45 to 90 days. Click Apply. Step 7 Return to your originating procedure (NTP). Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-75 78-17194-01...
Page 674: Dlp- D272 Change Node Security Policy On Multiple Nodes
The range is 2 to 20 days. Step 8 In the Other area, you can provision the following: • Single Session Per User—If checked, limits users to one login session at one time. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-76 78-17194-01...
Page 675: Dlp- D273 Modify Snmp Trap Destination
Allow SNMP Sets check box. If the box is not checked, SET requests are rejected. If you want to allow the ONS 15454 SDH SNMP agent to serve as a proxy (that is, it relays the traps to...
Page 676: Dlp- D293 Perform A Manual Span Upgrade On A Two-Fiber Ms-Spring
If you are upgrading a span on an MS-SPRing, a MSSP-OSYNC alarm will appear in the alarms list. Note Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for information about this alarm. Apply a Force switch to both span endpoints (nodes) on the span that you will upgrade first. See the Step 1 “DLP-D303 Initiate an MS-SPRing Force Ring Switch”...
Page 677: Dlp- D294 Perform A Manual Span Upgrade On A Four-Fiber Ms-Spring
If you are upgrading a span on an MS-SPRing, a MSSP-OSYNC alarm will appear in the alarms list. Note Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for information about this alarm. Apply a Force switch to both span endpoints (nodes) on the span that you will upgrade first. See the Step 1 “DLP-D303 Initiate an MS-SPRing Force Ring Switch”...
Page 678: Dlp- D295 Perform A Manual Span Upgrade On An Sncp
“DLP-D337 Install Fiber-Optic Cables for SNCP Configurations” task on page 20-33 Step 9 attach the fiber to the cards. Wait for the IMPROPRMVL alarm to clear and the cards to become active. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-80 78-17194-01...
Page 679: Dlp- D296 Perform A Manual Span Upgrade On A 1+1 Protection Group
In the Change Card dialog box, choose the new STM-N card type. Step 7 Click OK. Complete the “NTP-D16 Install STM-N Cards and Connectors” procedure on page 2-7 to install the new Step 8 STM-N cards in both endpoints. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-81 78-17194-01...
Page 680: Dlp- D297 Perform A Manual Span Upgrade On An Unprotected Span
For both ends of the span, in node view, right-click each STM-N slot and choose Change Card. Step 3 In the Change Card dialog box, choose the new STM-N type. Step 4 Step 5 Click OK. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-82 78-17194-01...
Page 681: Dlp- D298 Check The Network For Alarms And Conditions
19-25 as necessary. Verify that no unexplained alarms appear on the network. If alarms appear, investigate and resolve them before continuing. Refer to the Cisco ONS 15454 Troubleshooting Guide for procedures. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 682: Dlp- D299 Initiate An Ms-Spring Span Lockout
In the Confirm MS-SPRing Operation dialog box, click Yes. An “L” indicating the lockout appears on the selected channel (port) where you invoked the protection switch. Performing a lockout switch generates LKOUTPR-S and FE-LOCKOUTOFPR-SPAN conditions. Cisco ONS 15454 SDH Procedure Guide, R7.0 19-84 78-17194-01...
Page 683 Chapter 19 DLPs D200 to D299 DLP- D299 Initiate an MS-SPRing Span Lockout From the File menu, choose Close. Step 6 Return to your originating procedure (NTP). Step 7 Cisco ONS 15454 SDH Procedure Guide, R7.0 19-85 78-17194-01...
Page 684 Chapter 19 DLPs D200 to D299 DLP- D299 Initiate an MS-SPRing Span Lockout Cisco ONS 15454 SDH Procedure Guide, R7.0 19-86 78-17194-01...
Page 685: Dlp- D300 Clear An Ms-Spring Span Lockout
The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms Note do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration.
Page 686: Dlp- D301 Initiate An Ms-Spring Manual Ring Switch
Manual switch was invoked turn purple, and that the span lines between all other nodes turn green. This confirms the Manual switch. Step 8 From the File menu, choose Close. Return to your originating procedure (NTP). Step 9 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-2 78-17194-01...
Page 687 For two-fiber MS-SPRings, the squares on the node icons represent the MS-SPRing working Note and protect channels. You can right-click either channel. For four-fiber MS-SPRings, the squares represent ports. Right-click either working port. Figure 20-1 Invoking a Protection Operation on a Three-Node MS-SPRing Cisco ONS 15454 SDH Procedure Guide, R7.0 20-3 78-17194-01...
Page 688: Dlp- D309 View Ethernet Mac Address Table
In node view, click the Maintenance > Ether Bridge > MAC Table tabs. Step 1 Select the appropriate E-Series Ethernet card in the Layer 2 Domain field. Step 2 Click the Retrieve button. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-4 78-17194-01...
Page 689: Dlp- D310 View Ethernet Trunk Utilization
From the Slot drop-down list, choose the slot containing the card where the circuit will originate. From the Port drop-down list, choose the port where the circuit will originate. This field might not be Step 3 available, depending on the card chosen in Step Cisco ONS 15454 SDH Procedure Guide, R7.0 20-5 78-17194-01...
Page 690: Dlp- D312 Provision A Half Circuit Source And Destination On An Sncp Ring
For low-order VC3 circuits, choose the VC4 and VC3. • For high-order circuits, choose the VC4. • Click Next. Step 5 From the Node drop-down list, choose the node chosen in Step Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-6 78-17194-01...
Page 691: Dlp- D314 Assign A Name To A Port
Return to your originating procedure (NTP). Step 11 DLP-D314 Assign a Name to a Port Purpose This task assigns a name to a port on any ONS 15454 SDH card. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 692: Dlp- D316 Log Out A User On Multiple Nodes
Step 7 settings (all network nodes are selected by default). Click OK. Step 8 In the User Change dialog box, click OK. Step 9 Return to your originating procedure (NTP). Step 10 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-8 78-17194-01...
Page 693 Defining the Circuit Source on an E3-12 Card Step 3 Choose the port from the Port drop-down list. Choose the VC4 from the VC4 drop-down list. Step 4 Choose the VC3 from the VC3 drop-down list. Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-9 78-17194-01...
Page 694 Medium slot-head screwdriver Prerequisite Procedures DLP-D8 Open the Front Cabinet Compartment (Door), page 17-9 Required/As Needed Required Onsite/Remote Onsite Security Level None Unscrew the screws on the FMEC cover (Figure 20-3). Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-10 78-17194-01...
Page 695 Unscrew the nut holding the ground wire to the shelf. Remove the nut and washer. Step 1 Remove the ground wire from the left side of the shelf. Step 2 Pull the right side of the hinge-locking spring (Figure 20-4). Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-11 78-17194-01...
Page 696 Chapter 20 DLPs D300 to D399 DLP- D324 Install Alarm Cables on the MIC-A/P Figure 20-4 Removing the ONS 15454 SDH FMEC Cover Pin hinge FMEC cover Hinge-locking spring F A N F A IL M IN Detach the cover from the pin of the hinge.
Page 697: Table 20-1 Alarm Pin Assignments
Brown/black EXALM9– Extra alarm 9 Black/gray EXALM9+ Extra alarm 9 Gray/black EXALM10– Extra alarm 10 Yellow/blue EXALM10+ Extra alarm 10 Blue/yellow EXALM11– Extra alarm 11 Yellow/orange EXALM11+ Extra alarm 11 Orange/yellow Cisco ONS 15454 SDH Procedure Guide, R7.0 20-13 78-17194-01...
Page 698 Connect the DB-62 connector to the ALARM IN/OUT connector on the MIC-A/P faceplate. Tighten the screws of the connector on the alarm cable. Step 4 Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-14 78-17194-01...
Page 699: Dlp- D325 Install Timing Cables On The Mic-C/T/P
Connect the other end of the cable to the external source of the timing signal according to Table 20-2. Step 3 Step 4 Repeat Step 3 for each cable that is required. Step 5 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 20-15 78-17194-01...
Page 700: Dlp- D326 Install Lan Wires On The Mic-C/T/P
LAN Pin Assignments RJ-45 Pin RJ-45 Pin Function LAN 1 PNMSRX+ Connecting to DCE white/green (a hub or switch) PNMSRX– green Cross-over Ethernet cable PNMSTX white/orange — — PNMSTX– orange — — Cisco ONS 15454 SDH Procedure Guide, R7.0 20-16 78-17194-01...
Page 701: Dlp- D328 Install 75-Ohm E-1, E-3, Or Stm-1 Coaxial Cables
— PNMSTX– orange — — 1. The Cisco ONS 15454 SDH is DCE. Step 2 Plug the connector into the LAN connection point. Step 3 Return to your originating procedure (NTP). DLP-D328 Install 75-Ohm E-1, E-3, or STM-1 Coaxial Cables...
Page 702: Dlp- D329 Install 120-Ohm E-1 Cables With Db-37 Connectors To The Fmecs
TX 1 N — — The connection from the E-1 37-pin DB connector for Ports 8 to 14 to the external balanced 120-ohm E-1 interfaces must be done according to Table 20-5. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-18 78-17194-01...
Page 703 Connect the other end of the cable to the external source or sink of the signal. Step 3 Repeat Step 2 Step 3 for each cable required. Step 4 Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-19 78-17194-01...
Page 704: Dlp- D330 Install 120-Ohm E-1 Cables With Molex 96-Pin Lfh Connectors
Security Level None Step 1 Using the cables with Molex 96-pin LFH connectors available from Cisco, connect the male connector to the female connector on the FMEC card that you want to connect to. Table 20-6 to make the connection from the E-1 96-pin connector for Ports 1 to 21 to the external balanced 120-ohm E-1 interfaces.
Page 705: Table 20-6 Pinout For E-1 Interfaces On Ports 1 To
Tighten the screws of the cable connector to the FMEC connector. Step 2 Label all cables at each end of the connection to avoid confusion with cables that are similar in Step 3 appearance. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-21 78-17194-01...
Page 706: Dlp- D332 Install The Tcc2/Tcc2P Cards
DLP-D332 Install the TCC2/TCC2P Cards Purpose This task installs redundant TCC2/TCC2P cards. The first card you install in the ONS 15454 SDH must be a TCC2/TCC2P card, and it must initialize before you install any cross-connect or traffic cards. Tools/Equipment...
Page 707 TCC2P card initializes. The alarm should clear after the card completely boots. If the FAIL LED is on continuously, see the tip below about the TCC2P card automatic upload. Note Cisco ONS 15454 SDH Procedure Guide, R7.0 20-23 78-17194-01...
Page 708 TCC2/TCC2P card and install a replacement card. Refer to the release-specific software upgrade document to replace the software. To exchange the TCC2/TCC2P card, see the Cisco ONS 15454 SDH Troubleshooting Guide. Repeat Steps through for the redundant TCC2/TCC2P card.
Page 709: Dlp- D333 Install The Xc-Vxl-10G, Xc-Vxl-2.5G, Or Xc-Vxc-10G Cards
DLPs D300 to D399 DLP- D333 Install the XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G Cards DLP-D333 Install the XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G Cards Purpose This task installs the ONS 15454 SDH cross-connect cards. Tools/Equipment XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G cards Prerequisite Procedures DLP-D332 Install the TCC2/TCC2P Cards, page 20-22 Required/As Needed Redundant cross-connect cards are required.
Page 710: Dlp- D334 Install The Alarm Interface Controller–International Card
Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot (Slot 9). Verify that the card is inserted correctly and close the latches/ejectors on the card. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-26 78-17194-01...
Page 711 Verify that the MIC-A/P provides connection for alarm contacts into and out of the shelf assembly. For Step 5 more information, see the “DLP-D324 Install Alarm Cables on the MIC-A/P” task on page 20-12. Step 6 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 20-27 78-17194-01...
Page 712: Dlp- D335 Install Gbic Or Sfp/Xfp Devices
GBICs and SFPs are hot-swappable and can be installed or removed while the card or shelf assembly is powered and running. All versions of GBICs used with the ONS 15454 SDH can be one of two types: with clips or with a Note handle.
Page 713 2 km long OC-48 IR1 MRC-12 Intermediate 1310 nm single-mode fiber, up ONS-SI-2G-I1 reach to 15 km long OC-48 LR1 MRC-12 Long reach 1310 nm single-mode fiber up ONS-SI-2G-L1 to 40 km long Cisco ONS 15454 SDH Procedure Guide, R7.0 20-29 78-17194-01...
Page 714 Before you install SFPs on the MRC-12 card, refer to the MRC-12 card reference section in the “Optical Cards” chapter of the Cisco ONS 15454 SDH Reference Manual for bandwidth restrictions based on the port where you install the SFP and the cross-connect card being used.
Page 715: Figure 20-5 Gbic Installation (With Clips)
When you are ready to attach the network fiber-optic cable, remove the protective plug from the GBIC, save the plug for future use, and install the fiber connector. Continue with Step For GBICs with a handle: Step 5 Remove the protective plug from the SC-type connector. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-31 78-17194-01...
Page 716: Dlp- D336 Remove Gbic Or Sfp/Xfp Device
Step 6 For SFPs/XFPs: Plug the LC duplex connector of the fiber into a Cisco-supported SFP or XFP connector. If the new SFP/XFP connector has a latch, close the latch over the cable to secure it. Plug the cabled SFP/XFP connector into the card port until it clicks.
Page 717 Step 2 until you have configured the ring. Step 3 Figure 20-6 shows fiber connections for a four-node SNCP with trunk (span) cards in Slot 5 (west) and Slot 12 (east). Cisco ONS 15454 SDH Procedure Guide, R7.0 20-33 78-17194-01...
Page 718: Figure 20-6 Connecting Fiber To A Four-Node Sncp
Slot 12 Slot 5 Slot 12 Node 1 Node 2 Slot 5 Slot 12 Slot 5 Slot 12 Node 4 Node 3 Figure 20-7 shows an SNCP dual-ring interconnect (DRI) example. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-34 78-17194-01...
Page 719: Figure 20-7 Connecting Fiber To An Eight-Node Sncp Dri
Slot 13 Slot 5 Slot 6 Slot 12 Node 5 Node 6 Slot 5 Slot 12 Slot 5 Slot 12 Node 7 Node 8 Figure 20-8 shows an integrated SNCP DRI example. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-35 78-17194-01...
Page 720: Figure 20-8 Connecting Fiber To A Six-Node Integrated Sncp Dri
Node 1 Node 2 Slot Slot Slot Slot Slot Slot Slot Slot Node 3 Node 4 Slot Slot Slot Slot Node 5 Node 6 Step 4 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 20-36 78-17194-01...
Page 721: Dlp- D338 Install Fiber-Optic Cables For Ms-Spring Configurations
Step 2 until you have configured the ring. Step 3 Figure 20-9 shows fiber connections for a two-fiber MS-SPRing with trunk (span) cards in Slot 5 (west) and Slot 12 (east). Cisco ONS 15454 SDH Procedure Guide, R7.0 20-37 78-17194-01...
Page 722: Figure 20-9 Connecting Fiber To A Four-Node, Two-Fiber Ms-Spring
Figure 20-10 shows fiber connections for a four-fiber MS-SPRing. Slot 5 (west) and Slot 12 (east) carry the working traffic. Slot 6 (west) and Slot 13 (east) carry the protect traffic. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-38 78-17194-01...
Page 723: Dlp- D365 Change Line And Threshold Settings For E1-N-14 Or E1-42 Cards
For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the E1-N-14 or E1-42 card where you want to change the line or threshold Step 1 settings.
Page 724: Table 20-10 Line Options For E1-N-14 And E1-42 Cards
Line Type Defines the line framing type. E1_MF • E1_CRCMF • E1_UNFRAMED • Line Coding (Display only) Defines the HDB3 - High density bipolar - 3 Zero Substitution E-1 transmission coding type. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-40 78-17194-01...
Page 725: Table 20-11 Line Thresholds Options For E1-N-14 And E1-42 Cards
Line Thresholds Options for E1-N-14 and E1-42 Cards Parameter Description Port (Display only) Port number 1 to 14 (E1-N-14 card) • 1 to 42 (E1-42 card) • Coding violations Errored seconds Cisco ONS 15454 SDH Procedure Guide, R7.0 20-41 78-17194-01...
Page 726: Table 20-12 Electrical Path Threshold Options For E1-N-14 And E1-42 Cards
Parameter Description Port (Display only) E-1 port • 1 to 14 (E1-N-14 card) • 1 to 42 (E1-42 card) Errored seconds Severely errored seconds Errored blocks Unavailable seconds Background block errors Cisco ONS 15454 SDH Procedure Guide, R7.0 20-42 78-17194-01...
Page 727: Dlp- D340 Change Line And Threshold Settings For The E3-12 Cards
Note For the default values and domains of user-provisionable card settings, refer to the “Network Element Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. Step 1 In node view, double-click the E3-12 card where you want to change the line or threshold settings.
Page 728: Table 20-14 Line Options For E3-12 Cards
• Locked,disabled—Removes the port from service and disables it. The port service state changes to Locked-enabled,disabled. Locked,maintenance—Removes the • port from service for maintenance. The port service state changes to Locked-enabled,maintenance. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-44 78-17194-01...
Page 729: Table 20-15 Line Threshold Options For E3-12 Cards
15-minute intervals. 1 Day radio button Clicking this radio button and then clicking Refresh will cause the threshold values on this tab to display for 1-day intervals. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-45 78-17194-01...
Page 730: Table 20-16 Electrical Path Threshold Options For E3-12 Cards
Clicking this radio button and then clicking Refresh will cause the threshold values on this tab to display for 1-day intervals. Note The threshold value appears after the circuit is created. Step 7 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 20-46 78-17194-01...
Page 731: Dlp- D341 Change Line And Threshold Settings For The Ds3I-N-12 Cards
For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the DS3i-N-12 card where you want to change the line or threshold settings.
Page 732: Table 20-18 Line Options For The Ds3I-N-12 Cards
Locked,disabled—Removes the port • from service and disables it. The port service state changes to Locked-enabled,disabled. • Locked,maintenance—Removes the port from service for maintenance. The port service state changes to Locked-enabled,maintenance. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-48 78-17194-01...
Page 733: Table 20-19 Line Threshold Options For The Ds3I-N-12 Cards
The ONS node monitors the ports for an “Administrative and Service States” error-free signal. After an error-free appendix of the Cisco ONS 15454 SDH signal is detected, the port stays in the Reference Manual. Unlocked-disabled,automaticInService state for the duration of the soak period.
Page 734: Table 20-20 Electrical Path Options For The Ds3I-N-12 Cards
Clicking this radio button and then clicking Refresh will cause the threshold values on this tab to display for 1-day intervals. The threshold value appears after the circuit is created. Note Return to your originating procedure (NTP). Step 7 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-50 78-17194-01...
Page 735: Dlp- D342 Change Line And Threshold Settings For The Stm1E-12 Card
For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the STM1E-12 card where you want to change the line or threshold settings.
Page 736: Table 20-22 Line Options For The Stm1E-12 Card
Port Options for the STM1E-12 Card Parameter Description Options Port (Display only) Port number 1 to 12 Interface Interface type STM1 (display only for Ports 1 through 8, • selectable for Ports 9 through 12) Cisco ONS 15454 SDH Procedure Guide, R7.0 20-52 78-17194-01...
Page 737: Threshold Options For The Stm1E-12 Card
Sets the signal degrade bit error rate for the configured 1E-5 • VC12 or VC4 circuit. 1E-6 • 1E-7 • 1E-8 • 1E-9 • Return to your originating procedure (NTP). Step 8 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-53 78-17194-01...
Page 738: Dlp- D343 Change Sdh Threshold Settings For Stm-N Cards
For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the STM-N card where you want to change the SDH threshold settings.
Page 739: Table 20-26 Stm-N Threshold Options
15-minute intervals. 1 Day radio button Clicking this radio button and then clicking Refresh will cause the threshold values on this tab to display for 1-day intervals. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-55 78-17194-01...
Page 740: Dlp- D348 View Ml-Series Ether Ports Pm Parameters
For ML-Series card provisioning, refer to the Ethernet Card Software Feature and Configuration Guide Note for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. In node view, double-click the ML-Series Ethernet card where you want to view PM counts. The card Step 1 view appears.
Page 741: Dlp- D349 View Ml-Series Pos Ports Pm Parameters
For ML-Series card provisioning, refer to the Ethernet Card Software Feature and Configuration Guide Note for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. In node view, double-click the ML-Series Ethernet card where you want to view PM counts. The card Step 1 view appears.
Page 742: Dlp- D353 Provision G-Series Flow Control Watermarks
DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Provisioning or higher In node view, double-click the G-Series card graphic to open the card. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-58 78-17194-01...
Page 743: Dlp- D354 Change General Port Settings For The Fc_Mr-4 Card
In node view, double-click the FC_MR-4 card where you want to change the port settings. Step 1 Click the Provisioning > Port > General tabs. Step 2 Modify any of the settings described in Table 20-27. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-59 78-17194-01...
Page 744: Table 20-27 Fc_Mr-4 Card General Port Settings
Max GBIC Displays the maximum GBIC rate. Cisco — Rate supports two GBICs for the FC_MR-4 card (ONS-GX-2FC-SML and ONS-GX-2FC-MMI). If used with another GBIC, the field shows “Contact GBIC vendor.” Cisco ONS 15454 SDH Procedure Guide, R7.0 20-60 78-17194-01...
Page 745: Dlp- D355 Change Distance Extension Port Settings For The Fc_Mr-4 Card
For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the FC_MR-4 card where you want to change the port settings.
Page 746: Table 20-28 Fc_Mr-4 Card Distance Extension Port Settings
Cisco recommends lower values to decrease latency. For longer SONET transport distances, Cisco recommends higher values to provide higher bandwidth. Click Apply. Step 4 Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-62 78-17194-01...
Page 747: Dlp- D356 Change Enhanced Fc/Ficon Port Settings For The Fc_Mr-4 Card
For the default values and domains of user-provisionable card settings, refer to the “Network Element Note Defaults” appendix in the Cisco ONS 15454 SDH Reference Manual. In node view, double-click the FC_MR-4 card where you want to change the port settings.
Page 748: Dlp- D357 Verify Pass-Through Circuits
Delete and recreate each circuit recorded in Step 3. To delete the circuit, see the “DLP-D27 Delete Circuits” procedure on page 17-21. To create the circuit, see Chapter 6, “Create Circuits and Low-Order Tunnels.” Return to your originating procedure (NTP). Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-64 78-17194-01...
Page 749: Dlp- D358 Change A Multiplex-Section Dcc Termination
Onsite or remote Security Level Provisioning or higher Click the Provisioning > Comm Channels > RS-DCC tabs. Step 1 Click the RS-DCC that you want to change. Step 2 Click Edit. Step 3 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-65 78-17194-01...
Page 750: Dlp- D360 Delete A Regenerator-Section Dcc Termination
This task creates a DCC tunnel to transport traffic from third-party SDH equipment across ONS 15454 SDH networks. Tunnels can be created on the RS-DCC channel (D1-D3) (if not used by the ONS 15454 SDH as a terminated DCC), or any MS-DCC channel (D4-D6, D7-D9, or D10-D12).
Page 751 Cisco recommends a maximum of 84 DCC tunnel connections. Terminated RS-DCCs used by the Note ONS 15454 SDH cannot be used as DCC tunnel endpoints, and an RS-DCC that is used as a DCC tunnel endpoint cannot be terminated. All DCC tunnel connections are bidirectional.
Page 752: Dlp- D362 Delete A Multiplex-Section Dcc Termination
Step 10 Return to your originating procedure (NTP). DLP-D362 Delete a Multiplex-Section DCC Termination Purpose This task deletes an SDH MS-DCC termination on the ONS 15454 SDH. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed...
Page 753 DLPs D300 to D399 DLP- D363 Provision Regenerator-Section DCC Terminations If the ONS 15454 SDH is configured as an OSI IS Level 1 or IS Level 1/Level 2 node and you are Caution provisioning an OSI-only (LAP-D) RS-DCC to a third party NE, verify that the maximum area routing parameter on the vender NE is set to 3 before you start this task.
Page 754 DCC Termination Failure (EOC) and LOS alarms appear until you create all network DCC Note terminations and put the DCC termination STM-N ports in service. Return to your originating procedure (NTP). Step 10 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-70 78-17194-01...
Page 755: Dlp- D364 Provision Multiplex-Section Dcc Terminations
MS-DCC refers to the multiplex-section DCC, which is used for ONS 15454 SDH DCC Note terminations. The SDH multiplex-section DCCs and the regenerator-section DCC (when not used as a DCC termination by the ONS 15454 SDH) can be provisioned as DCC tunnels. See the “DLP-D361 Create a DCC Tunnel” task on page 20-66.
Page 756: Dlp- D367 Provision A J2 Path Trace On Circuit Source And Destination Ports
This task creates a J2 path trace on VC12 circuit source ports and destination ports. Tools/Equipment ONS 15454 SDH cards capable of transmitting and/or receiving path trace must be installed at the circuit source and destination ports. See Table 20-30 on page 20-73 for a list of cards.
Page 757: Table 20-30 Ons 15454 Sdh Cards Capable Of J2 Path Trace
For the VC12 circuit you want to monitor, verify that the source and destination ports are on a card that Step 3 can transmit and receive the path trace string. See Table 20-30 for a list of cards. Table 20-30 ONS 15454 SDH Cards Capable of J2 Path Trace J2 Function Cards Transmit and Receive E1-42 Receive Only STM1E-12 If neither port is on a transmit/receive card, you cannot complete this procedure.
Page 758 Click the Disable AIS on LO SLM check box if you want to suppress the alarm indication signal when the LO SLM alarm appears. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for descriptions of alarms and conditions.
Page 759: Dlp- D368 Manual Or Force Switch The Node Timing Reference
If the selected timing reference is invalid, a warning dialog appears. Click OK; the node does not revert Step 6 to the normal timing reference. Return to your originating procedure (NTP). Step 7 Cisco ONS 15454 SDH Procedure Guide, R7.0 20-75 78-17194-01...
Page 760: Dlp- D369 Clear A Manual Or Force Switched Node Timing Reference
Step 6 reference does not revert. Return to your originating procedure (NTP). Step 7 DLP-D370 View Circuit Information Purpose This task provides information about ONS 15454 SDH circuits. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49 Required/As Needed...
Page 761: Table 20-31 Circuit Protection Types
Direction—The circuit direction, either two-way or one-way. • OCHNC Dir—For OCHNCs, the direction of the optical channel network connection, either East to West or West to East. Refer to the Cisco ONS 15454 DWDM Procedure Guide for further information. Protection—The type of circuit protection. See Table 20-31 for a list of protection types.
Page 762: Cisco Ons 15454 Sdh Circuit Status
DISCOVERED state once the topology upgrade is complete. For more information about topology upgrades, see the “SDH Topologies and Upgrades” chapter in the Cisco ONS 15454 SDH Reference Manual. Cisco ONS 15454 SDH Procedure Guide, R7.0 20-78 78-17194-01...
Page 763 State—The circuit service state, which is an aggregate of its cross-connects. The service states are • Unlocked, Locked, or Locked-partial. For more information about circuit service states, refer to the “Administrative and Service States” appendix of the Cisco ONS 15454 SDH Reference Manual. Unlocked—All cross-connects are in service and operational. –...
Page 764: Dlp- D371 View The Ms-Spring Squelch Table
Purpose This task allows you to view the MS-SPRing squelch table for an ONS 15454 SDH MS-SPRing node. Squelching replaces traffic by the appropriate path AIS; it prevents traffic misconnections when a working channel service contends for access to a protection channel time slot carrying extra traffic.
Page 765: Dlp- D372 Import A Cisco Metroplanner Configuration File
Onsite or remote Security Level Superuser Step 1 Export the Installation Parameters for your node from Cisco MetroPlanner. If the parameters file has been exported, continue with Step In MetroPlanner, right-click the node icon and choose Site Installation > Assisted Conf Setup.
Page 766: Dlp- D393 Switch Between Tdm And Dwdm Network Views
• All—Displays both TDM and DWDM nodes. • TDM—Displays only ONS 15454 SDH nodes with SDH cards including the transponder (TXP) and muxponder (MXP) cards. • DWDM—Displays only ONS 15454 SDH nodes with DWDM cards, including the TXP and MXP cards.
Page 767: Dlp- D420 Install The Public-Key Security Certificate
ONS 15454 SDH nodes running Software R4.0 or earlier. If you choose No, this dialog box will appear every time you log into the ONS 15454 SDH. If you do not want it to appear, check the Do not show the message again check box.
Page 768 Caution delete the file and want to log into an ONS 15454 SDH running an earlier release, insert the software CD for the release into your PC CD-ROM and run the CTC setup wizard to reinstall the Java policy file.
Page 769 Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. To monitor another port on a multiport card, choose another line from the Line drop-down list and click Step 6 Refresh.
Page 770: Dlp- D422 Change The Jre Version
DLP-D424 View Alarm or Event History Purpose Use this task to view past cleared and uncleared ONS 15454 SDH alarm messages at the card, node, or network level. This task is useful for troubleshooting configuration, traffic, or connectivity issues that are indicated by alarms.
Page 771 Not Alarmed and transient event history appears. If you check both check boxes, you will retrieve node history for alarms and events. The ONS 15454 SDH can store up to 640 critical alarm messages, 640 major alarm Note messages, 640 minor alarm messages, and 640 condition messages.
Page 772: Dlp- D425 Create A New Or Cloned Alarm Severity Profile
ML-Series card ports and service, see the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. If you want to create a new profile based upon the default profile in use, click New. Then go to...
Page 773: Figure 21-2 Network View Alarm Profiles Window
Inherited profile from the network view, the severities at the lower levels (node, card, and port) will be copied from this selection. A card with an Inherited profile copies the severities used by the Cisco ONS 15454 SDH Procedure Guide, R7.0 21-7...
Page 774: Figure 21-3 Store Profile(S) Dialog Box
If you want to save the profile to a file: Step 14 In the Store Profile(s) dialog box (Figure 21-3), click To File. Click Browse and navigate to the profile save location. Enter a name in the File name field. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-8 78-17194-01...
Page 775: Dlp- D426 Apply Alarm Profiles To Ports
(“Ether alarming”) or packet over SDH (“POS alarming”). For more information about ML-Series card ports and service, see the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327.
Page 776: Figure 21-4 Port Alarm Profile For An Oc3 Ir/Stm1 Sh 1310-8 Card
To reapply a previous alarm profile after you have applied a new one, select the previous profile and click Step 5 Apply again. Return to your originating procedure (NTP). Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-10 78-17194-01...
Page 777: Dlp- D427 Delete Alarm Severity Profiles
(“Ether alarming”) or packet over SDH (“POS alarming”). For more information about ML-Series card ports and service, see the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327.
Page 778: Dlp- D428 Modify Alarm, Condition, And History Filtering Parameters
DLP-D60 Log into CTC, page 17-49 Required/As Needed As needed Onsite/Remote Onsite or remote Security Level Retrieve or higher At node, network, or card view, click the Alarms, Conditions, or History tab. Step 1 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-12 78-17194-01...
Page 779: Alarm Filter Dialog Box General Tab
To modify filter parameters for conditions, continue with Step 5. If you do not need to modify them, continue with Step Click the filter dialog box Conditions tab (Figure 21-7). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-13 78-17194-01...
Page 780: Figure 21-7 Alarm Filter Dialog Box Conditions Tab
“DLP-D225 Enable Alarm Filtering” task on page 19-24), and are not enforced when alarm filtering is disabled (see the “DLP-D227 Disable Alarm Filtering” task on page 19-25). Return to your originating procedure (NTP). Step 7 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-14 78-17194-01...
Page 781: Dlp- D430 Suppress Alarm Reporting
Chapter 21 DLPs D400 to D499 DLP- D430 Suppress Alarm Reporting DLP-D430 Suppress Alarm Reporting Purpose This task suppresses the reporting of ONS 15454 SDH alarms at the node, card, or port level. Tools/Equipment None Prerequisite Procedures DLP-D60 Log into CTC, page 17-49...
Page 782: Dlp- D431 Discontinue Alarm Suppression
(“Ether alarming”) or packet over SDH (“POS alarming”). For more information about ML-Series card ports and service, see the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327.
Page 783: Dlp- D432 View Port Status On The Lcd
(“Ether alarming”) or packet over SDH (“POS alarming”). For more information about ML-Series card ports and service, see the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327.
Page 784: Dlp- D433 Run The Ctc Installation Wizard For Windows
JAR files saves time at initial login. If the JAR files are not installed, they are downloaded from the TCC2/TCC2P card the first time you log in. Tools/Equipment Cisco ONS 15454 SDH Release 7.0 software CD Prerequisite Procedures None Required/As Needed This task is required if any one of the following is true: •...
Page 785 Note has a faster processor and more RAM. Insert the Cisco ONS 15454 SDH Release 7.0 software CD into your computer CD drive. The Step 2 installation program begins running automatically. If it does not start, navigate to your computer’s CD directory and double-click setup.exe.
Page 786 Plug-In. The JRE version will be the default for the selected browsers. It is acceptable to leave both browser check boxes unchecked. Setting the JRE as the default for these browsers might cause problems with these browsers. Note Cisco ONS 15454 SDH Procedure Guide, R7.0 21-20 78-17194-01...
Page 787: Dlp- D434 Run The Ctc Installation Wizard For Unix
DLP- D434 Run the CTC Installation Wizard for UNIX Click Next. Click Finish. If you are uninstalling the JRE, click Remove. Note In the Cisco Transport Controller Installation wizard, click Next. The online user manuals install. Step 12 Click Finish. Step 13 Return to your originating procedure (NTP).
Page 788 Change the directory; type: Step 2 cd /cdrom/cdrom0/ From the techdoc454 CD directory, type: Step 3 ./setup.bat The Cisco Transport Controller Installation wizard displays the components that will be installed on your computer: JRE 1.4.2 • Acrobat Reader 6.0.1 •...
Page 789 Plug-In. The JRE version will be the default for the selected browsers. It is acceptable to leave both browser check boxes unchecked. Setting the JRE version as the default for these browsers might cause problems with these Note browsers. Click Next. Click Finish. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-23 78-17194-01...
Page 790: Dlp- D435 Change The Default Network View Background Map
Click OK. Step 7 If the ONS 15454 SDH icons are not visible, right-click the network view and choose Zoom Out. Repeat Step 8 until all the ONS 15454 SDH icons are visible. (You can also choose Fit Graph to Window.) If you need to reposition the node icons, drag and drop them one at a time to a new location on the map.
Page 791: Dlp- D436 Delete Ethernet Rmon Alarm Thresholds
Onsite/Remote Onsite or remote Security Level Provisioning or higher The ONS 15454 SDH ML-Series cards use the Cisco IOS command line interface (CLI) for managing Note RMON. Double-click the Ethernet card where you want to delete the RMON alarm thresholds.
Page 792: Dlp- D438 Change Port Settings For The Fc_Mr-4 Card
Step 9 Click Apply. Step 10 Return to your originating procedure (NTP). DLP-D438 Change Port Settings for the FC_MR-4 Card Purpose This task changes the port settings for FC_MR-4 cards. Tools/Equipment None Cisco ONS 15454 SDH Procedure Guide, R7.0 21-26 78-17194-01...
Page 793 Click Apply. Step 4 Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-27 78-17194-01...
Page 794: Dlp- D441 Create Ethernet Rmon Alarm Thresholds
Onsite/Remote Onsite or remote Security Level Provisioning or higher The ONS 15454 SDH ML-Series cards use the Cisco IOS CLI for managing RMON. Note Complete the “DLP-D60 Log into CTC” task on page 17-49 at the node where you want to set up remote Step 1 monitoring.
Page 795 64 octets into the transmission (also added into collision count). dot3StatsExcessiveCollisions (Not supported by E-Series or G-Series) Number of frames where transmissions failed because of excessive collisions. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-29 78-17194-01...
Page 796 An RMON probe inside a repeater should report collisions between the repeater and one or more other hosts (transmit collisions as defined by IEEE 802.3k) plus receiver collisions observed on any coax segments to which the repeater is connected. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-30 78-17194-01...
Page 797 Total number of packets received (including error packets) that were 256 to 511 octets in length. etherStatsPkts512to1023Octets Total number of packets received (including error packets) that were 512 to 1023 octets in length. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-31 78-17194-01...
Page 798 (otherwise a single network problem might cause a rising threshold to be exceeded multiple times and cause a flood of events). Click OK to complete the procedure. Step 13 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-32 78-17194-01...
Page 799: Dlp- D442 Preprovision A Slot
In node view, double-click the card where you want to view PM counts. The card view appears. Step 1 Click the Performance > History tabs. Step 2 From the Interval drop-down list, choose one of the following: Step 3 1 min • 15 min • Cisco ONS 15454 SDH Procedure Guide, R7.0 21-33 78-17194-01...
Page 800: Dlp- D458 Monitor Pm Counts For A Selected Signal
Line: n (STM line number) • VC4: n (VC path number within the STM line) • Figure 21-10 shows the Line drop-down list in the Performance window for an STM-16 card. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-34 78-17194-01...
Page 801: Figure 21-10 Line Drop-Down List For An Stm-16 Card
For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. View the PM parameter names that appear in the Param column. The PM parameter values appear in the Step 5 Curr (current) and Prev-n (previous) columns.
Page 802: Dlp- D459 Clear Selected Pm Counts
Choose OK to clear the selected statistics. Step 5 Verify that the selected PM counts have been cleared. Step 6 Return to your originating procedure (NTP). Step 7 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-36 78-17194-01...
Page 803: Dlp- D460 View Fc_Mr-4 Statistics Pm Parameters
View the PM parameter names that appear in the Param column. The current PM parameter values appear Step 4 in the port number columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 804: Dlp- D461 View Fc_Mr-4 Utilization Pm Parameters
The transmit (Tx) and receive (Rx) bandwidth utilization values for the previous time intervals appear Step 5 in the Prev-n columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. Return to your originating procedure (NTP). Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0...
Page 805: Dlp- D462 View Fc_Mr-4 History Pm Parameters
View the PM parameter names that appear in the Param column. The PM parameter values appear in the Prev-n columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454 SDH Reference Manual. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-39 78-17194-01...
Page 806: Dlp- D463 Refresh Fc_Mr-4 Pm Counts At A Different Time Interval
Step 3 From the Slot drop-down list, choose the appropriate FC_MR-4 card. Step 4 From the Port drop-down list, choose the applicable port on the FC_MR-4 card you selected. Step 5 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-40 78-17194-01...
Page 807: Table
Fibre Channel data is expected. gfpStatsRxSblkCRCErrors Total number of superblock CRC errors with the receive transparent GFP frame. A transparent GFP frame has multiple superblocks that each contain Fibre Channel data. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-41 78-17194-01...
Page 808: Table
Received ordered sets that are not recognized as part of the defined Fibre Channel control words. fibreStatsEncodingDispErrors Received control words that cannot be decoded due to invalid disparity. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-42 78-17194-01...
Page 809 799 collisions in 15 seconds, occurrences fall below a falling threshold of 800 collisions. This resets the rising threshold so that if network collisions again spike over a 1000 per 15-second period, an event again Cisco ONS 15454 SDH Procedure Guide, R7.0 21-43...
Page 810: Dlp- D466 Delete Fc_Mr-4 Rmon Alarm Thresholds
Step 1 Click the Provisioning > MS-SPRing tabs. Step 2 Click Create MS-SPRing. Step 3 In the MS-SPRing Creation dialog box, set the MS-SPRing properties: Step 4 Ring Type—Choose two-fiber. • Cisco ONS 15454 SDH Procedure Guide, R7.0 21-44 78-17194-01...
Page 811 On the network view graphic, a green span line appears between all MS-SPRing nodes. • All E-W MISMATCH, RING MISMATCH, APSCIMP, DFLTK, and MSSP-OSYNC alarms are cleared. See the Cisco ONS 15454 SDH Troubleshooting Guide for alarm troubleshooting. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-45...
Page 812: Dlp- D469 Create A Two-Fiber Ms-Spring Manually
The numbers in parentheses after the node name are the MS-SPRing node IDs assigned by Note CTC. Every ONS 15454 SDH in an MS-SPRing is given a unique node ID, 0 through 31. To change it, complete the “DLP-D24 Change an MS-SPRing Node ID” task on page 17-19.
Page 813: Dlp- D470 Manually Route An Sncp Circuit For A Topology Upgrade
Green arrows pointing from the source node to other network nodes indicate spans that are available for routing the circuit. Click Finish. Step 3 Step 4 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 21-47 78-17194-01...
Page 814: Dlp- D471 Automatically Route An Sncp Circuit For A Topology Upgrade
If the circuit needs to be routed to a different path, see the “NTP-D134 Create a Manually Routed Low-Order Tunnel” procedure on page 6-45. Click Finish. Step 5 Step 6 Return to your originating procedure (NTP). Cisco ONS 15454 SDH Procedure Guide, R7.0 21-48 78-17194-01...
Page 815: Dlp- D493 Provision The Ethernet Port Of The Ml-Series Card
Reprovisioning an Ethernet port on the ML-Series card does not reset the ethernet statistics for that port. Step 5 The Ethernet Statistics must be refreshed. To do so, do the following: Click the Performance > Ether Ports > Statistics tabs. Click Refresh. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-49 78-17194-01...
Page 816: Dlp- D494 Provision The Pos Port Of The Ml-Series Card
Reprovisioning a POS port on the ML-Series card does not reset the POS statistics for that port. The POS Step 5 Statistics must be refreshed. To do so, do the following: Click the Performance > POS Ports > Statistics tabs. Click Refresh. Cisco ONS 15454 SDH Procedure Guide, R7.0 21-50 78-17194-01...
Page 817 Chapter 21 DLPs D400 to D499 DLP- D494 Provision the POS Port of the ML-Series Card Return to your originating procedure (NTP). Step 6 Cisco ONS 15454 SDH Procedure Guide, R7.0 21-51 78-17194-01...
Page 818 Chapter 21 DLPs D400 to D499 DLP- D494 Provision the POS Port of the ML-Series Card Cisco ONS 15454 SDH Procedure Guide, R7.0 21-52 78-17194-01...
Page 819: Display Node, Card, And Network Views
Display Node, Card, and Network Views CTC provides four views of the ONS 15454 SDH and the ONS network: Node view appears when you first log into an ONS 15454 SDH. This view shows a graphic of the • ONS 15454 SDH shelf and provides access to tabs and subtabs that you use to manage the node.
Page 820: Table A-1 Change Ctc Views
Use the arrows on the CTC toolbar to navigate up or down views. For • example, in node view, click a card, then click the down arrow. Node Icons on the Network View Map Table A-2 lists the node icons on the network view map. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 821: Table A-2 Description Of Node Icons On Network View Map
An amplified TDM node increases the span length between two • ONS 15454 SDH nodes that contain TDM cards and optical amplifiers. Amplified TDM nodes contain either OPT-BST amplifiers or AD-1C cards.
Page 822: Manage The Ctc Window
32MUX-O card. No OADM cards are provisioned. A flexible terminal node contains a series of OADM and • amplifier cards. For DWDM node information, refer to the Cisco ONS 15454 DWDM Reference Manual. Terminal (east) Terminal (east) nodes are represented as a three-dimensional square with one amplifier on the east side of the icon.
Page 823: Table A-3 Ctc Menu And Toolbar Options
“DLP-D232 Change Active and Standby Span Color” task on page 19-28. • Firewall—Sets the Internet Inter-ORB Protocol (IIOP) listener ports for access to the ONS 15454 SDH through a firewall. See the “NTP-D27 Set Up the ONS 15454 SDH for Firewall Access” procedure on page 4-8.
Page 824 Click this item to show or hide the CTC toolbar. — — (Toolbar only) Zooms out the network view area. — — (Toolbar only) Zooms in the network view area. — — (Toolbar only) Zooms in a selected network view area. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 825 Displays the following options: Repair Circuits—(ONS 15454 only) Repairs incomplete circuits following • replacement of the ONS 15454 SDH. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide for more information. Reconfigure Circuits—Allows you to reconfigure circuits. For more •...
Page 826: Ctc Mouse Options
In addition to the CTC menu bar and toolbar, you can invoke actions by double-clicking CTC window items with your mouse, or by right-clicking an item and choosing actions from shortcut menus. Table A-4 lists the CTC window mouse shortcuts. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 827: Table A-4 Ctc Window Mouse Shortcuts
Card in card view—Displays a menu that you can use to reset the card or go • to the parent view (node view). Empty slot in node view—Displays a menu with cards that you can choose • to preprovision the slot. Cisco ONS 15454 SDH Procedure Guide, R7.0 78-17194-01...
Page 828: Table A-5 Performing Node View Card Shortcuts
Node View Shortcuts Table A-5 shows actions on ONS 15454 SDH cards that you can perform by moving your mouse over the CTC window. Table A-5 Performing Node View Card Shortcuts...
Page 829: Table Display Options
Table Display Options Right-clicking a table column displays a menu. Table A-7 shows table display options, which include rearranging or hiding CTC table columns and sorting table columns by primary or secondary keys. Cisco ONS 15454 SDH Procedure Guide, R7.0 A-11 78-17194-01...
Page 830: Equipment Inventory
“Row Count,” it is the last item on the shortcut menu. Equipment Inventory In node view, the Inventory tab displays information about the ONS 15454 SDH equipment, including: Delete button—After highlighting a card with your mouse, use this button to delete the card from •...
Page 831 Service states appear in the format: Primary State-Primary State Qualifier, Secondary State. For more information about card states, refer to the “Administrative and Service States” appendix of the Cisco ONS 15454 SDH Reference Manual. Card service states include: Unlocked-enabled –...
Page 832 Appendix A CTC Information and Shortcuts Equipment Inventory Cisco ONS 15454 SDH Procedure Guide, R7.0 A-14 78-17194-01...
Page 833 15-2 acceptance test requirement 1-11 four-fiber MS-SPRing alarm profiles 5-16 linear ADM network assigning to cards and nodes 18-18 open-ended SNCP assigning to ports 5-36 21-9 point-to-point network turn-up creating 21-6 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-1 78-17194-01...
Page 834 15-23 automatic routing 19-35 suppressing suppressing reporting 21-15 synchronizing 18-15 troubleshooting. See the Cisco ONS 15454 SDH backing up the database 15-5 Troubleshooting Guide viewing 9-2, 17-74 testing high-order circuits 6-67 viewing alarm counts on LCD...
Page 835 10-1 to 10-7 login legal disclaimer 19-71 CLEI code A-13 network view background map 19-73 deleting 2-20, 18-79 node access and PM clearing privileges 21-25 line terminating equipment 18-19 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-3 78-17194-01...
Page 836 MS-SPRing span lockout 20-1 low-order aggregation point. See low-order aggregation point selected PM counts 21-36 manual routing, description SNCP Force switch 18-85 menu options switched node timing reference 20-76 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-4 78-17194-01...
Page 837 MS-SPRing 21-44, 21-46 corporate LAN user data channel circuit 19-9 craft pin connections, wiring 1-15 VCAT circuits 6-97, 6-101 creating VLAN for Ethernet circuits 6-81, 6-84 1+1 protection group 17-64 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-5 78-17194-01...
Page 838 LCD 17-54 upgrading during network discovery entering the IP address 19-53 using online help initially provisioning using the mouse with setting through the LCD 17-53 views. See views deleting Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-6 78-17194-01...
Page 839 MS-SPRing DRI 5-18 alarm filtering 9-7, 19-25 drops alarm supression multiple drops on a high-order circuit 6-63 dialog box display multiple drops on a low-order circuit 19-74 6-15, 6-27, 6-38 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-7 78-17194-01...
Page 840 19-18, 19-19 resetting 15-16, 17-30 refreshing PM counts 21-33 upgrading from 1:1 to 1:N protection 10-4 routing fiber on 2-19 verifying installation shared packet ring circuit 6-77 electrical protection switch, initiating 17-35 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-8 78-17194-01...
Page 841 RMON alarm thresholds 21-44 exporting installing 2-12 CTC data 18-38 installing GBICs on 20-28 network element defaults 15-27 monitoring performance using the toolbar path trace 19-68 external alarms. See AIC-I card Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-9 78-17194-01...
Page 842 21-12 removing 20-32 finding routing fiber on 2-19 alarms and conditions on the network 19-83 gigabit interface converter. See GBIC circuits 18-26 ground firewalls, setting up access connecting 17-13 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-10 78-17194-01...
Page 843 1-11 18-61 FC_MR-4 cards 2-12 IIOP listener port fiber boot 17-35 provisioning 4-7, 17-57 fiber-optic cables 2-16, 17-17, 17-33, 20-33, 20-37 selecting 19-53 FMEC cover 1-17 importing front door 2-21 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-11 78-17194-01...
Page 844 18-62 deleting 18-70 editing 18-69 connecting ONS 15454 SDH to IPPM connecting PC to ONS 15454 SDH disabling 18-19, 18-22 connection point. See TCC2 card or TCC2P card enabling 18-19, 18-21 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-12 78-17194-01...
Page 845 IP address on longitude, setting up 17-53 changing network mask on loopback 17-53 provisioning network settings See also the Cisco ONS 15454 SDH Troubleshooting Guide viewing alarm counts on 2-fiber MS-SPRing 5-15 viewing port status on 21-17 4-fiber MS-SPRing...
Page 846 SNMP trap destination 19-77 viewing Ethernet port PM parameters 20-56 span color for active and standby 19-28 viewing POS port PM parameters static route 20-57 18-34 modifying STM-N card line settings 10-2, 18-9 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-14 78-17194-01...
Page 847 SNCP to a two-fiber 13-14 network discovery, upgrades during creating 5-13, 17-22, 19-45, 21-44, 21-46 network element defaults creating a half circuit 6-68 editing 15-25 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-15 78-17194-01...
Page 848 IP settings 19-52 adding MS-SPRing 14-2 setting up timing 17-58 adding to a linear ADM 14-14 non-ONS node, set IP address 20-65, 20-66 adding to a linear ADM using the wizard 14-15 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-16 78-17194-01...
Page 849 JRE 18-67 21-18 editing subnetwork point of attachment remote (modem) access 18-68 enabling the subnet 18-60 requirements 21-18 LAN interface performance monitoring 18-60 modifying provisioning changing clearing privileges 11-3 21-25 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-17 78-17194-01...
Page 850 13-2, 13-4, 13-6, 13-8, 13-10, 13-11 printing ports CTC data 18-37 applying alarm profiles to 21-9 using the toolbar assigning a name to 20-7 protection CE-100T-4 18-33 See also automatic protection switching Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-18 78-17194-01...
Page 851 UNIX requirements for CTC 21-21 low-order VC3 circuits 17-94, 20-9 rear cover 1-17 modifying for OSI 11-3 rebuild circuits 7-10 MS-DCC terminations 20-71 reconfiguring circuits 7-10 MS-SPRing/SNCP DRI 5-30, 5-32 refreshing Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-19 78-17194-01...
Page 852 17-22 the database 18-81 SDH DCC. See DCC revertive switching searching electrical protection 17-63, 17-64 for alarms and conditions on the network 19-83 optical protection 17-65 for circuits 18-26 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-20 78-17194-01...
Page 853 18-8 14-12 removing span protection switching test 20-32 17-91 routing fiber on subtending 2-19 5-39, 5-40 shared packet ring 6-77 switching entire span A-11 shelf upgrading 12-7, 13-12, 13-14, 19-80 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-21 78-17194-01...
Page 854 10-2, 18-9, 20-54 viewing circuits on 19-25 changing optical thresholds 18-12 viewing properties A-11 four-port STM-4 card slots 12-8, 12-12 Spanning Tree Protocol installing 2-7 to 2-10 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-22 78-17194-01...
Page 855 A-11 upgrading from TCC2 to TCC2P 12-5 displaying hidden columns A-12 verifying installation printing data TDM network view, switching to DWDM view 18-37 20-82 reordering columns A-12 terminal node, icon Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-23 78-17194-01...
Page 856 (VLAN), manage 7-11 time, setting topology upgrade time zone automatically routing SNCP circuit for 21-48 selecting manually routing SNCP circuit for 21-47 using to display alarms and conditions 18-15 menu options Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-24 78-17194-01...
Page 857 18-77 E1-N-14 cards to 1:N protection card installation 18-63 from 1:1 to 1:N protection MS-SPRing extension byte mapping 10-4 20-81 network topology network turn-up optical spans manually office power 12-10 17-16 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-25 78-17194-01...
Page 858 MS-SPRing squelch table 20-80 installing LAN wires 17-70, 20-16 near-end PM counts 18-24 OSI information 15-8 port status on the LCD 21-17 spanning tree information 17-19 XC-VXC-10G cards span properties A-11 Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-26 78-17194-01...
Page 859 XC-VXL-2.5G cards installing 20-25 replacing 15-21 to 15-22 side switch test 19-60 slot compatibility upgrading 12-2 verifying installation view resource usage XFPs. See SFPs/XFPs Y-cable protection deleting 18-47 description 4-11 zooming Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-27 78-17194-01...
Page 860 Index Cisco ONS 15454 SDH Procedure Guide, R6.0 IN-28 78-17194-01...

Cisco ONS 15454 SDH Procedure Manual

Table of Contents

Appendix A CTC Information and Shortcut

CHAPTER 13 Convert Network Configurations

Chapter 1 Install the Shelf and FMEC

CHAPTER 2 Install Cards and Fiber-Optic Cable

Chapter 3 Connect the PC and Log into the GUI

Chapter 4 Turn up a Node

Ntp-D30 Create Users and Assign Security

Chapter 5 Turn up a Network

Figure 5-3 Four-Node, Four-Fiber Ms-Spring Fiber Connection Example

Ntp-D47 Subtend an Ms-Spring from an Sncp

CHAPTER 14 Add and Remove Nodes

CHAPTER 6 Create Circuits and Low-Order Tunnels

Chapter 7 Manage Circuit

CHAPTER 8 Monitor Performance 8-1

Chapter 9 Manage Alarm

Chapter 10 Change Card Setting

Chapter 11 Change Node Setting

Chapter 12 Upgrade Card and Span

Chapter 15 Maintain the Node

Chapter 16 Power down the Node

CHAPTER 17 Dlps D1 to D99 17-1

CHAPTER 18 Dlps D100 to D199 18-1

CHAPTER 19 Dlps D200 to D299 19-1

CHAPTER 20 Dlps D300 to D399 20-1

CHAPTER 21 Dlps D400 to D499 21-1

Quick Links

Chapters

Related Manuals for Cisco ONS 15454 SDH

Summary of Contents for Cisco ONS 15454 SDH
