Figure 12-5. Single Pc Card Interface - Cirrus Logic EP93 Series User Manual

Processor
Pins
DS785UM1
RUN
GPIO PORT F[7:0]
Status
Buffer
DA[15:0]
Data
Transceiver
MCDAENn
MCDIR
AD[7:0]
Address
Buffer
MCADENn
AD[25:8]
MCWRn
MCRDn
MCWAIT
MCEHn
MCELn
IORDn
IOWRn
MCREGn
MCRESETn
READY

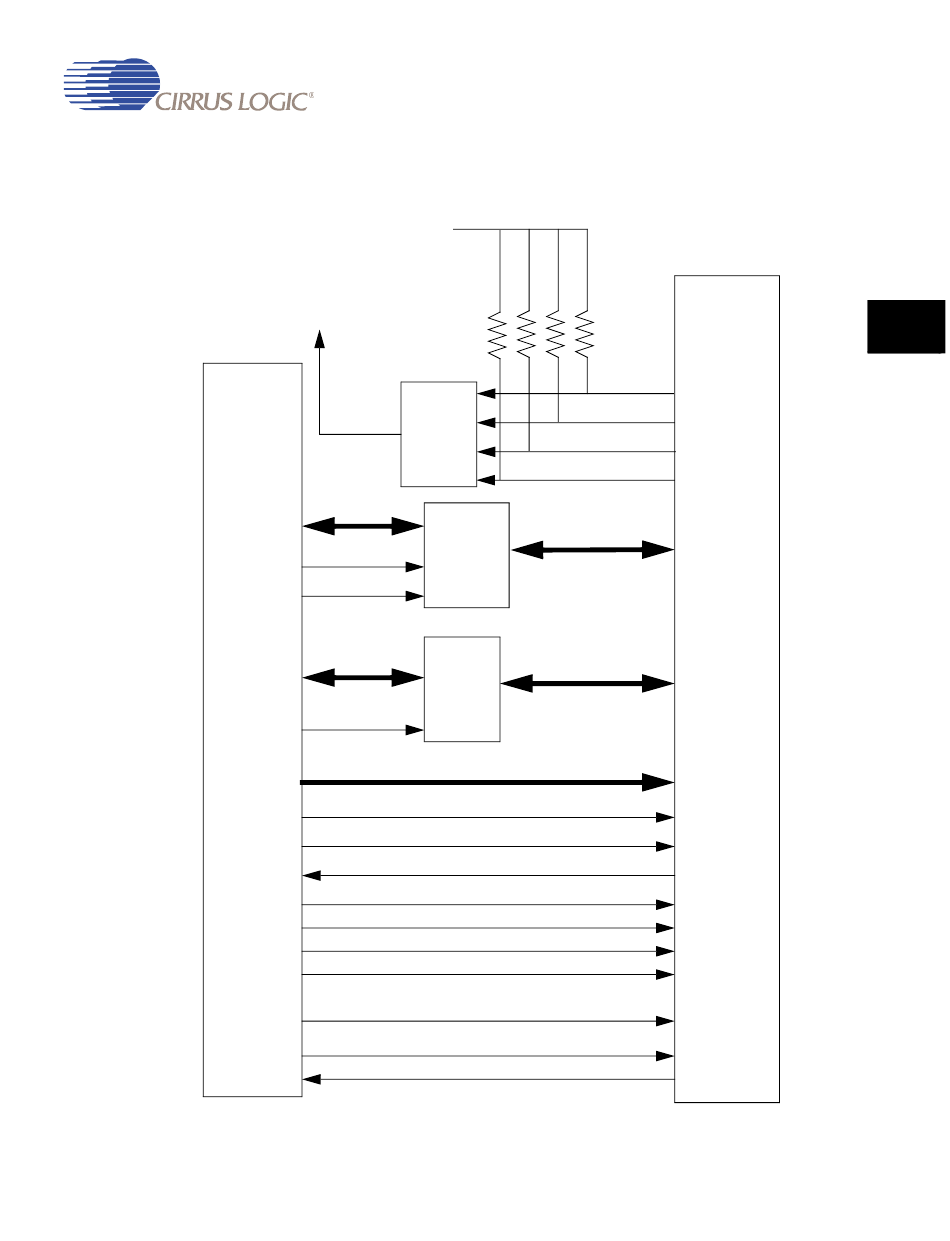

Figure 12-5. Single PC Card Interface

Copyright 2007 Cirrus Logic
Static Memory Controller
nCF_MCBVD [2:1]
nCF_VS [2:1]
NCE_MCD [2:1]
NCE_WP, NCE_READY
PC_D[15..0]
PC_A[7..0]
PC_A[25:8]
nPWE
nPOE
nWAIT
nPC_CE2
nPC_CE1
nPIORD
nPIOWR
nPREG
RESET_1
PC_RDY
EP93xx User's Guide
PCMCIA
Connector
12-7
12
