The data received on each of the five peripheral receive DMA Rx Data buses is transferred
into an internal receive packer unit. The packer unit is used to convert the byte-wide data
received from the peripheral into words to be transferred over the system bus to the memory.
The packer unit stores 4 words (one quad-word) of data, which is the size of the burst
transfers to and from memory over the system bus. Provision for the memory access latency
is provided by FIFOs within the peripheral. The size of the FIFOs can be selected as
appropriate for the data rate generated by the peripheral.
Transmit data is fetched from system memory by the AHB master interface and placed into
the transmit un-packer. The transmit un-packer converts the quad-word burst of DMA data
into byte data for transmission over the transmit peripheral DMA bus. The transmit un-packer
contains 4 words (one quad-word) of storage. Additional latency is provided by FIFOs within
the peripheral, the size of which can be selected as appropriate for the peripheral.
The number of data transfers over the peripheral DMA bus (that is, the number of bytes) are
counted by packer/un-packer unit. If the number of bytes transferred reaches the
MaxTransfer count, the appropriate RxTC/TxTC signal is asserted causing the flush to
memory of data from a packer unit, and the invalidation of any data remaining in an un-
packer unit.

10.1.9 Internal M2P/P2M DMA Functional Description

10.1.9.1 Internal M2P/P2M DMA Buffer Control Finite State Machine

Each DMA internal M2P/P2M channel is controlled by a finite state machine (FSM) which
determines whether the channel is transferring data, and whether it is currently generating an
interrupt.
DISABLE
DMA_NEXT
Write
Base Address
DS785UM1
DMA_IDLE
CE.ABORT.ICE
DISABLE
Buffer End or
CE.ICE.ABORT
DMA_ON

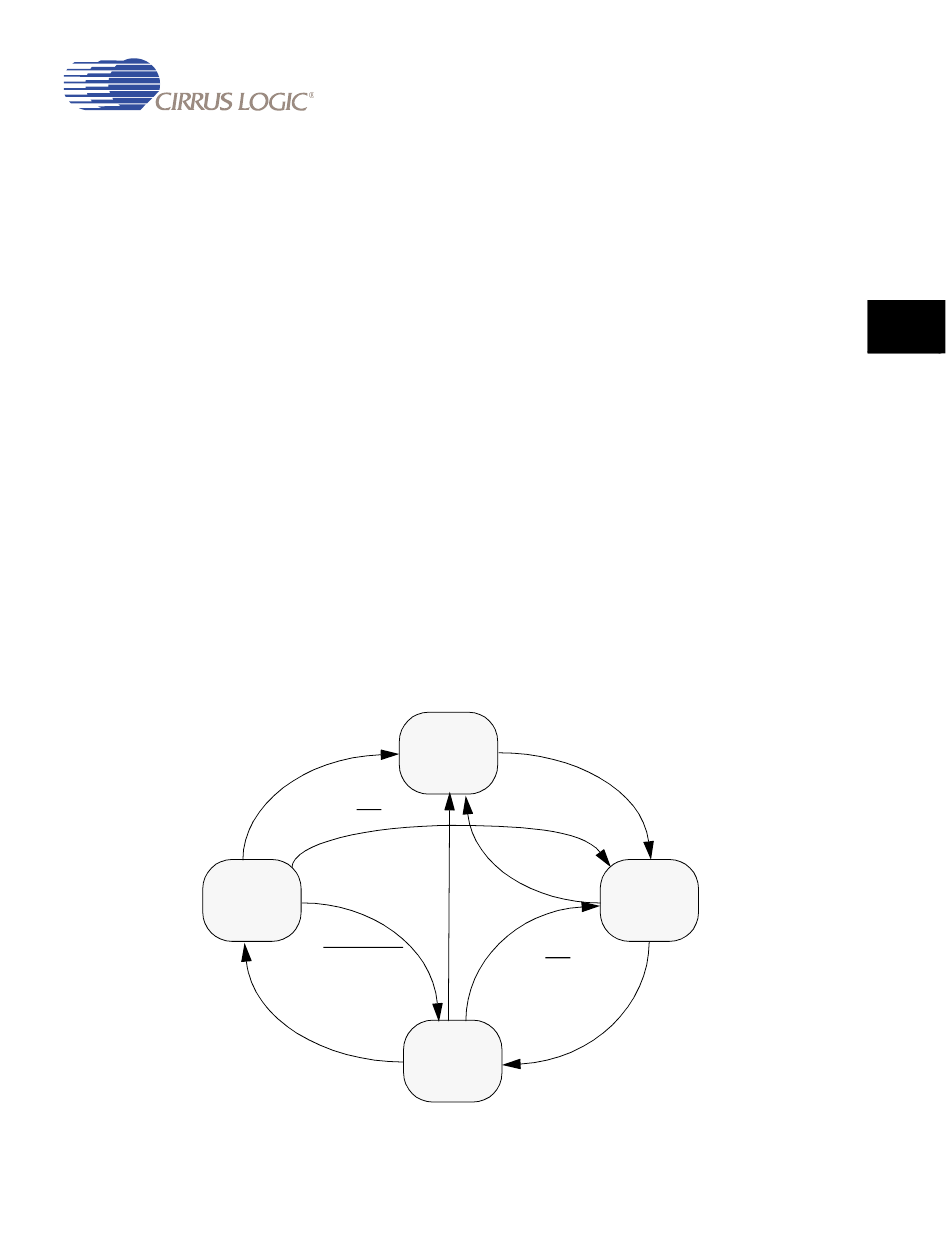

Figure 10-1. DMA M2P/P2M Finite State Machine

Copyright 2007 Cirrus Logic
ENABLE
DISABLE
DMA_STALL
Buffer End or
CE.ICE
Write Base
Address
DMA Controller
EP93xx User's Guide
10
10-7
