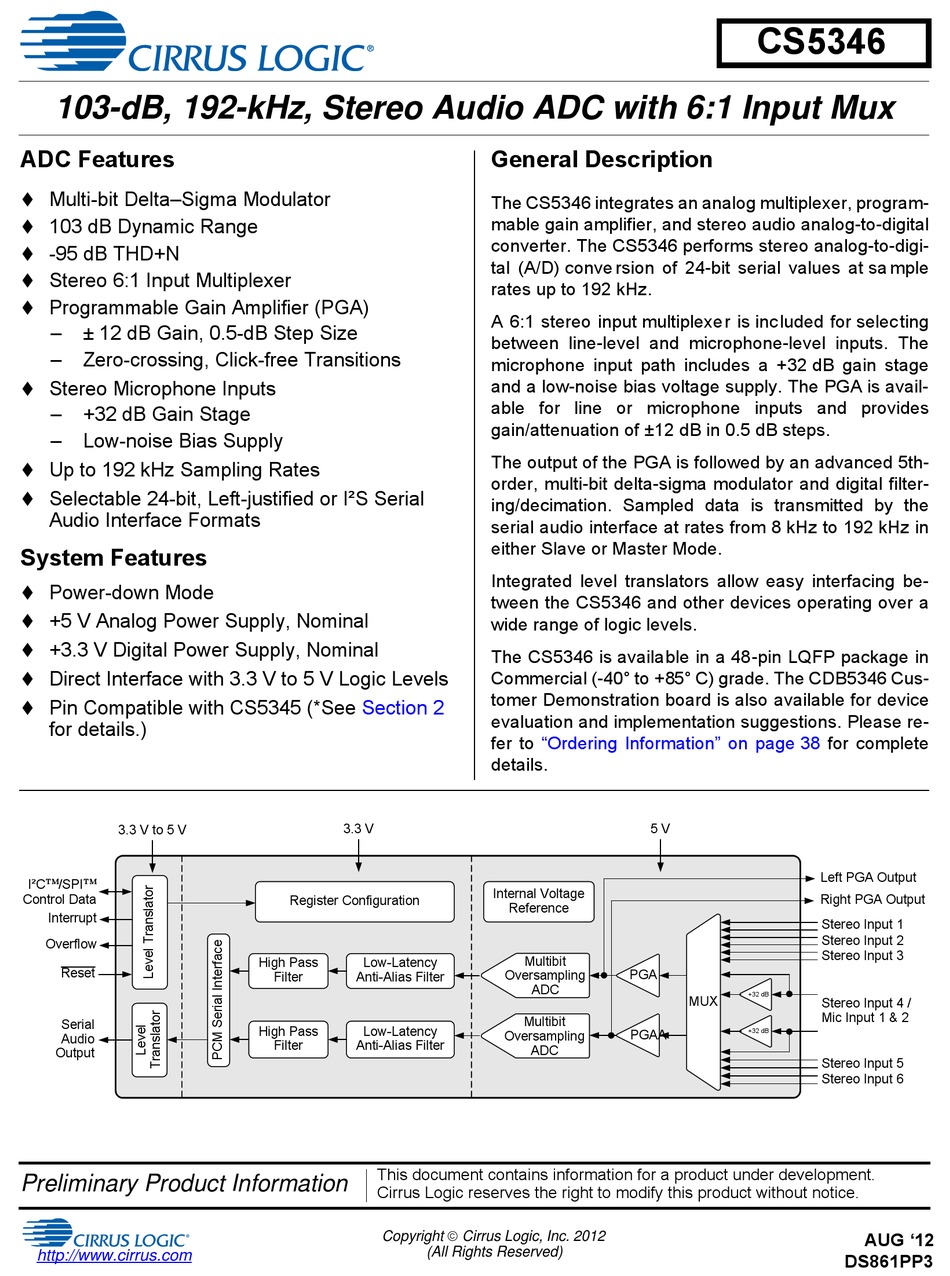

103-dB, 192-kHz, Stereo Audio ADC with 6:1 Input Mux
ADC Features
Multi-bit Delta–Sigma Modulator
103 dB Dynamic Range
-95 dB THD+N
Stereo 6:1 Input Multiplexer
Programmable Gain Amplifier (PGA)
–
± 12 dB Gain, 0.5-dB Step Size
–
Zero-crossing, Click-free Transitions
Stereo Microphone Inputs
–
+32 dB Gain Stage
–
Low-noise Bias Supply
Up to 192 kHz Sampling Rates
Selectable 24-bit, Left-justified or I²S Serial
Audio Interface Formats
System Features
Power-down Mode
+5 V Analog Power Supply, Nominal
+3.3 V Digital Power Supply, Nominal
Direct Interface with 3.3 V to 5 V Logic Levels
Pin Compatible with CS5345 (*See
for details.)
3.3 V to 5 V
I²C
/SPI
Control Data
Interrupt
Overflow
Reset
Serial
Audio
Output
Preliminary Product Information
http://www.cirrus.com
Section 2
3.3 V
Register Configuration
High Pass
Low-Latency
Filter
Anti-Alias Filter
High Pass
Low-Latency
Filter
Anti-Alias Filter
This document contains information for a product under development.
Cirrus Logic reserves the right to modify this product without notice.
Copyright Cirrus Logic, Inc. 2012
(All Rights Reserved)
General Description
The CS5346 integrates an analog multiplexer, program-
mable gain amplifier, and stereo audio analog-to-digital
converter. The CS5346 performs stereo analog-to-digi-
tal (A/D) conve rsion of 24-bit serial values at sa mple
rates up to 192 kHz.
A 6:1 stereo input multiplexer is included for selecting
between line-level and microphone-level inputs. The
microphone input path includes a +32 dB gain stage
and a low-noise bias voltage supply. The PGA is avail-
able for line or microphone inputs and provides
gain/attenuation of ±12 dB in 0.5 dB steps.
The output of the PGA is followed by an advanced 5th-
order, multi-bit delta-sigma modulator and digital filter-
ing/decimation. Sampled data is transmitted by the
serial audio interface at rates from 8 kHz to 192 kHz in
either Slave or Master Mode.
Integrated level translators allow easy interfacing be-
tween the CS5346 and other devices operating over a
wide range of logic levels.
The CS5346 is available in a 48-pin LQFP package in
Commercial (-40° to +85° C) grade. The CDB5346 Cus-
tomer Demonstration board is also available for device
evaluation and implementation suggestions. Please re-
fer to
"Ordering Information" on page 38
details.
5 V
Internal Voltage
Reference
Multibit
Oversampling
PGA
ADC
Multibit
PGAA
Oversampling
ADC
CS5346
for complete
Left PGA Output
Right PGA Output
Stereo Input 1
Stereo Input 2
Stereo Input 3
+32 dB
MUX
Stereo Input 4 /
Mic Input 1 & 2
+32 dB
Stereo Input 5
Stereo Input 6
AUG '12
DS861PP3
