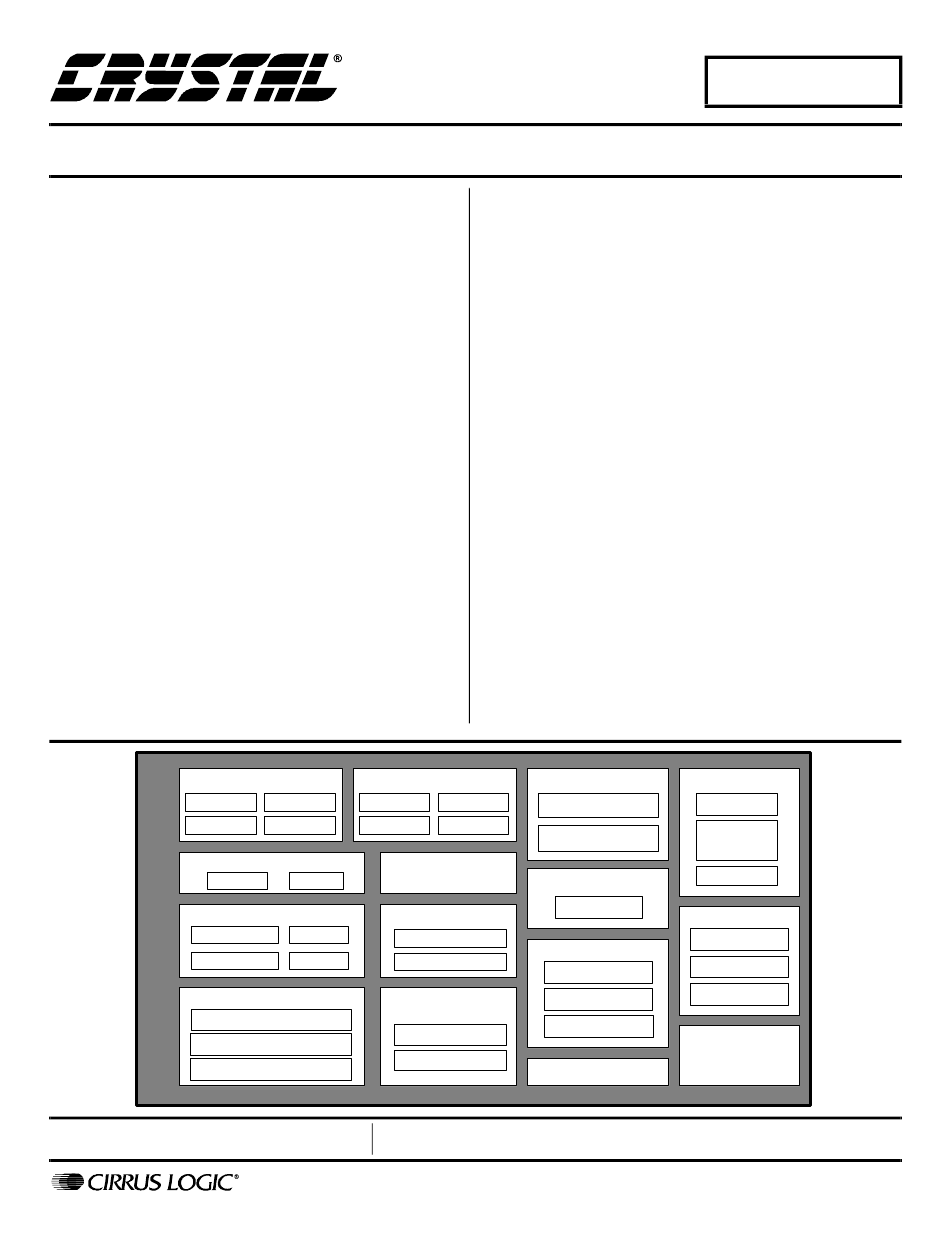

Internet DVD (iDVD) Chip Solution
Features
l
Powerful Dual 32-bit RISCs >160MIPS
l
Software based on popular RTOS, C/C++
l
MPEG video decoder supports DVD, VCD,
VCD 3.0, SVCD standards
l
Video input with picture-in-picture & zoom
l
8-bit multi-region OSD w/vertical flicker filter
l
Universal subpicture unit for DVD and SVCD
l
PAL<->NTSC Scaling ~ Transcoding
l
Supports SDRAM and FLASH memories
l
Powerful 32-bit Audio DSP >80 MIPS
l
Decodes: 5.1 channel AC-3, MPEG Stereo
l
Plays MP-3 CDs (a MP-3 CD =12 albums)
l
Karaoke echo mix and pitch shift
l
Optional 3-D Virtual, bass & treble control
l
8-channel dual-zone PCM output
l
IEC-60958/61937 Out: AC-3, DTS, MPEG
l
Multi-Mode Serial Audio I/O: I2S & AC-Link
l
AV Bus or ATAPI interface or DVD/CD/HD
l
GPIO support for all common sub-circuits
I-Cache
MMU
Filter
MPEG Decoder
VLC Parser
RAM
Video Processor
On-Screen Display
Picture-in-Picture
Video/Graphics Display
Preliminary Product Information
P.O. Box 17847, Austin, Texas 78760
(512) 445 7222 FAX: (512) 445 7581
http://www.cirrus.com
RISC-1
RISC-2
D-Cache
I-Cache
MAC
MMU
Video Input
Clock Manager
Scaler
Dataflow Engine
IDCT
DMA / BitBlit
MoCo
SRAM Buffer
External I/Os
Remote Input
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Description
Overall the CS98000 Crystal DVD Processor is targeted
as a market specific consumer entertainment processor
empowering new product classes with the inclusion of a
DVD player as a fundamental feature. This integrated
circuit when used with all the other Crystal mixed signal
data converters, DSPs and high quality factory firmware
enables the conception and rapid design of market lead-
ing internet age products like:
•
DVD A/V Mini-System
•
Home Media Controller
•
Combination DVD Player
•
Car/SUV Entertainment Unit
Future Firmware Enhancements:
•
Web I/O via AC-Link Input & Built-in Soft Modem
•
DVD Audio Navigation
•
MLP Decoder, DTS Decoder, AAC Decoder
•
MP-3 Encoder, Ripping Controller
ORDERING INFORMATION
CS98000-CQ
CS98010-CQ
Memory Controller
D-Cache
SDRAM Control
MAC
FLASH Control
Subpicture Decode
Scaler
System Controls
STC
Interrupts
Registers
GPIOs
SDRAM
Copyright © Cirrus Logic, Inc. 2000
(All Rights Reserved)
CS98000
0° to 70° C
208-pin
0° to 70° C
128-pin
32- Bit DSP
I-Cache
X,Y Data
Memory
CPU / MAC
Audio I/O
PCM Out
PCM In
XMT958
A/V Bus
ATAPI-IDE
Local Bus
DS525PP1
DEC '00
1
