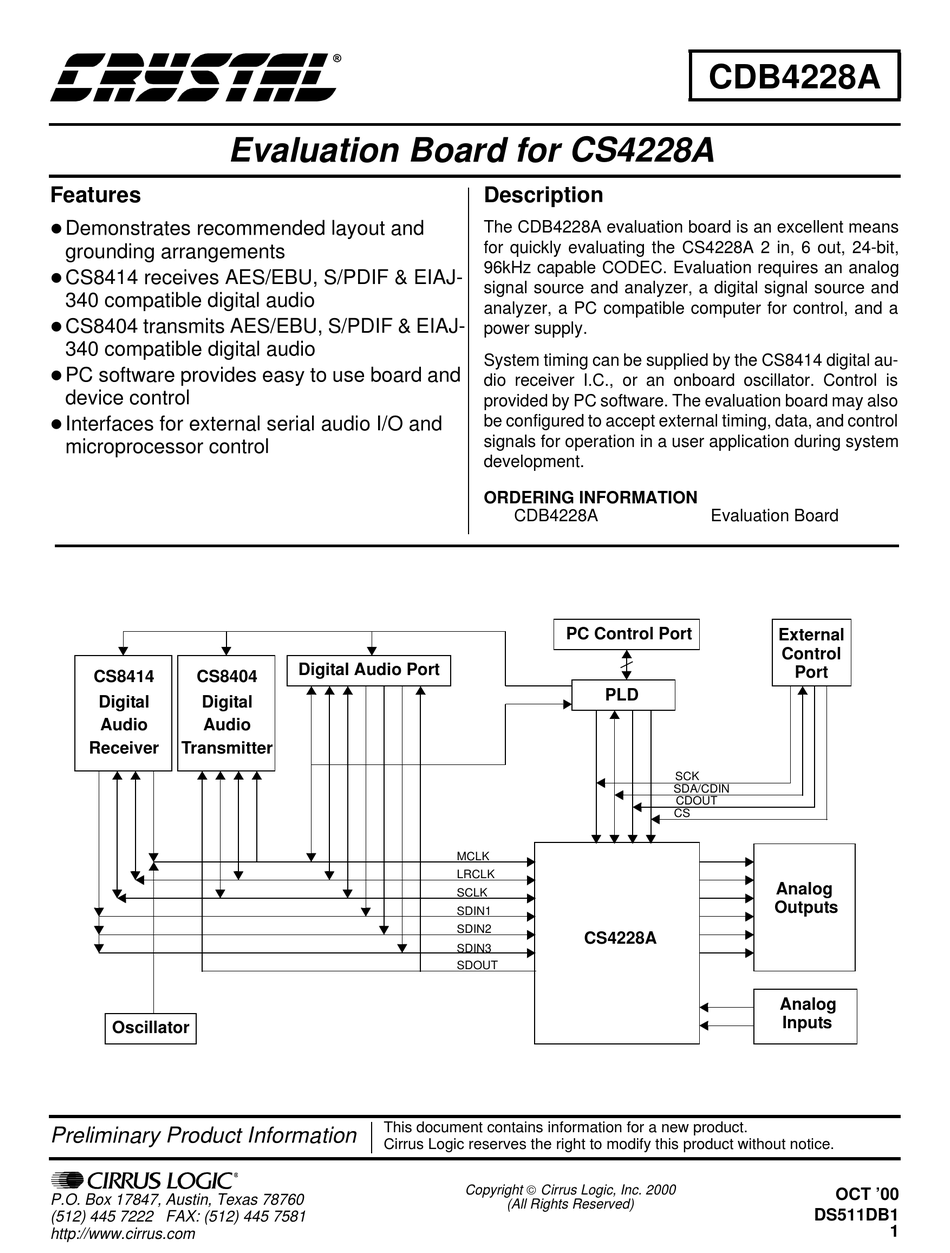

Evaluation Board for CS4228A
Features
l
Demonstrates recommended layout and
grounding arrangements
l
CS8414 receives AES/EBU, S/PDIF & EIAJ-
340 compatible digital audio
l
CS8404 transmits AES/EBU, S/PDIF & EIAJ-
340 compatible digital audio
l
PC software provides easy to use board and
device control
l
Interfaces for external serial audio I/O and
microprocessor control
CS8414
CS8404
Digital
Digital
Audio
Audio
Receiver
Transmitter
Oscillator
Preliminary Product Information
P.O. Box 17847, Austin, Texas 78760
(512) 445 7222 FAX: (512) 445 7581
http://www.cirrus.com
Digital Audio Port
MCLK
LRCLK
SCLK
SDIN1
SDIN2
SDIN3
SDOUT
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Copyright © Cirrus Logic, Inc. 2000
Description
The CDB4228A evaluation board is an excellent means
for quickly evaluating the CS4228A 2 in, 6 out, 24-bit,
96kHz capable CODEC. Evaluation requires an analog
signal source and analyzer, a digital signal source and
analyzer, a PC compatible computer for control, and a
power supply.
System timing can be supplied by the CS8414 digital au-
dio receiver I.C., or an onboard oscillator. Control is
provided by PC software. The evaluation board may also
be configured to accept external timing, data, and control
signals for operation in a user application during system
development.
ORDERING INFORMATION
CDB4228A
PC Control Port
PLD
CS4228A
(All Rights Reserved)
CDB4228A
Evaluation Board
External
Control
Port
SCK
SDA/CDIN
CDOUT
CS
Analog
Outputs
Analog
Inputs
OCT '00
DS511DB1
1
Advertisement
Table of Contents
Related Manuals for Cirrus Logic Crystal CDB4228A
Summary of Contents for Cirrus Logic Crystal CDB4228A
- Page 1 Inputs Oscillator This document contains information for a new product. Preliminary Product Information Cirrus Logic reserves the right to modify this product without notice. Copyright © Cirrus Logic, Inc. 2000 OCT ’00 P.O. Box 17847, Austin, Texas 78760 (All Rights Reserved)
-
Page 2: Table Of Contents
(electronic, mechanical, photographic, or otherwise) without the prior written consent of Cirrus Logic, Inc. Items from any Cirrus Logic website or disk may be printed for use by the user. However, no part of the printout or electronic files may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photographic, or otherwise) without the prior written consent of Cirrus Logic, Inc.Furthermore, no part of this publication may be used as a basis for manufacture... - Page 3 CDB4228A Figure 14.Power Supply ..................22 Figure 15.Master Clock Circuit ................23 Figure 16.CS8414 Digital Audio Receiver ............24 Figure 17.CS8404 Digital Audio Transmitter ............25 Figure 18.Silkscreen Top ................... 26 Figure 19.Top Side ..................... 27 Figure 20.Level 2 Ground Plane ................ 28 Figure 21.Level 3 ....................
-
Page 4: Cdb4228A System Overview
CDB4228A 1. CDB4228A SYSTEM OVERVIEW 4. DIGITAL AUDIO I/O The CDB4228A evaluation board is an excellent Receiver means of quickly evaluating the CS4228A. Input Digital-to-Analog (DAC) performance can be and output analog interfaces are provided as well as quickly tested by connecting a S/PDIF audio a CS8414 digital interface receiver and CS8404 source to the CS8414 receiver. -
Page 5: Digital Audio Port
CDB4228A PLD can support division ratios of 1, 2, 3, and 4 to Serial Data Format support MCLK frequencies of 128, 256, 384, and The serial data format for the evaluation board is 512 Fs respectively. The proper division ratio can set by the GUI in PP mode or by S5 switches in EX- be selected in the GUI in PP mode, or S5 in EX- TRNL mode. -
Page 6: Serial Mode
CDB4228A Serial Mode CS4228A MCLK multiplexer. The clock divider ratios are shown in Table 5. The SMODE[4..0] switches on S5 set the serial mode and the LRCLK/SCLK direction of all other 8. POWER SUPPLY CIRCUITRY devices in the system except the CS4228A. The de- Power is supplied to the evaluation board by four vices controlled by SMODE include the CS8414, binding posts (+5V, GND, +12V, -12V). -
Page 7: Table 2. System Connections
CDB4228A CONNECTOR INPUT/OUTPUT SIGNAL PRESENT Input + 5 Volt power +12V, -12V Input + 12/-12V Volt power for the op-amps Input Ground connection from power supply J9, SPDIF IN Input Digital audio interface input via coax U9, SPDIF IN Input Digital audio interface input via optical LEFT Input... -
Page 8: Table 4. Cdb4228A Jumper And Switch Settings
CDB4228A JUMPER PURPOSE POSITION FUNCTION SELECTED Selects the supply voltage for the 3.3V* CS4228A digital core. Selects the supply voltage for the 3.3V CS4228A logic interface pins RX PWR Selects the supply voltage for the 3.3V Altera PLD I/O pins. OSC PWR Connects power to the oscillator Connects power and clocks to... -
Page 9: Figure 1. Cdb4228A Top Level Schematic
SPDIF Out SPDIF In Output Buffer1 TX_MCLK SPDIF_MCLK MCLK MCLK SCLK SCLK SPDIF_SDOUT AOUT1 SCLK SCLK PHONO JACK RA LRCLK LRCLK DAP_SDIN1 SDIN1 LRCLK FSYNC SDOUT SPDIF_SDOUT SDIN SDOUT MUTE RX_M[3..0] HEADER 2X2 M[3..0] TX_M[2..0] RXPWR Out1 M[2..0] RXPWR A/D Input MRESETn RX_C RESETn... -
Page 10: Figure 2. Analog Input Filter
CDB4228A 100pf OUTL- 100pf 4.99k -12V 2.2nf 47nf 10uf U14A U14B AINL OUTL+ MC33078 MC33078 47nf TP86 +12V 8.25k 10uf 47nf +12V 47nf U15B MC33078 OUTR+ 10uf AINR U15A MC33078 47nf -12V 2.2nf 4.99k 100pf OUTR- 100pf Figure 2. Analog Input Filter DS511DB1... -
Page 11: Figure 3. External Control
GREEN LED GREEN LED GREEN LED PPORT SPDIF SDOUT_LOAD CTRL_MO DE X_CT RL SDIN_CTRL SW SPDT SW SPDT SW DPDT CONTROL PORT MODE SELECT CONTROL SOURCE SERIAL CONTROL SPI/2wire XTERNAL/PPORTn DAP/SPDIFn RP10 10k RPACK9 MODE_CTRL[9..0] MODE_CTR L9 SMODE4 SMODE3 MODE_CTR L8 MODE_CTR L7 SMODE2 SMODE1... -
Page 12: Figure 4. Digital Audio Port
47nf 47nf 47nf 47nf R105 TP82 TP83 MC LK SCLK LRCLK TP84 X_DAP_SDOUT X_DAP_SDIN1 DAP_CTRL X_DAP_SDIN2 X_DAP_SDIN3 74HC245AW M TP85 HEADER 10X2 Digital Audio Port (DAP) DAP_SDIN[3..1] DAP_SDOUT DAP_SDIN1 X_DAP_SDIN1 DAP_SDIN2 X_DAP_SDIN2 DAP_SDIN3 X_DAP_SDIN3 74HC245AW M X_SD A X_SC L X_AD0/CS X_RES ETn MUTEC... -
Page 13: Figure 5. Analog Output Filter 1
TP65 +12V 47nf 3.16k 3.16k PHONO JACK RA MC330 78 100k 10uf 47nf -12V MU TE 2SC3326 C117 3.16k 47nf 1.78k 3.16k 100pf Figure 5. Analog Output Filter 1... -
Page 14: Figure 6. Analog Output Filter 2
TP77 3.16k 3.16k PHONO JACK RA MC330 78 100k 10uf MU TE 1.78k 2SC3326 3.16k C118 3.16k 47nf 100pf Figure 6. Analog Output Filter 2... -
Page 15: Figure 7. Analog Output Filter 3
TP78 +12V 47nf 3.16k 3.16k U10A PHONO JACK RA MC330 78 100k 10uf 47nf -12V MUT E 2SC3326 C119 3.16k 47nf 1.78k 3.16k 100pf Figure 7. Analog Output Filter 3... -
Page 16: Figure 8. Analog Output Filter 4
TP79 3.16k 3.16k U10B PHONO JACK RA MC330 78 100k 10uf MUT E 3.16k 1.78k 2SC3326 C120 3.16k 47nf 100pf Figure 8. Analog Output Filter 4... -
Page 17: Figure 9. Analog Output Filter 5
TP80 +12V 47nf 3.16k 3.16k U11A PHONO JACK RA MC3307 8 100k 10uf 47nf -12V MUT E 2SC3326 C121 3.16k 47nf 1.78k 3.16k 100pf Figure 9. Analog Output Filter 5... -
Page 18: Figure 10.Analog Output Filter 6
TP81 3.16k 3.16k U11B PHONO JACK RA MC3307 8 100k 10uf MUT E 2SC3326 1.78k 3.16k C122 3.16k 47nf 100pf Figure 10. Analog Output Filter 6... -
Page 19: Figure 11.Low Cost Analog Output Filter
Mute From DAC To Amp 3.3nF 10uF 100k 100K Mute Control Figure 11. Low Cost Analog Output Filter... -
Page 20: Figure 12.Control Port Interface
1k RPACK9 1k RPACK9 TP87 D[7..0] PP_D0 PP_D1 PP_nSTROBE STROBEn PP_D2 nAUTOFEED TP88 PP_D3 nINIT PP_D4 nSELECTIN PP_D5 TP89 TP90 A[1..0] PP_D6 TP92 TP91 PP_D7 TP94 TP93 TP95 TP96 4.7k RPACK8 4.7k RPACK8 PP_nSTROBE nAUTOFEED RESET n PP_D0 nERROR 1k RPACK9 PP_D1 nINIT PP_D2... -
Page 21: Figure 13.Programmable Logic
1k RPACK9 MODE_CTRL[9..0] MODE_CTRL0 MODE_CTRL1 MODE_CTRL2 MODE_CTRL3 MODE_CTRL4 MODE_CTRL5 MODE_CTRL6 MODE_CTRL7 MODE_CTRL8 MODE_CTRL9 HEADER 5X2 STROBEn GCLK1 MRESETn GCLRn RXPWR CLKIN OE2/GCLK2 D[7..0] MODE_CTRL6 TP43 IO41 MODE_CTRL7 CDIN IO42 MODE_CTRL8 IO43 AD0/CS MODE_CTRL9 SDA/CDOUT IO44 IO45 STATUS3 IO46 TP47 HALFSCLK TP48 IO47 SCLK... -
Page 22: Figure 14.Power Supply
+12V Analog Supply Voltage TP105 +12VBUS C100 C101 22uf P6KE13A 47nf 47nf GREEN LED 10uf 10uf 10uf 10uf 10uf TP106 TP107 TP108 C102 22uf P6KE13A C109 C103 C104 C105 C106 C107 C108 10uf 10uf 10uf 10uf 10uf 47nf 47nf GREEN LED -12VBUS -12V Analog Supply Voltage... -
Page 23: Figure 15.Master Clock Circuit
HDR3X1 CLKOUT 47nf 47nf 12.2880 MHZ 74AC125SC REFCLK REFCLK SPDIF_MCLK MUX_ MCLK REFCLK_CTRL3 HEADER 3X2 REFCLK SELECT 74AC125SC SPDIF_MCLK SPDIF_MCLK REFCLK_CTRL2 74AC125SC DAP_MCLK DAP_MCLK R106 REFCLK_CTRL1 74AC125SC REFCLK REFCLK_CTRL0 REFCLK_CTRL[3..0] 47nf 47nf Figure 15. Master Clock Circuit... -
Page 24: Figure 16.Cs8414 Digital Audio Receiver
RXPWR 47nf 47nf 47nf 47nf AGND DGND TP66 FILT VERF RX_VERF TP67 RX_ERF TP68 68nf RX_CB L RX_U RX_C TP69 CS12/FCK C0/E0 TP70 47uH Ca/E1 TP71 TP74 M[3..0] Cb/E2 TP72 TORX 173 47nf Cc/F0 TP73 TP75 Cd/F1 TP76 MCL K Ce/F2 SCLK FSYNC... -
Page 25: Figure 17.Cs8404 Digital Audio Transmitter
10k RPACK9 10k RPACK9 TRNPT/FC1 nC7/nC3 TP28 TP29 nPRO nC1/FC0 TP30 TP31 nC6/nC2 TP32 TP33 C/SBF EM1/nC8 TP34 TP35 TP36 TP37 nC9/nC15 TP38 EM0/nC9 TP39 TP40 TRNPT/FC1 TP41 TRNPT/FC1 nC7/nC3 C7/C3 nPRO 47nf 47nf nC1/FC0 C1/FC0 nC6/nC2 C6/C2 nC9/nC15 C9/C15 EM1/nC8 EM1/C8 nMRE SET... -
Page 26: Figure 18.Silkscreen Top
CDB4228A Figure 18. Silkscreen Top DS511DB1... -
Page 27: Figure 19.Top Side
CDB4228A Figure 19. Top Side DS511DB1... -
Page 28: Figure 20.Level 2 Ground Plane
CDB4228A Figure 20. Level 2 Ground Plane DS511DB1... -
Page 29: Figure 21.Level 3
CDB4228A Figure 21. Level 3 DS511DB1... -
Page 30: Figure 22.Bottom Side
CDB4228A Figure 22. Bottom Side DS511DB1... -
Page 31: Bill Of Materials
10. BILL OF MATERIALS Item Qnty Reference Value Mfg P/N Description PCB Footprint C1,C2,C3,C4,C6,C9,C12, 47nf KEMET C1206C473K5R CAP, CERAMIC, 47NF, 50V, 10%, X7R, CSN_1206 C13,C15,C16,C17,C18,C27, 1206 C28,C29,C30,C31,C32,C34, C35,C39,C42,C44,C45,C46, C47,C49,C50,C51,C57,C60, C67,C70,C76,C77,C78,C79, C83,C85,C87,C88,C90,C100, C101,C103,C109,C111,C114, C115,C117,C118,C119,C120, C121,C122 C5,C7,C8,C19,C20,C33,C40, 10uf PANA- ECE- CAP, ELECT, 10UF, 16V, 20%, AL, SM_A CSP_ELEC_130SQ C53,C58,C63,C68,C73,C84, SONIC V1CS100SR... - Page 32 JP7,JP9 HEADE SAMTEC TSW-105-07-G- HEADER, MALE, 5X2 HDR5X2 R 5X2 HEADE SAMTEC TSW-110-07-G- HEADER, MALE, 10X2 HDR10X2 R 10X2 J1,J2,J7,J8,J9,J10,J11, PHONO A/D ELECT ARJ2018 PHONO JACK, RA, GOLD CON_RCA_RA J12,J13,J14 JACK TERMI- E.F.JOHNS 111-0110-001 BINDING POST, BLUE, BPOST CON-BINDPOST BLUE TERMI- E.F.JOHNS 111-0103-001...
- Page 33 R3,R94,R95 YAGEO ERJ-8GEYJ000 RES, 0 OHM JUMPER, 1/8W, 1206 RES_1206 R5,R7,R20,R74,R77,R78, PANA- ERJ-8ENF1002 RES, THICK FILM, 10K, 1/8W, 1%, 1206 RES_1206 R79,R81,R84,R85,R86,R96,R97 SONIC R6,R13,R14,R17,R18,R27, 3.16k PANA- ERJ-8ENF3161 RES, THICK FILM, 3.16K, 1/8W, 1%, RES_1206 R28,R31,R33,R34,R35,R38, SONIC 1206 R39,R45,R46,R49,R51,R52, R53,R56,R57,R59,R60,R63,R65 R8,R82 8.25k PANA- ERJ-8ENF8251...
- Page 34 PTS645 C&K PTS645TL50 SWITCH, 6MM TACT W/ ESD PIN, SW-MOM-C&K TL50 130GF, DPST GRAYHILL 76SB10 SWITCH, DIP, 10 POS, ROCKER, DIP20 SW-DIP10 DIP10 TP1,TP2,TP3,TP4,TP5,TP6,TP7, TEST TEST POINT, PAD60R40 TESTPOINT TP8,TP9,TP10,TP11,TP12,TP13, POINT TP14,TP15,TP16,TP17,TP18, TP19,TP20,TP21,TP22,TP23, TP24,TP25,TP26,TP27,TP28, TP29,TP30,TP31,TP32,TP33, TP34,TP35,TP36,TP37,TP38, TP39,TP40,TP41,TP43,TP47, TP48,TP49,TP50,TP51,TP53, TP55,TP56,TP58,TP60,TP61, TP64,TP65,TP66,TP67,TP68, TP69,TP70,TP71,TP72,TP73, TP74,TP75,TP76,TP77,TP78, TP79,TP80,TP81,TP82,TP83,...
- Page 35 CS8414- CRYSTAL CS8414-CS IC, SPDIF RX, SOIC28 SO28-300 TORX17 TOSHIBA TORX173 IC, OPTICAL RX TORX173 U13,U12 74HC24 FAIR- MM74HC245AW IC, TRANCEIVER, HEX, SOW20 SO20-300 5AWM CHILD LT1086 LINEAR LT1086CT-3.3 IC, VOLTAGE REG, POSITIVE, 3.3V, TO-220AB CT-3.3 TO220 DS1233- DALLAS DS1233-10 IC, POWER SUPPLY MONITOR, TO92 TO-92 AUGUAT...
