Headlamp Replacement - Polaris RZR XP 1000 Service Manual

Hide thumbs

Advertisement

Table of Contents
ELECTRICAL

Headlamp Replacement

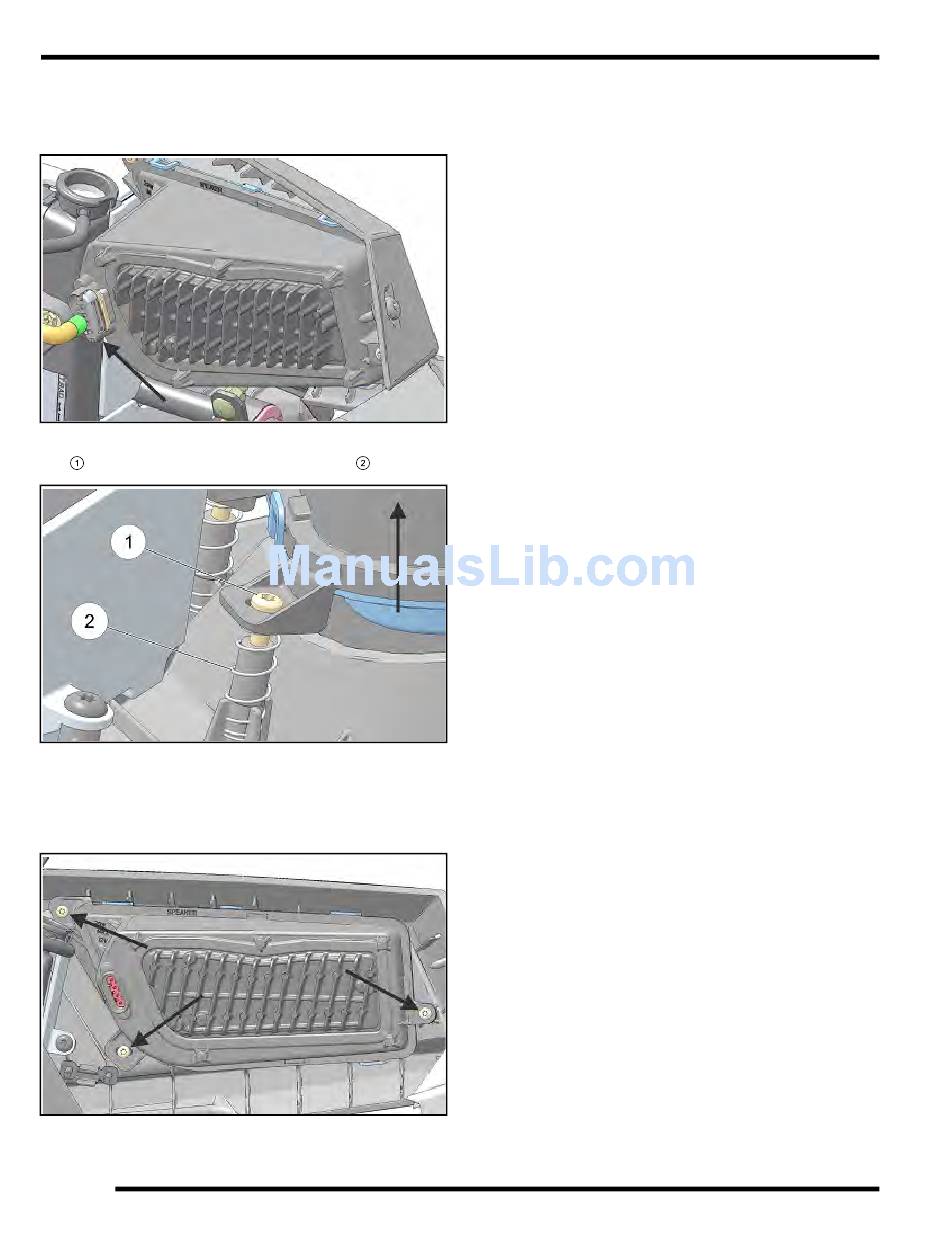

1. Disconnect wire harness from headlamp assembly.
Be sure to pull on the connector, not on the wiring.
2. Remove the three T-25 headlamp mounting screws
and three adjustment preload springs
1
NOTE: The front bumper can be removed and
placed face down on a suitable workbench to
ease headlamp replacement (see Chapter 10 –
Front Bumper XP, page 10.19).
11.22
.
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.
3. Carefully lift and remove headlamp assembly from
the bumper.
