BRAKE SYSTEM

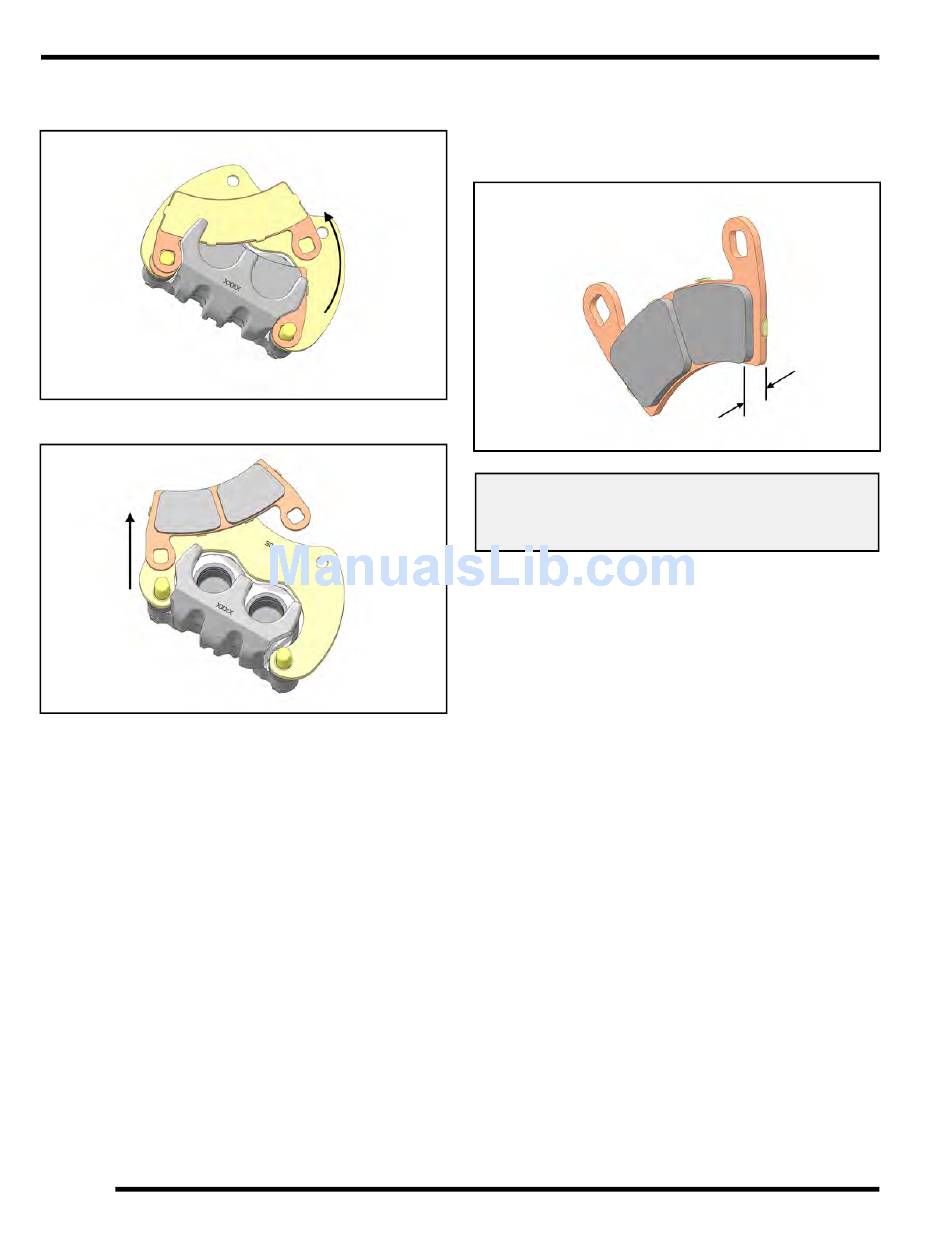

7. Push caliper mounting bracket inward and slip outer
brake pad past the edge to remove.
8. Remove the inner brake pad.
9.30
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

Pad Inspection

1. Clean the caliper with brake cleaner or alcohol.
2. Measure the thickness of the pad material. Replace
pads if worn beyond the service limit.
Rear Brake Pad Thickness:
0.298 ± 0.007" (7.57 mm ± .178 mm)
Service Limit: 0.180" (4.6 mm)
