FUEL SYSTEM

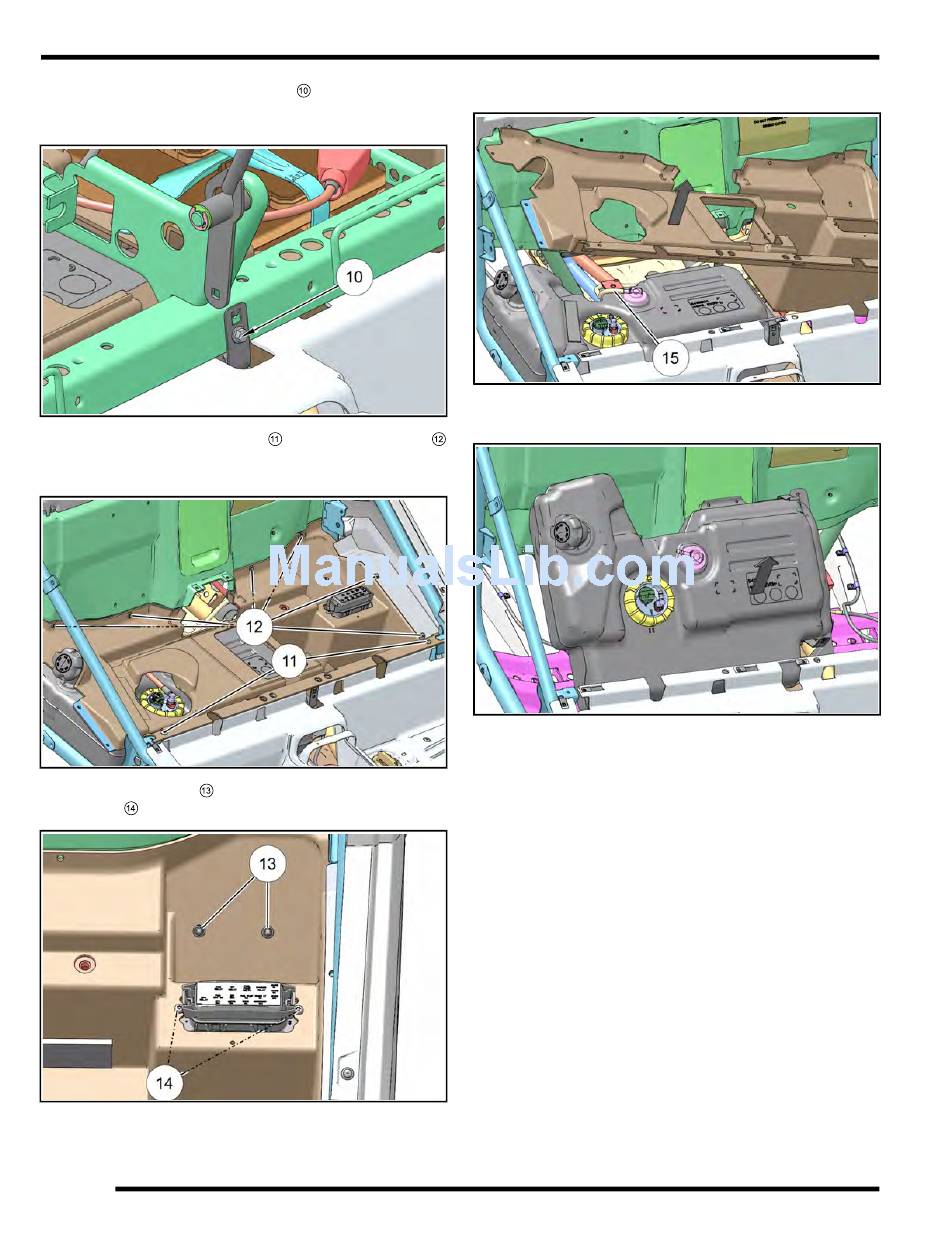

10. Remove the T-40 Torx screw
tank strap to the seat base frame. Remove the strap
from the other side of the seat base frame as well.
11. Remove the Torx screws
retaining the block-off panel using a T40 Torx driver.
Remove the panel from the vehicle.
12. Remove the nuts
retaining the regulator and Torx
13
screws
retaining the fuse box.
14
4.12
retaining the fuel
10
and plastic rivets
11
12
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.
13. Remove the fuel tank vent line from the tank fitting.
14. Lift the rear of the fuel tank up first. Carefully pull the
fuel tank out of the vehicle.
