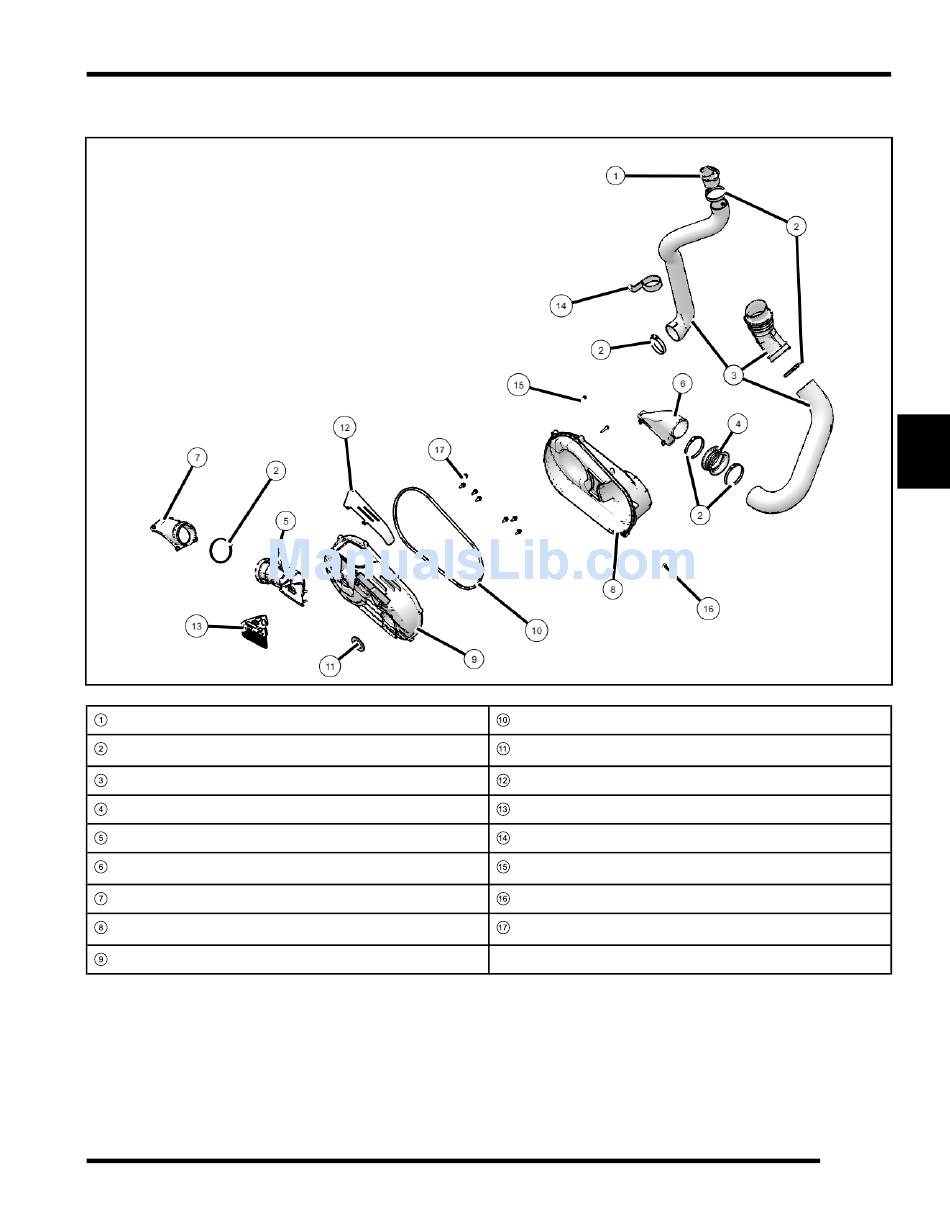

2015 XP / XP4 PVT Covers and Ducting Components
Inlet Duct
1
Band Clamp
Intake Hose
Boot
Clutch Outlet Duct
Inlet Duct
Outlet Duct
Outer Clutch Cover
Inner Clutch Cover
9
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
Outer Cover Seal
10
Inner Cover Seal
11
Guard Plate
12
Outlet Duct Screen
13
Intake Hose Bracket
14
Outer Cover Screws (8 ft-lbs, 11 Nm)
15
Clutch Cover Drain Screw
16
Inner Cover Screws (8 ft-lbs, 11 Nm)
17
