5.5

Pre-emption

5.5.1
Stacking
ARM DDI 0337G
Unrestricted Access
The following sections describe the behavior of the processor when it takes an
exception:
Stacking
Late-arriving on page 5-15
Tail-chaining on page 5-14.
When the processor invokes an exception, it automatically stores the following eight
registers to the SP in the following order:
Program Counter (PC)
Processor Status Register (xPSR)
r0-r3
r12
Link Register (LR).
The SP is decremented by eight words by the completion of the stack push. Figure 5-1
shows the contents of the stack after an exception pre-empts the current program flow.
Note
Figure 5-1 shows the order on the stack.
If STKALIGN is set in the Configuration Control Register then an extra word can
be inserted before the stacking takes place. See Configuration Control Register on
page 8-26.
After returning from the ISR, the processor automatically pops the eight registers from
the stack. Interrupt return is passed as a data field in the LR, so ISR functions can be
normal C/C++ functions, and do not require a veneer.
Copyright © 2005-2008 ARM Limited. All rights reserved.

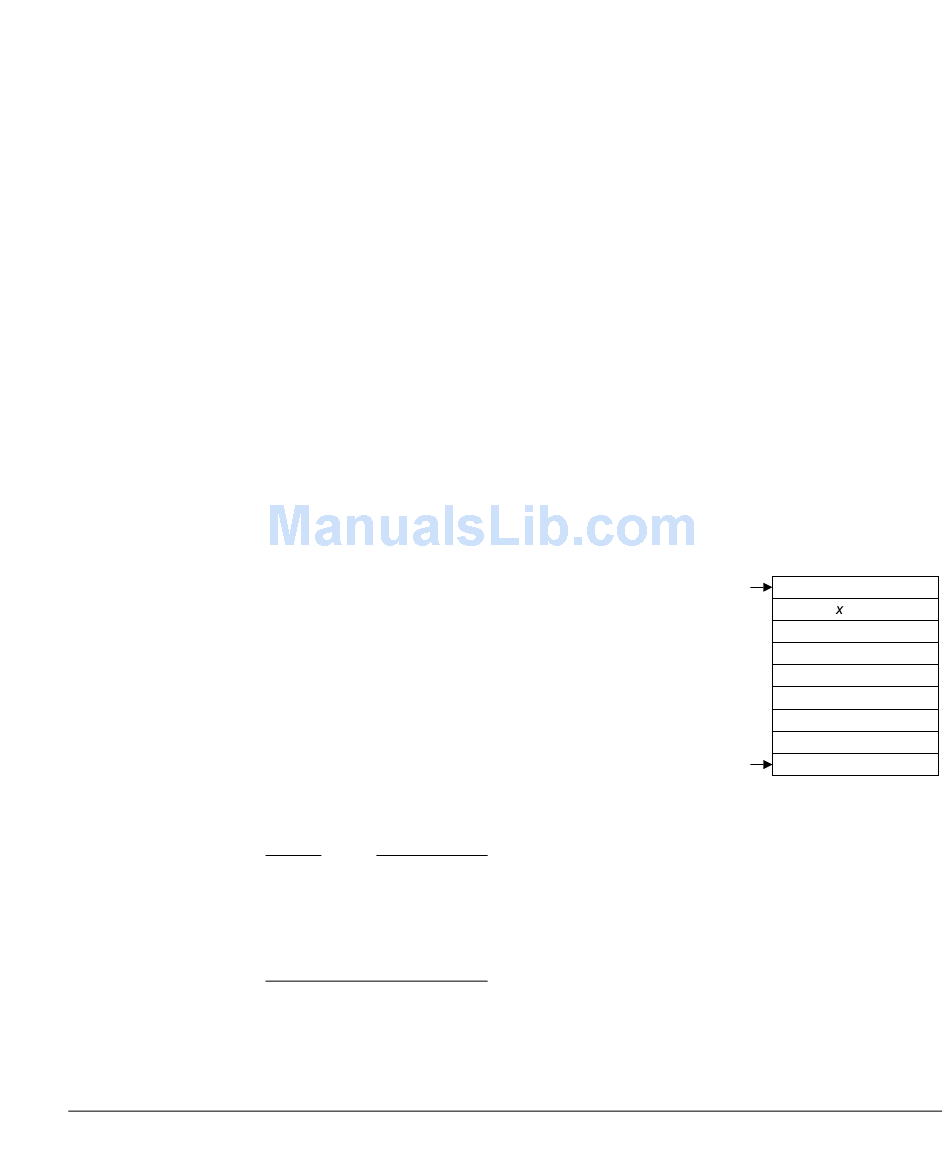

Figure 5-1 Stack contents after pre-emption

Non-Confidential
Exceptions
Old SP
<previous>
PSR
PC
LR
r12
r3
r2
r1
SP
r0
5-11
