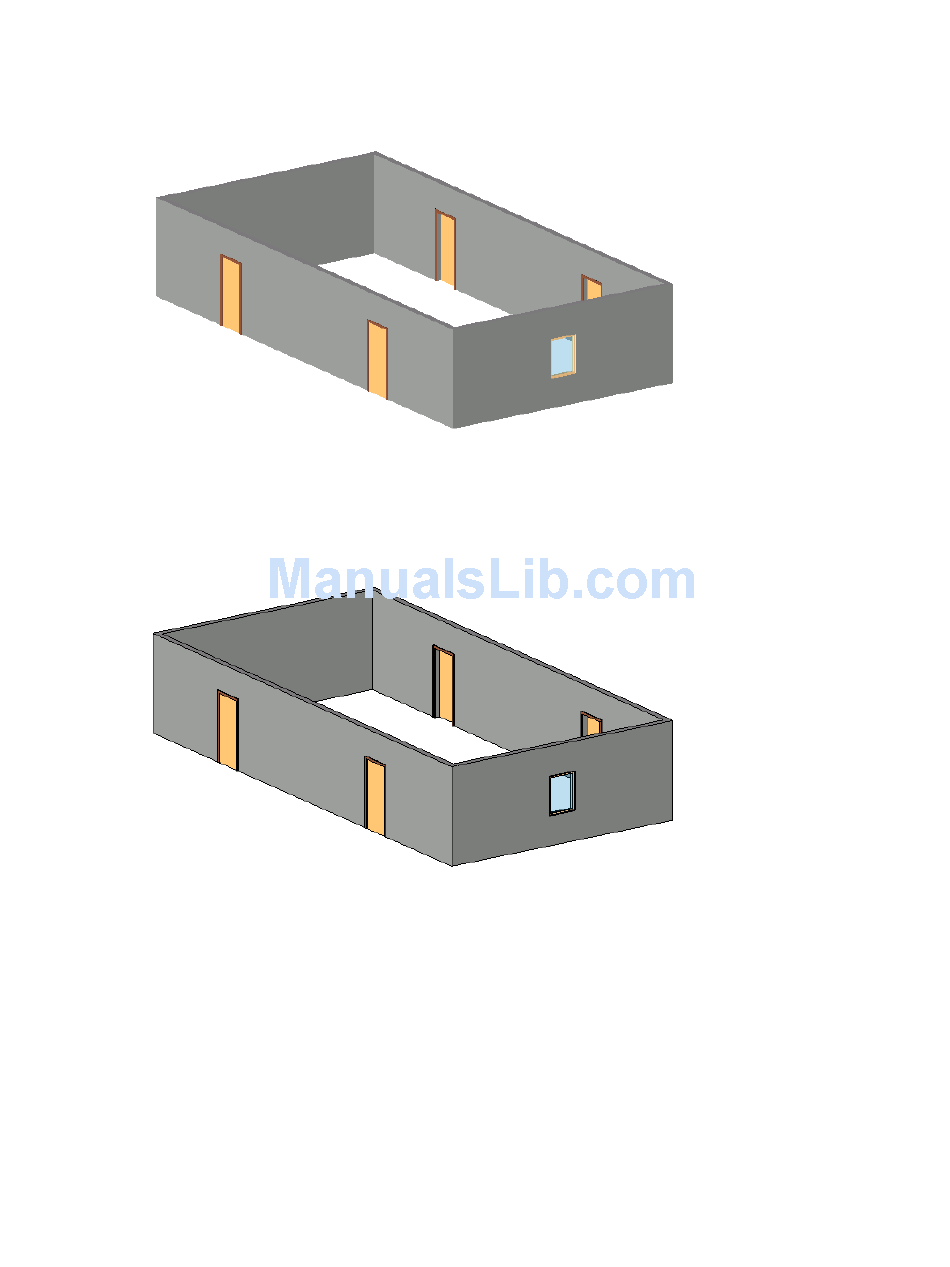

shading A model graphics style in which Revit Architecture shows the image with all surfaces shaded
according to their material color settings and project light locations. A default light source provides
illumination for the shaded elements.
See Shading Model Graphics Style
shading with edges A model graphics style in which Revit Architecture shows the image with all surfaces
shaded according to their material color settings and project light locations, and with all non-occluded edges
drawn. A default light source provides illumination for the shaded elements.
See Shading with Edges Model Graphics Style
shadow study See solar study
shaft An opening that extends the entire height (or through specified levels) of a building, cutting through
floors, ceilings, and roofs, as appropriate.
For example, the stairwell and elevator shaft in the following section view were created as shafts.
See Cutting Shaft Openings
on page 203.
on page 203.
on page 1458.
on page 661.
Glossary | 1557
