Inspection Of Pinching Prevention Function (Pinching Prevention Function Model); Power Door Mirror Control System Symptom Diagnosis - Suzuki SX4 Service Manual

9E-4 Glass / Windows / Mirrors:
Condition
Driver side door glass
lowers back while using
auto-up function although
nothing is pinched
between door glass and
frame (Pinching
Prevention Function
Model)

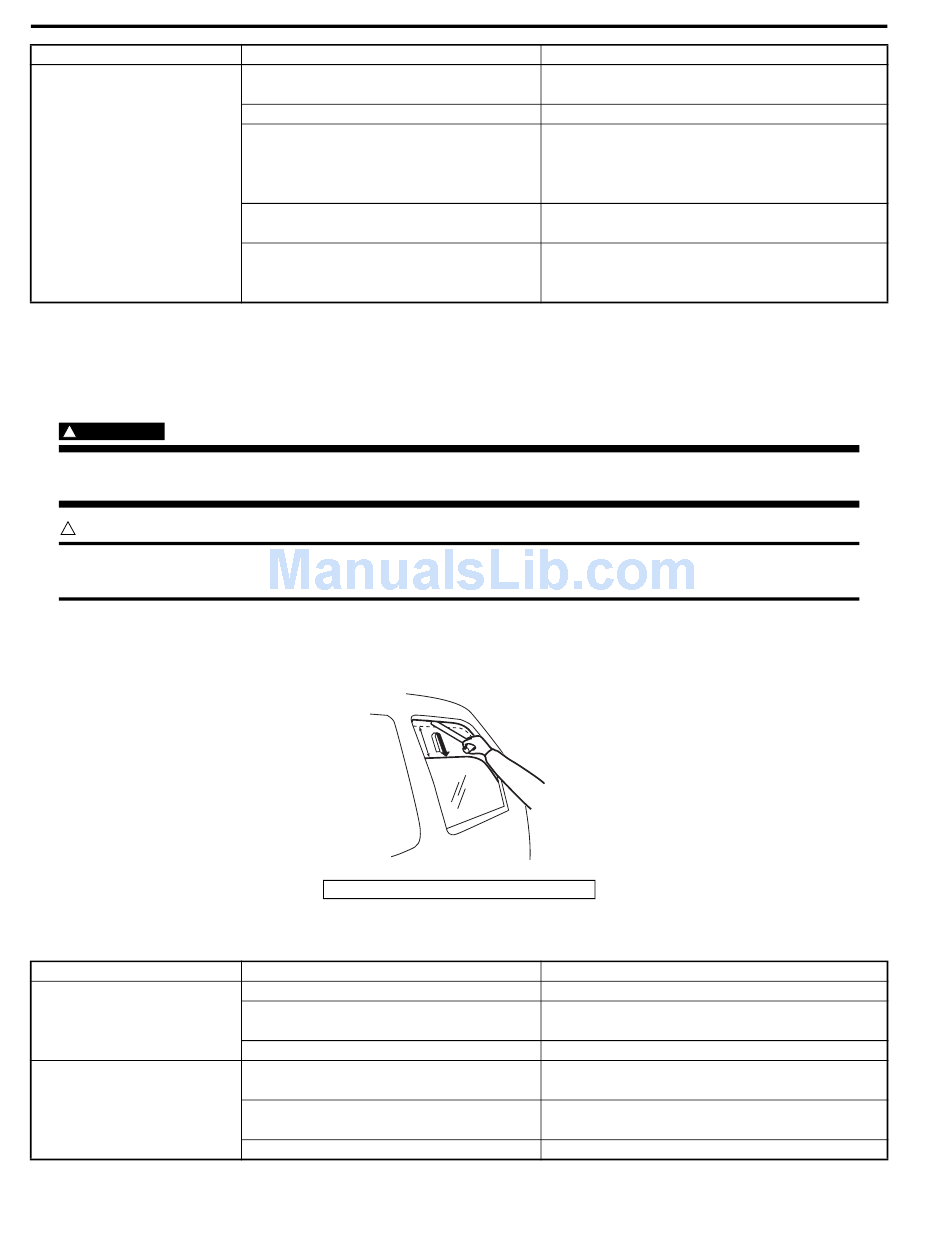

Inspection of Pinching Prevention Function (Pinching Prevention Function Model)

1) Open driver side door glass fully.
2) Hold a hummer so that its handle (wooden) (1) is placed as shown.
WARNING
!
Never attempt to have your hand, arm or any other part of the body punched. Also, use full care not to
have your body caught during inspection.
CAUTION
!
If a side visor is installed, be careful so that hammer handle does not contact the visor. A hammer can
be held from inside of the vehicle.
3) Use auto-up function of power window main switch.
4) Check that door glass lowers back automatically to specified position "a" before hammer handle is caught. If there
is any faulty condition, referring to "Power Window Control System Symptom Diagnosis".

Power Door Mirror Control System Symptom Diagnosis

Condition
All power mirrors do not
operate
One power mirror does
not operate
Possible cause
Foreign matter is attached to door glass,
glass run or sash etc.
Glass run and/or door sash faulty
Power window main switch has not been
initialized
Power window main switch faulty
Power window motor faulty
"a". Approx. 220 mm (8.66 in.)
Possible cause
Circuit fuse blown
Power door mirror switch faulty
Wiring or grounding faulty
Power door mirror switch faulty
Power door mirror actuator faulty
Wiring or grounding faulty
Correction / Reference Item
Remove the foreign matter.
Repair or replace.
Execute the initial setting of power window
main switch referring to "Power Window Main
Switch Initialization (Pinching Prevention
Function Model)".
Check power window main switch referring to
"Power Window Main Switch Inspection".
Check power window motor referring to "Pulse
Sensor and Its Circuit Inspection (Pinching
Prevention Function Model)".
I6RW0D950006-01
Correction / Reference Item
Replace fuse and check for short circuit.
Check power door mirror switch referring to
"Power Door Mirror Switch Inspection".
Repair circuit.
Check power door mirror switch referring to
"Power Door Mirror Switch Inspection".
Check actuator refraining to "Power Door
Mirror Actuator Inspection".
Repair circuit.
S7RW0A9504004
