9E-10 Glass / Windows / Mirrors:

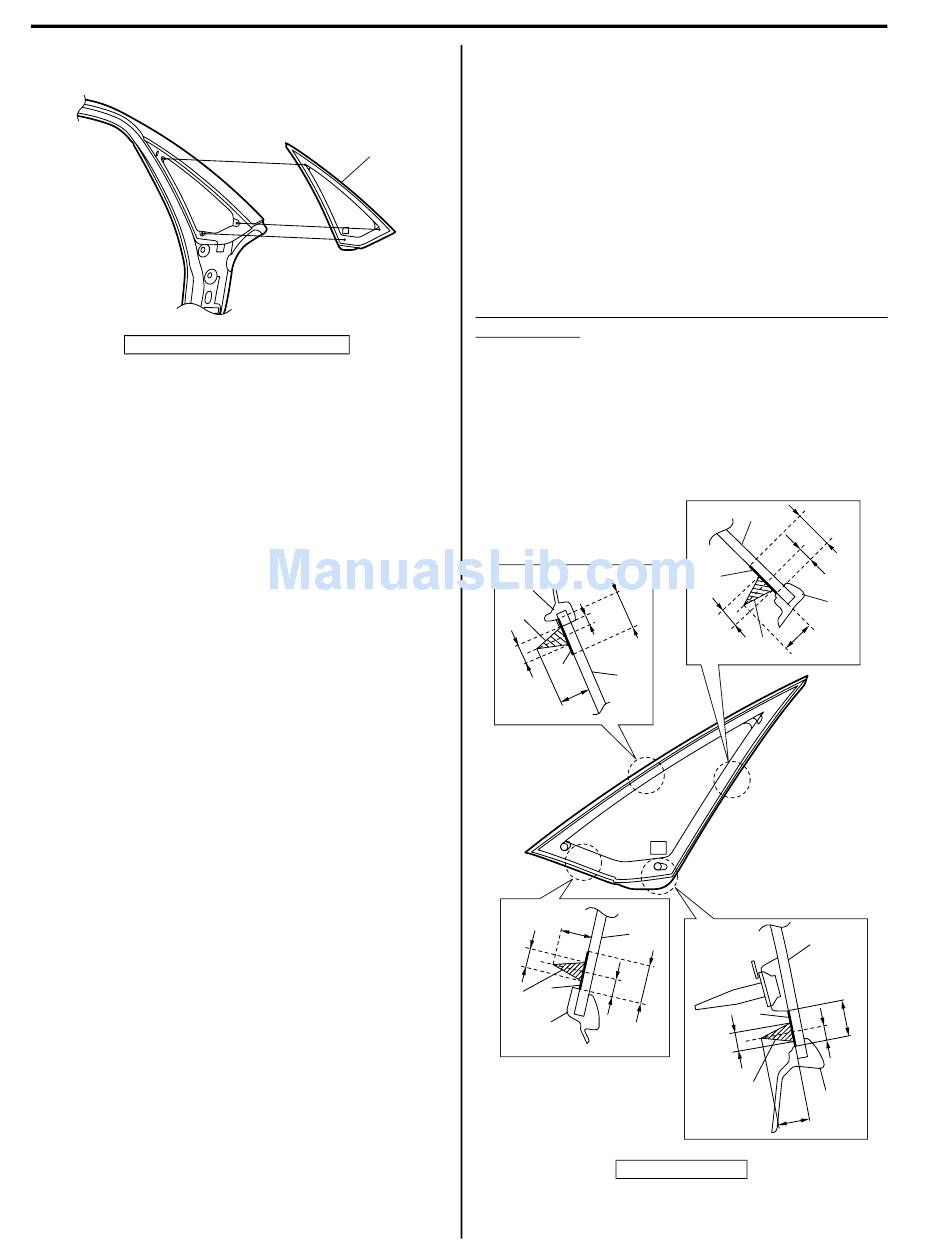

Front Pillar Window Components
1. Front pillar window glass
Front Pillar Window Removal and Installation
S7RW0A9506003
Refer to "Windshield Removal and Installation" as
preparation, removal and installation procedures are
basically the same. However, note the following.
• Observe the following precautions when applying
1
adhesive (1) along glass (2) edge.
• Adhesive (1) should be applied evenly especially in
height.
• Be careful not to damage primer (3).
• Press glass against body quickly after adhesive (1) is
applied.
Adhesive amount specification and position for front
I5RW0A950007-02
pillar window
Height "a": 10 mm (0.39 in.)
Width "b": 6 mm (0.24 in.)
Position "c": 4.5 mm (0.18 in.)
Width "d": 12 mm (0.47 in.)
Position "e": 3.5 mm (0.14 in.)
Position "f": 5.5 mm (0.22 in.)
Width "g": 11.3 mm (0.44 in.)
4
1
"b"
"b"
1
3
"d"
"e"
"b"
3
2
"a"
"a"
2
"d"
3
"f"
4
"b"
4. Molding
S7RW0A9506004
2
"d"
"c"
4
1 "a"
2
3
"g"
"c"
1
4
"a"
I5RW0A950008-01
