Front Door Glass Removal and Installation

NOTE
(For pinching prevention function model)
After disconnecting the power window main
switch, make sure to execute to the initial
setting, (to have the door glass closed
position learned) refer to "Power Window
Main Switch Initialization (Pinching
Prevention Function Model)".

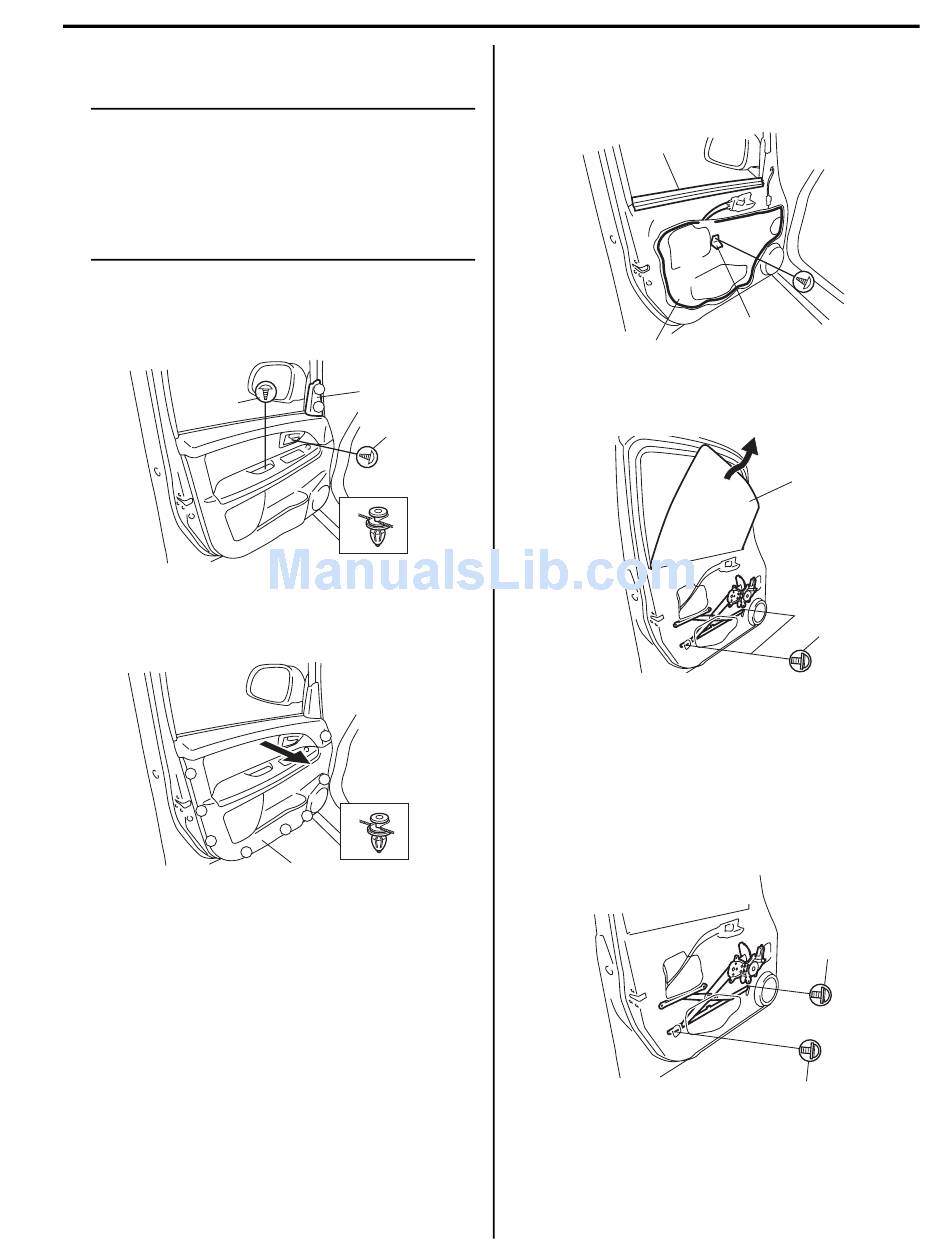

Removal
1) Remove door mirror trim (1).
2) Remove door trim mounting screws (2).
2
3) Remove door trim (1) as shown.
And disconnect connectors from power window
switch, door mirror and tweeter (if equipped).
"A"
"A"
"A"
"A"
S7RW0A9506010
1
"A"
"A"
2
"A"
I5RW0A950014-02
"A"
"A"
"A"
"A"
"A"
1
I8RW01950002-01
Glass / Windows / Mirrors:
4) Remove door inner weather-strip (3).
5) Remove door trim bracket (1).
6) Remove door sealing cover (2).
3
2
7) Remove door glass mounting screws (1).
8) Remove door glass (2) while tilting it as shown.
Installation
Reverse removal procedure noting the following
instructions.
• If there is deformity for glass run, replace it with a new
one.
• Tighten door glass rear mounting screw (1) first, and
then tighten door glass front mounting screw (2).
9E-15
1
I5RW0A950016-02
2
1
I5RW0A950017-03
2
1
I5RW0A950018-02
