Keyless Entry System Operation Inspection

NOTE
When performing the this inspection, make
sure to have any of the door once opened/
closed after the ignition key has been
removed from the ignition key cylinder.
1) Confirm that power door lock system operates
normally, refer to "Power Door Lock System
Operation Inspection".
2) All doors are closed and unlocked.
3) Check the following operation:

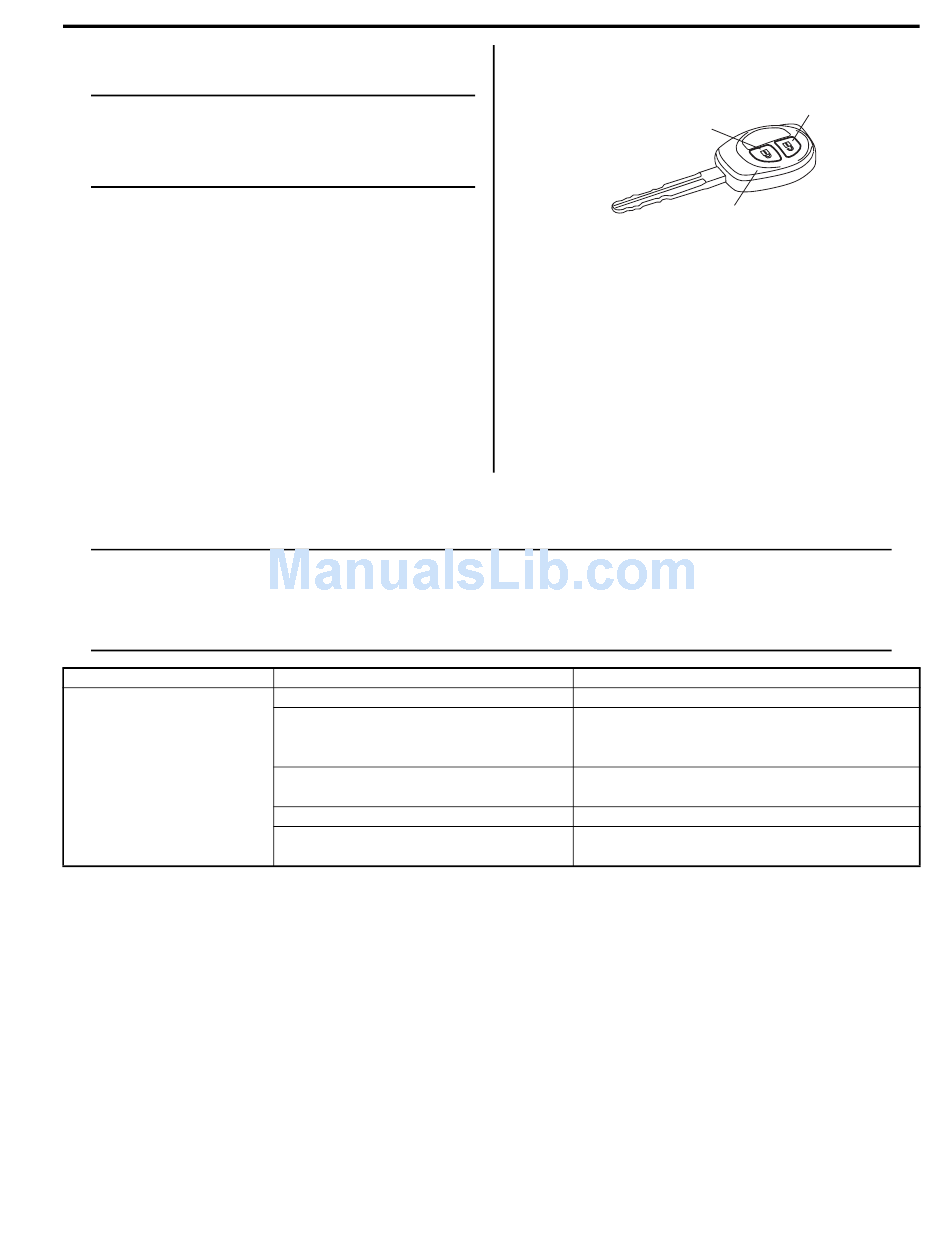

a) Push "lock" button (1) on transmitter (2) or
remote controller, and check all doors lock and
hazard waning lights flash once.
b) Push "unlock" button (3) on transmitter (2) or
remote controller, and check all doors unlock and
hazard waning lights flash twice and interior light
turns on several seconds with the interior light
switch in the middle position.

Rear End Door Opener System Symptom Diagnosis

NOTE
• Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or
output side of BCM. For checking procedure, refer to "Diagnosis Using Output Test Function of
SUZUKI Scan Tool" under "Scan Tool Data in Section 10B".
• Check each part in the order from the top of the following list.
Condition
Rear end door can not be
opened

Rear End Door Opener System Operation Inspection

1) Unlock all doors by using manual lock switch, keyless entry transmitter, or key cylinder switch.
2) Make sure that latch of rear end door is released from striker when rear end door opener switch is pushed.
If malfunction is found, go to "Rear End Door Opener System Symptom Diagnosis".
S7RW0A9604004
Possible cause
Circuit fuse blown
Rear end door opener switch faulty
Rear end door actuator faulty
Wiring or grounding faulty
BCM faulty
If malfunction is found, go to "Keyless Entry System
Symptom Diagnosis".
Door Lock Function of Keyless Start System
Symptom Diagnosis (If Equipped)
Proceed to "Keyless Start System Symptom Diagnosis in
Section 10E" in case that doors cannot be locked and
unlocked by operating the request switch at the outside
door handle.
Correction / Reference Item
Replace fuse and check for short circuit.
Check rear end door opener switch referring to
"Rear End Door Opener Switch Inspection
(Hatchback Model)".
Check rear end door actuator referring to
"Power Door Lock Actuator Inspection".
Repair circuit.
Replace after making sure that none of above
parts is faulty.
Security and Locks:
3
1
2
I4RS0B960013-01
S7RW0A9604005
S7RW0A9604006
S7RW0A9604007
9F-5
