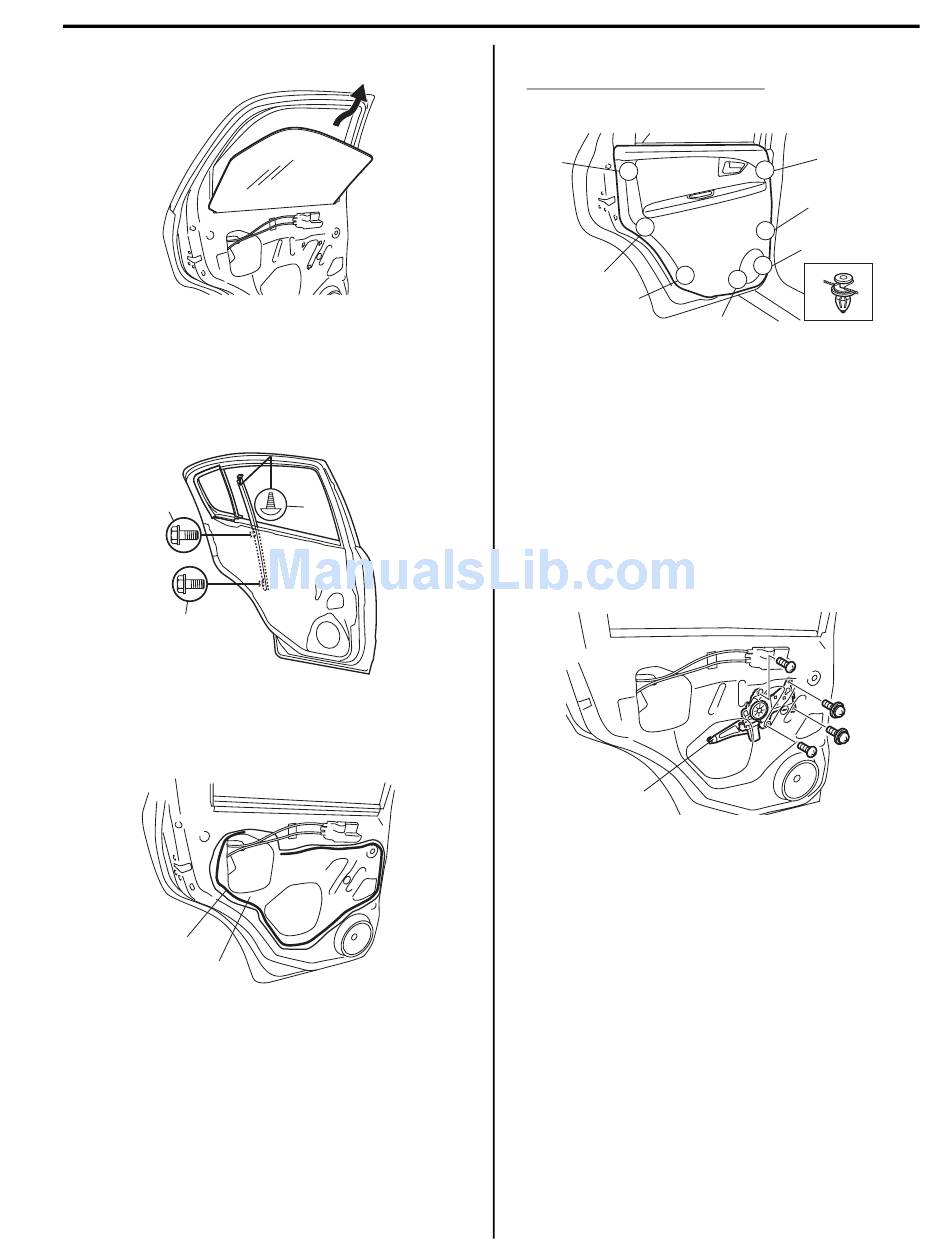

11) Remove door glass as shown.
Installation
Reverse removal procedure noting the following
instructions.
• Tighten door sash mounting bolts and screw ("1" – "3")
according to numerical order as shown in figure.
"2"
"3"
• If there is deformity for glass run, replace it with a new
one.
• Secure door sealing cover (1) with adhesive (2).
2
1
I5RW0A950028-01
"1"
I6RW0B950006-01
I5RW0A950029-04
Glass / Windows / Mirrors:
• Install rear door trim.
Rear door trim attaching order
(1) → (2) → (3) → (4) → (5) → (6) → (7)
2
"A"
"A"
3 "A"
4
Rear Door Window Regulator Removal and
Installation
Removal
1) Remove door glass referring to "Rear Door Glass
Removal and Installation".
2) Disconnect power window motor lead wire at coupler
(if equipped).
3) Loosen regulator mounting screws, and then remove
rear window regulator (1).
1
9E-19
1
"A"
7
"A"
6
"A"
"A"
"A"
5
I8RW01950006-01
S7RW0A9506015
I5RW0A950031-01
