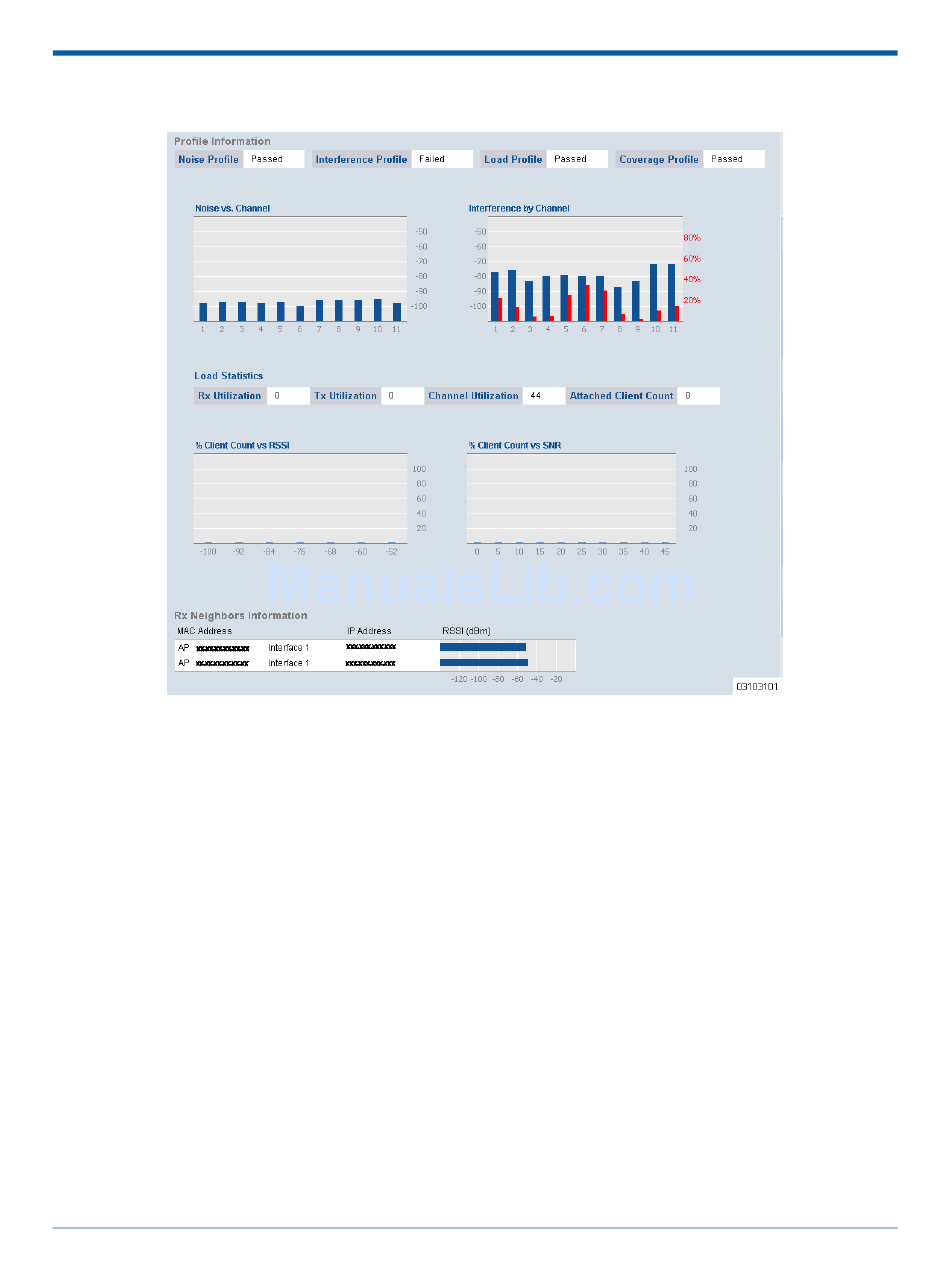

Profile Information in Graphics View
The following sections describe each of the Graphical and Text results.
Noise vs. Channel
Each channel of the OmniAccess AP 1200 or 1250 appears along with the corresponding non-802.11
noise interfering with the currently-assigned channel.
Interference by Channel
Each channel of the OmniAccess AP 1200 or 1250 appears with the corresponding traffic interference
from other 802.11 sources.
Load Statistics
Total bandwidth and channel utilization appears for transmitting and receiving traffic on this Omni-
Access Radio. Attached clients are also displayed.
% Client Count vs. RSSI
The Received Signal Strength appears for each attached client.
% Client Count vs. SNR
The Signal to Noise Ratio appears for each attached client.
