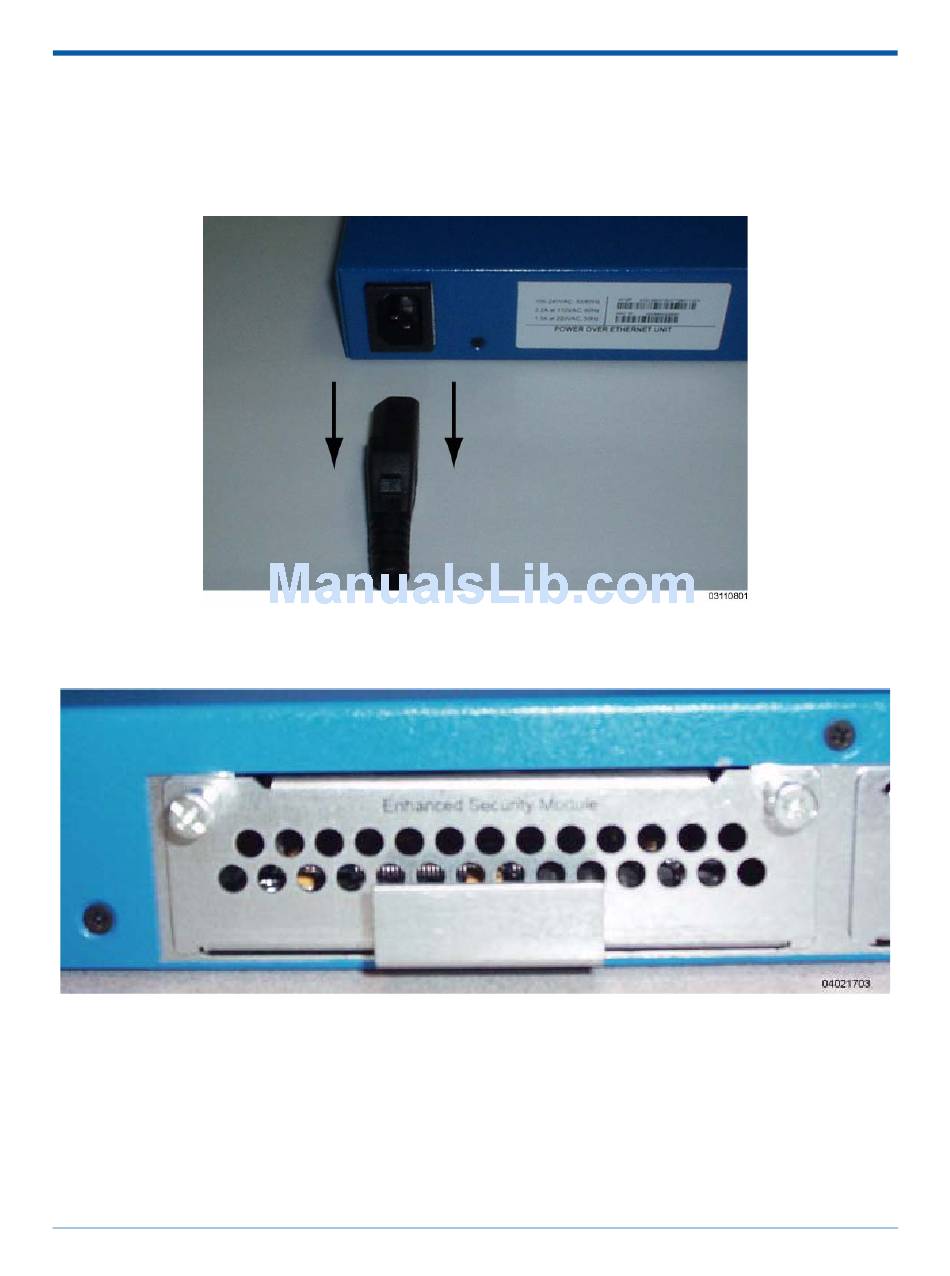

Removing the Enhanced Security Module
Complete the following to remove the Enhanced Security Module from the rear panel of a 4012 or 4024
Alcatel OmniAccess WLAN Switch:
•
Remove power from the Alcatel OmniAccess WLAN Switch.
•
Use the Phillips screwdriver to loosen the captive screws that secure the Enhanced Security
Module to the rear panel of the Alcatel OmniAccess WLAN Switch.
•
Firmly pull the Enhanced Security Module out of the Alcatel OmniAccess WLAN Switch.
•
Using the Phillips screwdriver, secure the Enhanced Security Module slot cover to the rear of
the Alcatel OmniAccess WLAN Switch.
