Removing the 1000Base-T Network Adapter Module
Complete the following to remove the 1000Base-T Network Adapter Module from the rear panel of a
4012 or 4024 Alcatel OmniAccess WLAN Switch:
•

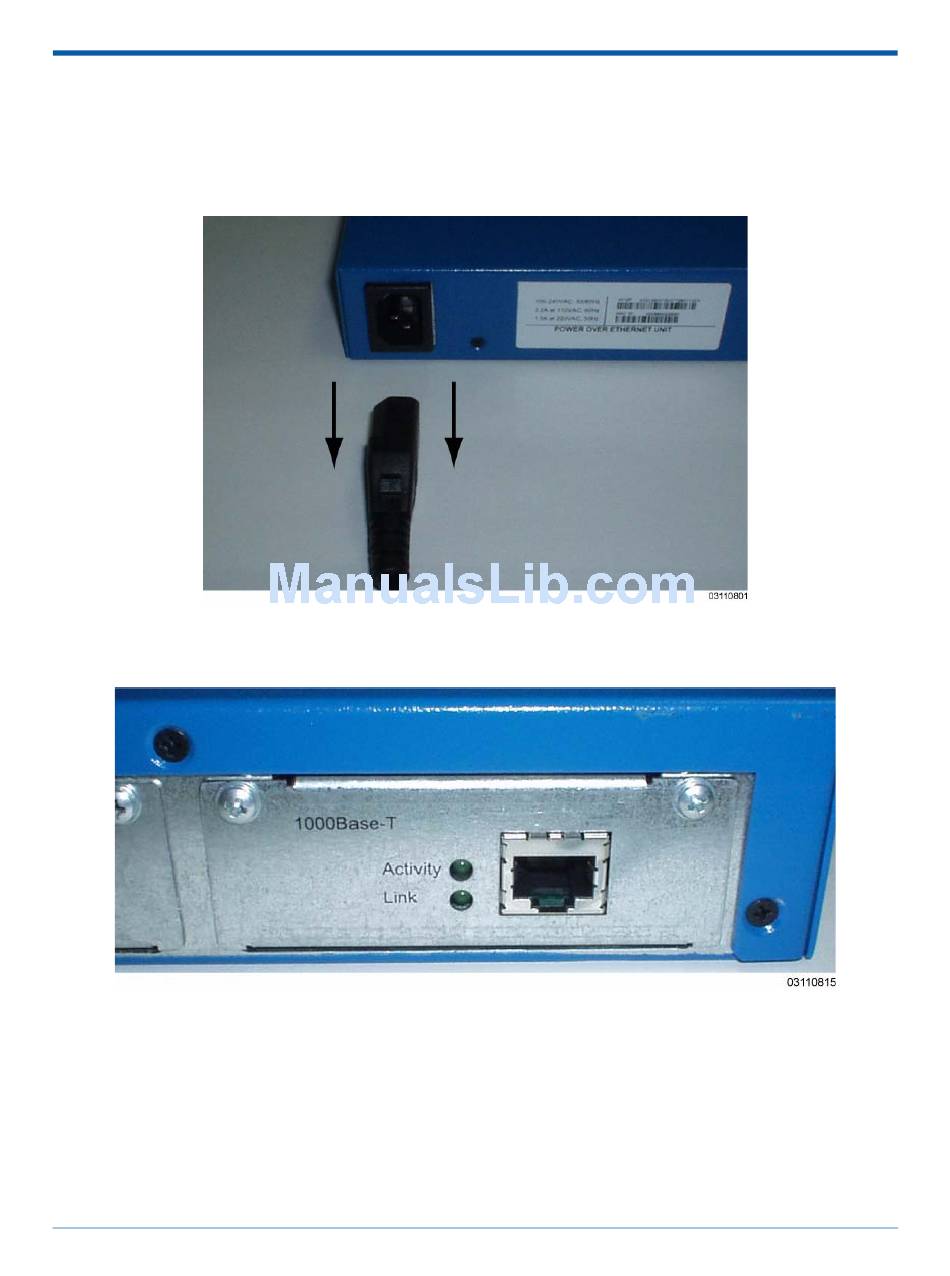

Remove power from the Alcatel OmniAccess WLAN Switch.
•
Use the Phillips screwdriver to remove the screws that secure the 1000Base-T Network Adapter
Module to the rear panel of the Alcatel OmniAccess WLAN Switch.
•
Pull the 1000Base-T Network Adapter Module out of the Alcatel OmniAccess WLAN Switch.
•
Using the Phillips screwdriver, secure the Network Adapter Module slot cover to the rear of the
Alcatel OmniAccess WLAN Switch.
