Figure -

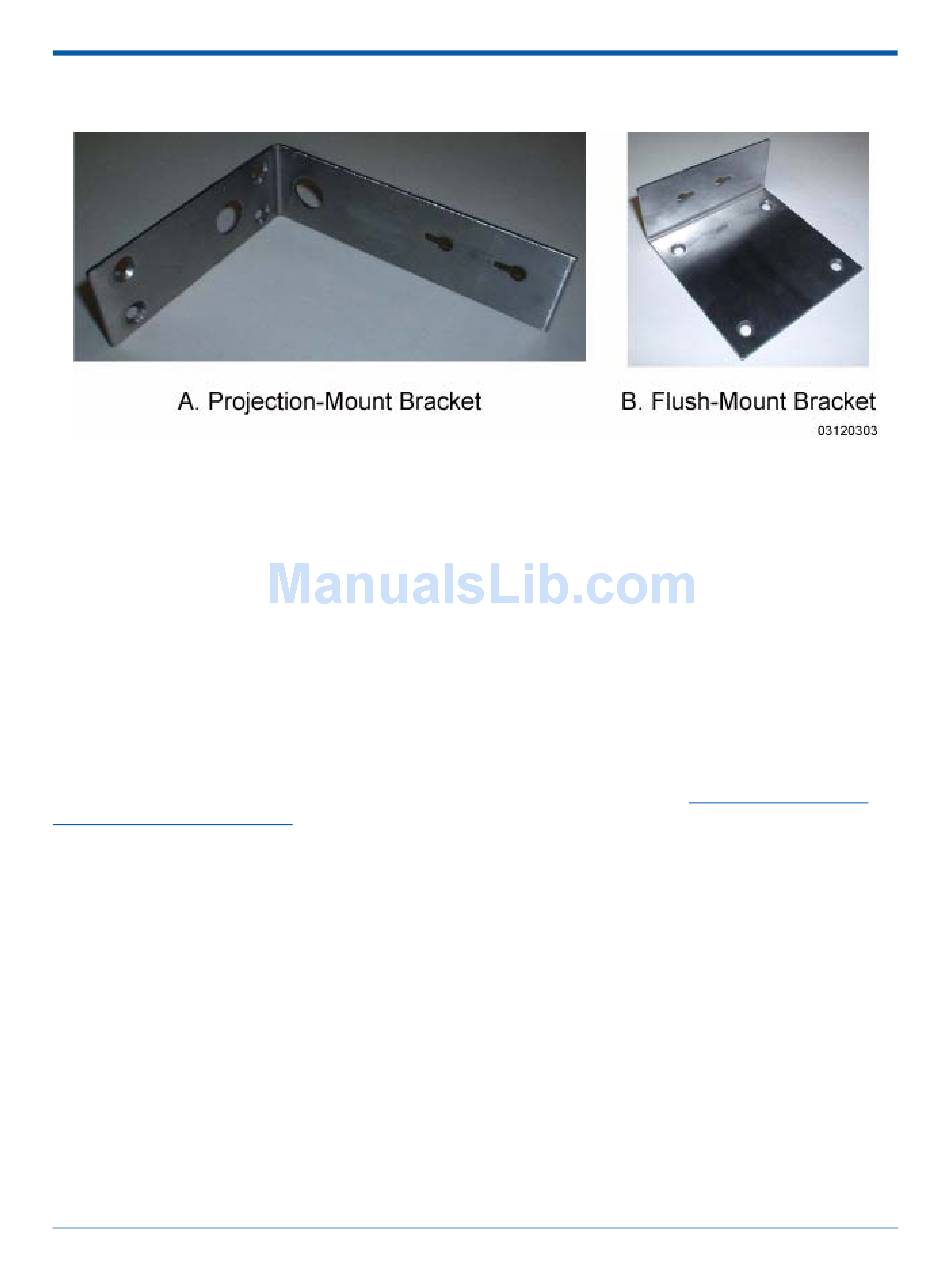

Factory-Orderable Mounting Brackets
•
If necessary, drill holes for the various cables where they can be mostly hidden from casual
view. When you are mounting the OmniAccess AP 1200 or 1250 using an optional
separately-orderable projection-mount L-bracket (the one with two long legs), the cables can
be routed through the 5/8-inch (15.9 mm) holes in the bracket.
•
Route the CAT-5, optional power supply, optional external antenna cable(s), and optional
Kensington MicroSaver Security cables to where they can plug into the OmniAccess AP 1200 or
1250. Make sure to leave about 6 inches (15 cm) of slack in the cables for future modifications.
•
Attach the brackets to the wall or ceiling, or install screws for ceiling-mount base:
-
Where you are going to use the projection-mount or flush-mount bracket, use
customer-supplied sheet metal, drywall, or other screws to attach the bracket to the
ceiling or wall.
-
Where you are going to use the ceiling-mount base, install customer-supplied sheet
metal, drywall, or other screws with 1/4 inch (6.35 mm) or smaller heads protruding
from the ceiling about 0.1 inch (2.5 mm).
You are now ready to install the OmniAccess AP Access Points. Continue with
OmniAccess AP Access
11/5/04
90-100831-300 Rev 2Alcatel OmniAccess Wireless Access Point Quick Installation Guide 12
Points.
Step 3: Preparing Mounting Locations
Step 4: Mounting the
